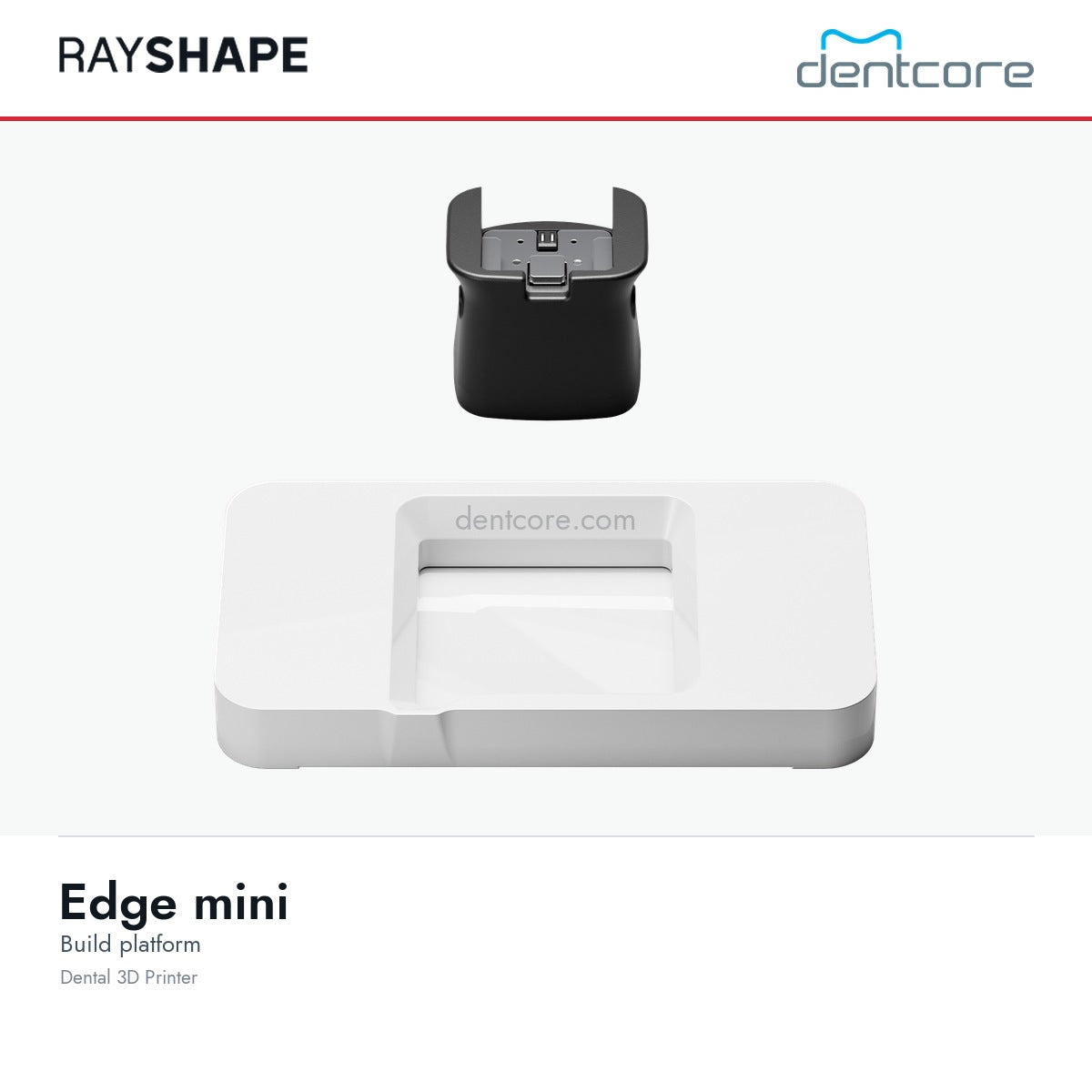

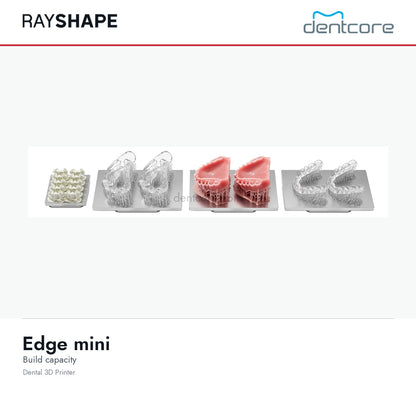

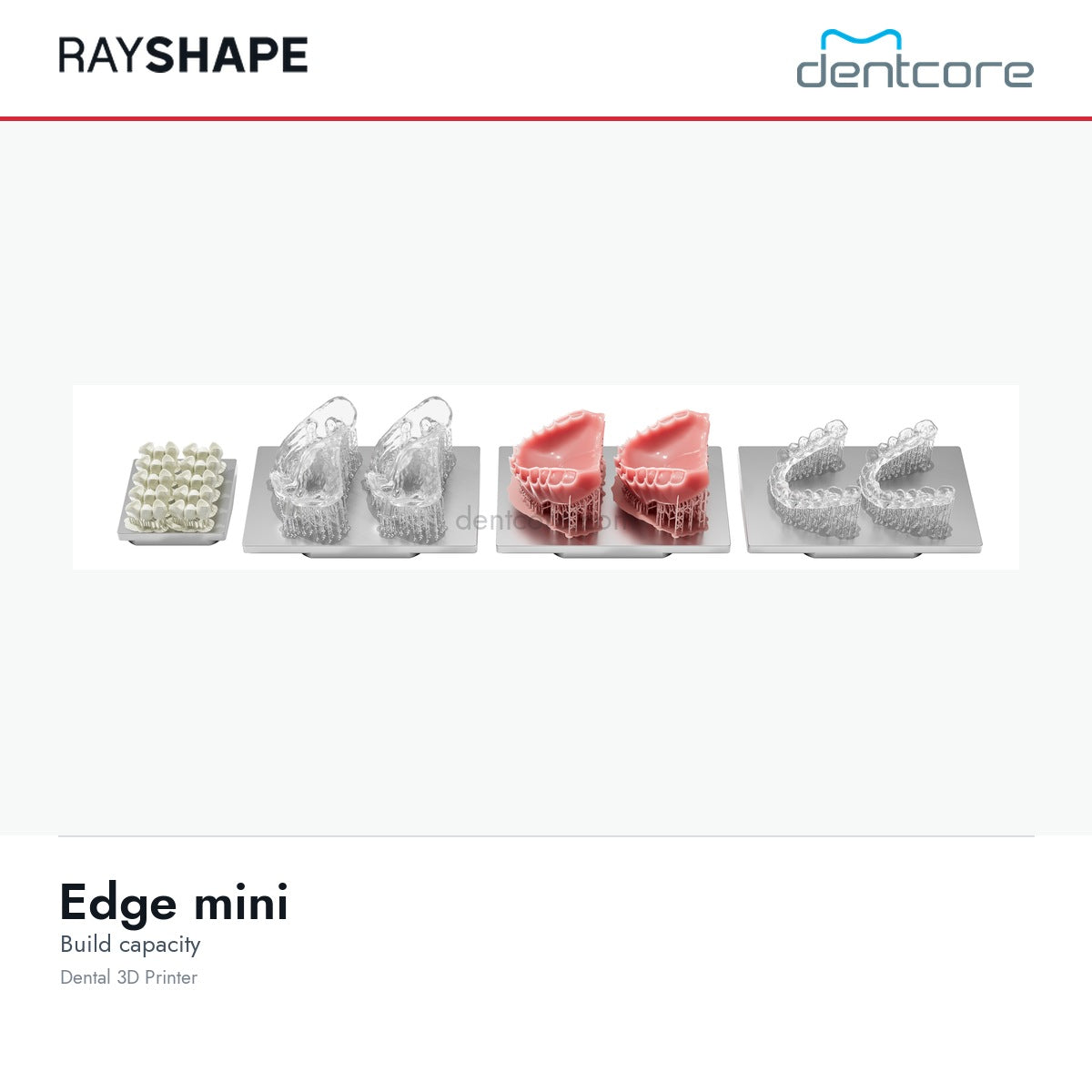

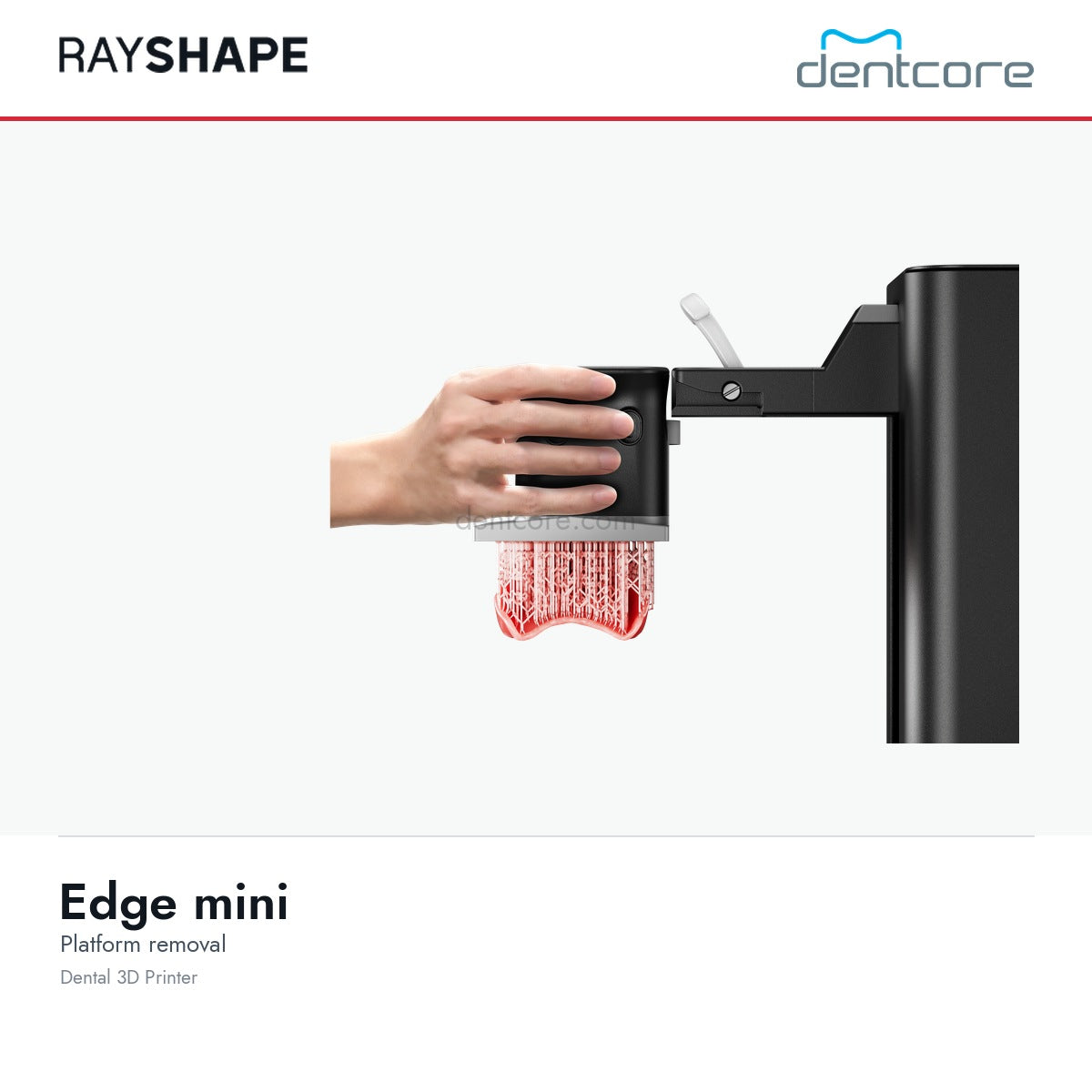

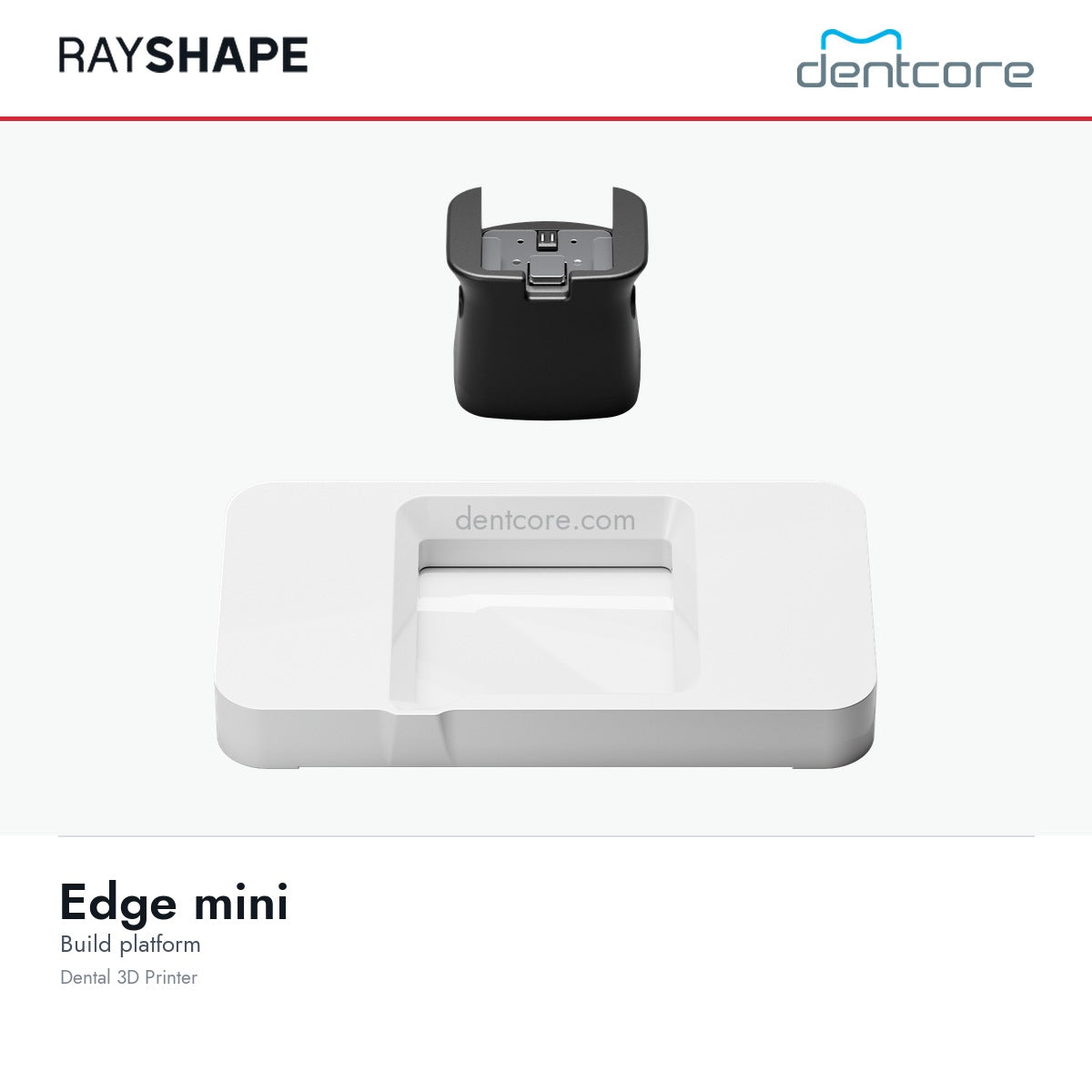

Two platform sizes
Plan a focused job on 60 x 60 mm or use the 130 x 80 mm build area. Both offer 100 mm build height.
RAYSHAPE

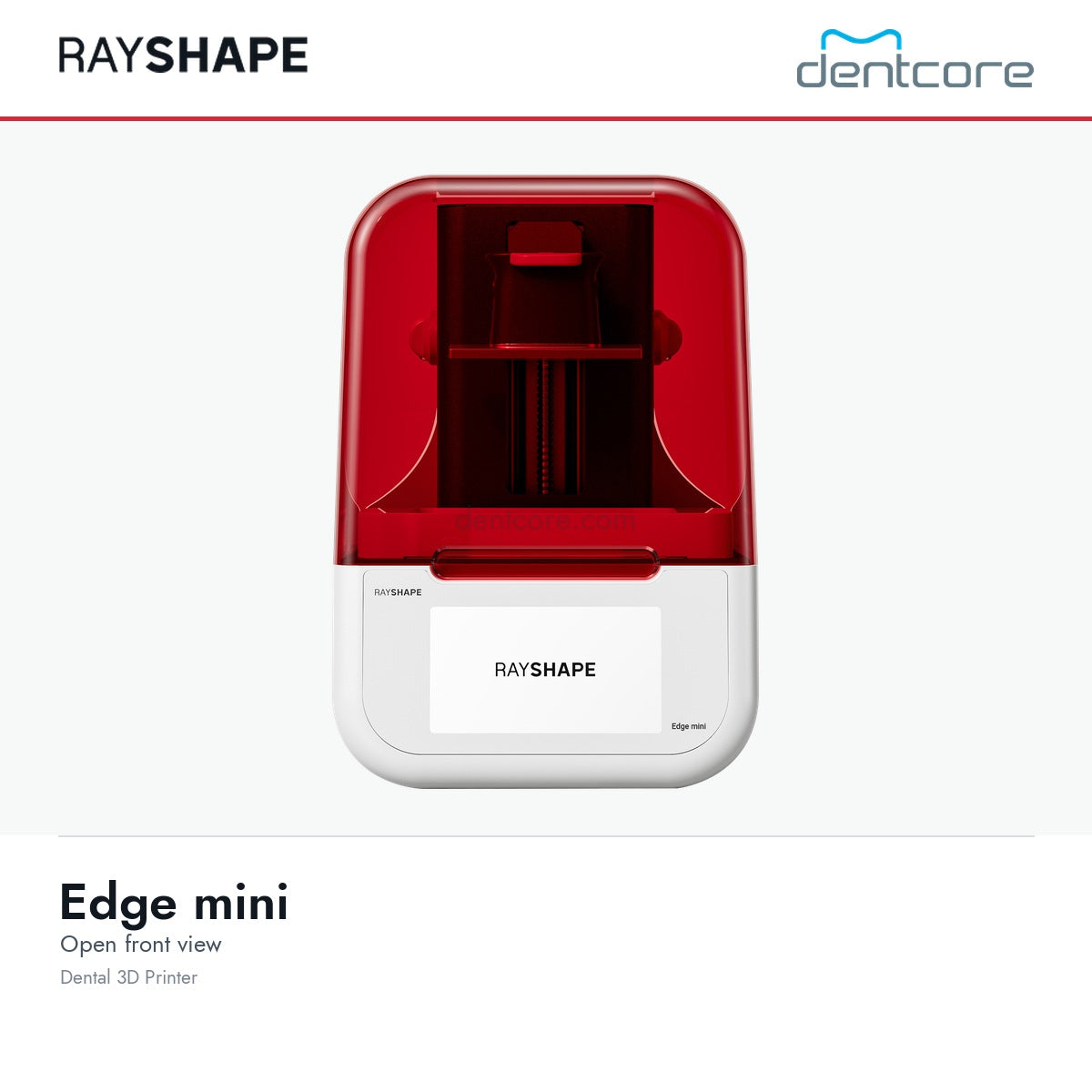

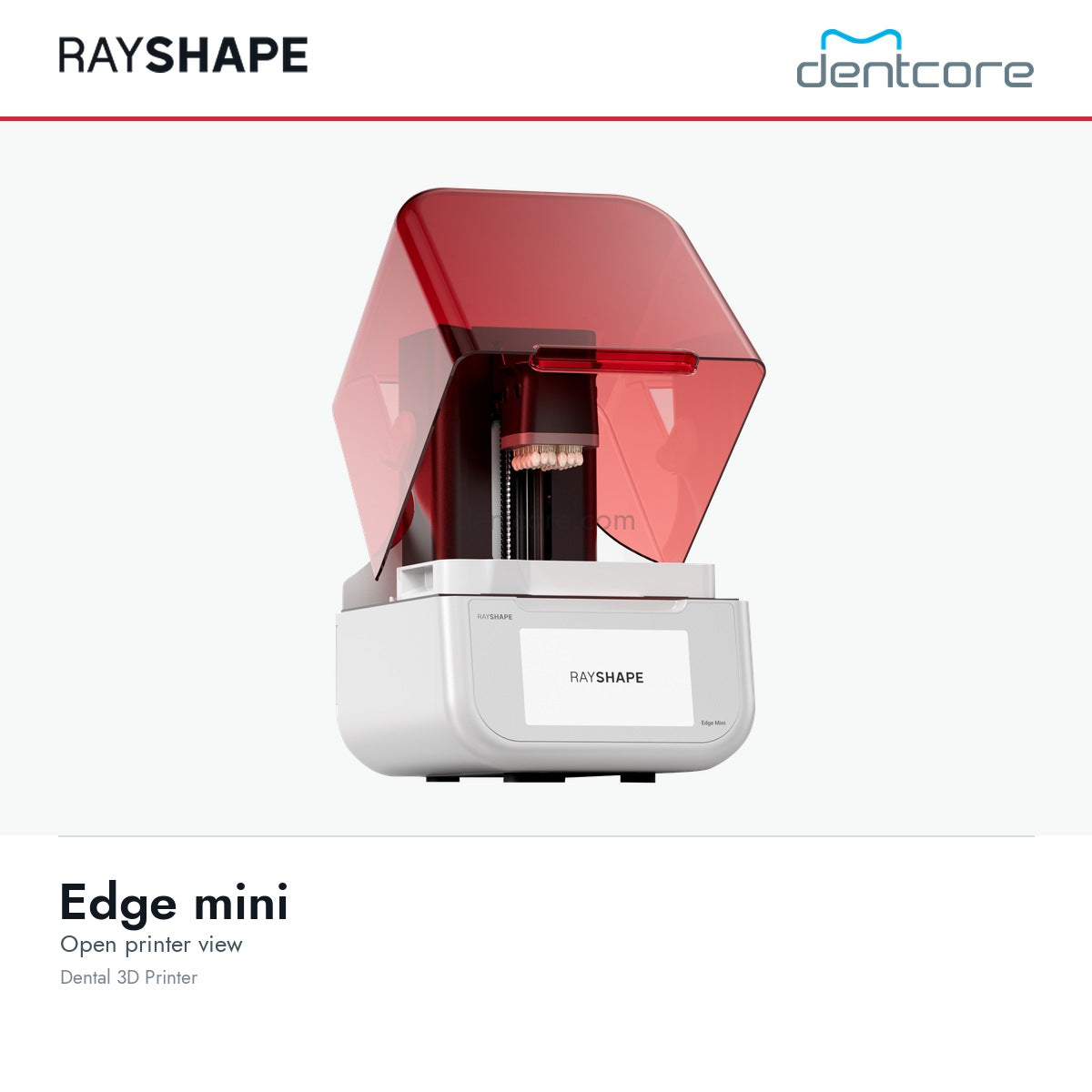

RAYSHAPE Edge mini Dental 3D Printer
RAYSHAPE Edge mini Dental 3D Printer
Regular price
$2,400.00 USD
Regular price
Sale price
$2,400.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product details
Learn more RAYSHAPERAYSHAPE / Edge mini
Compact printer. Two build formats.

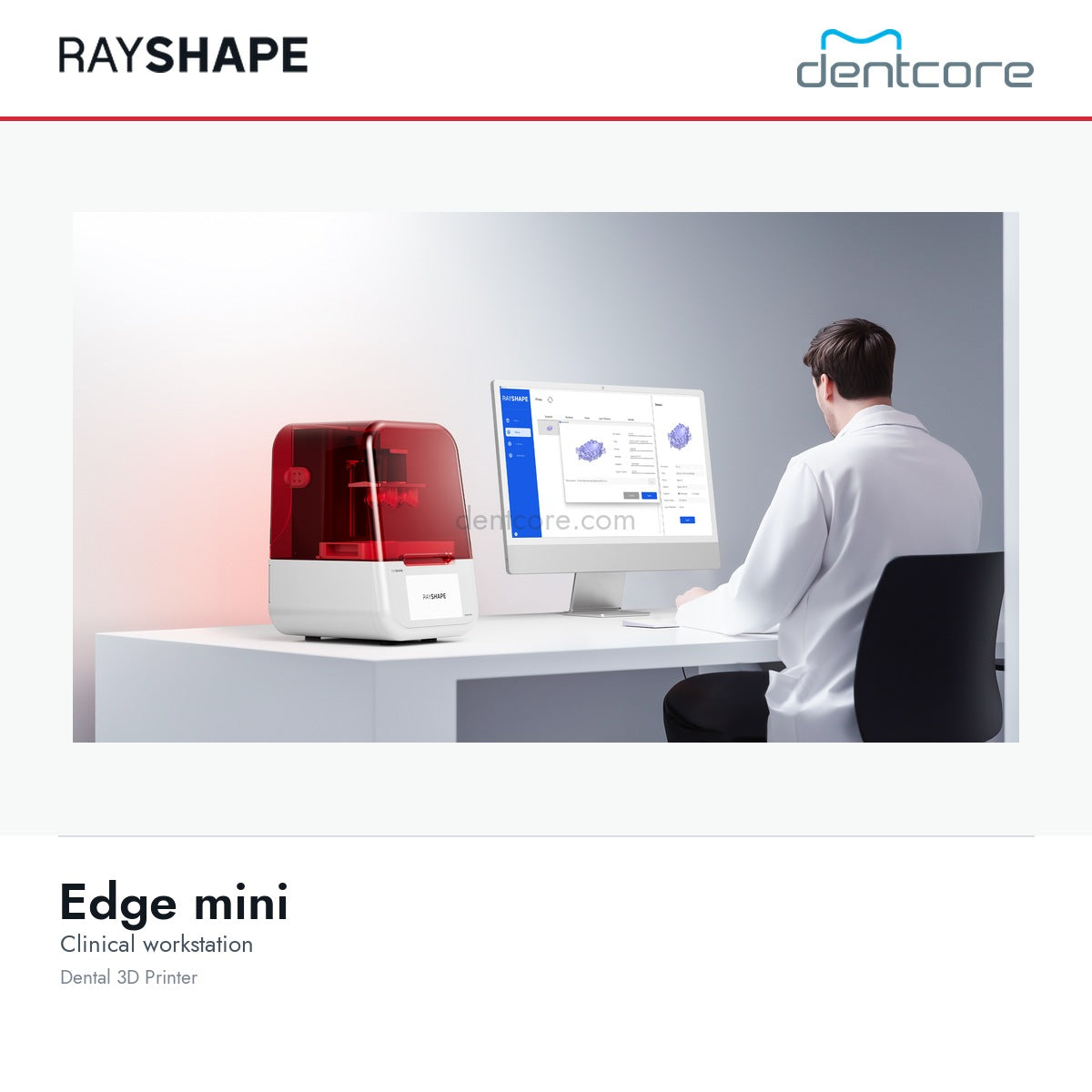

A compact LCD printer for chairside and small-batch dental work, with a small platform for focused jobs and a larger platform for broader builds.
35 umXY pixel size
4KMonochrome LCD
2 formatsBuild platform
Connected preparation
ShapeWare 2.0 supports STL preparation, support editing, model repair, hollowing and labeling.
Flexible job transfer
Send jobs over the local network or use USB. Wi-Fi and Ethernet support different workstation setups.
Printer specifications
- Technology
- LCD / 405 nm
- Build volume
- 60 x 60 x 100 mm or 130 x 80 x 100 mm
- XY pixel size
- 35 um
- LCD
- 6.23-inch 4K monochrome; 3840 x 2400 pixels
- Layer thickness
- 0.05-0.20 mm, material-profile dependent

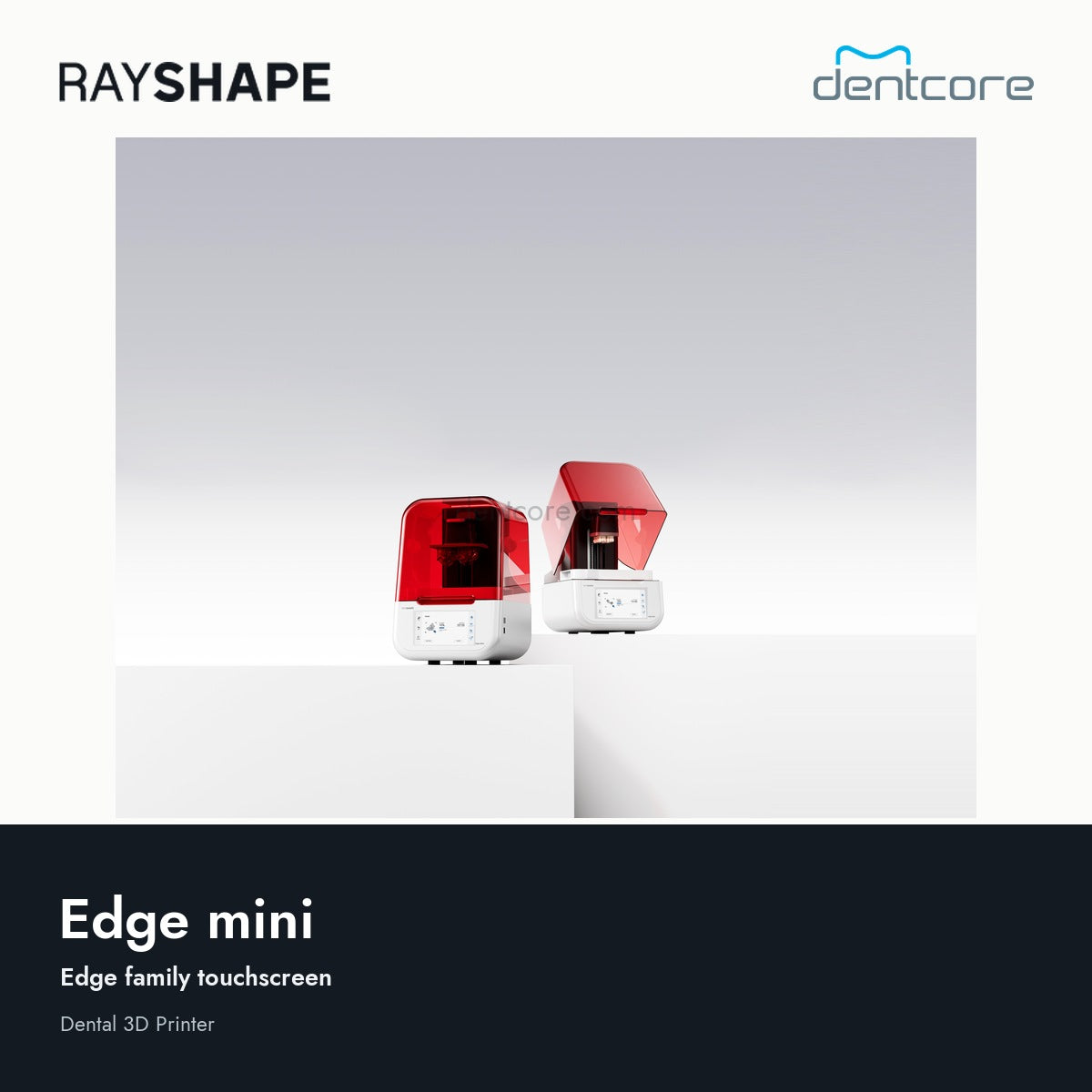

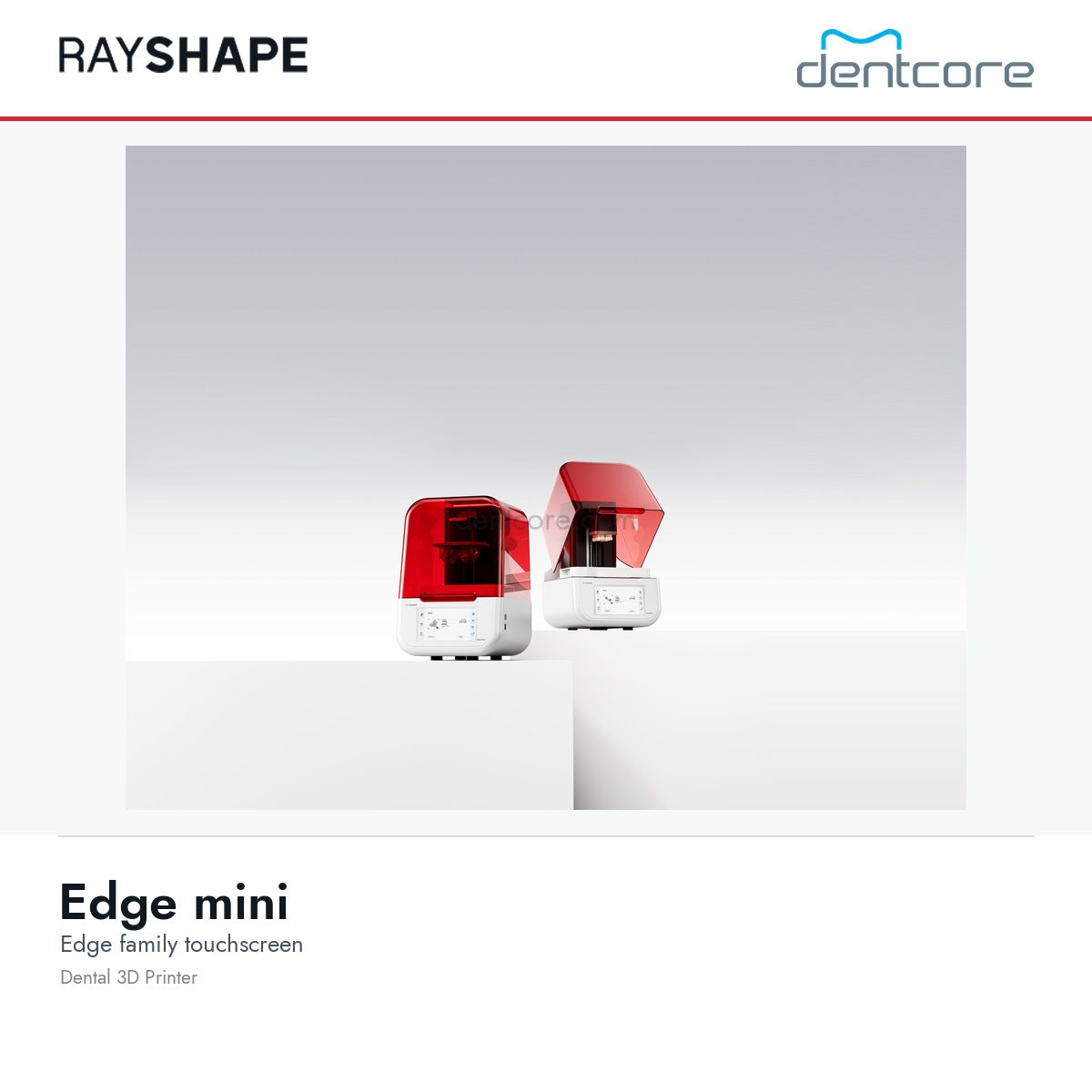

- Touchscreen
- 7-inch color display
- Connectivity
- USB 2.0, 2.4 GHz Wi-Fi, Ethernet
- Preparation software
- ShapeWare 2.0; Windows 10/11
- Files
- STL input; .rs / .shape output
- Dimensions / net weight
- 300 x 280 x 427 mm / 12 kg
Layer height and material profiles are linked. XY pixel size describes the LCD resolution, not the accuracy of every finished part.
Third-party resins for Edge mini
Specific materials listed by RAYSHAPE for this model.
- VarseoSmile Crown Plus
- VarseoSmile TriniQ
- VarseoSmile Teeth
- VarseoSmile Temp
- VarseoWax Model
- FREEPRINT Crown
- FREEPRINT Denture Impact
- FREEPRINT Temp
- VIONIC DENT RESIN
- VITA VIONIC DENT RESIN A1/A2/B1
- KeyGuide
- KeySplintHard Clear
- KeySplintSoft Clear
- KeyDenture Try-in
- KeyOrtho IBT
- KeyTray
- CROWNTEC
- C&B ( TC-80DPA1 )
- Denture Base ( TFD-LP-1000)
- Denture Base ( Flexible ) ( TFDH )
- Clear ( TA-28 )
- Clear ( TC-85DAC )
- express
- interim
- GR-17.1 temporary It
- GR-14.2 denture Hl
- GR-11 tray
- GR-19.1 OA
- GR-10 guide
- GR-13 Model Beige
- Dental C&B
- Dental Model Ivory
- Dental Model peach
- Dental Splint Soft
- Low Friction
- Dental Ceramic
- V-Print c&b temp
- V-Print dentbase
- MODEL ST
- DENTURE
- TEMP-A1
- TEMP ULTRA B1
- SURGICAL GUIDE
- HardSplint
- Permanet Tough
- Vitality
- Bite Splint
- Model Plus
- Clear Guide
- Temp B1
- Denture Translúcida
- Denture ROSA
- Model OCRE
- Model Precision
- Model L'Aqua
- Model Salmon
- Bite Splint +Flex
- Try in
- UCAN PRINT Base
- UCAN PRINT Splint
- ACRY Print 3D RU-005 Guide
- ACRY Print 3D RU-004 Denture HI
Model-specific compatibility list checked September 28, 2026. A listed material does not mean every resin, shade or indication from that brand is supported. Match the exact material, printer profile and validated curing unit; US clinical use must follow the material's current US labeling and IFU.
RAYSHAPE resins by application
Choose the material for the job, then confirm its profile for Edge mini.
Model 1Everyday dental models
Model ProDetailed working models
Model WWWater-washable dental models
Model XERigid dental model production
Soft Pink 2.0Flexible gingiva masks for models
Cast-WaxPatterns for investment casting
This is an application guide, not a blanket compatibility claim for all six materials on every printer. Confirm the exact profile before purchase or printing.
From resin to finished part
Prepare

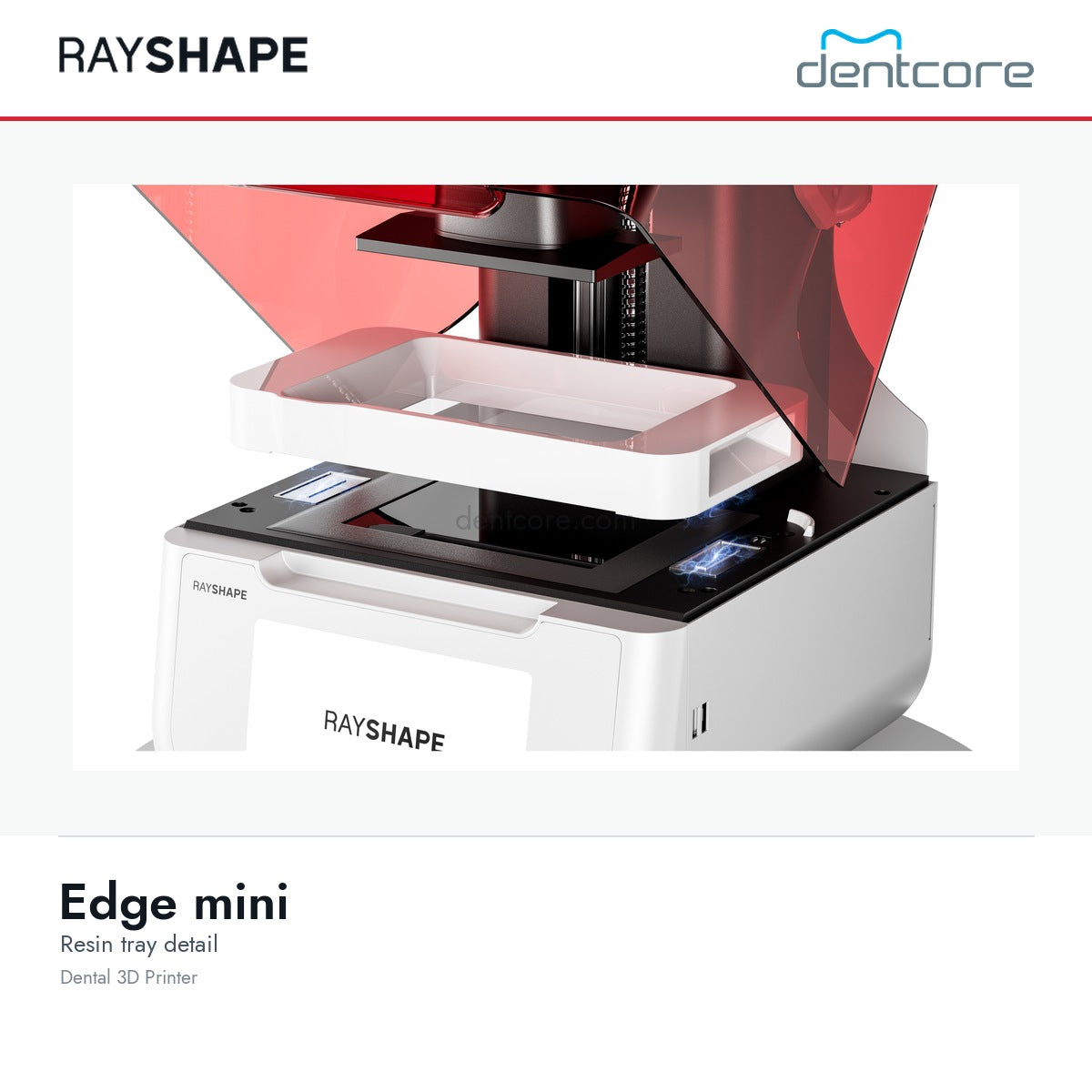

Wear the protective equipment specified by the resin safety data sheet. Mix and condition the resin as directed. Check the tank, film and clean build platform.
Set up and print
Select Edge mini, the exact resin and shade, then the supported layer height. Orient the part, add supports and review the job before printing.
Wash and dry
Use the resin's prescribed cleaning agent and wash duration. Model WW has a water-wash process; do not apply it to other resins. Dry completely.
Cure and inspect
Use the curing unit and cycle validated for that resin. Remove supports at the stage specified by its instructions; inspect fit and surface quality.
Exposure time, wash duration and curing settings are resin- and equipment-specific. Do not copy a cycle from another brand, shade or curing machine.
Complete the workflow
Cleaning
Compare ShapeWash 020S and 040S. Confirm the permitted cleaning medium and part capacity for the selected process.
Post-curing
Match the resin to its validated cure unit. Explore post-processing. ShapeCure D, D mini and D+ must not be treated as interchangeable profiles.
Maintenance
Keep the platform, tank film and optical surfaces clean. Use the printer manual for tank inspection, leveling and replacement procedures.
Edge mini overview
Workflow and maintenance videos
Edge mini temporary crown workflow
Edge mini LCD replacement
Edge mini LCD protective film replacement
The crown workflow is a demonstration, not a universal clinical protocol. Use the approved resin-specific IFU; perform maintenance according to the printer manual.
Documents
Technical data sheets describe material properties; use the current instructions for use (IFU) and validated profile for processing settings.
