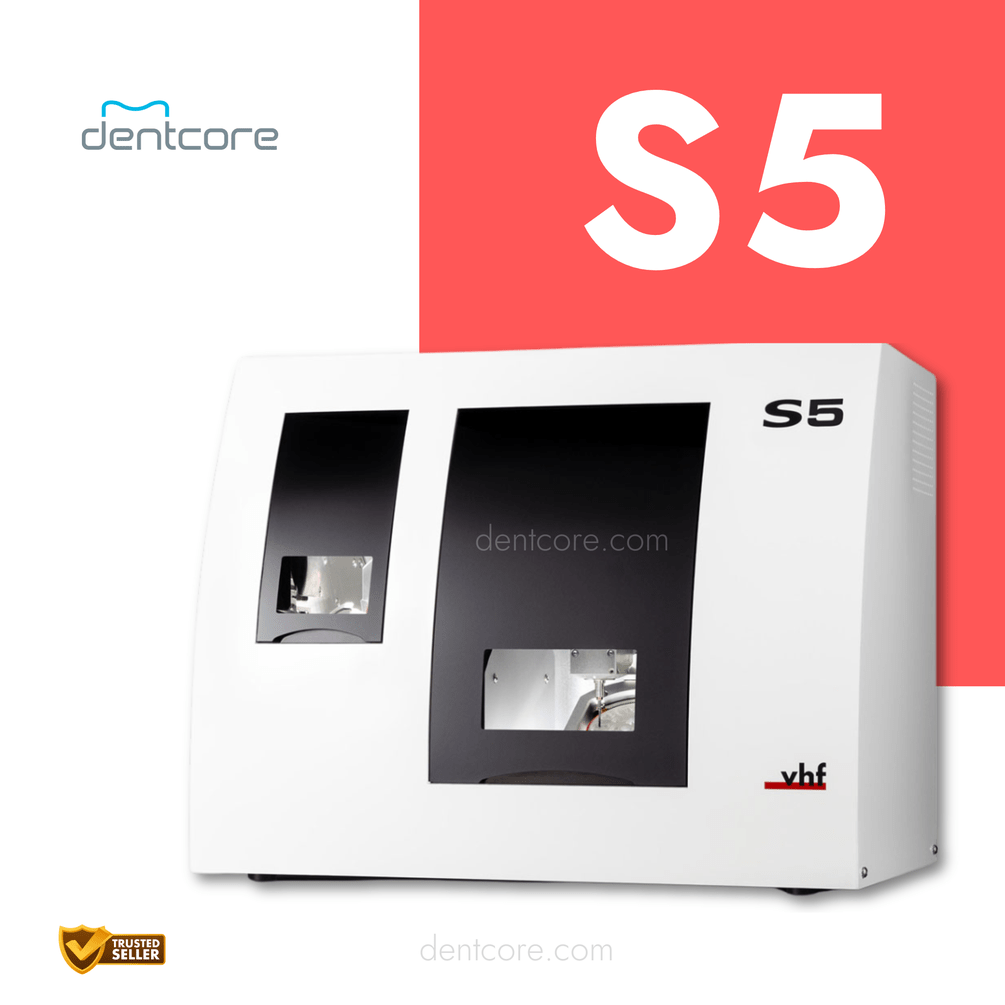

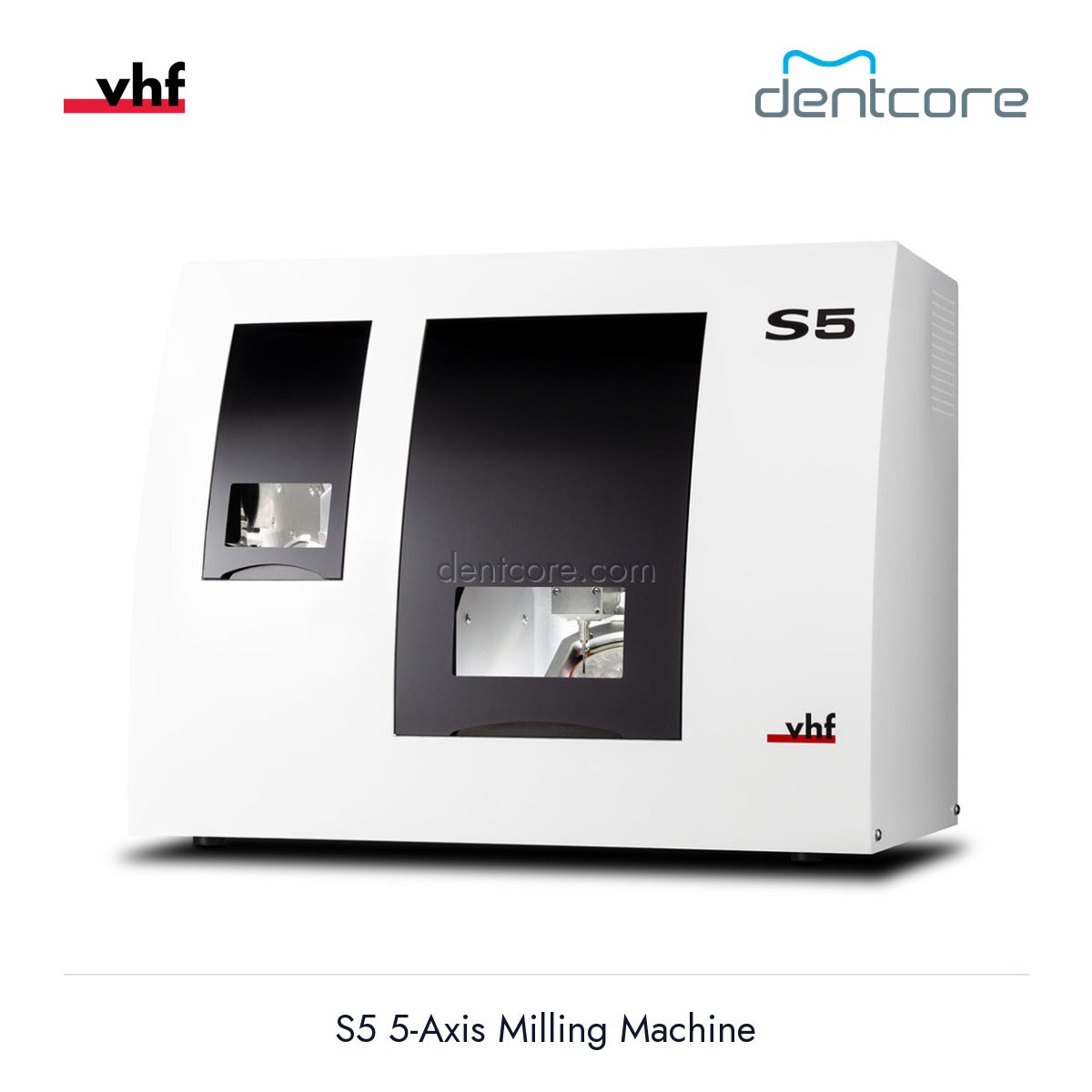

vhf S5 5-Axis Milling Machine
High-endurance 5-axis mill by vhf camfacture AG (Germany). The S5 combines a 600W spindle at 60,000 RPM with an 8-disc automatic changer and 16-tool magazine for continuous wet and dry production.
Technical Specifications
| Axes | 5-axis (X/Y/Z linear + A 360° + B ±30°) |
| Spindle | 60,000 RPM — 600W peak / 450W nominal / 300W continuous |
| Accuracy | Repetition accuracy ±0.003 mm, bearing concentricity <3 µm |
| Tool Changer | 16-position automatic |
| Blank Changer | 8 discs or 24 blocks — pneumatic robot gripper |
| Disc Size | 98.5 mm diameter, 10–30 mm height (metals up to 18 mm) |
| Block Size | Up to 45 × 20 × 20 mm |

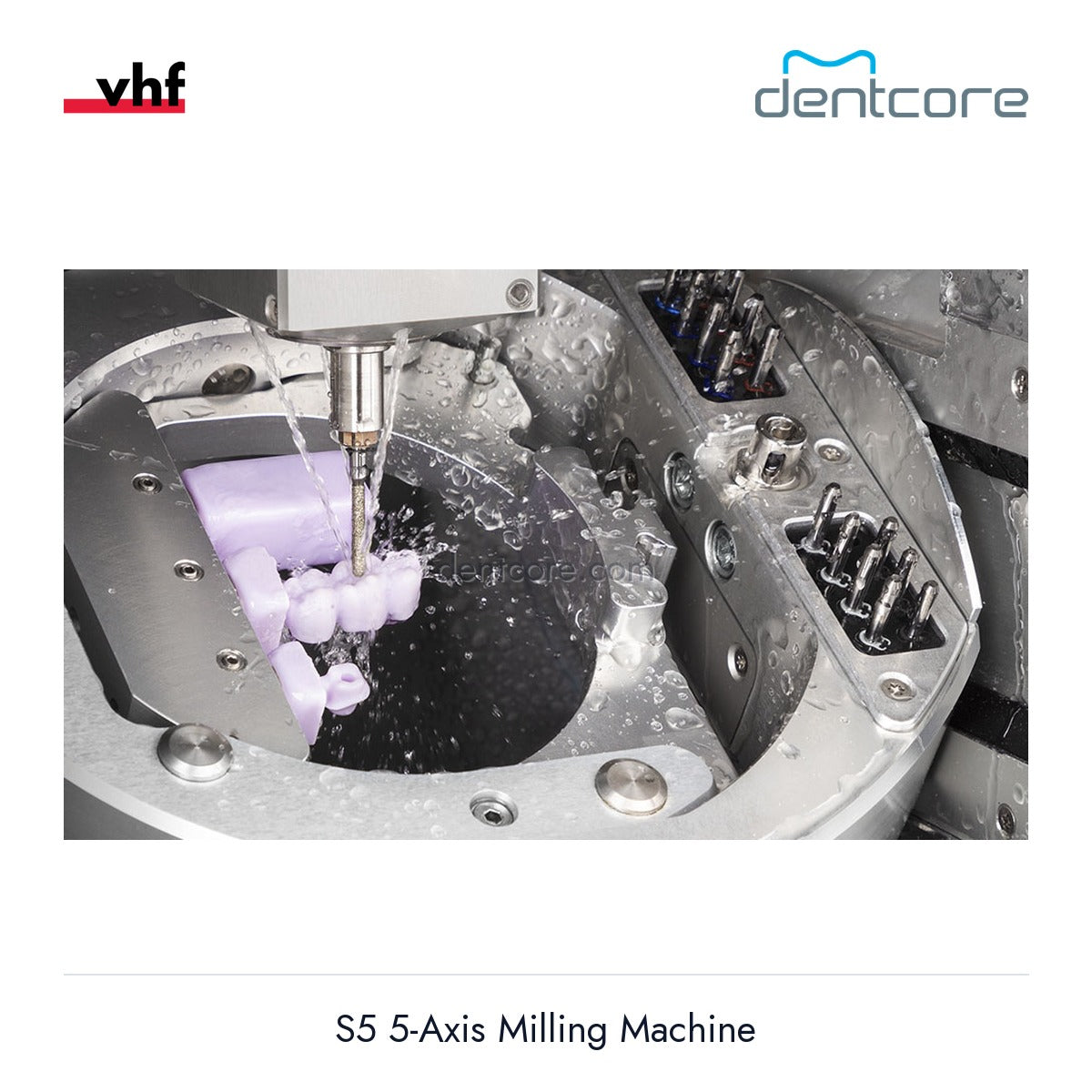

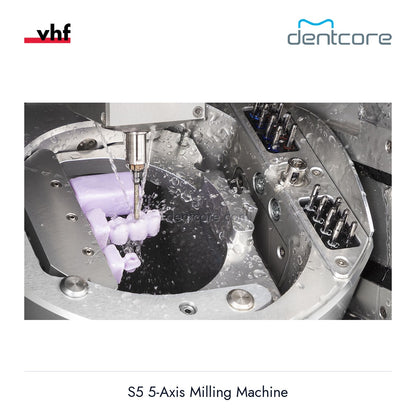

| Processing | Wet and dry — optional wet grinding for glass ceramics and titanium |
| Dimensions | 700 × 444 × 561 mm (closed) — 106 kg |
Materials

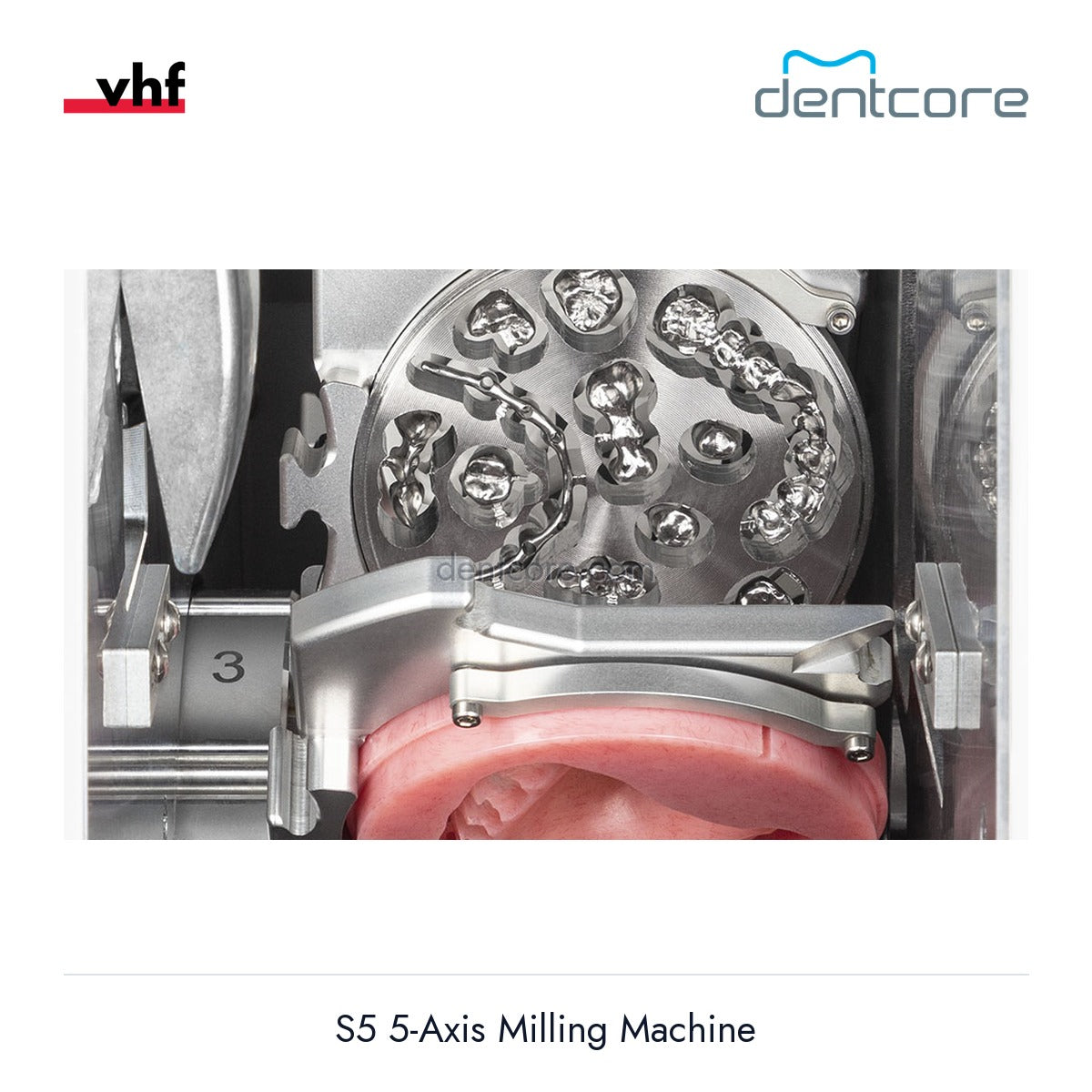

Processes zirconia, CoCr, titanium, glass ceramics, composites, PMMA, wax, and model plaster. Includes QuickFrame holder for highly translucent zirconia to prevent chipping.
Automation

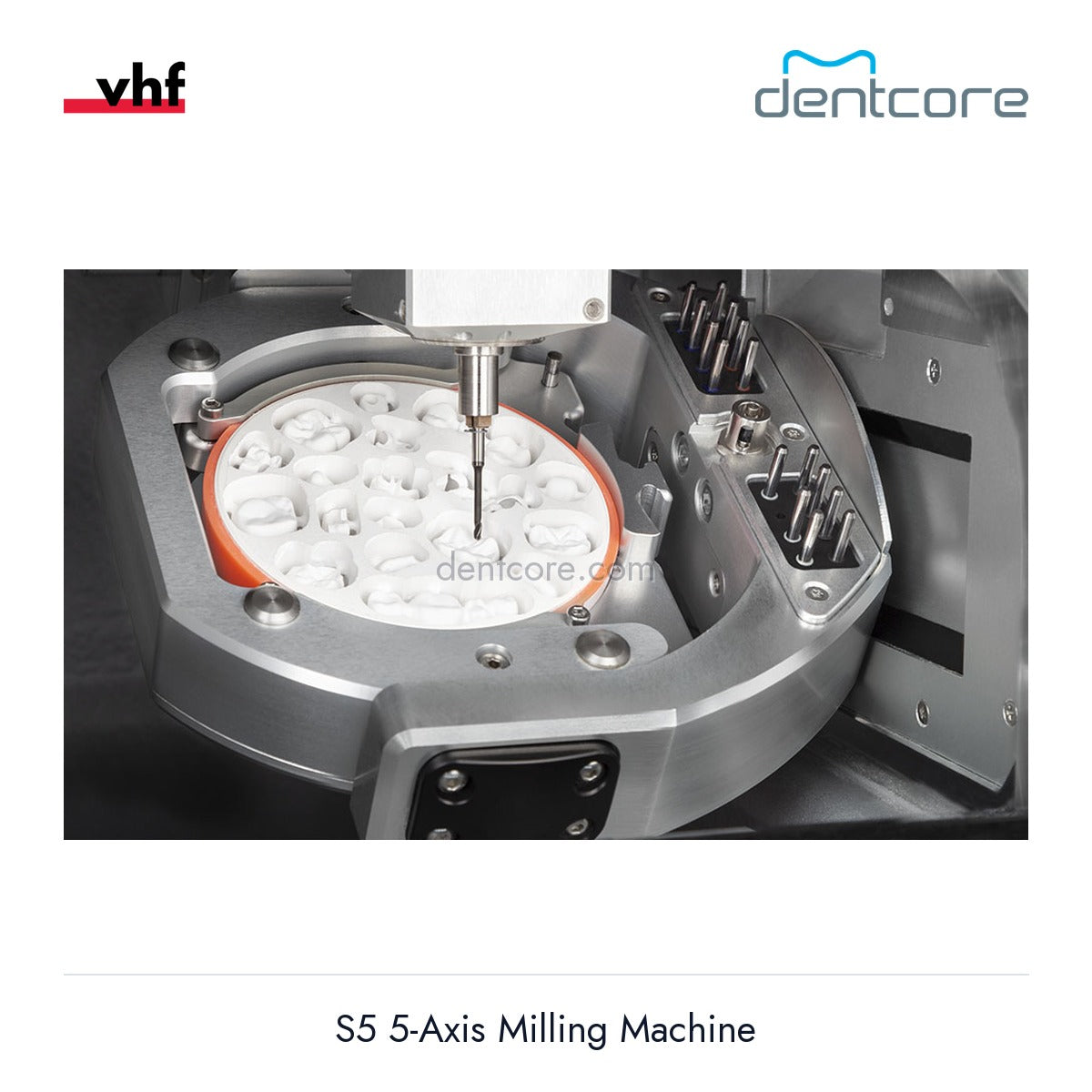

Load up to 8 discs or 24 blocks for unattended production. Pneumatic robot gripper handles blank changes automatically. The ±30° B-axis enables complex undercut geometries for abutments, screw-retained prosthetics, and implant bars.
🇩🇪 Engineered and manufactured in Germany. Ships with dentalcam software (no license fees).
