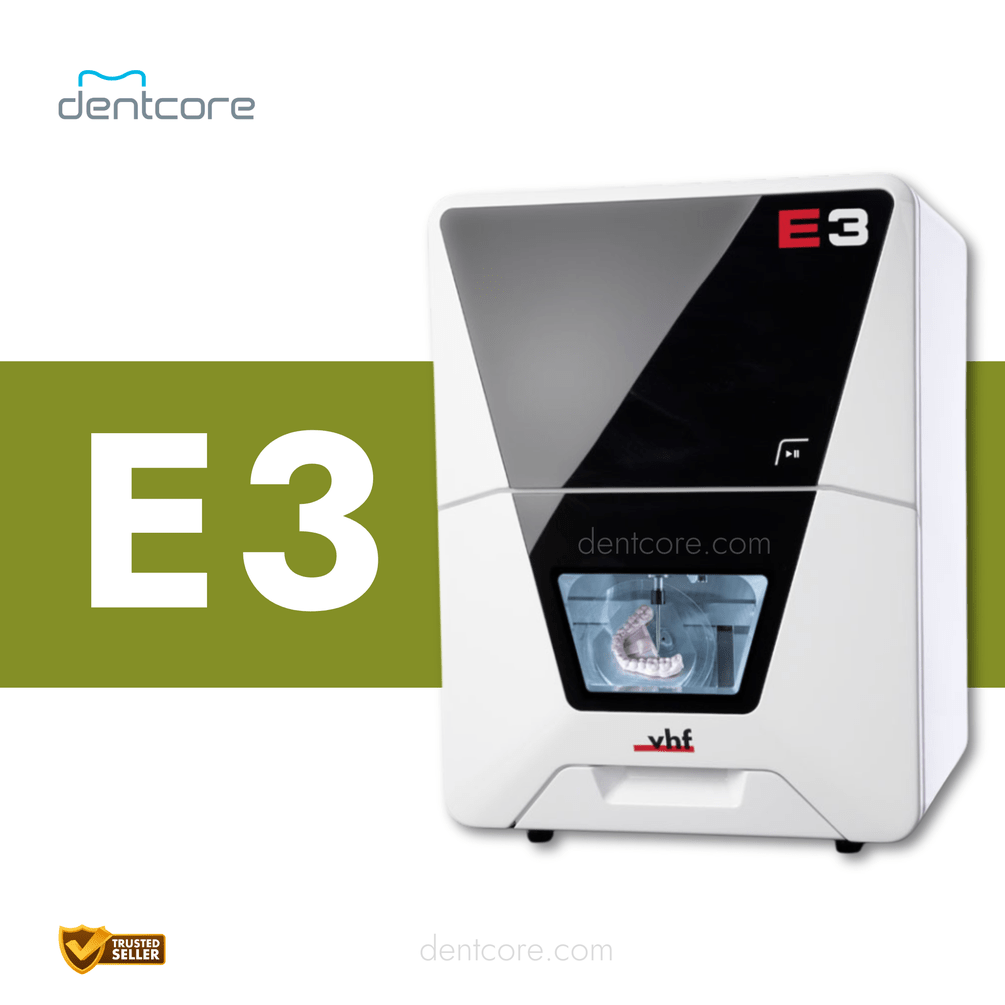

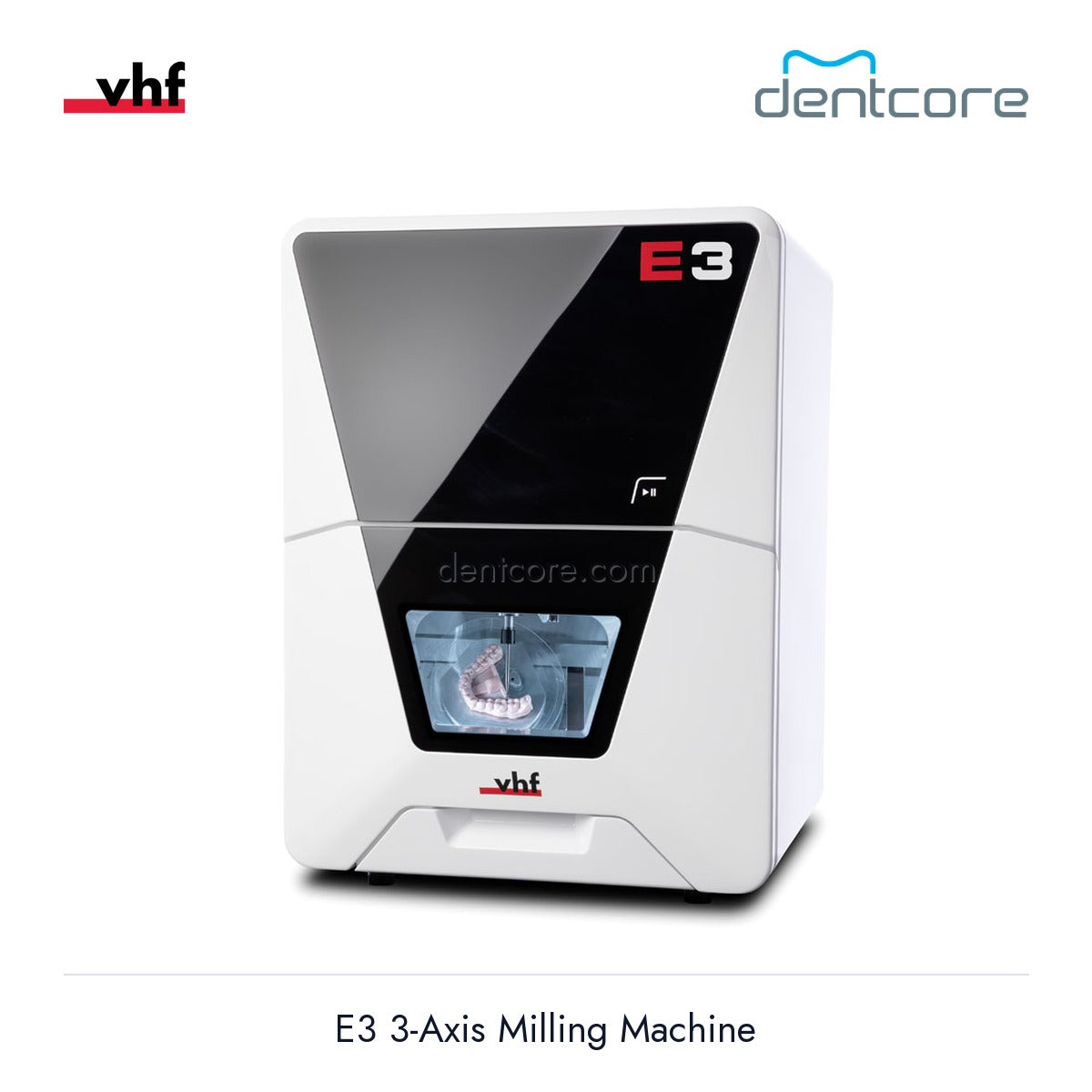

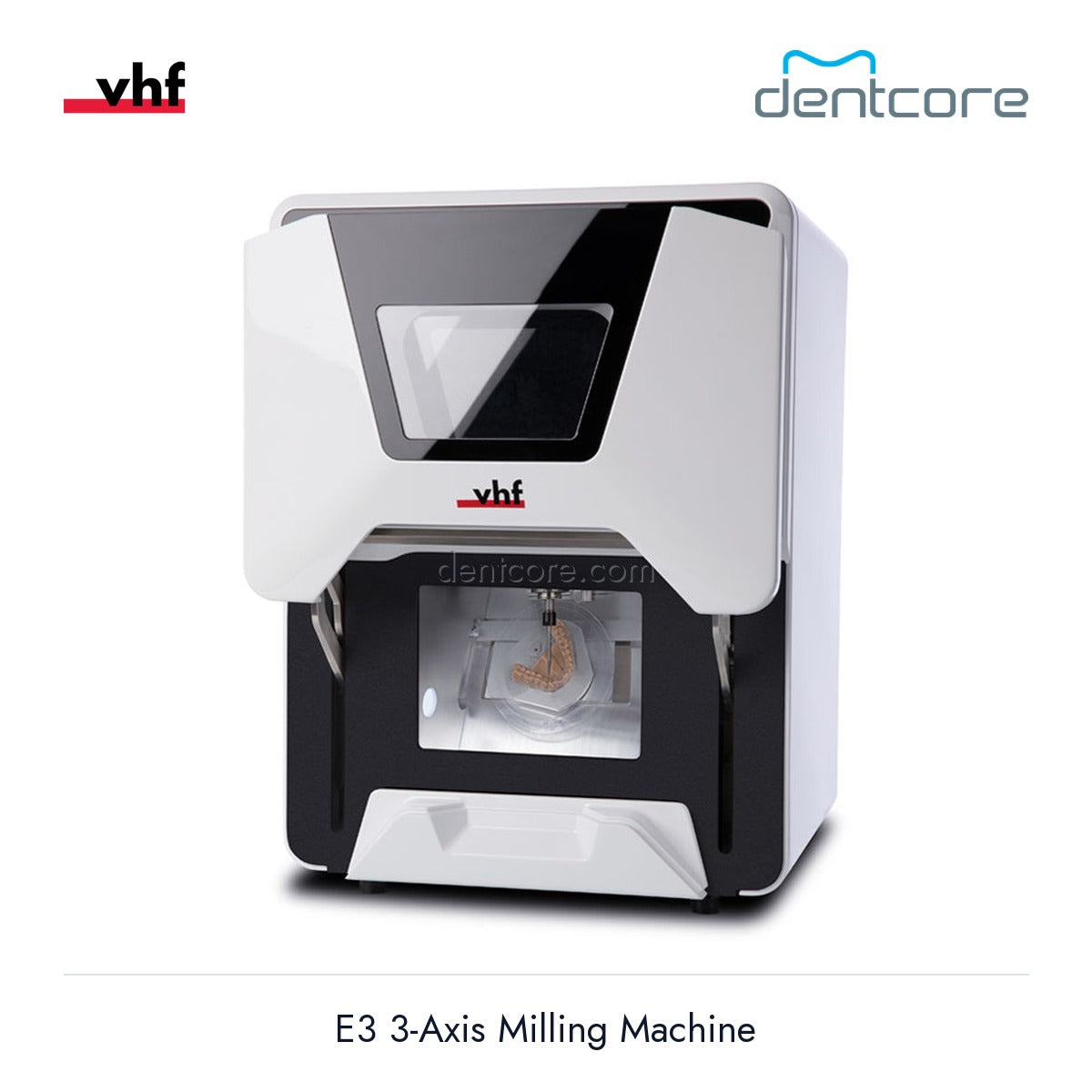

vhf E3 3-Axis Milling Machine

vhf E3 3-Axis Milling Machine

$20,990.00 USD
$20,990.00 USD
Sale Sold out
Shipping calculated at checkout.
Ask a specialist 844-292-8023 Financing

Product details

vhf E3 — Aligner Milling Machine

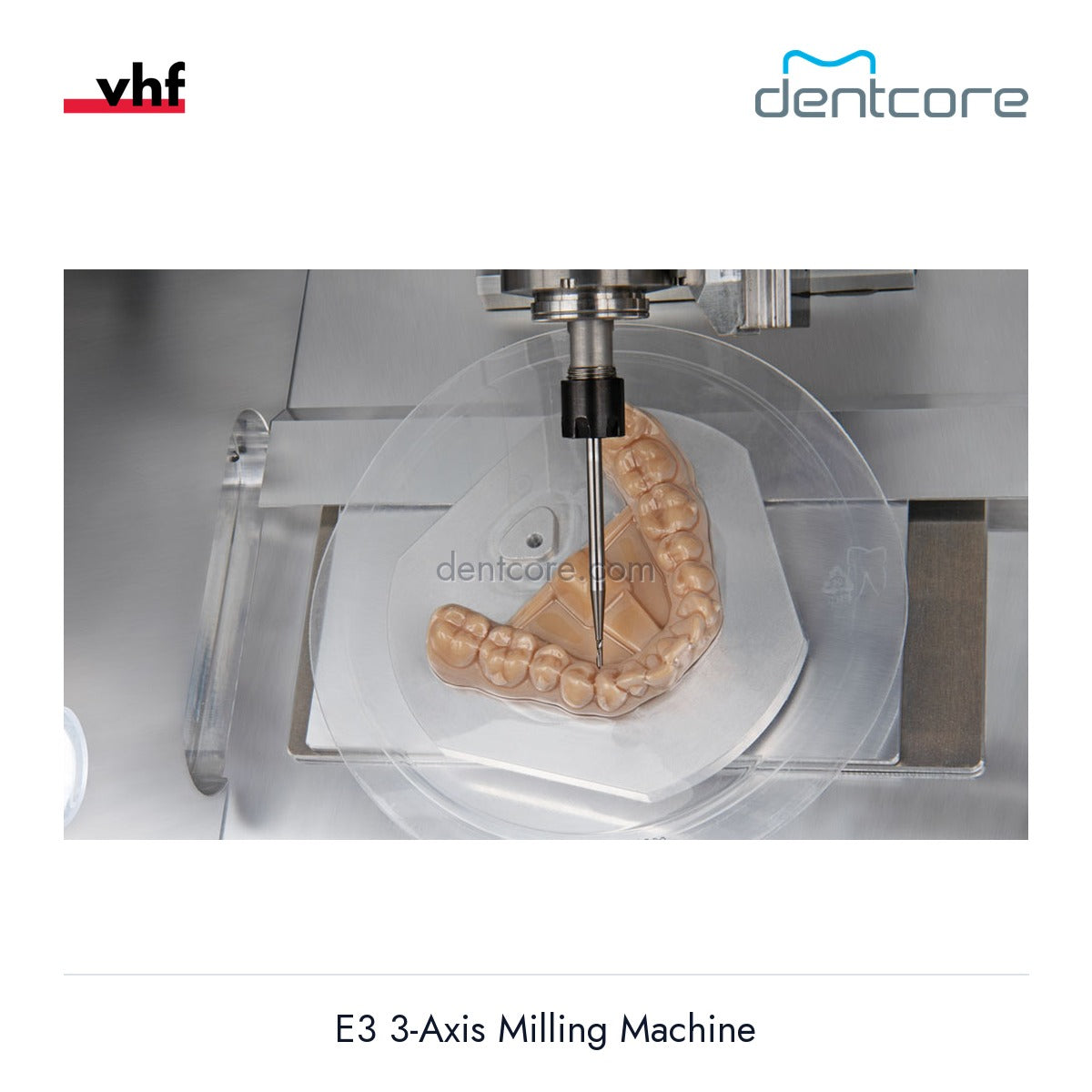

Purpose-built aligner mill. The E3 completes a full aligner in under 60 seconds from thermoformed foil — faster than any printing-based workflow. At 25 kg with no compressed air requirement, it fits anywhere in the practice.

Why Mill Aligners Instead of Printing

  • Under 60 seconds per aligner — no waiting for print jobs, no post-curing, no washing. Mill and deliver in the same appointment.
  • No compressed air — vhf’s patented airtool technology eliminates the need for a compressor. Plug into a standard wall outlet and start milling.
  • 25 kg — lightest vhf mill. Fits on any countertop in the operatory or lab.
  • Tool-free clamping — load thermoformed foil blanks without tools. Fast material changeover between patients.
  • 60,000 RPM spindle — 800W peak power cuts through foil material cleanly with smooth edges, no post-trimming needed.

Specifications

Axes 3+1 (X, Y, Z + B 360°)
Spindle Speed 60,000 RPM
Spindle Power 800W peak / 450W continuous
Tool Capacity 1 tool (ER8 collet, 3 mm shank)
Processing Dry only
Compressed Air Not required
Weight 25 kg
Dimensions 360 × 370 × 490 mm
Material Thermoformed plastic foils
Power 100-240V, 50/60 Hz, 320W

Made in Germany

100% designed and manufactured by vhf camfacture AG in Ammerbuch, Germany. 24-month warranty. Compatible with vhf dental CAM software.

Estimated shipping time

2-3 weeks

Estimate for planning. Final timing is confirmed after order review.

Product documents

Review the official vhf product factsheet for specifications, workflow requirements, and planning details.

Download E3 3-Axis Milling Machine factsheet (PDF)

View full details

Compare vhf milling machines

E3 This modelE4 E5 N4+ Z4 K5+ S5 R5
Price$20,990$24,990$28,990$34,990$39,990$40,990$51,990$84,990
Axes3+145 simultaneous4 (A 200°)4 (A 200°)5 simultaneous55
Spindle60,000 RPM60,000 RPM60,000 RPM80,000 RPM100,000 RPM60,000 RPM60,000 RPM80,000 RPM
ProcessingDry onlyWet + dryDry onlyWet onlyWet (pure water)Dry onlyWet and dryWet and dry
Tools16 + 1 airtool16 + 1 airtool8616 + 30-tool pool1616
Automatic blank changer——————8 discs or 24 blocks10 discs or 60 blocks
Weight25 kg28 kg47 kg52 kg66 kg91 kg106 kg150 kg
