vhf

vhf K5+ 5-Axis Milling Machine

Name: vhf K5+ 5-Axis Milling Machine
Brand: Dentcore
SKU: DC-VH00065
Price: 40990.00 USD
Availability: InStock

$40,990.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Ask a specialist 844-292-8023 Financing

Product details

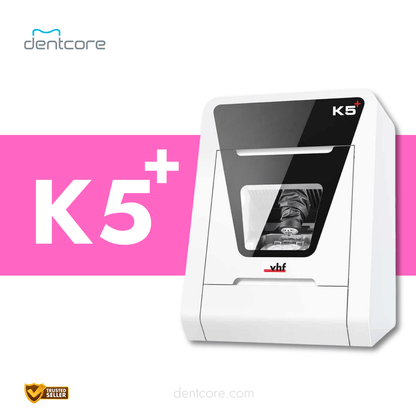

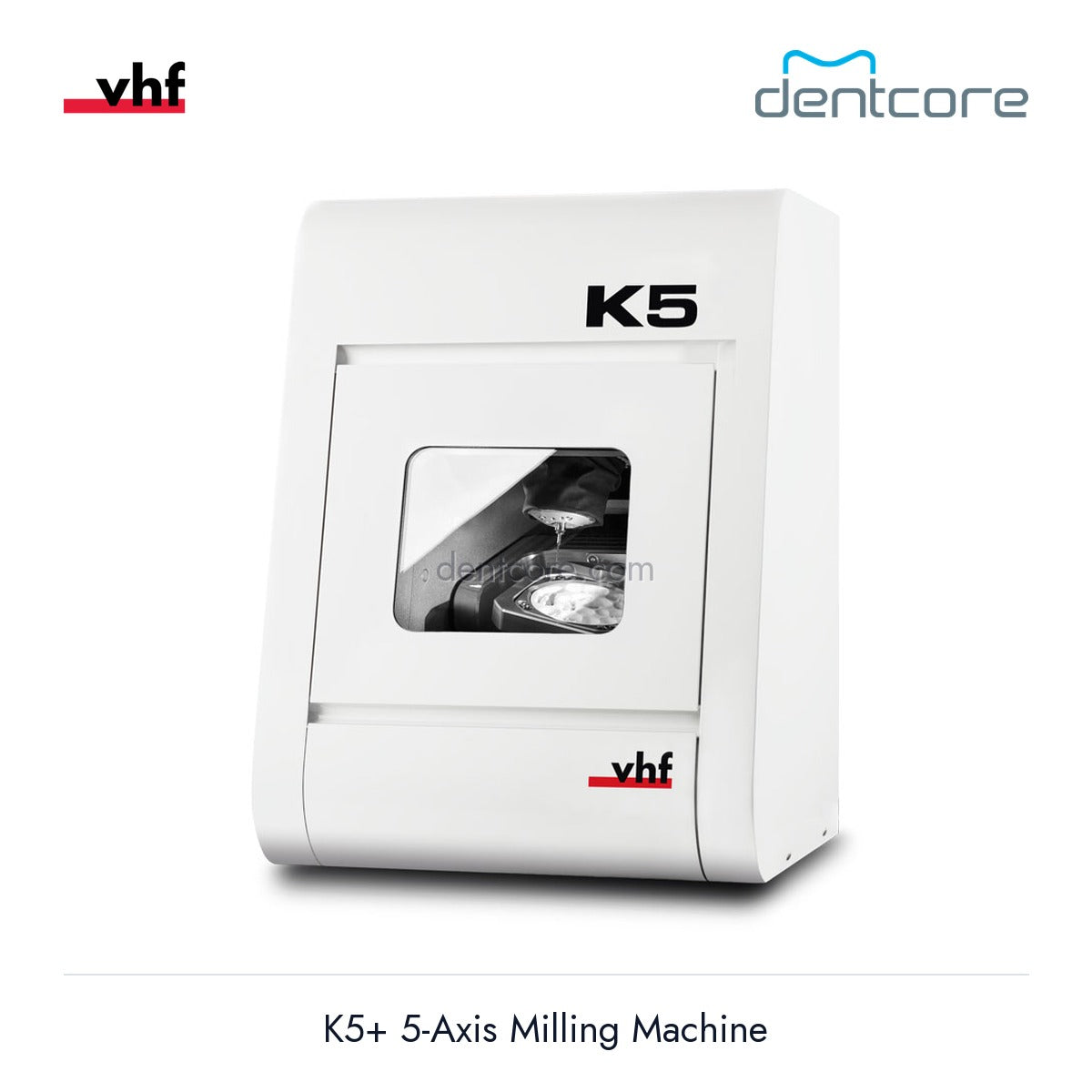

vhf K5+ — 5-Axis Production Mill

The most powerful mill in the vhf dental lineup. 820W peak spindle, 16-tool automatic changer, ±35° B-axis, and DIRECTDISC™ tool-free disc fixation. Built for labs and practices running multiple materials at production volume.

Why the K5+ Is the Lab Standard

820W peak spindle power — most powerful in the vhf range. Higher sustained cutting force for dense zirconia and sintered CoCr frameworks without spindle stall.
Hybrid ceramic ball bearings — 4-fold bearing with <3 μm concentricity deviation. Longer spindle life and smoother surface finishes than steel bearings.

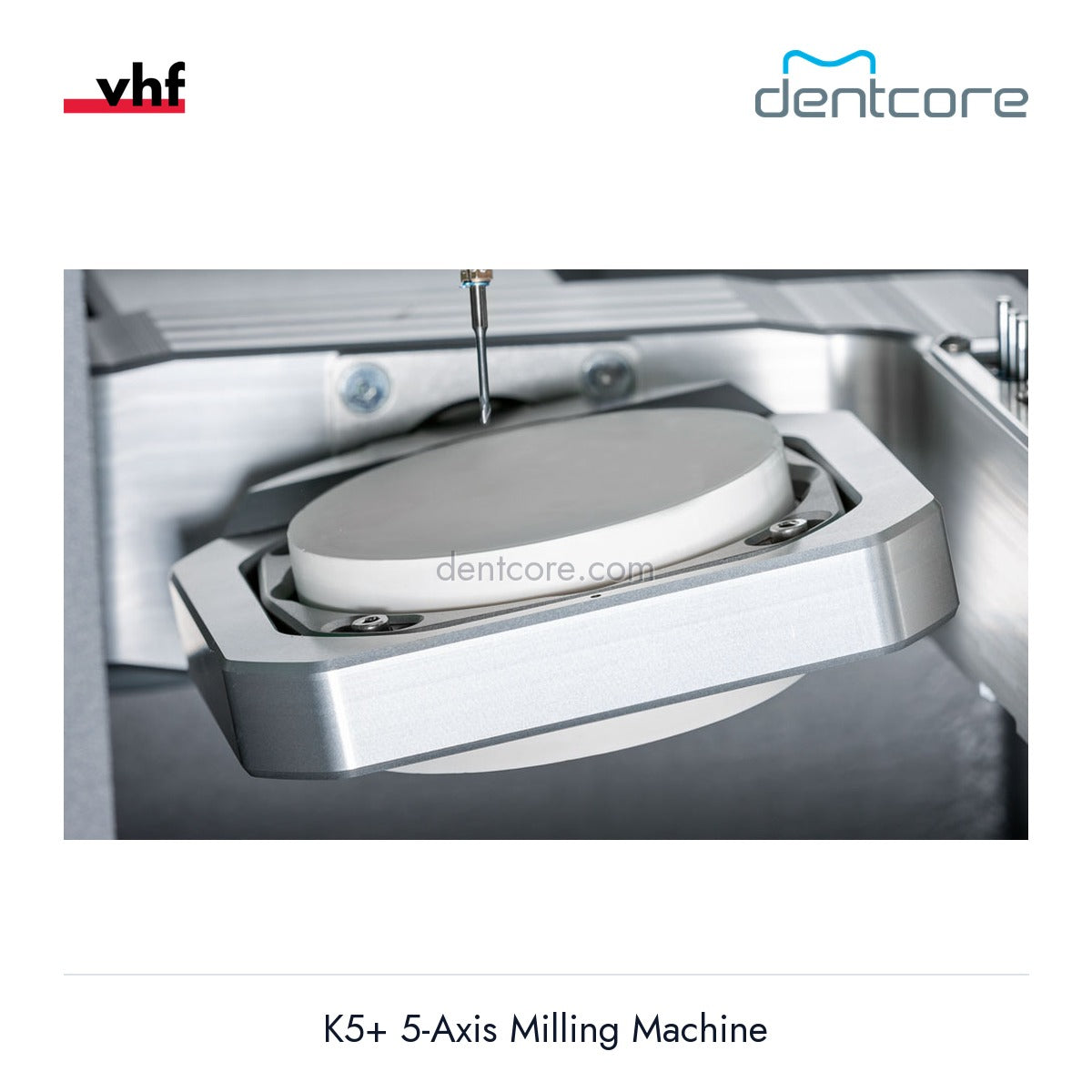

DIRECTDISC™ — tool-free disc fixation. Swap discs without wrenches or screws. Reduces material changeover to seconds.

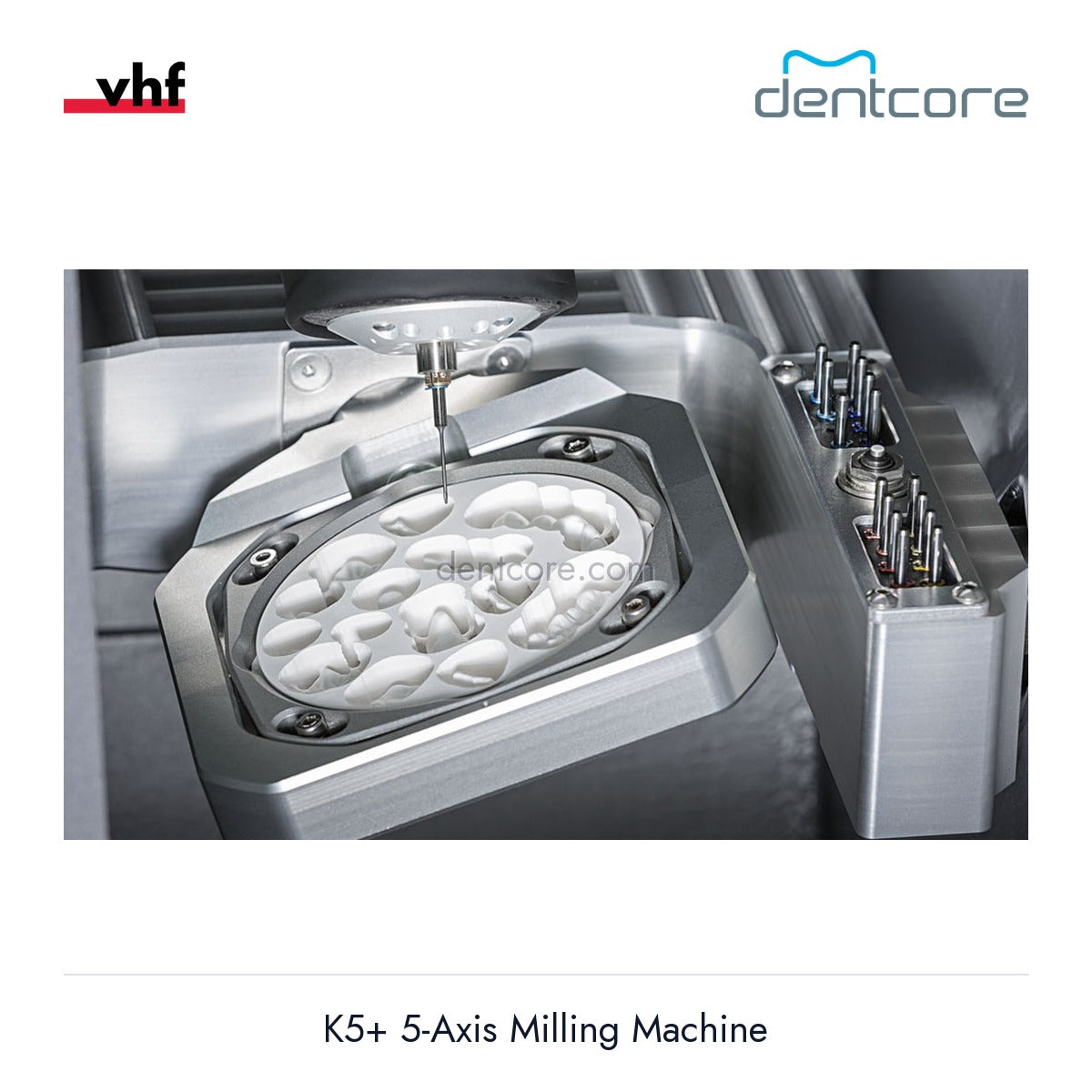

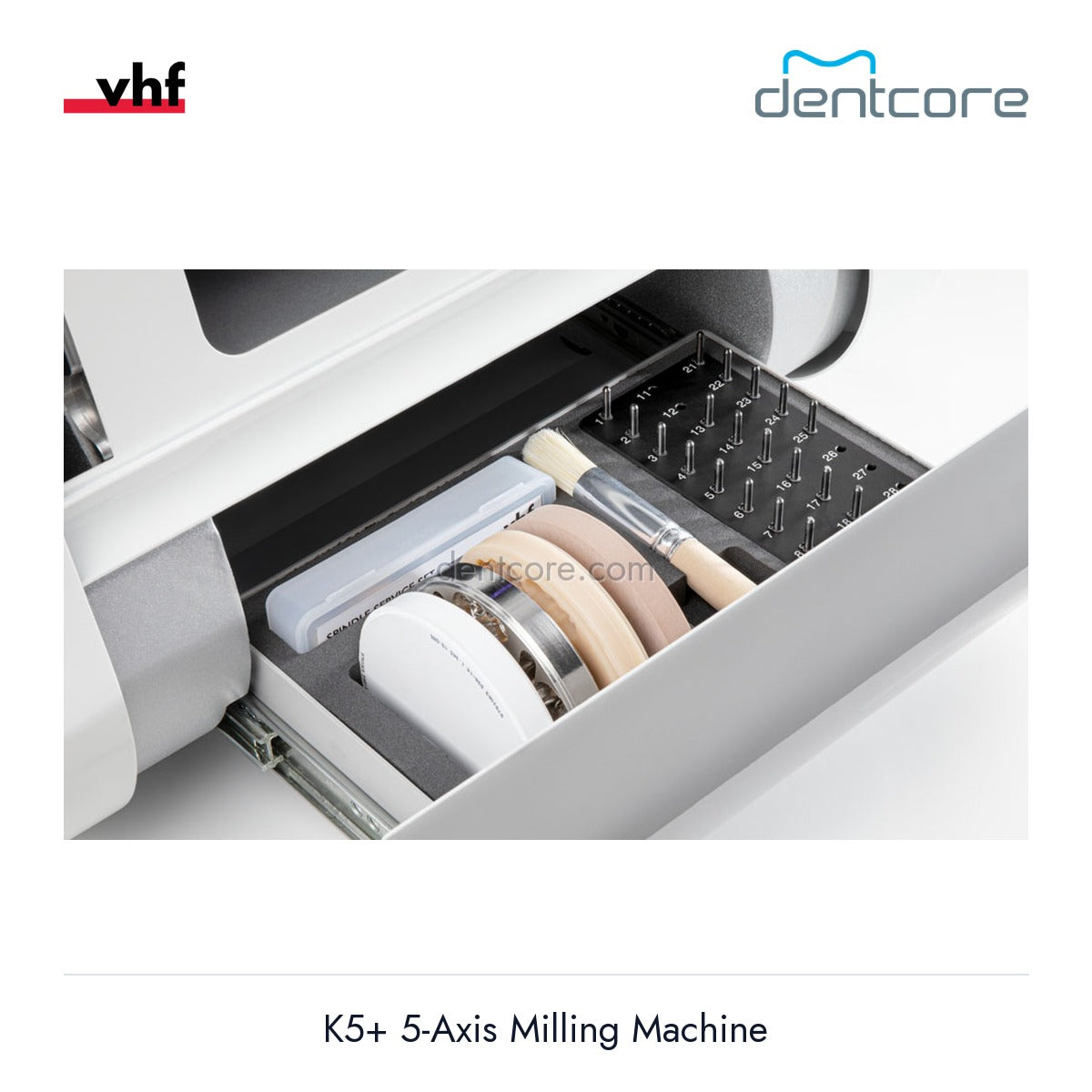

16-tool changer with 30-tool active pool — software manages which tools are loaded. The K5+ tracks tool wear and prompts replacement before accuracy drops.
Integrated ionizer — neutralizes static charge on plastic chips (PMMA, composites). Prevents chip accumulation that can interfere with milling accuracy.
Built-in webcam + RGB LED — monitor jobs remotely. The LED lighting shows machine status at a glance.

Specifications

Axes	5 simultaneous (X, Y, Z + A 360° + B ±35°)
Spindle Speed	60,000 RPM
Spindle Power	820W peak / 680W nominal / 550W continuous
Spindle Bearing	4-fold hybrid ceramic, <3 μm concentricity
Tool Capacity	16 auto-changer + 30-tool active pool
Disc Size	98.5 mm ø, up to 40 mm (metals 18 mm)
Block Size	Up to 45 × 20 × 20 mm
Accuracy	±0.003 mm (3 μm)
Processing	Dry only
Materials	PMMA, wax, zirconia, composites, CoCr, model plaster
Special Features	DIRECTDISC™, ionizer, webcam, RGB LED
Weight	91 kg
Footprint	372 × 258 mm

The Complete vhf Lab

Pair the K5+ (dry discs) with the N4+ (wet blocks) for full material coverage. Add vhf milling burs and the vhf calibration blank for periodic accuracy verification. All vhf mills include dental CAM software and a 24-month warranty.

Estimated shipping time

2-3 weeks

Estimate for planning. Final timing is confirmed after order review.

Product documents

Review the official vhf product factsheet for specifications, workflow requirements, and planning details.

Download K5+ 5-Axis Milling Machine factsheet (PDF)

View full details

Compare vhf milling machines

Specification	E3	E4	E5	N4+	Z4	K5+ This model	S5	R5
Price	$20,990	$24,990	$28,990	$34,990	$39,990	$40,990	$51,990	$84,990
Axes	3+1	4	5 simultaneous	4 (A 200°)	4 (A 200°)	5 simultaneous	5	5
Spindle	60,000 RPM	60,000 RPM	60,000 RPM	80,000 RPM	100,000 RPM	60,000 RPM	60,000 RPM	80,000 RPM
Processing	Dry only	Wet + dry	Dry only	Wet only	Wet (pure water)	Dry only	Wet and dry	Wet and dry
Tools	1	6 + 1 airtool	16 + 1 airtool	8	6	16 + 30-tool pool	16	16
Automatic blank changer	—	—	—	—	—	—	8 discs or 24 blocks	10 discs or 60 blocks
Weight	25 kg	28 kg	47 kg	52 kg	66 kg	91 kg	106 kg	150 kg
