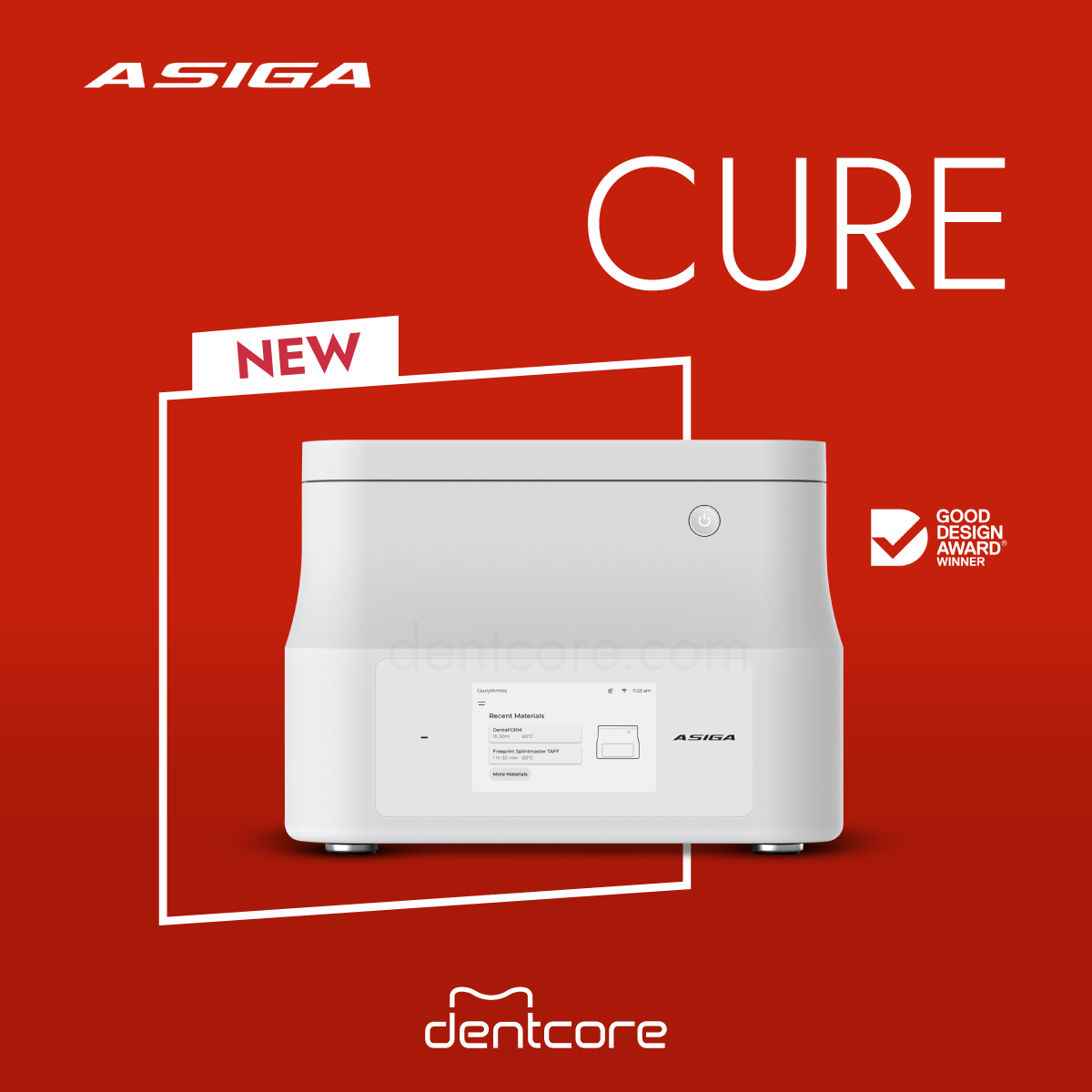

Asiga Cure — Post-Curing Unit
The post-curing unit that measures optical dose, temperature and vacuum instead of just exposure time. Internal light sensor, vacuum chamber, infrared heating to 80°C, and optional nitrogen connectivity for oxygen-free curing of biocompatible resins.
Why Dose Control Matters
- Intelligent Dose curing — built-in light sensor measures actual UV energy delivered to the part. Programs can be set by Time or by Dose, with manufacturer-validated profiles for major dental resins.
- Vacuum chamber — internal pump pulls down to a default target of 0.010 bar. Removing oxygen prevents surface inhibition — critical for biocompatible appliances that contact oral tissue.
- IR heating to 80°C — controlled infrared post-cure cycle maximizes mechanical properties for denture bases, splints, and surgical guides per manufacturer specifications.
- Nitrogen / inert gas option — connect an external nitrogen source via the External Gas Input for guaranteed oxygen-free curing of Class IIa medical device resins.
- Touchless lid — proximity-sensor opening, the same hands-free workflow as Asiga printers. No gloves contaminating the chamber.
- Immersive 360° LED curing — high-power 405nm UV LED array surrounds the chamber for even exposure on every face of the part.
Specifications

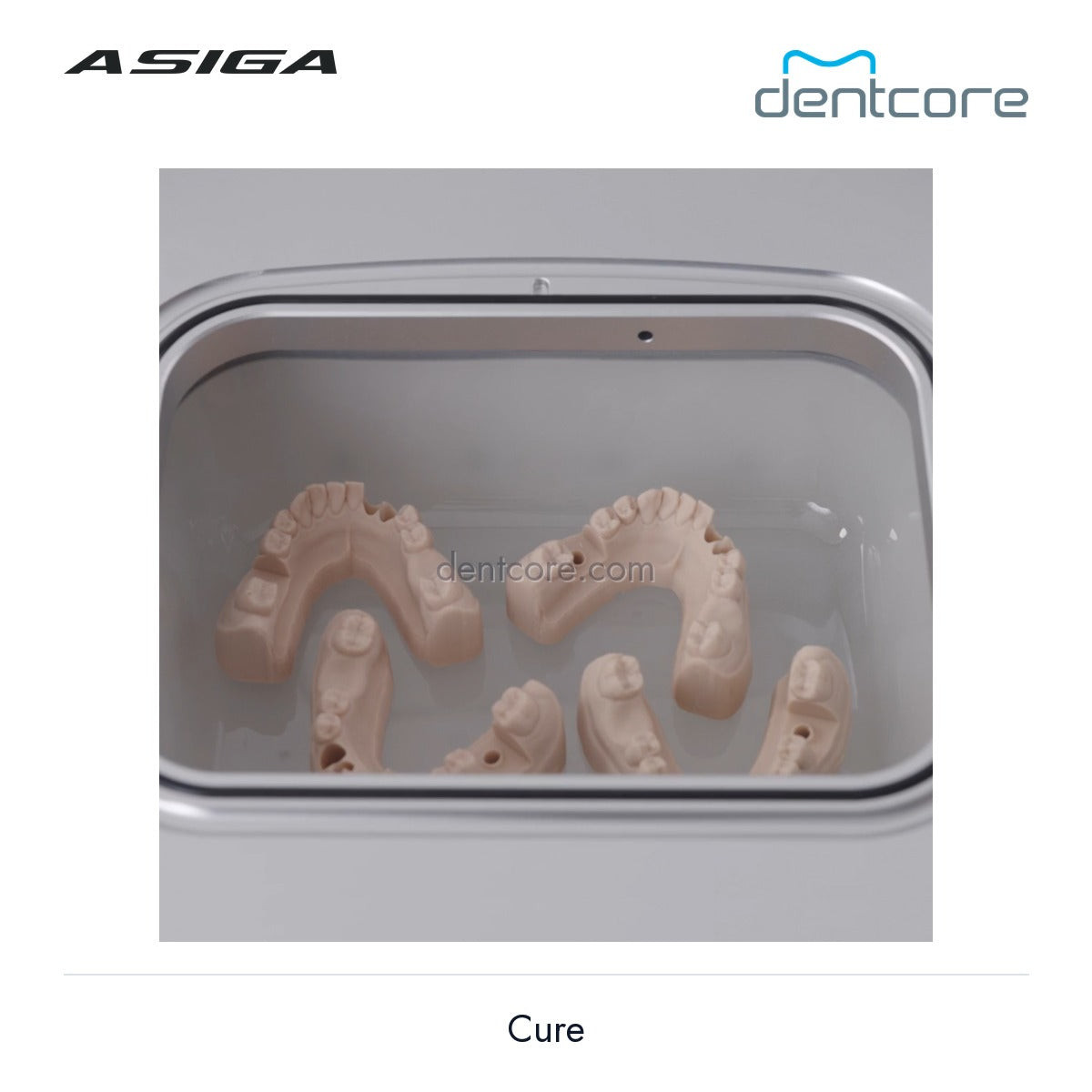

| Chamber Options | 1.5 L or 2.5 L |
| Chamber Size (1.5L) | 194 × 139 × 65 mm (7.64 × 5.47 × 2.56 in) |
| Chamber Size (2.5L) | 194 × 139 × 132 mm (7.64 × 5.47 × 5.20 in) |
| LED Wavelength | 405 nm (high-power UV LED) |
| Heating | Controlled infrared, up to 80°C |
| Vacuum Target | Internal pump, default 0.010 bar (adjustable) |
| Inert Gas | Optional nitrogen input via External Gas Port |
| Material Compatibility | 100% Open Material System — Asiga or any third-party photopolymer |
| Connectivity | Wi-Fi (802.11ac/a/b/g/n, 2.4 / 5 GHz), Wireless Direct, Gigabit Ethernet |
| Power | 100–240 V AC, 50/60 Hz, 4.5 A (252 W max) |
| System Size | 380 × 380 × 240 mm (14.96 × 14.96 × 9.45 in) |
| Weight | 15.6 kg (34.4 lb) |
| In the Box | Cure unit, power brick + IEC power cable, Ethernet cable |
| Warranty | 12 months manufacturer's warranty + unlimited lifetime technical support |
Pre-Loaded Profiles
Ships with manufacturer-validated curing profiles for major dental resins. Create custom Time-based or Dose-based programs for specialty materials. The Cure tracks UV cycles, vacuum pump time and IR heating time per unit, so you have documentation for quality assurance.
Works With Any 3D Printer
While designed for the Asiga ecosystem, the Cure works with parts printed on any DLP/LCD printer. If you're printing biocompatible appliances, dose-controlled curing isn't optional — it's required for consistent mechanical properties.
Download the Official User Guide
Full setup, operation, maintenance, web interface and service information — straight from Asiga.
↓ Asiga Cure User Guide (PDF, 39 pages)Authorized Dealer
