vhf

vhf N4+ 4-Axis Milling Machine

Name: vhf N4+ 4-Axis Milling Machine
Brand: Dentcore
SKU: DC-VH00064
Price: 34990.00 USD
Availability: InStock

$34,990.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Ask a specialist 844-292-8023 Financing

Product details

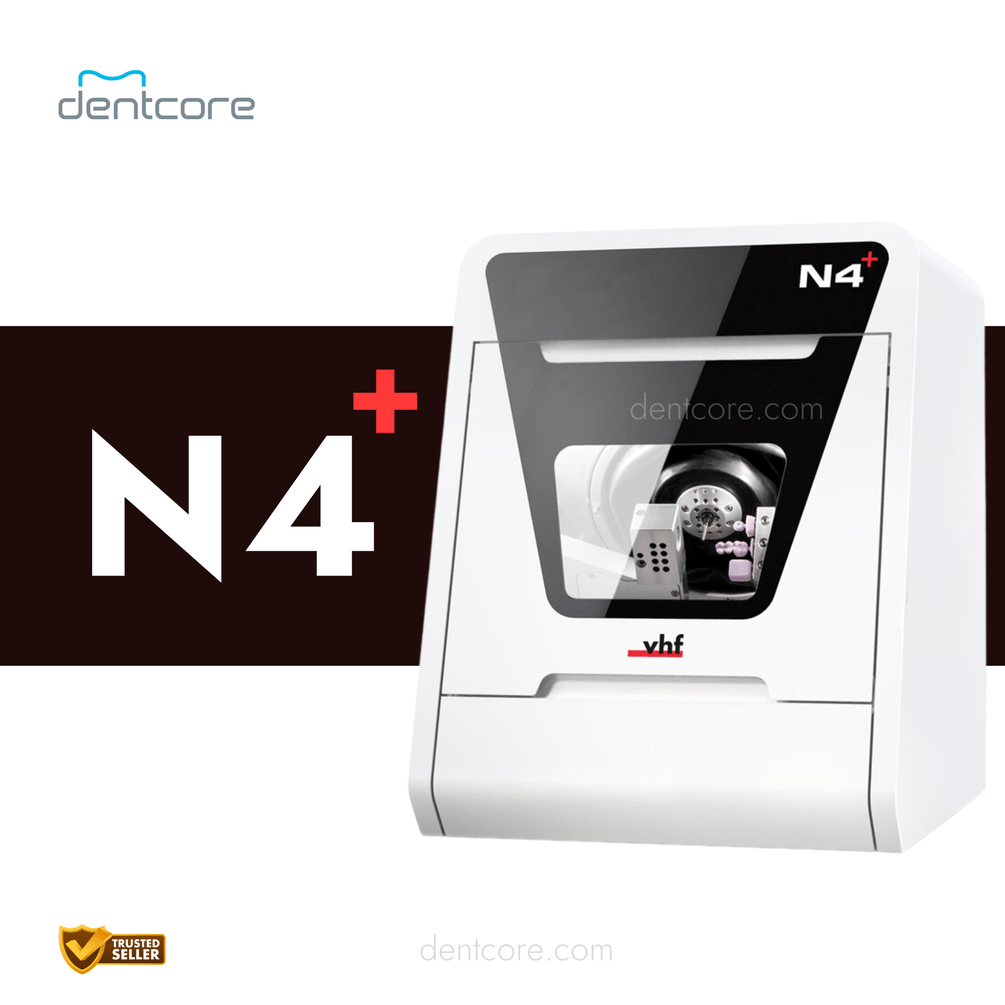

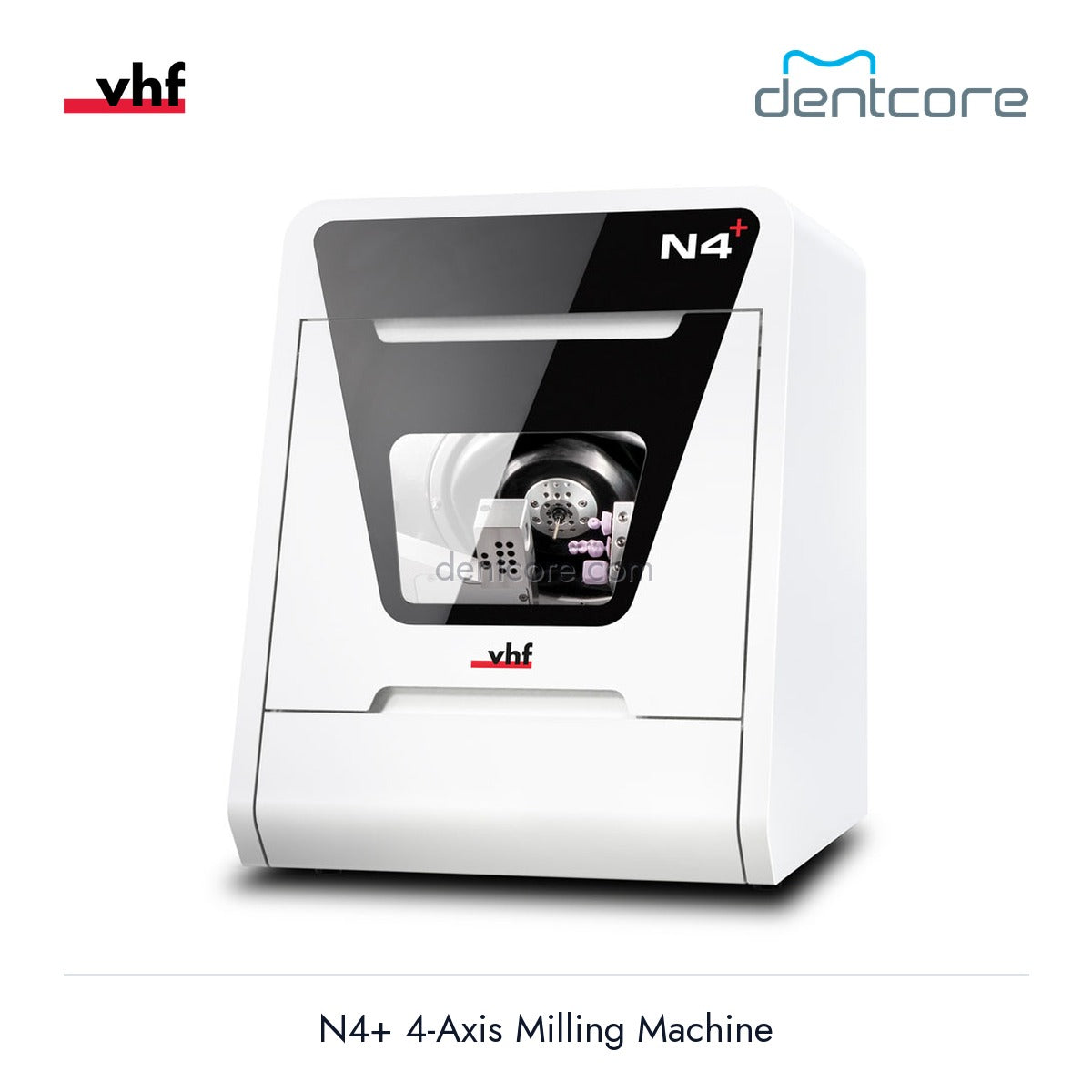

vhf N4+ — 4-Axis Wet Milling Machine

Lab-grade wet mill validated for titanium abutment milling. 80,000 RPM water-cooled spindle, 8-tool changer, and capacity for 3 blocks simultaneously. The N4+ is vhf’s workhorse for glass ceramics, titanium, CoCr, and zirconia — all with wet processing.

Why the N4+ for Wet Milling

80,000 RPM — highest spindle speed in the vhf lineup. The extra speed matters for titanium and CoCr where clean cuts reduce heat buildup and tool wear.
Titanium validated — −10 to +26 μm proven accuracy for titanium abutments. This is clinical-grade implant component precision.

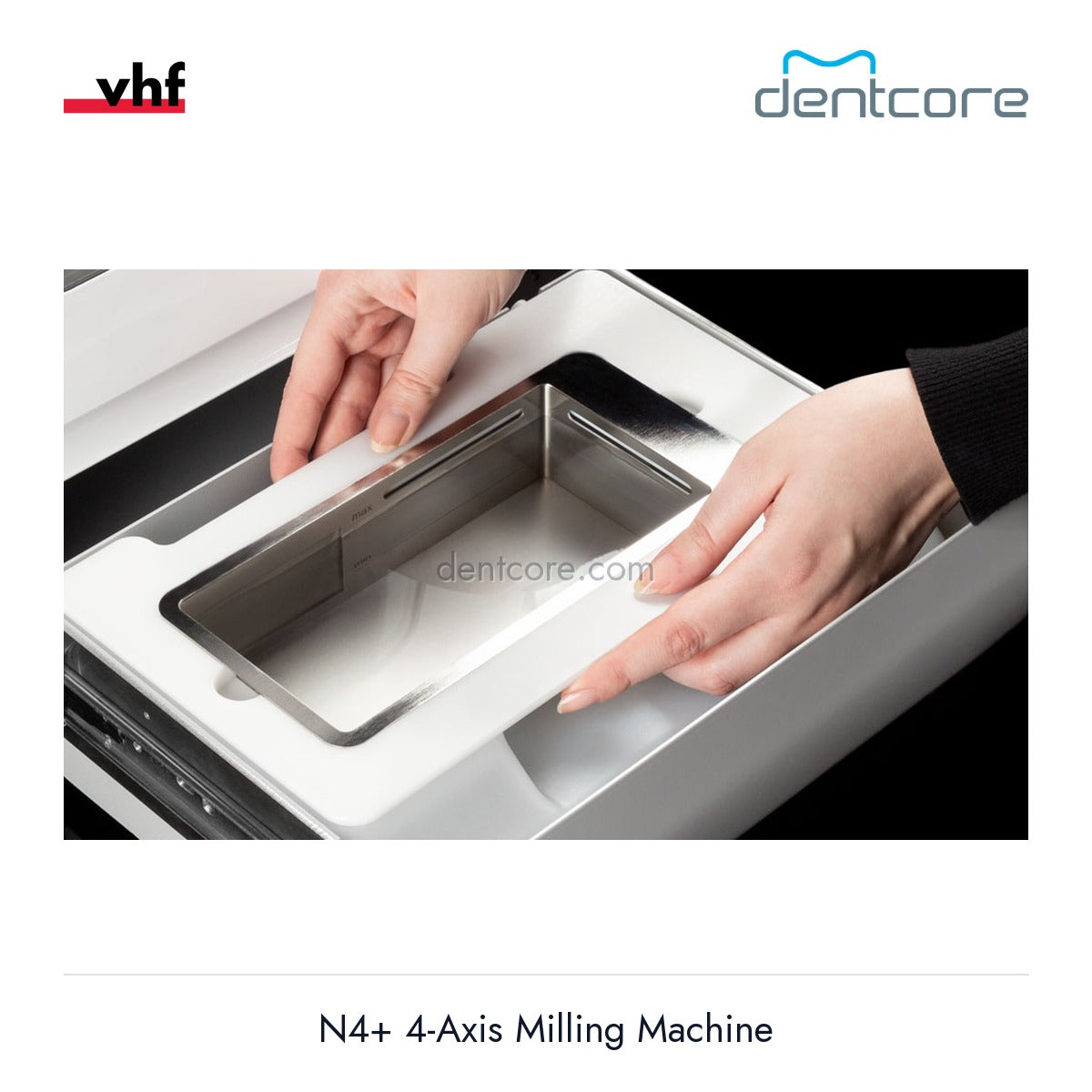

Water-cooled spindle with 8 fine nozzles — targeted cooling at the cutting edge. 3.5L integrated tank with active carbon filter keeps water clean cycle after cycle.

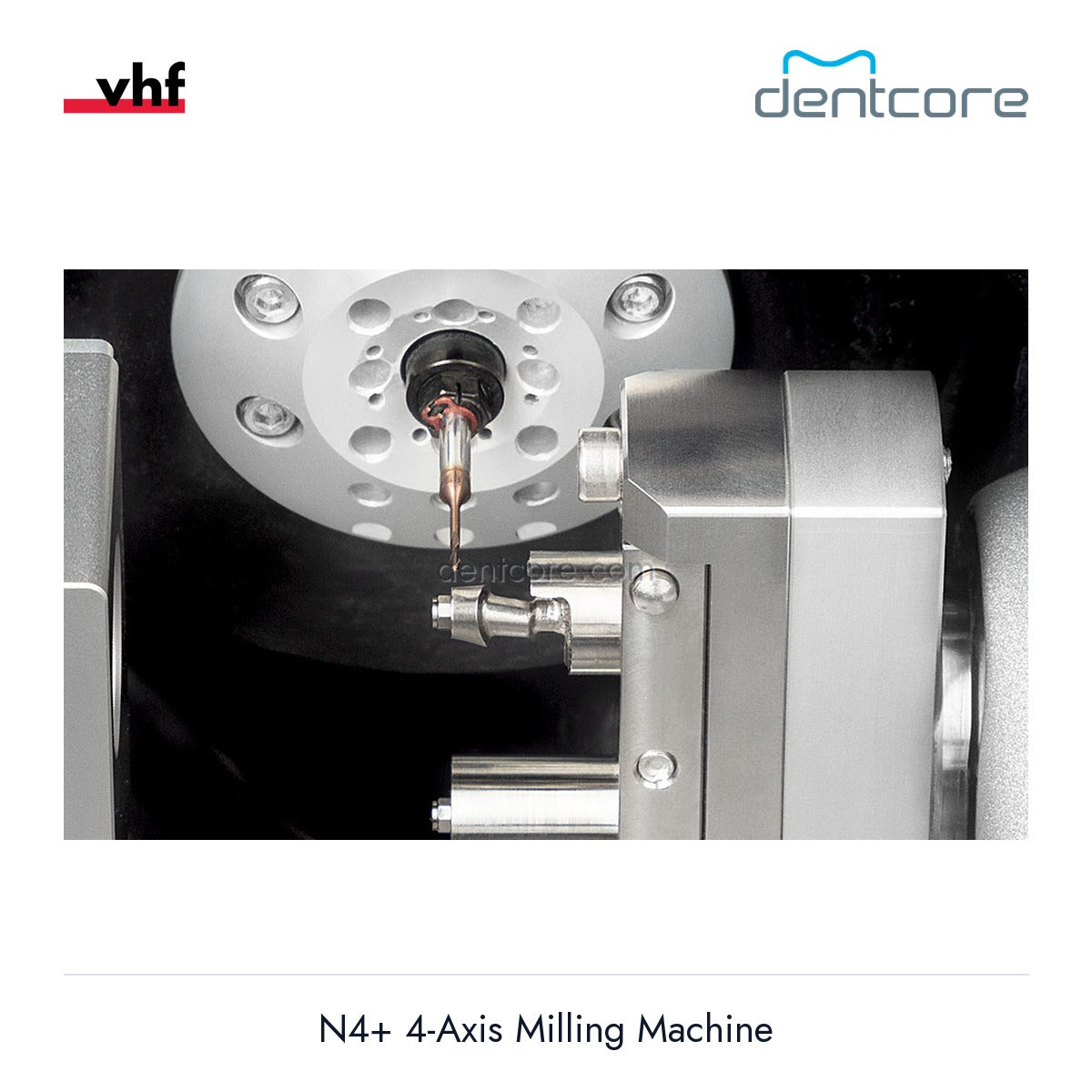

3 blocks simultaneously — load 3 different cases, queue them, and walk away. Each block up to 45 × 20 × 20 mm.

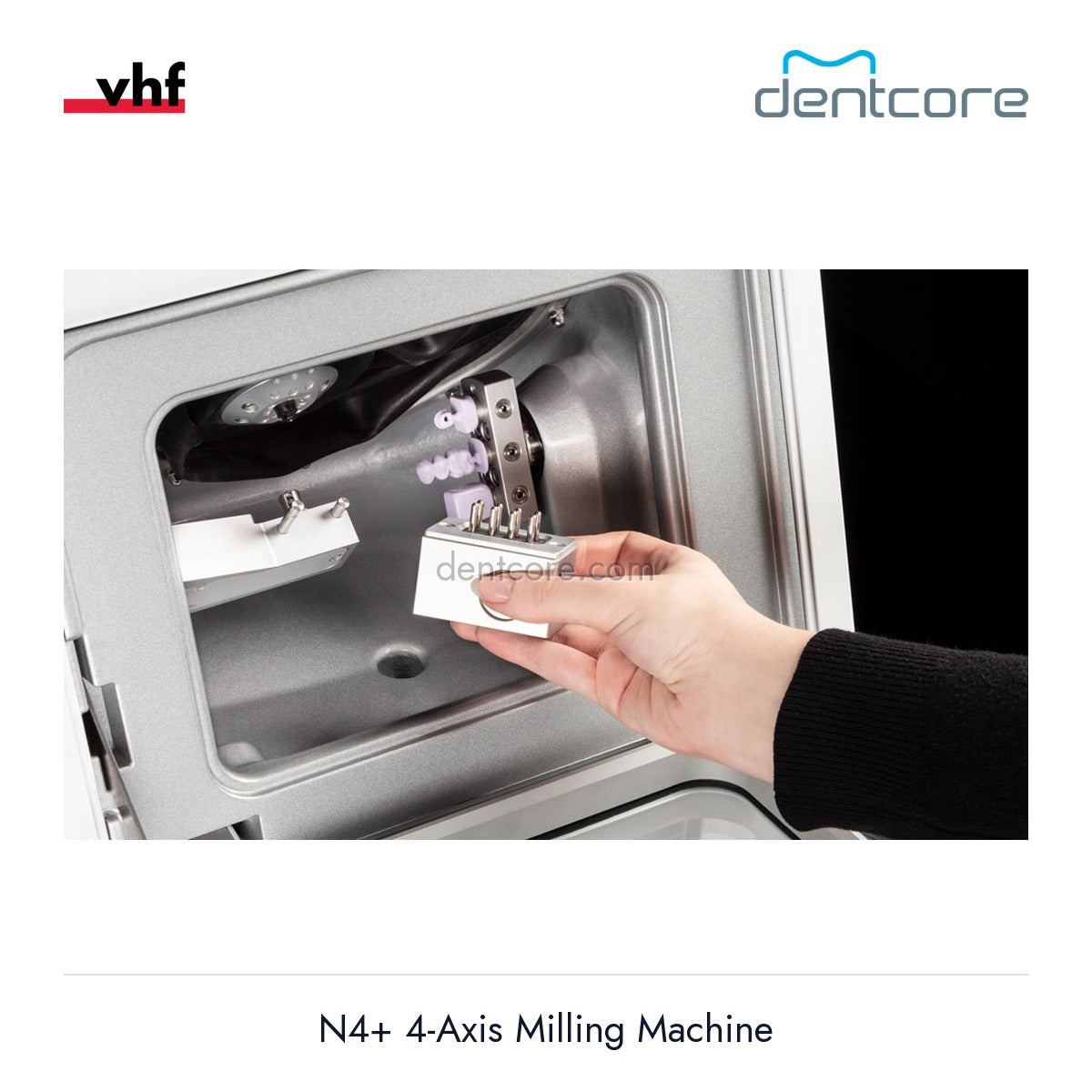

8-tool removable magazine — swap the entire tool magazine between material setups instead of individual burs.
Pure water technology — no grinding additives needed (except for titanium). Lower consumable cost than competitive wet mills.

Specifications

Axes	4 (X, Y, Z + A 200° rotary)
Spindle Speed	80,000 RPM
Spindle Power	800W peak / 600W nominal / 440W continuous
Tool Capacity	8 (removable magazine)
Block Capacity	3 simultaneous (45 × 20 × 20 mm each)
Accuracy	3 μm repetition / −10 to +26 μm titanium
Processing	Wet only (water-cooled)
Cooling	8 fine nozzles, 3.5L tank, active carbon filter
Materials	Glass ceramics, zirconia, titanium, CoCr, composites, PMMA
Weight	52 kg
Footprint	337 × 324 mm

N4+ vs. K5+

Both are lab-grade machines. The N4+ is wet-only and mills blocks (ideal for titanium abutments and glass ceramic blocks). The K5+ is dry-only and mills discs (ideal for zirconia disc production and CoCr sintered frameworks). Many lab or practices use both.

Uses With

Pair with vhf milling burs (material-specific carbide tools) and vhf dental CAM software (included). Compatible with exocad, 3Shape, and other open CAD systems.

Estimated shipping time

2-3 weeks

Estimate for planning. Final timing is confirmed after order review.

Product documents

Review the official vhf product factsheet for specifications, workflow requirements, and planning details.

Download N4+ 4-Axis Milling Machine factsheet (PDF)

View full details

Compare vhf milling machines

Specification	E3	E4	E5	N4+ This model	Z4	K5+	S5	R5
Price	$20,990	$24,990	$28,990	$34,990	$39,990	$40,990	$51,990	$84,990
Axes	3+1	4	5 simultaneous	4 (A 200°)	4 (A 200°)	5 simultaneous	5	5
Spindle	60,000 RPM	60,000 RPM	60,000 RPM	80,000 RPM	100,000 RPM	60,000 RPM	60,000 RPM	80,000 RPM
Processing	Dry only	Wet + dry	Dry only	Wet only	Wet (pure water)	Dry only	Wet and dry	Wet and dry
Tools	1	6 + 1 airtool	16 + 1 airtool	8	6	16 + 30-tool pool	16	16
Automatic blank changer	—	—	—	—	—	—	8 discs or 24 blocks	10 discs or 60 blocks
Weight	25 kg	28 kg	47 kg	52 kg	66 kg	91 kg	106 kg	150 kg
