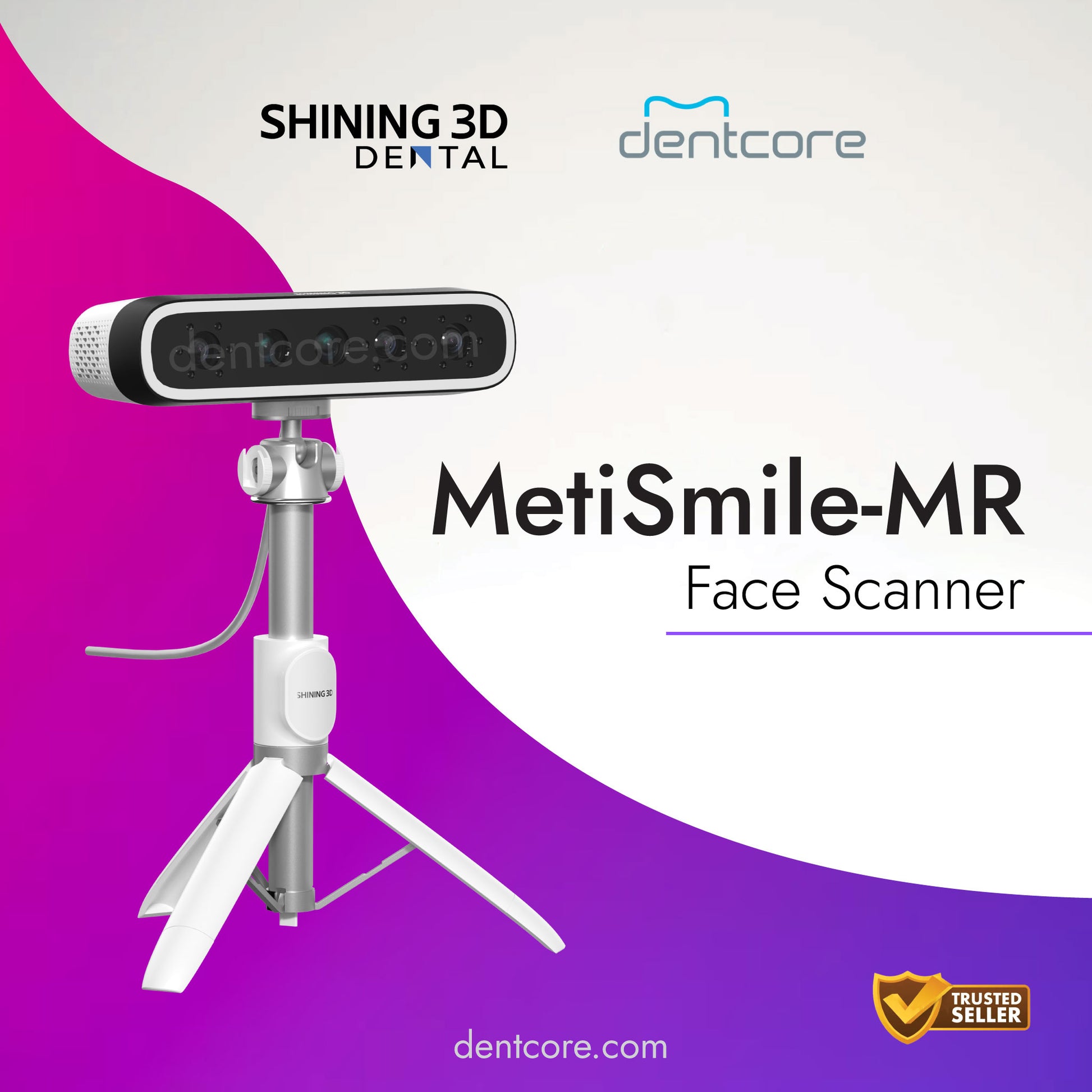

Shining 3D MetiSmile MR Face Scanner
A contact-free 3D facial scanner that also tracks how the jaw actually moves.
The MetiSmile MR is Shining 3D's 3D Face Scanner with the added Mandibular Movement Trajectory Tracking module. It captures a full three-dimensional model of the patient's face in about ten seconds, then records the real path the lower jaw travels — opening and closing, protrusion, and lateral excursions — and aligns that motion with the facial and intraoral data. For clinicians doing full-mouth rehabilitation, complex occlusal work, TMJ-related planning, or digital smile design, the MR turns a static portrait into a functional, articulated record you can carry straight into CAD.
Why the MetiSmile MR stands out
-
Mandibular movement trajectory tracking — an authorized module that acquires 3D images of the dentulous mandible and records its motion, so you can simulate jaw movement and its effect across the whole face instead of relying on a single static bite.
-
Captures real functional movements — the default template records Static Face, Resting Face, Opening-Closing, Protrusive, and Lateral movements, each recorded one to five times, so the trajectory reflects how the patient actually functions.
-
Jaw Motion Tracker Kit included — ships with markers, a Dentulous and an Edentulous Jaw Motion Tracker, and a Featured Shell, covering everything from exposed lower dentition to deep-overbite and implant cases.
-
Optimal Jaw Relation — an authorized module for both dentulous and edentulous patients; for edentulous cases it helps establish the jaw relation by creating an axis, confirming vertical distance, and analyzing the horizontal relationship.
-
Contact-free ten-second face scan — an optical, non-contact device that captures 3D face data in roughly 10 seconds, keeping chair time short and the patient comfortable.
-
Aligns face, intraoral, and CBCT data — the FScan software aligns facial data with mouth-scanning dental data and with cone-beam CT (DICOM) data, giving you one unified digital model.
-
Straight into your CAD workflow — scanned data can be sent to exocad for smile design, and trajectory data can be exported in XML for third-party CAD, feeding virtual articulator parameters into functionally driven restorations.
-
Class 1 laser, safe by design — an infrared laser projector at 850 nm enhances feature recognition with no harmful radiation when used as directed.
Specifications
| Parameter |
Specification |
| Product model |
MetiSmile-MR (3D Face Scanner) |
| Accuracy |
≤ 50 μm (dimensional error ≤ 0.05 mm) |
| Tracking accuracy |
≤ 0.15 mm |
| Morphological accuracy |
≤ 0.3 mm |
| Face scan time |
Approx. 10 seconds (average ≤ 10 s) |
| Trajectory capture frame rate |
≥ 50 fps |
| Resolution (black & white camera) |
1280 × 1080 |
| Resolution (texture camera) |
2448 × 2048 |
| Field of view |
B&W 41.3°; Texture 49.3° |
| Working distance |
Approx. 500 mm from the face |
| White LED color temperature |
5500 K |
| Infrared laser |
850 ± 10 nm, optical power ≤ 10 mW (Class 1) |
| Output format |
OBJ, PLY |
| Dimensions |
215 × 50 × 75 mm |
| Weight |
800 g |
| Power supply |
Input 100–240 V~, 50/60 Hz; Output DC 12 V, 7.0 A |
| Operating temperature |
10 °C – 40 °C, 30–90% RH |
| MR module |
Mandibular Movement Trajectory Tracking (authorized) |
Recommended workstation
FScan is a GPU-dependent application. Shining 3D recommends an Intel Core i7-8700 or higher CPU, 32 GB RAM (16 GB minimum), a 256 GB SSD or larger, an NVIDIA graphics card, Windows 10/11 Professional 64-bit, and more than two USB 3.0 (or higher) type-A ports.
What's included
- Scanner body
- Jaw Motion Tracker Kit — markers, Dentulous Jaw Motion Tracker, Edentulous Jaw Motion Tracker, and Featured Shell
- Calibration plate
- Tripod
- USB 3.0 repeater
- Power adapter and power cable
- USB flash drive (FScan software)
- Protective shell and carrying case
- Certificate & warranty and quick guide
