Shining 3D MetiSmile Face Scanner
A chairside 3D facial scanner that captures the whole face in about 10 seconds and aligns it with your intraoral scan for true digital smile design.
The MetiSmile is a contact-free optical face scanner developed by Shining 3D. It records the full 3D structure of the patient's face — lip line, facial midline, smile arc and the relationship of the teeth to the surrounding features — and merges that facial model with intraoral scan data so restorations can be designed in the context of the actual face rather than in isolation. It is built for dental clinics, dental laboratories and maxillofacial workflows where the appearance of the final result matters as much as the fit, and where showing a patient how a case will look drives faster case acceptance. This is the base MetiSmile model (facial scanning); if you also need mandibular movement tracking, see the MetiSmile-MR.
Why the MetiSmile stands out
-
Full-face capture in about 10 seconds — the average time to scan a face is no more than 10 seconds, so there is no long hold-still period and minimal patient fatigue.
-

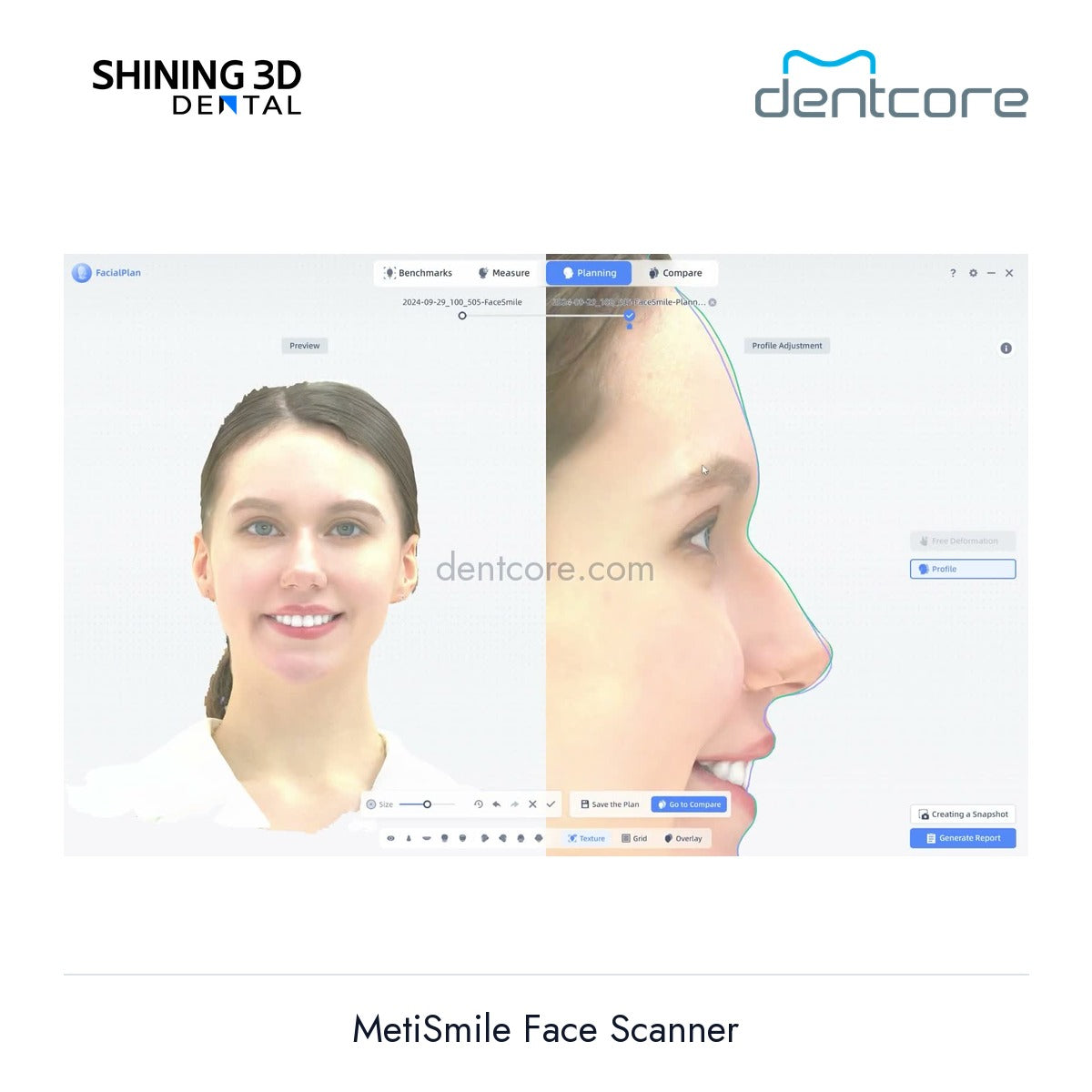

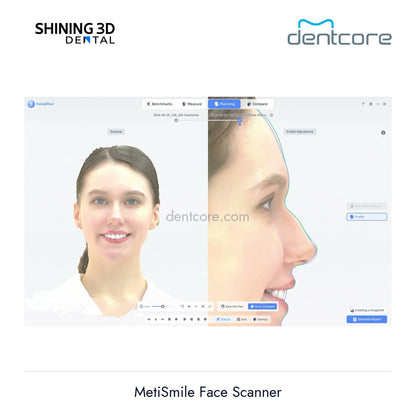

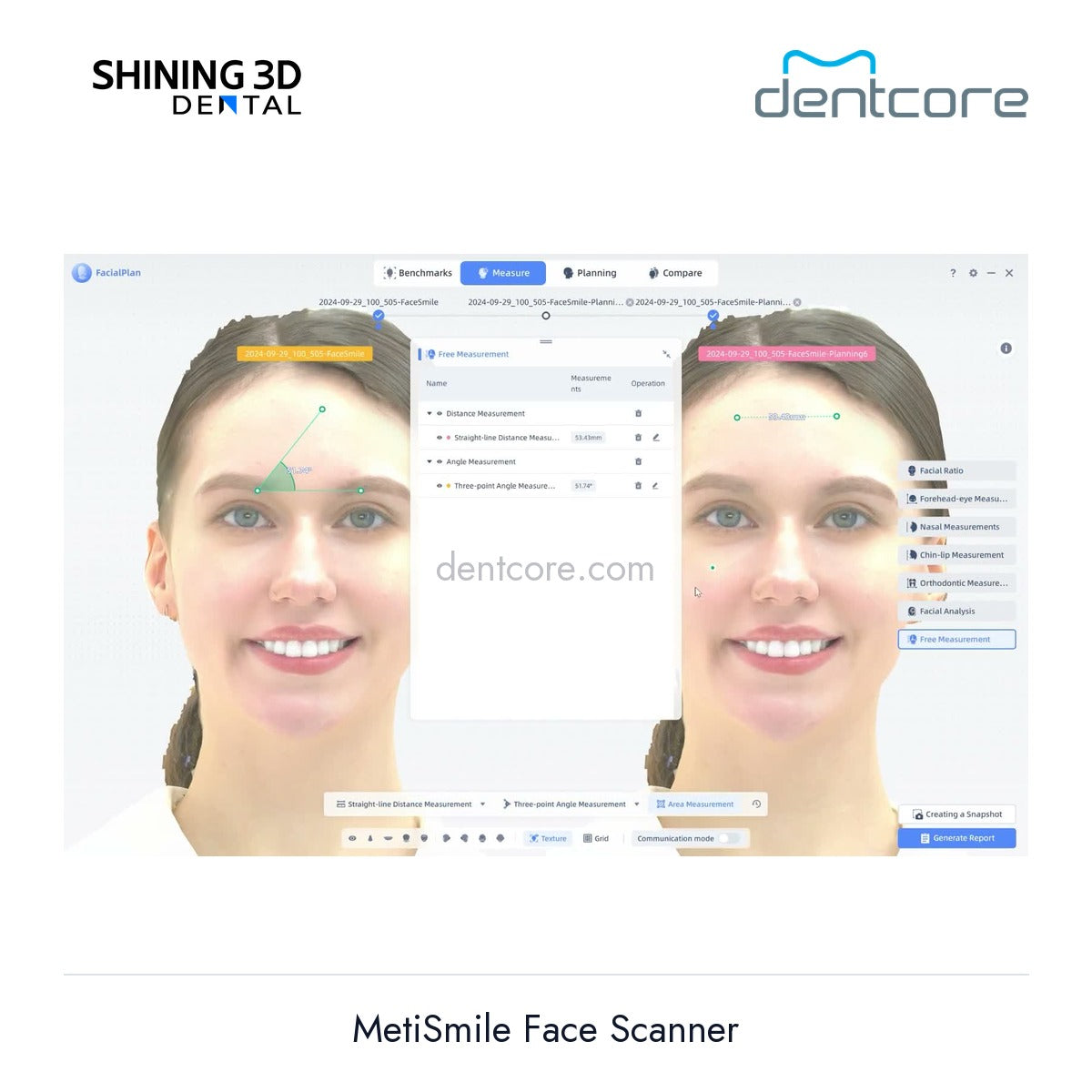

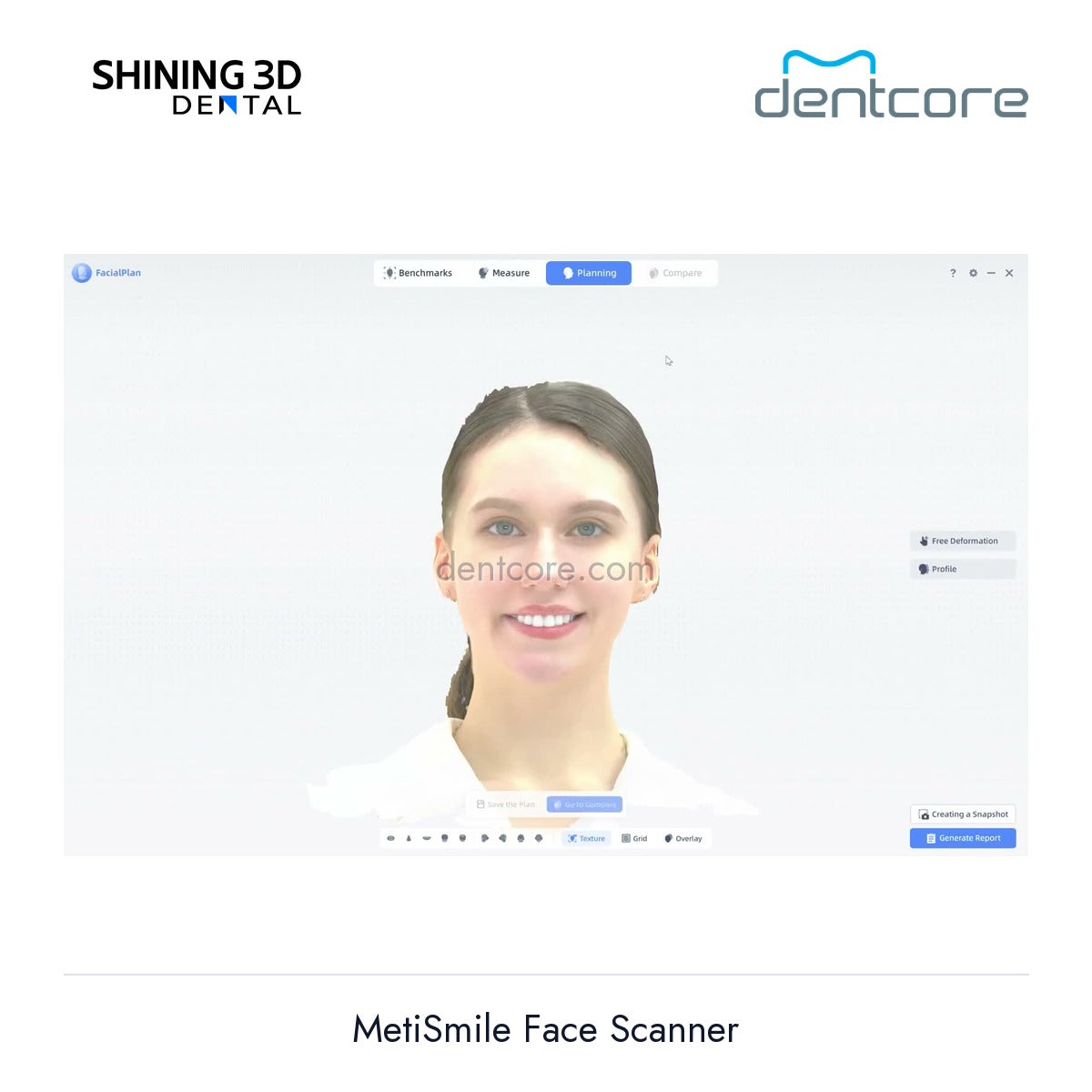

Digital smile design in the real face — the scanned facial model aligns with your intraoral data, letting you plan restorations against the patient's genuine lip line, midline and smile before any tooth is prepared.
-
50 µm accuracy — the scanner is rated to an accuracy of ≤ 50 µm (dimensional error no greater than 0.05 mm), capturing facial and dental landmarks with clinical precision.
-
Eye-safe infrared projection — feature recognition uses an 850 nm infrared laser rated as a Class 1 laser product, so patients aren't hit with a bright visible flash during capture.
-

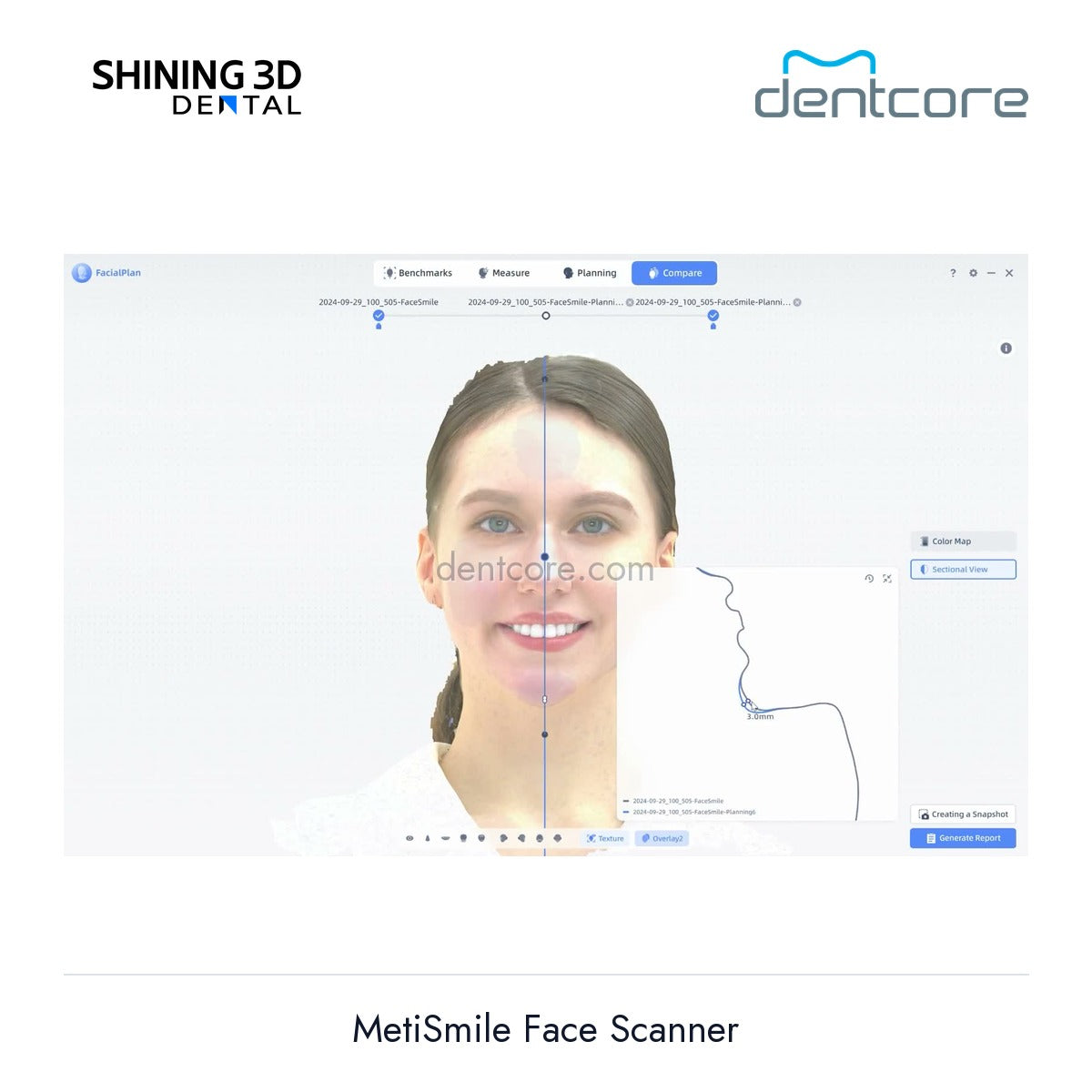

Automatic face-to-scan alignment — the FScan software adaptively aligns facial data with intraoral data, with a heat-map view (green ideal, red positive deviation, blue negative deviation) to verify the merge and manual fine-tuning when you need it.
-
High-resolution colour texture — a dedicated 2448 × 2048 texture camera captures full-colour facial detail alongside the three-camera depth system.
-
Handheld or fixed operation — scan freehand across the face, or mount the scanner on the supplied tripod and have the patient slowly rotate their head for a steady, repeatable capture.
-
Open export formats — outputs open PLY, OBJ and STL meshes and can send data to CAD platforms such as exocad for smile design.
Specifications
| Specification |
Detail |
| Accuracy |
≤ 50 µm |
| Scan Time |
No more than 10 seconds (average, full face) |
| Depth Camera Resolution |
1280 × 1080 |
| Texture Camera Resolution |
2448 × 2048 |
| Field of View |
Depth camera 41.3° / texture camera 49.3° |
| Working Distance |
Approx. 500 mm |
| White LED Colour Temperature |
5500 K |
| Infrared Laser |
850 ± 10 nm, optical power ≤ 10 mW (Class 1 laser product) |
| Output Formats |
PLY, OBJ, STL |
| Dimensions |
215 × 50 × 75 mm |
| Weight |
800 g |
| Power Supply |
Input AC 100–240 V, 50/60 Hz, 1.5 A; Output DC 12 V, 7.0 A |
| Data Connection |
USB 3.0 (via USB 3.0 repeater) |
| Operating Temperature |
10 °C to 40 °C, 30% to 90% RH |
What's included
Each MetiSmile ships with the scanner body and protective shell, calibration plate, USB 3.0 repeater, power adapter and power cable, tripod, USB flash drive with the FScan software, jaw motion tracker kit, quick guide and certificate. (Some items such as the tracker kit, tripod, repeater and power adapter are configuration-dependent — confirm your exact kit with us before ordering.)
Works with your Aoralscan workflow
The MetiSmile is designed to be used alongside a Shining 3D Aoralscan intraoral scanner, connecting through the USB 3.0 repeater so facial and intraoral data land in a single coordinate system for smile design. The scanner and FScan software are intended for use by trained professionals in dental clinics, dental hospitals and dental laboratories.
