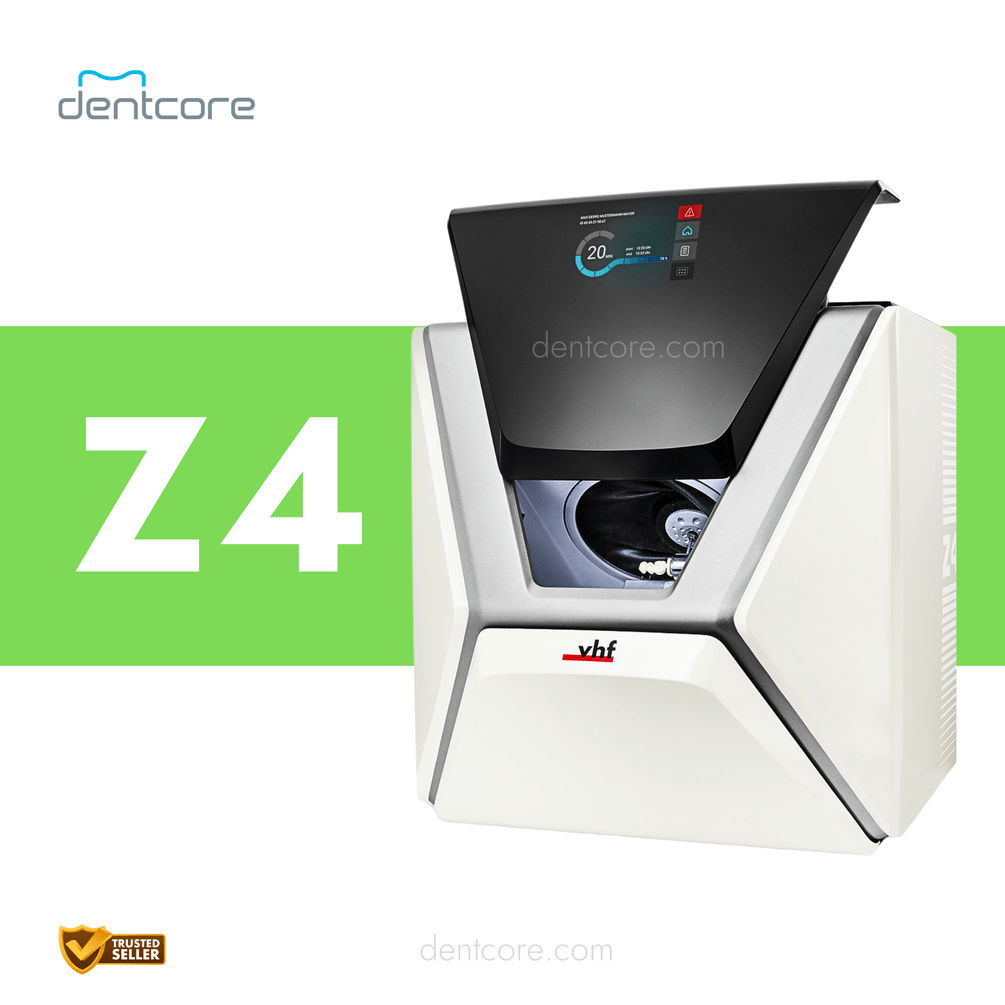

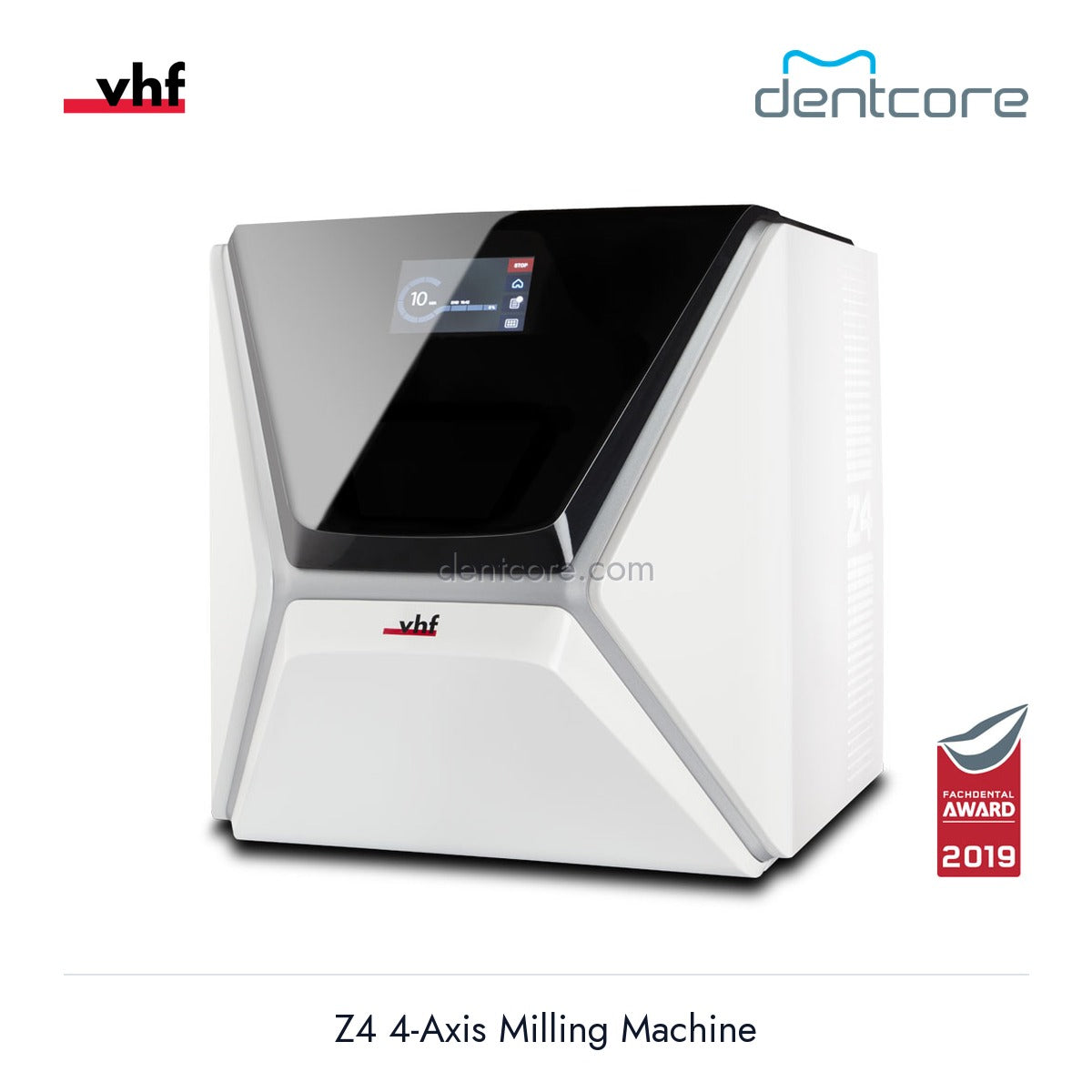

vhf Z4 4-Axis Milling Machine

vhf Z4 4-Axis Milling Machine

$39,990.00 USD
$39,990.00 USD
Sale Sold out
Shipping calculated at checkout.
Ask a specialist 844-292-8023 Financing

Product details

Compact chairside milling unit by vhf camfacture AG (Germany). The Z4 delivers same-day restorations with a water-cooled spindle running up to 100,000 RPM and ±0.003 mm repetition accuracy.

Technical Specifications

Axes 4-axis (X/Y/Z linear + A rotary 200°)
Spindle 100,000 RPM — water-cooled, 340W peak / 220W nominal
Accuracy Repetition accuracy ±0.003 mm, motor resolution <1 µm
Tool Changer 6-position automatic with pneumatic clamping
Max Blank Size 45 × 20 × 20 mm

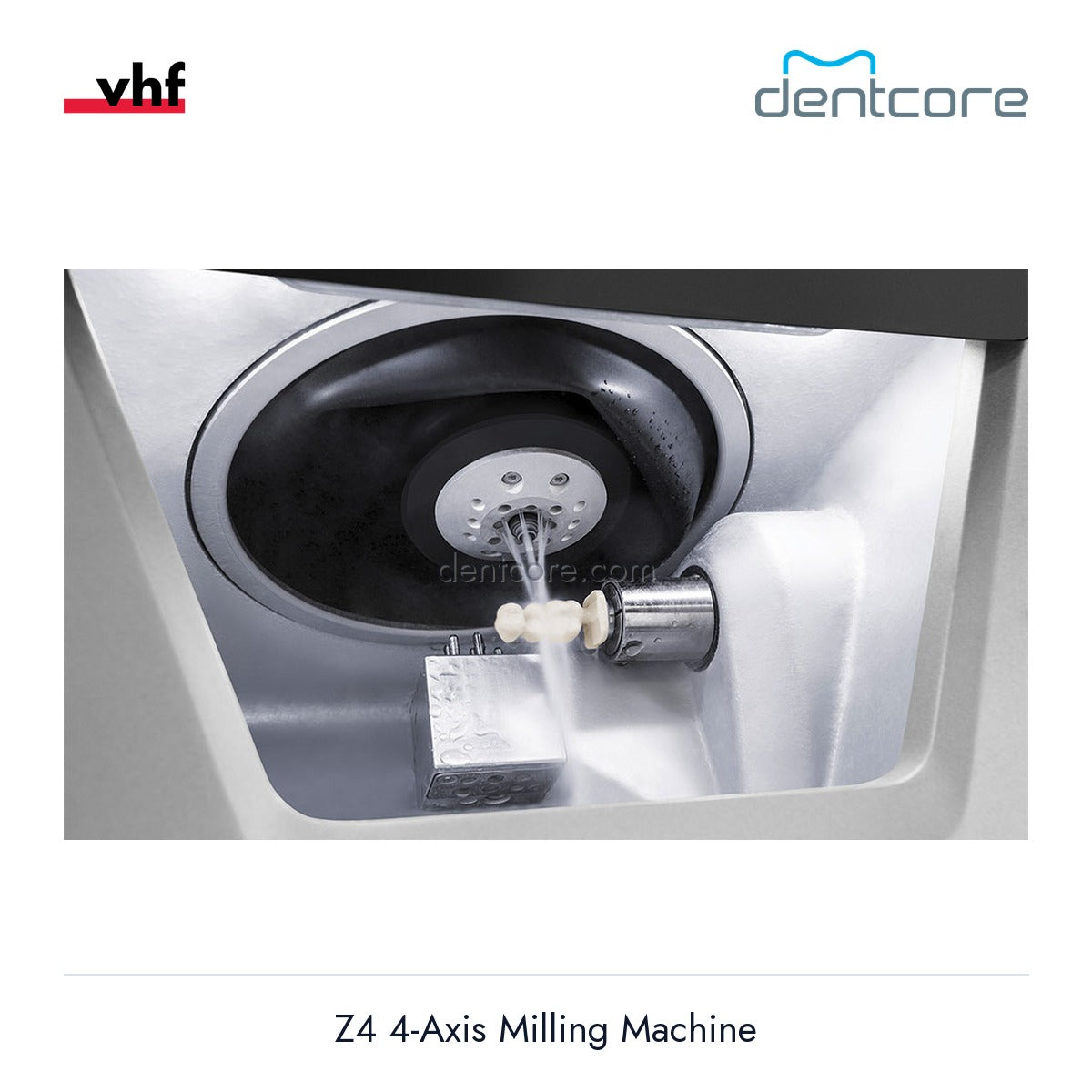

Cooling Pure water wet processing, 2L integrated tank with active carbon filter
Dimensions 471 × 572 × 507 mm (closed) — 66 kg
Power 100–240V, 50/60Hz, 750W — no compressed air needed

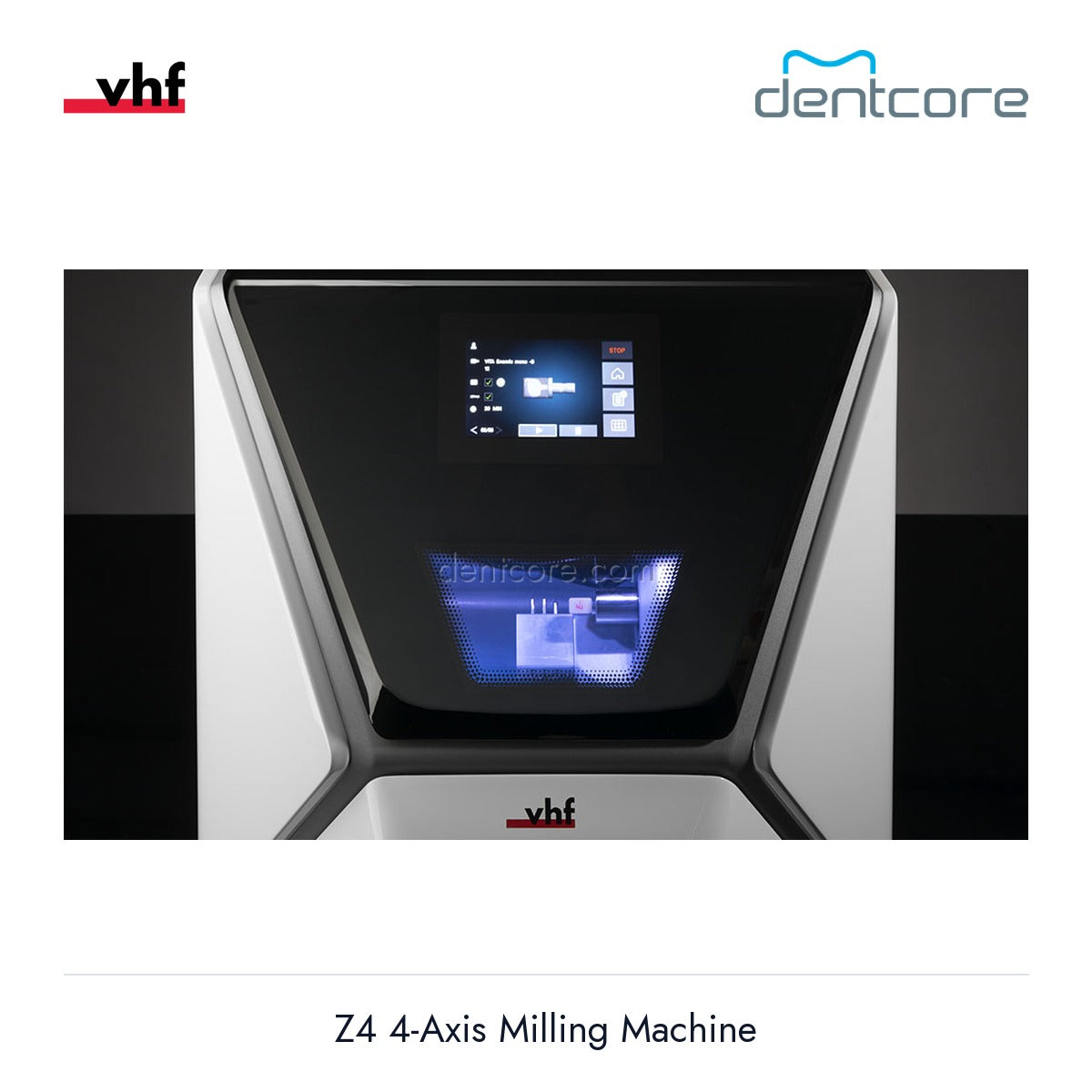

Display 5-inch capacitive touchscreen

Materials

Processes 40+ block materials including glass ceramics, zirconia, titanium, composites, PMMA, and wax. Compatible with 800+ prefabricated titanium abutment blanks.

Software & Workflow

Ships with dentalcam software (no license fees). Integrates directly with 3Shape TRIOS Design Studio and exocad ChairsideCAD. Supports open STL workflows.

🇩🇪 Engineered and manufactured in Germany. CE, UL, FCC certified.

Estimated shipping time

2-3 weeks

Estimate for planning. Final timing is confirmed after order review.

Product documents

Review the official vhf product factsheet for specifications, workflow requirements, and planning details.

Download Z4 4-Axis Milling Machine factsheet (PDF)

View full details

Compare vhf milling machines

E3 E4 E5 N4+ Z4 This modelK5+ S5 R5
Price$20,990$24,990$28,990$34,990$39,990$40,990$51,990$84,990
Axes3+145 simultaneous4 (A 200°)4 (A 200°)5 simultaneous55
Spindle60,000 RPM60,000 RPM60,000 RPM80,000 RPM100,000 RPM60,000 RPM60,000 RPM80,000 RPM
ProcessingDry onlyWet + dryDry onlyWet onlyWet (pure water)Dry onlyWet and dryWet and dry
Tools16 + 1 airtool16 + 1 airtool8616 + 30-tool pool1616
Automatic blank changer——————8 discs or 24 blocks10 discs or 60 blocks
Weight25 kg28 kg47 kg52 kg66 kg91 kg106 kg150 kg
