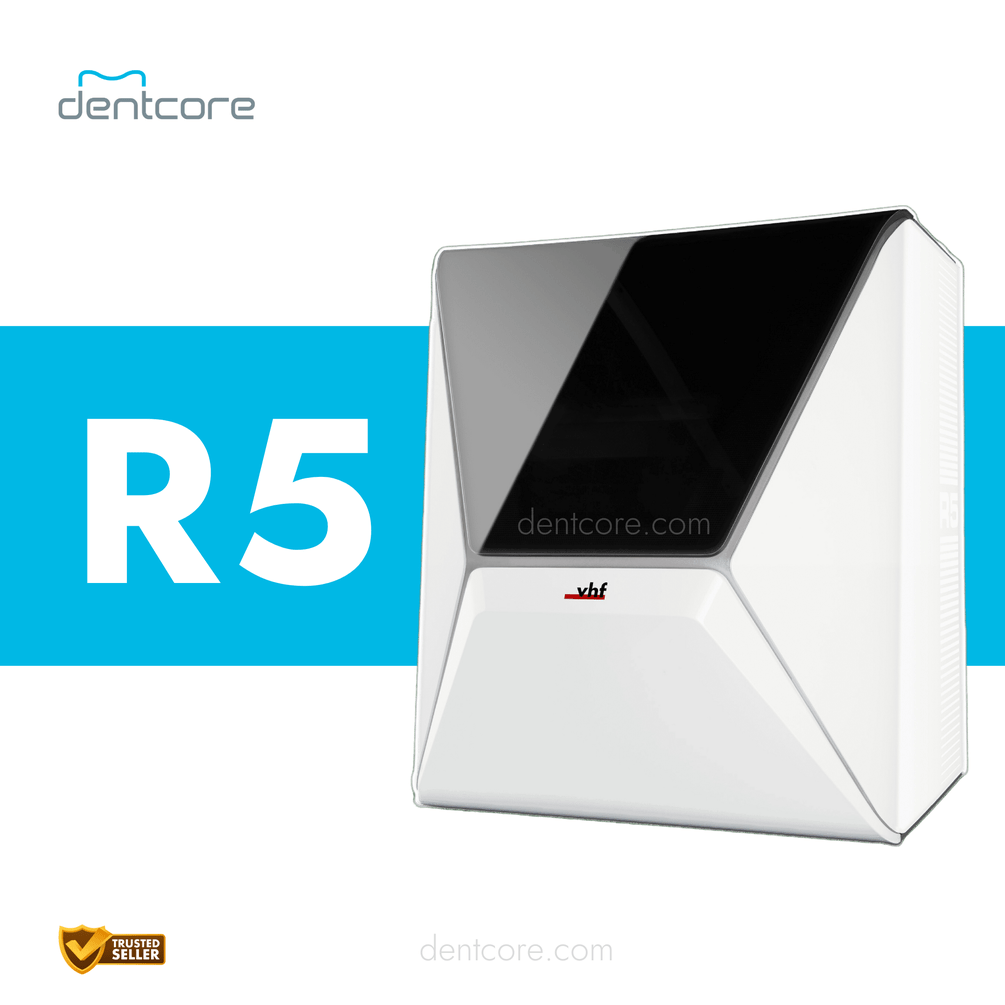

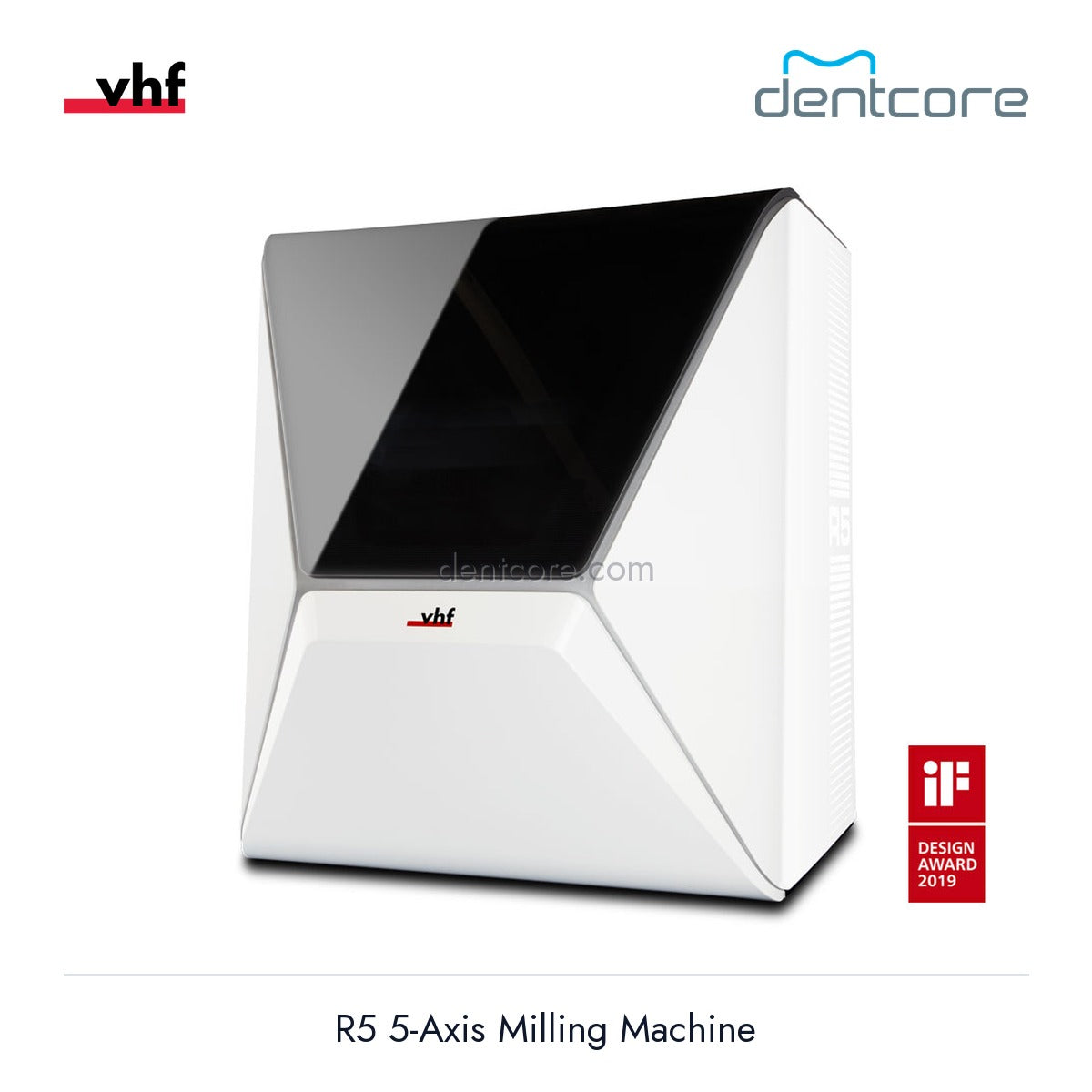

vhf R5 5-Axis Milling Machine

Name: vhf R5 5-Axis Milling Machine
Brand: Dentcore
SKU: DC-VH00066
Price: 84990.00 USD
Availability: InStock

$84,990.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Ask a specialist 844-292-8023 Financing

Product details

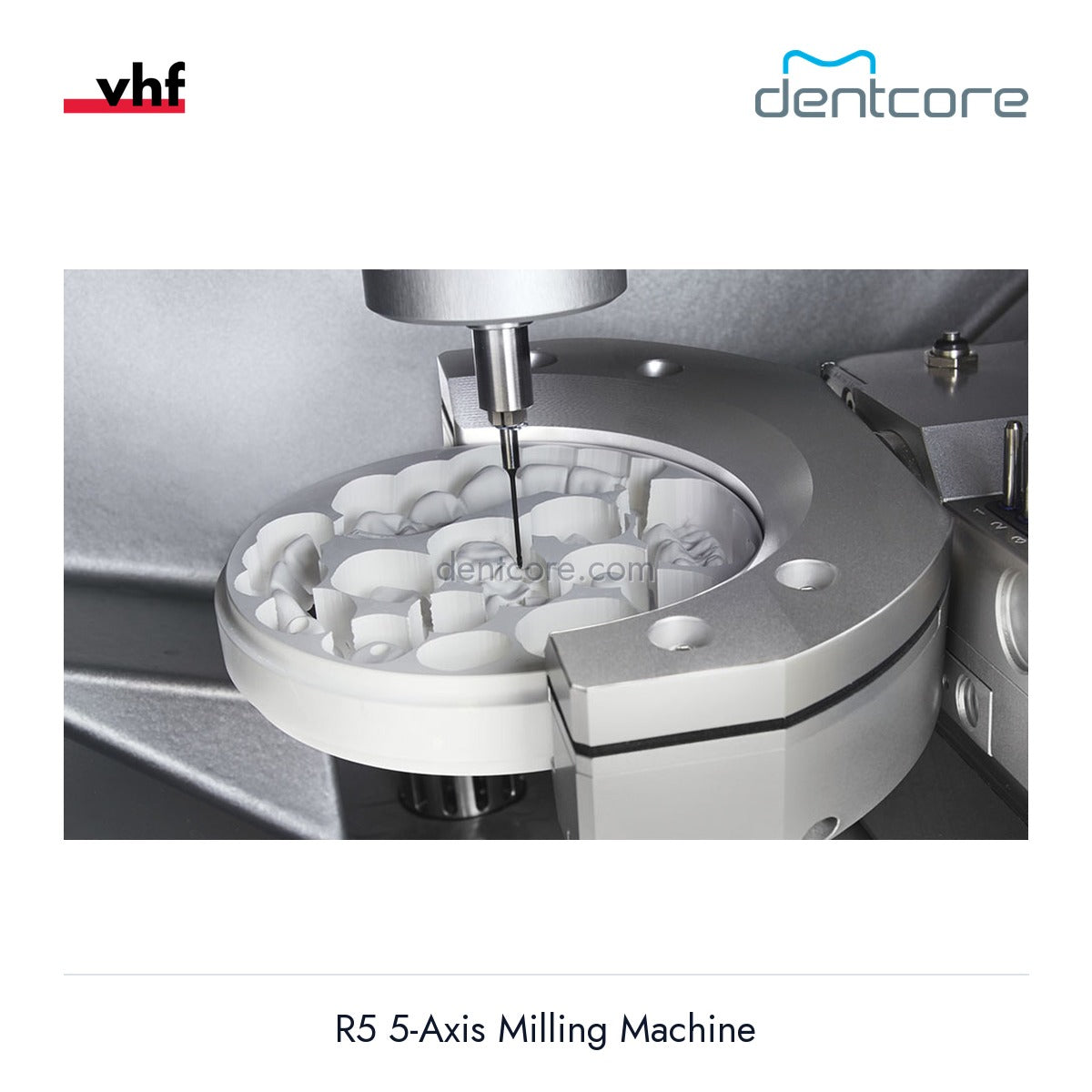

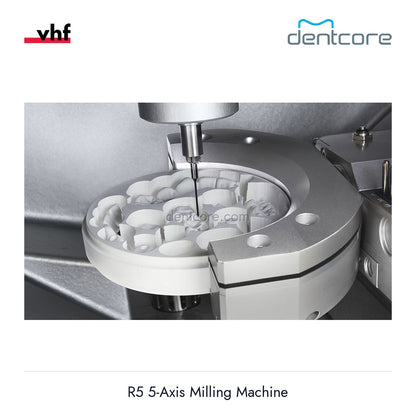

Production-grade 5-axis mill by vhf camfacture AG (Germany). The R5 features an 800W spindle at 80,000 RPM with a 10-disc automatic changer for unattended overnight milling of zirconia, CoCr, titanium, glass ceramics, and more.

Technical Specifications

Axes	5-axis (X/Y/Z linear + A 360° + B ±35°)
Spindle	80,000 RPM — 800W peak / 600W nominal / 440W continuous
Accuracy	Repetition accuracy ±0.003 mm, bearing concentricity <3 µm
Tool Changer	16-position automatic with breakage monitoring
Blank Changer	10 discs or 60 blocks/abutments — robotic arm
Disc Size	98.5 mm diameter, 10–40 mm height (metals up to 18 mm)
Block Size	Up to 40 × 20 × 20 mm

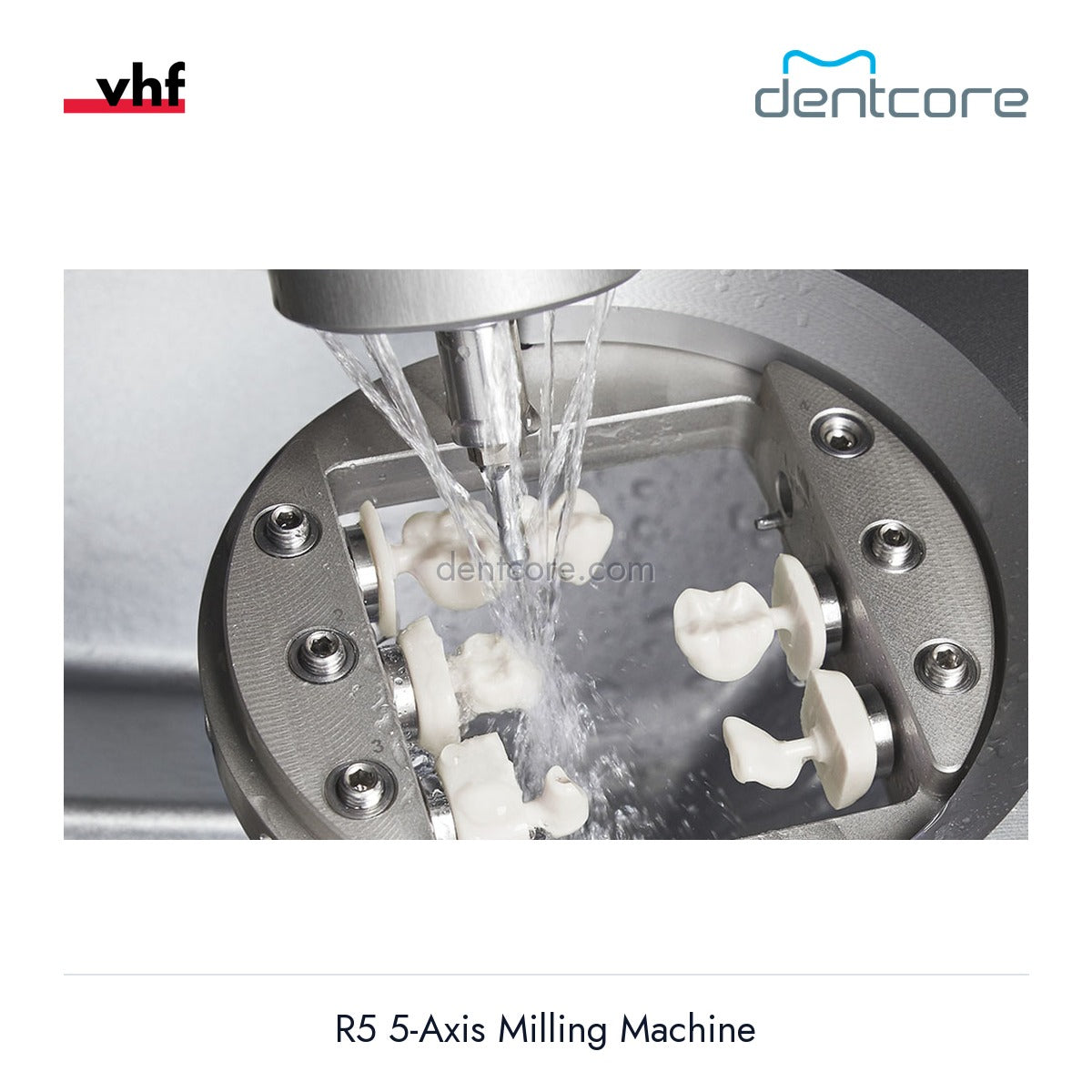

Processing	Wet and dry — 3L integrated coolant tank + air nozzles
Dimensions	580 × 600 × 700 mm (closed) — 150 kg
Power	100–240V, 50/60Hz, 750W. Compressed air: 6–8 bar at 120 L/min

Materials

Handles everything: zirconia, CoCr, titanium, glass ceramics, composites, PMMA, wax, and model plaster. Both wet and dry processing modes with integrated vacuum system.

Automation

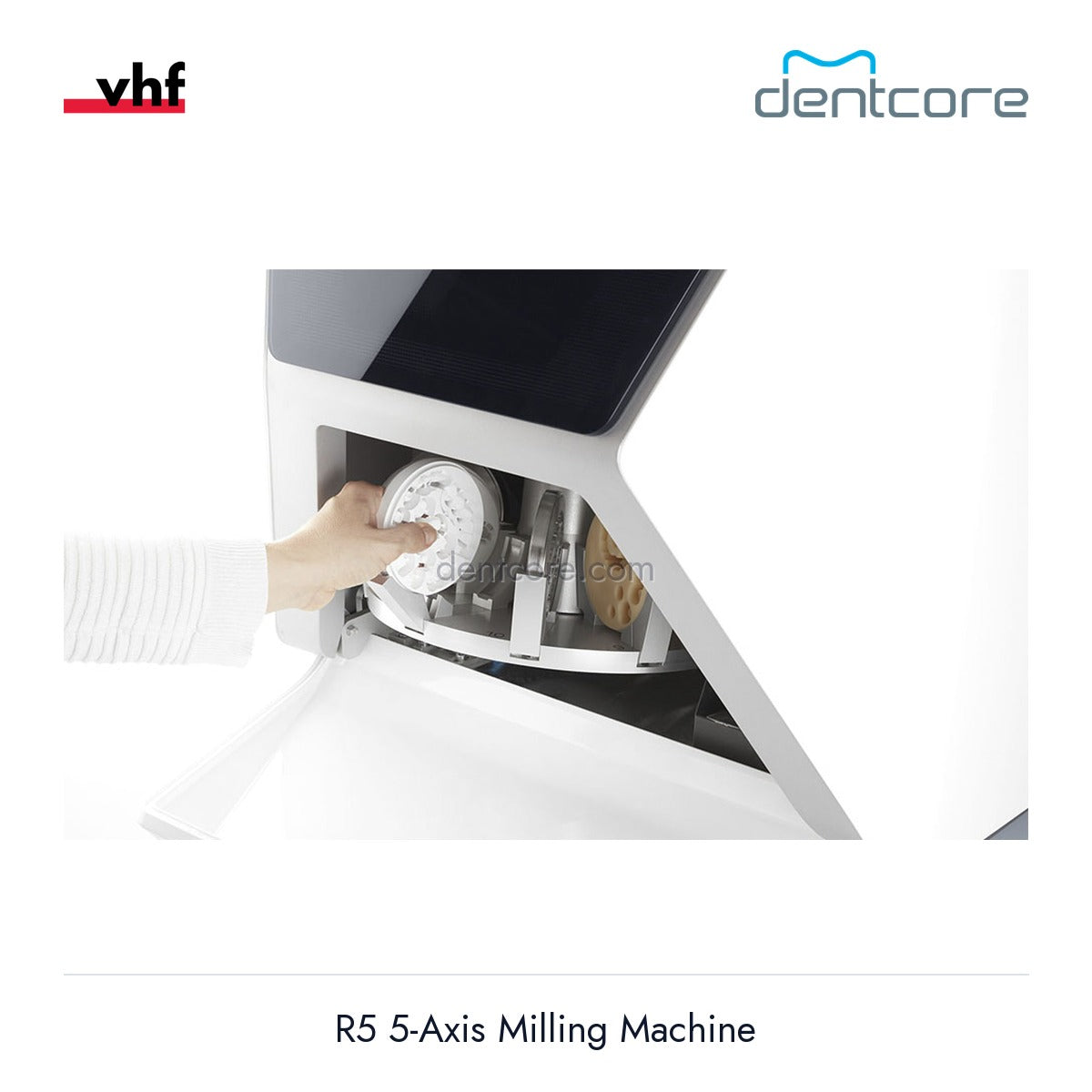

Load up to 10 discs and walk away. The robotic arm handles blank changes automatically, enabling overnight and weekend production without operator intervention. Tool breakage is detected automatically.

🇩🇪 Engineered and manufactured in Germany. Pairs with hyperDENT or dentalcam CAM software.

Estimated shipping time

2-3 weeks

Estimate for planning. Final timing is confirmed after order review.

Product documents

Review the official vhf product factsheet for specifications, workflow requirements, and planning details.

Download R5 5-Axis Milling Machine factsheet (PDF)

View full details

Compare vhf milling machines

Specification	E3	E4	E5	N4+	Z4	K5+	S5	R5 This model
Price	$20,990	$24,990	$28,990	$34,990	$39,990	$40,990	$51,990	$84,990
Axes	3+1	4	5 simultaneous	4 (A 200°)	4 (A 200°)	5 simultaneous	5	5
Spindle	60,000 RPM	60,000 RPM	60,000 RPM	80,000 RPM	100,000 RPM	60,000 RPM	60,000 RPM	80,000 RPM
Processing	Dry only	Wet + dry	Dry only	Wet only	Wet (pure water)	Dry only	Wet and dry	Wet and dry
Tools	1	6 + 1 airtool	16 + 1 airtool	8	6	16 + 30-tool pool	16	16
Automatic blank changer	—	—	—	—	—	—	8 discs or 24 blocks	10 discs or 60 blocks
Weight	25 kg	28 kg	47 kg	52 kg	66 kg	91 kg	106 kg	150 kg
