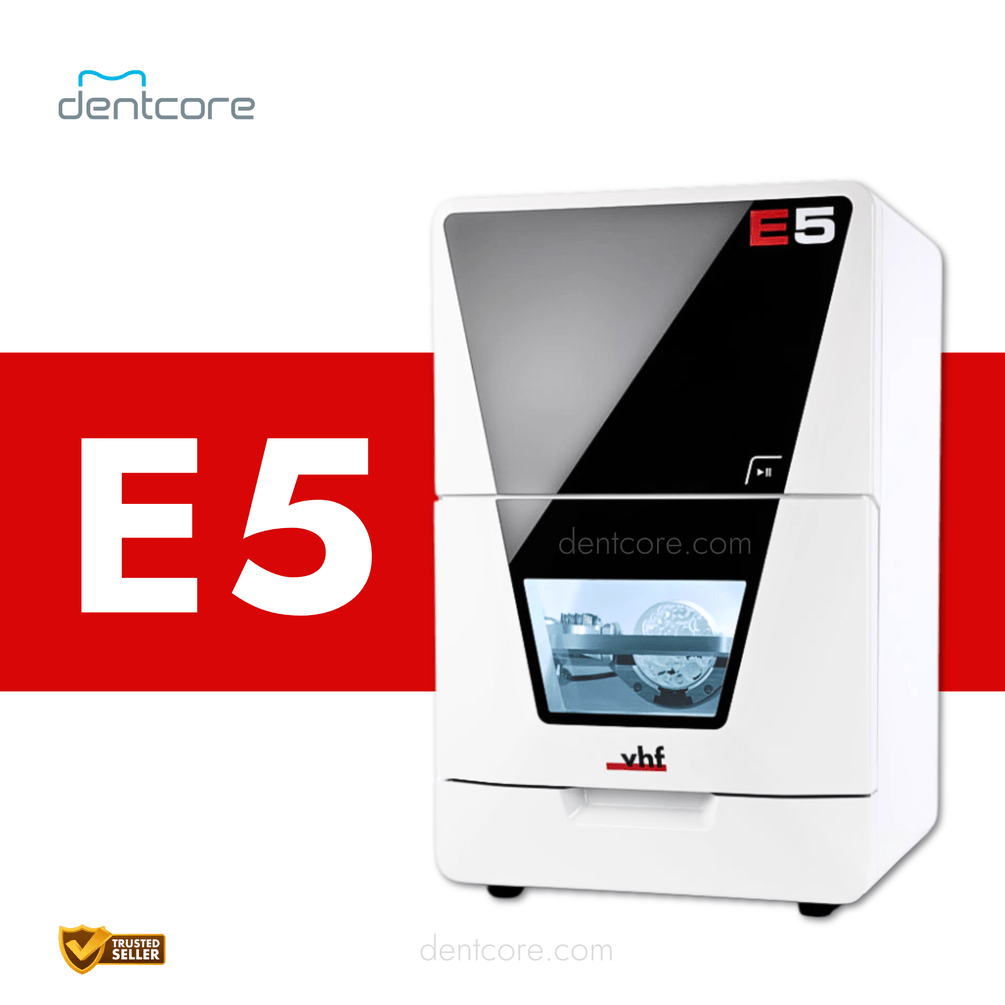

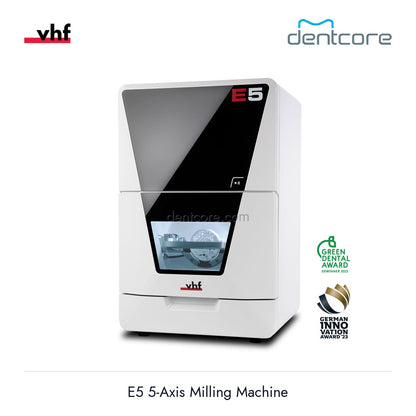

vhf E5 5-Axis Milling Machine

Name: vhf E5 5-Axis Milling Machine
Brand: Dentcore
SKU: DC-VH00071
Price: 28990.00 USD
Availability: InStock

$28,990.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Ask a specialist 844-292-8023 Financing

Product details

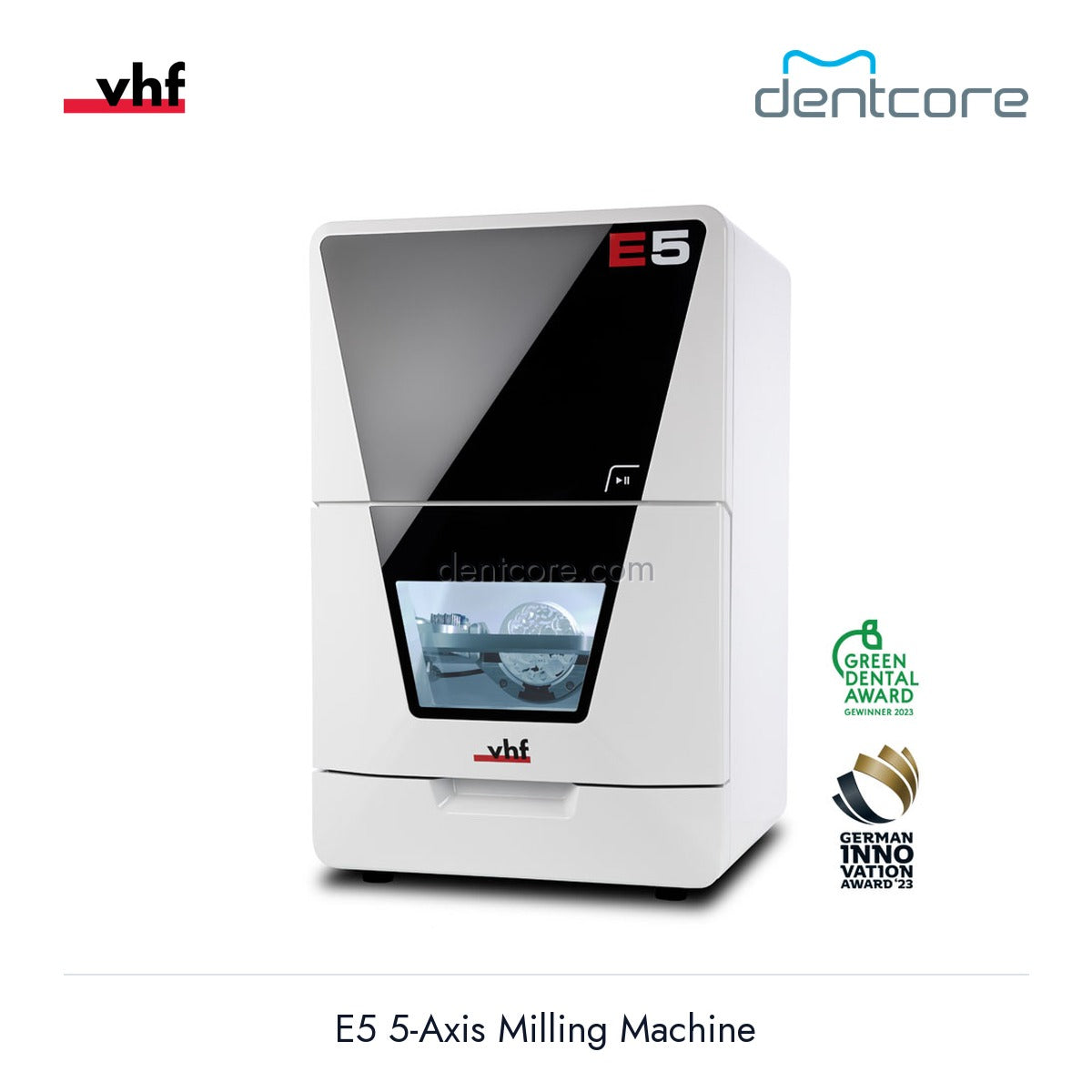

vhf E5 — 5-Axis Dry Disc Mill

The first 5-axis dry disc mill that requires no compressed air. 17-tool changer, ±35° B-axis rotation, and compatibility with 98.5 mm discs up to 40 mm thick. Mills zirconia, composites, PMMA, wax, and sintered CoCr — all dry.

Why the E5

5 simultaneous axes with ±35° B-axis — broadest rotation angle in the vhf EASE class. Undercuts, angled screw channels, and complex bridge geometries are fully accessible.
17-tool capacity — 16 tools + 1 airtool. Load all roughing, semi-finish, and finish burs for multiple materials without stopping to swap.

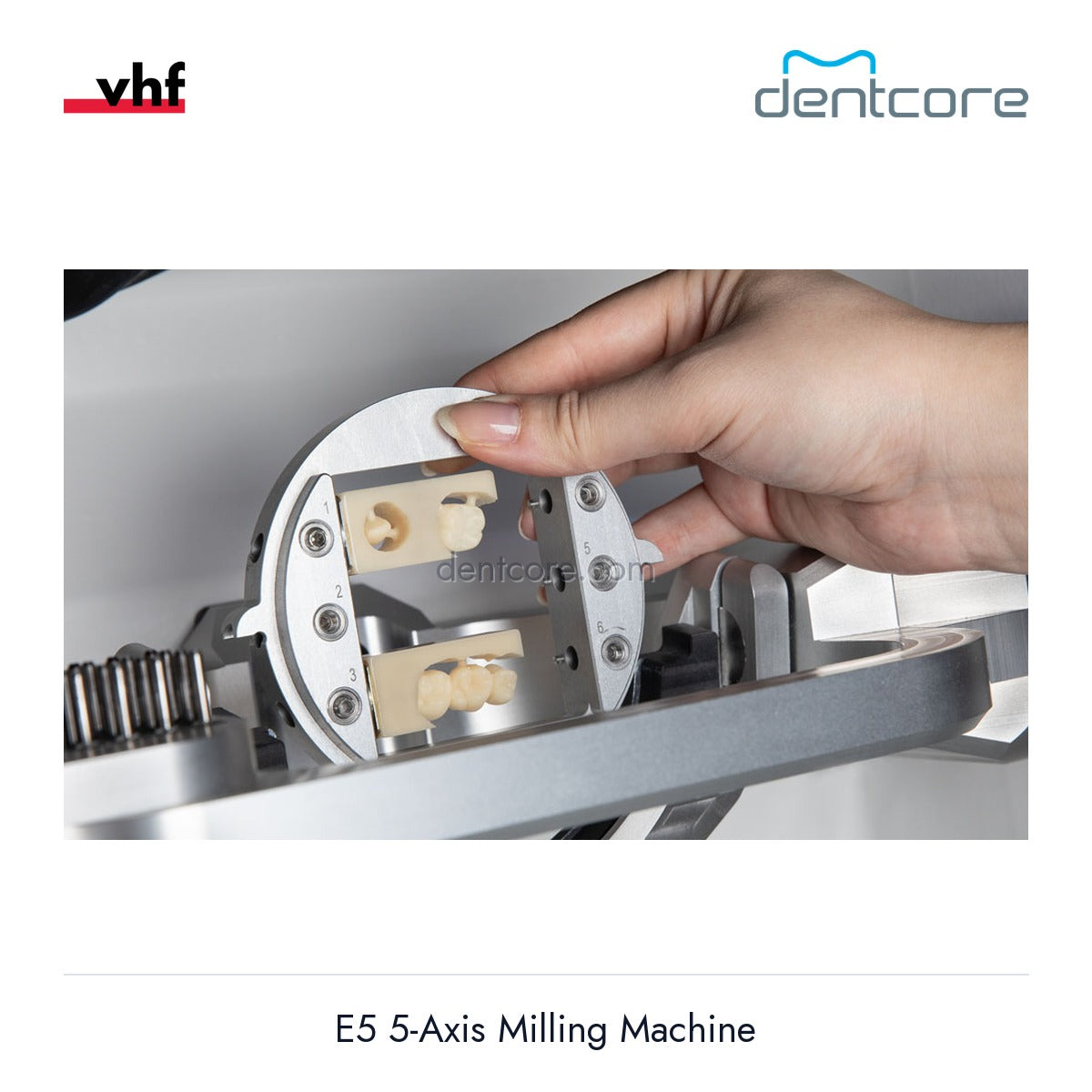

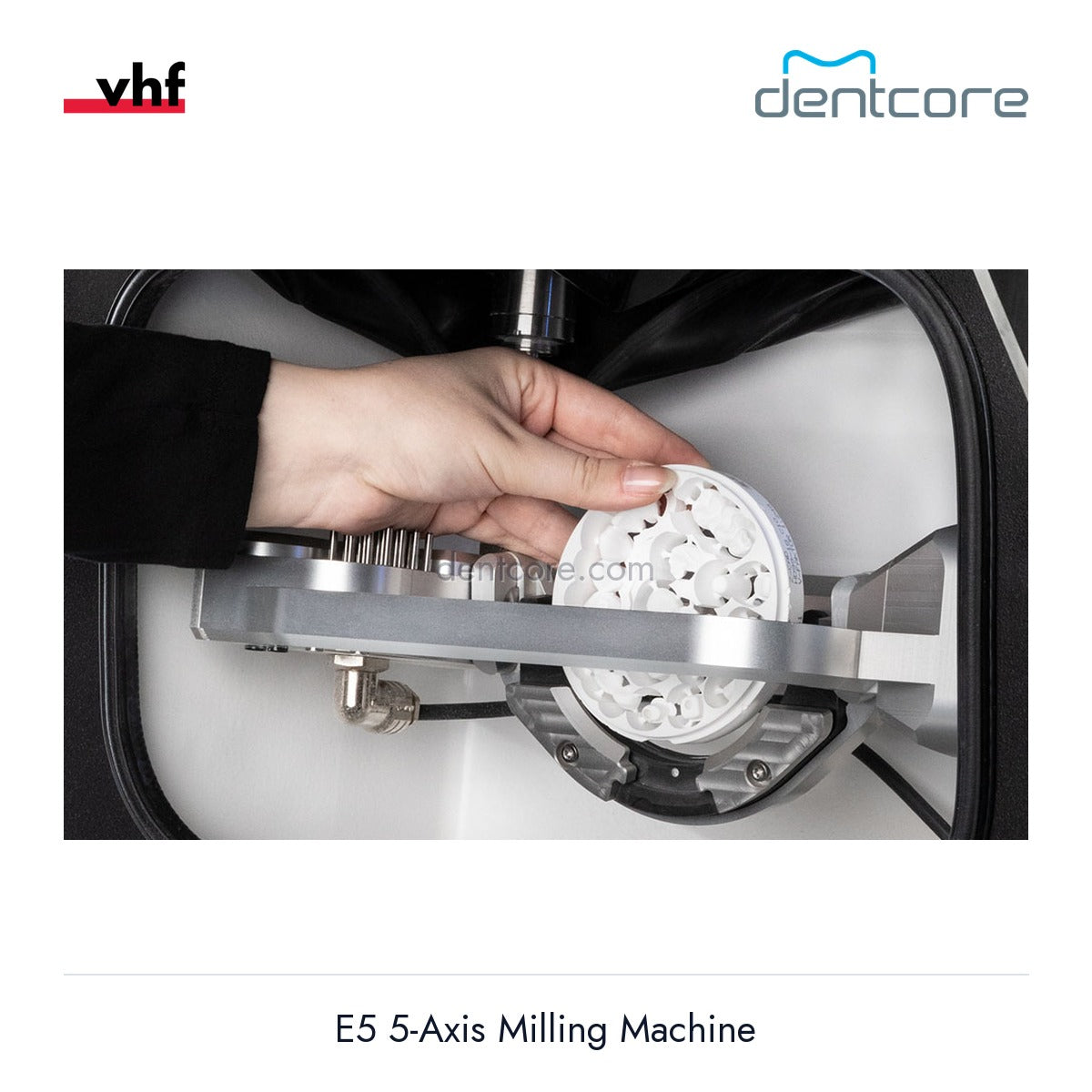

98.5 mm discs up to 40 mm thick — plus block milling (up to 40 × 20 × 20 mm). Switch between disc and block jobs on the same machine.

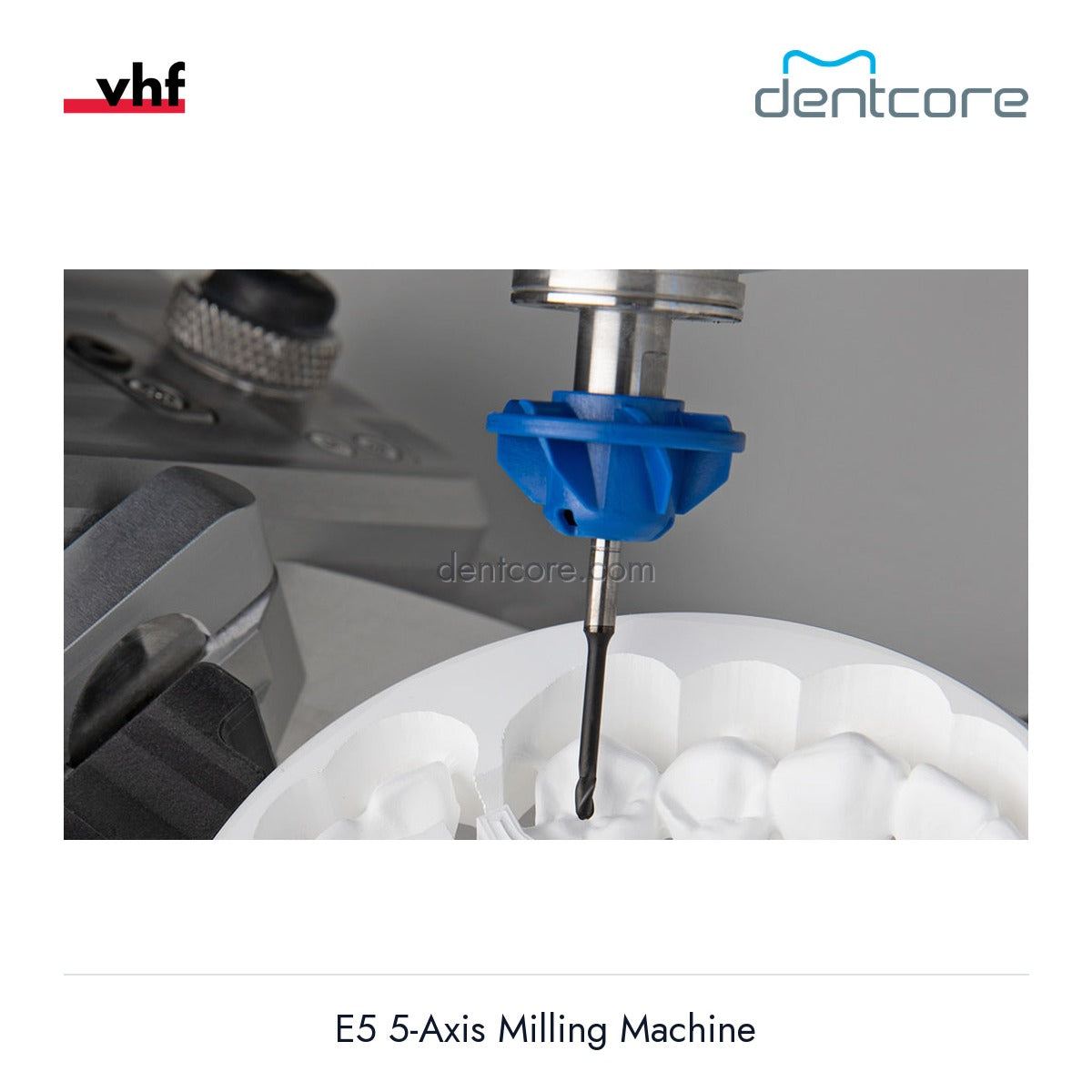

No compressed air — airtool technology. The E5 generates its own chip clearing airflow. No compressor, no plumbing.
Cast aluminum body — reduces vibration for cleaner surface finishes and longer bur life.

Specifications

Axes	5 simultaneous (X, Y, Z + A 360° + B ±35°)
Spindle Speed	60,000 RPM
Spindle Power	800W peak / 400W nominal / 300W continuous
Tool Capacity	16 + 1 airtool (17 total)
Disc Size	98.5 mm ø, up to 40 mm thick
Block Size	Up to 40 × 20 × 20 mm
Accuracy	±0.003 mm (3 μm)
Processing	Dry only
Compressed Air	Not required
Materials	Zirconia, composites, PMMA, wax, sintered CoCr
Weight	47 kg
Dimensions	472 × 484 × 734 mm

Positioning: Practice + Small Lab

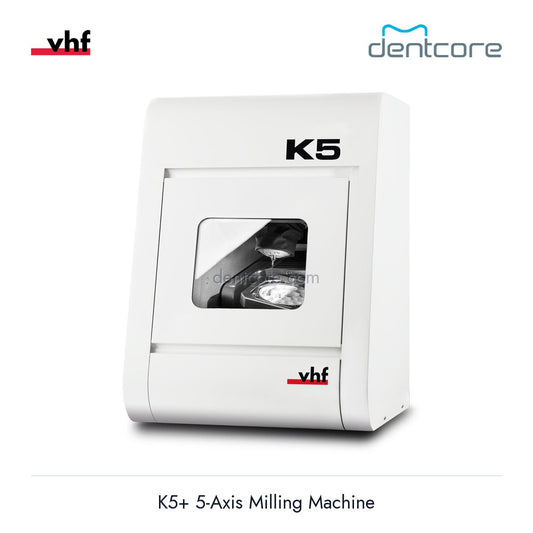

The E5 bridges the gap between chairside convenience and lab or practice production. At 47 kg with no compressed air, it installs anywhere. For higher production volume with more spindle power, step up to the K5+.

Estimated shipping time

2-3 weeks

Estimate for planning. Final timing is confirmed after order review.

Product documents

Review the official vhf product factsheet for specifications, workflow requirements, and planning details.

Download E5 5-Axis Milling Machine factsheet (PDF)

View full details

Compare vhf milling machines

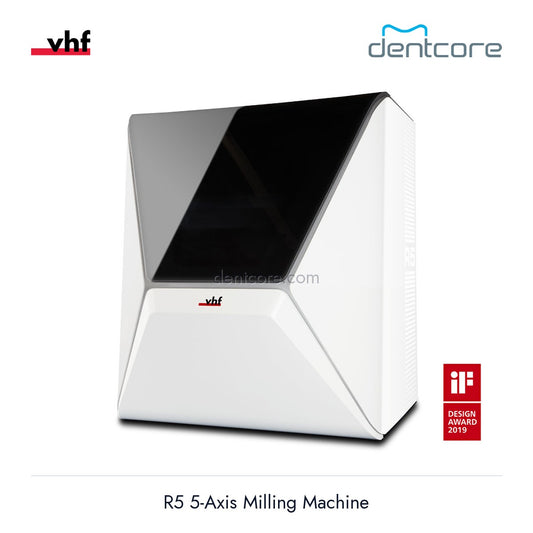

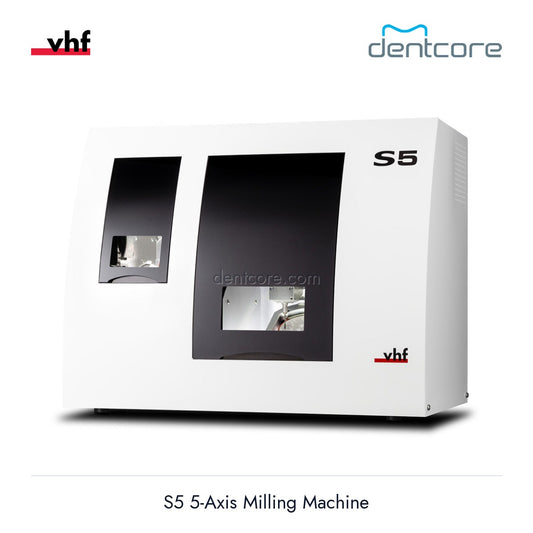

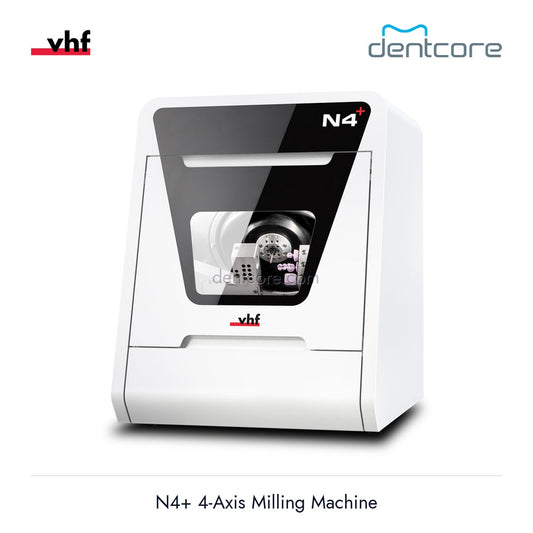

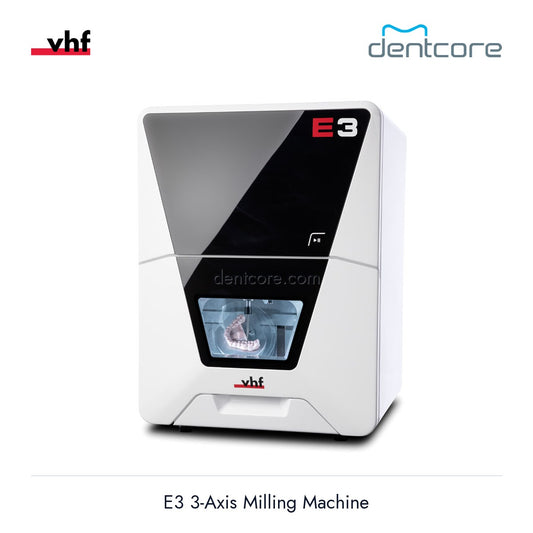

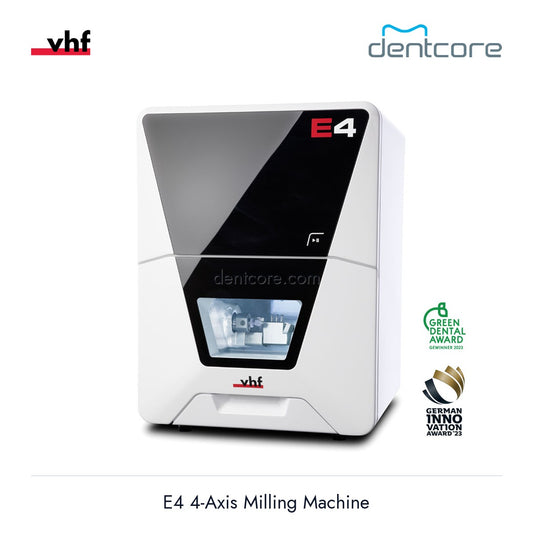

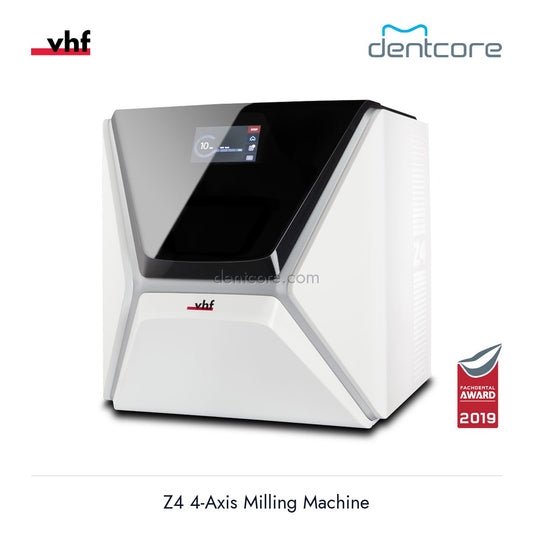

Specification	E3	E4	E5 This model	N4+	Z4	K5+	S5	R5
Price	$20,990	$24,990	$28,990	$34,990	$39,990	$40,990	$51,990	$84,990
Axes	3+1	4	5 simultaneous	4 (A 200°)	4 (A 200°)	5 simultaneous	5	5
Spindle	60,000 RPM	60,000 RPM	60,000 RPM	80,000 RPM	100,000 RPM	60,000 RPM	60,000 RPM	80,000 RPM
Processing	Dry only	Wet + dry	Dry only	Wet only	Wet (pure water)	Dry only	Wet and dry	Wet and dry
Tools	1	6 + 1 airtool	16 + 1 airtool	8	6	16 + 30-tool pool	16	16
Automatic blank changer	—	—	—	—	—	—	8 discs or 24 blocks	10 discs or 60 blocks
Weight	25 kg	28 kg	47 kg	52 kg	66 kg	91 kg	106 kg	150 kg
