Shining 3D Aoralscan Elite Wireless IOS + IPG
Cable-free chairside scanning with coded scanbody photogrammetry built into one lightweight wand.

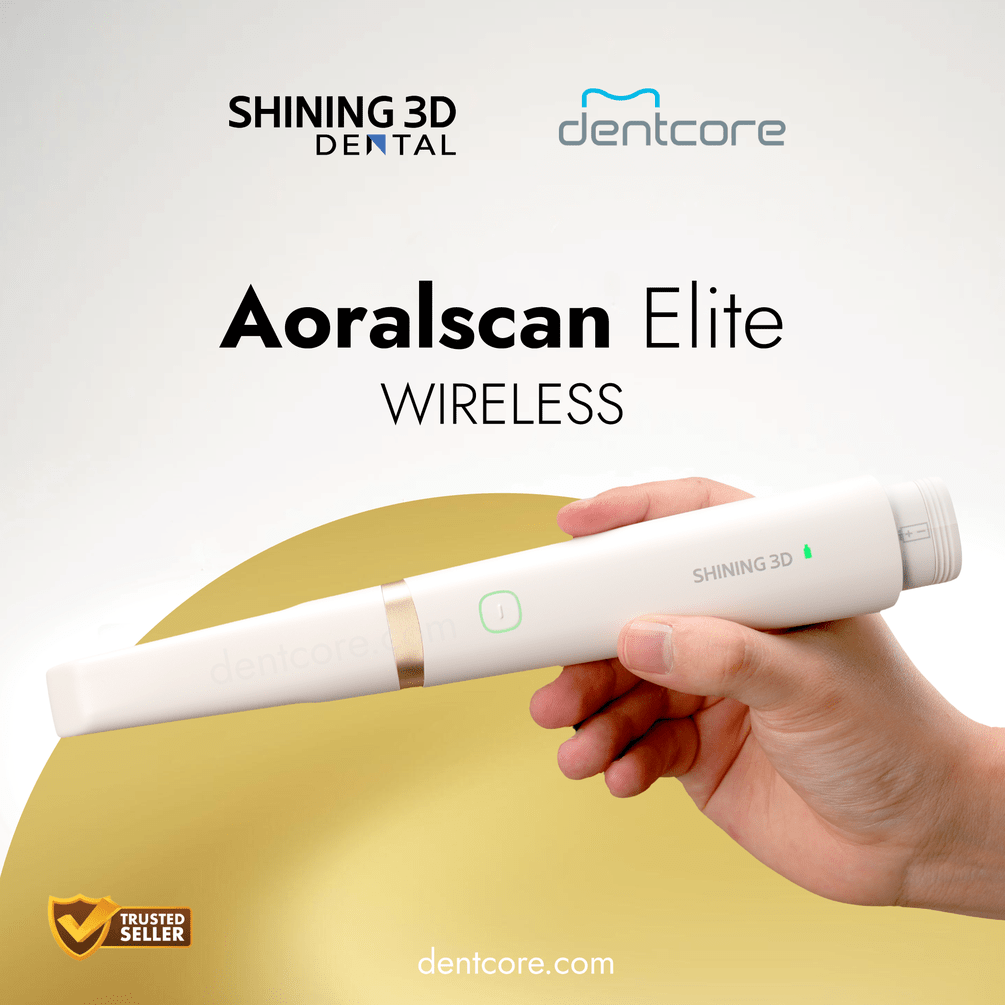

The Aoralscan Elite Wireless is a full-color intraoral scanner that captures teeth, gingiva and oral mucosa in 2D/3D without powder spraying. It is designed for the orthodontic, implant and restorative practice that wants to move freely between operatories without dragging a cable and computer along. At roughly 194 g with the standard tip and battery installed, it is light enough for all-day scanning, and its high frame rate keeps full-arch acquisition fast and comfortable for the patient. With Intraoral Photogrammetry (IPG) coded-scanbody support, the same wand that captures your restorative preps also verifies implant scanbody positions in the software, so you have one device for both routine and implant work.
Why the Aoralscan Elite Wireless stands out
-
Wireless freedom — Wi-Fi 6 connectivity paired with a USB Type-C cradle lets you scan untethered and roam between treatment rooms. The scanner works reliably up to about 5 meters from its cradle.
-

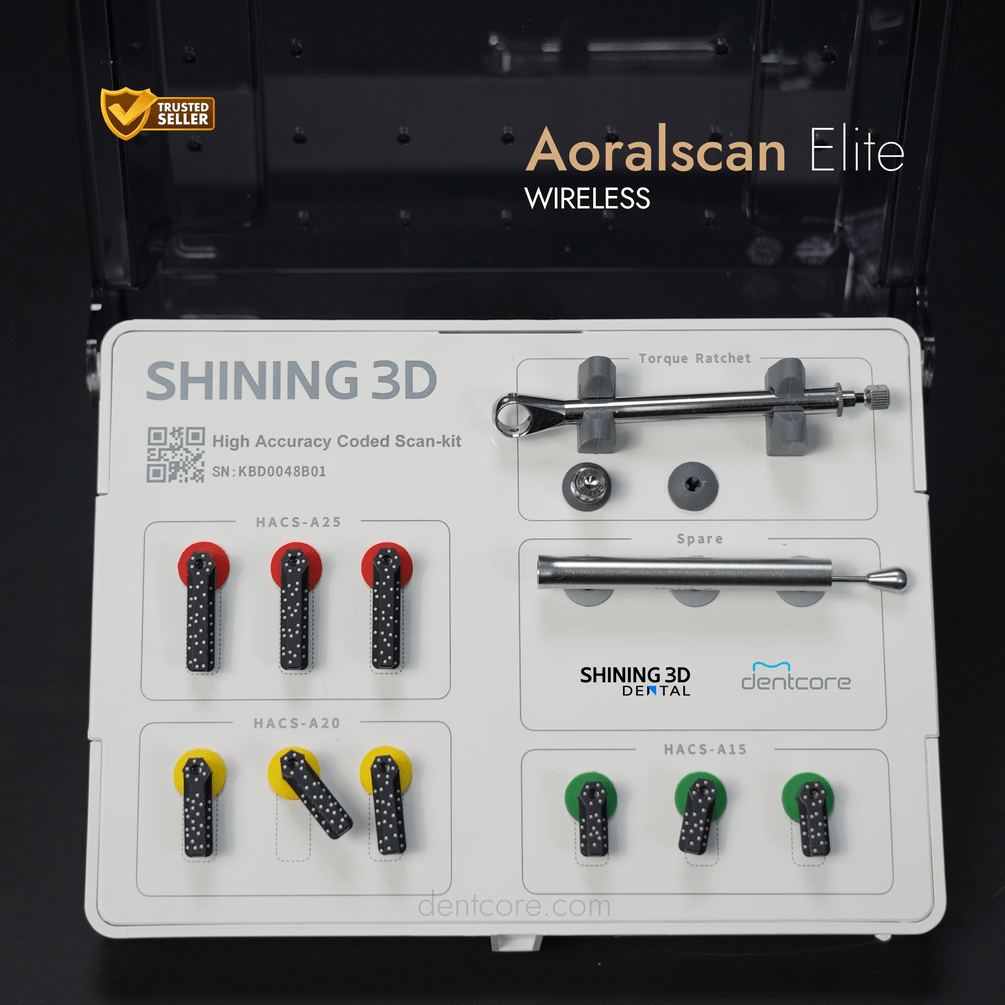

Intraoral Photogrammetry (IPG) — Coded scanbody scanning is supported; after the jaws and coded scanbodies are captured, the software aligns the scanbodies to the arch for implant position verification.
-
Fast, powder-free color scanning — A scanning speed of up to 20 frames per second improves image-acquisition accuracy and reduces chair time, with no powder or spray required.
-
Swappable battery workflow — A rechargeable lithium-ion battery drops into the wand and recharges in the included charging case, so a low battery never stops a case — just swap and keep scanning.
-
Three interchangeable tips — Big (19 × 14 mm), Standard (16 × 12 mm) and Mini (12 × 9 mm) tips let you match the scan field to the case, from full arches to narrow posterior and pediatric mouths.
-
Heated, anti-fog tip — The tip heats automatically to resist fogging during scanning, and each tip is autoclavable up to 100 times for reliable infection control.
-
Deep margin capture — A scan depth of 22 mm (from -2 mm to 20 mm off the tip window) reaches subgingival margins that shallower scanners miss.
-
Open export — Data exports as STL, OBJ or PLY into any compatible CAD/CAM workflow, with no closed file formats or forced ecosystem.
Specifications
| Specification |
Detail |
| Scanning depth |
22 mm (-2 mm to 20 mm from the tip window) |
| Scanner size (L×W×H) |
247 × 38 × 37 mm (with standard tip) |
| Weight |
194 g (with standard tip and battery) |
| Scanning speed |
Up to 20 frames per second |
| Light source |
Blue laser 450 ± 10 nm + white LED 400–780 nm |
| Connectivity |
Wi-Fi 6 + USB Type-C cradle |
| Scanner tip connection |
Pluggable / interchangeable |
| Tip scan fields |
Big 19 × 14 mm · Standard 16 × 12 mm · Mini 12 × 9 mm |
| Tip reprocessing |
Autoclavable up to 100 times |
| Battery |
Rechargeable lithium-ion, 3.6 V, 3250 mAh, ≥400 charge cycles |
| Charging |
Swappable battery + charging case included |
| Export formats |
STL, OBJ, PLY (open) |
| Operating temperature |
10°C – 30°C |
| Device lifetime |
8 years |
| Warranty |
Standard 3 Year Warranty |
What's included
Scanner body, calibrator, cradle, battery and battery cover, charging case, scanner tips (big, standard and mini), USB 3.0 cable, Type-C cable, dust cap, dust cover, USB flash drive with IntraoralScan software, quick guide and certificate, and disinfection guides.
Official Shining 3D documentation
The manufacturer’s official guide — full specifications, setup, and safe operation.
Questions about the Aoralscan Elite Wireless? Talk to a Dentcore Shining 3D specialist.
