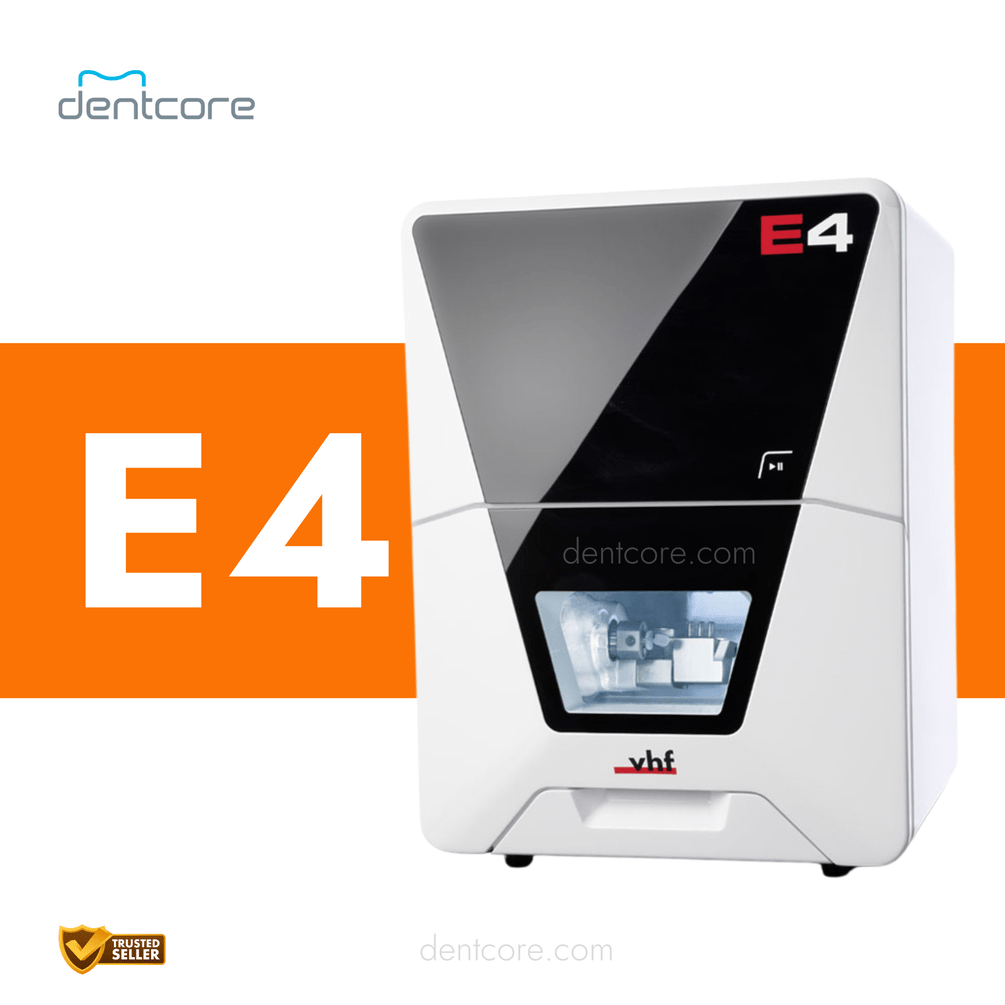

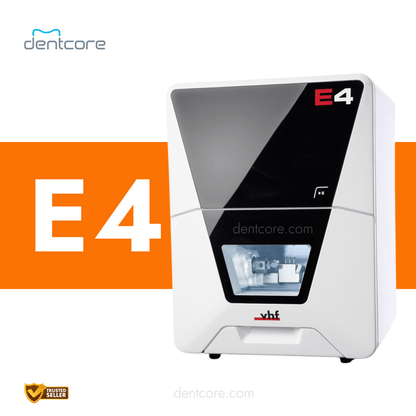

vhf E4 4-Axis Milling Machine

Name: vhf E4 4-Axis Milling Machine
Brand: Dentcore
SKU: DC-VH00070
Price: 24990.00 USD
Availability: InStock

$24,990.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Ships in 2–3 weeks. Final timing confirmed after order review.

Ask a specialist 844-292-8023 Financing

Product details

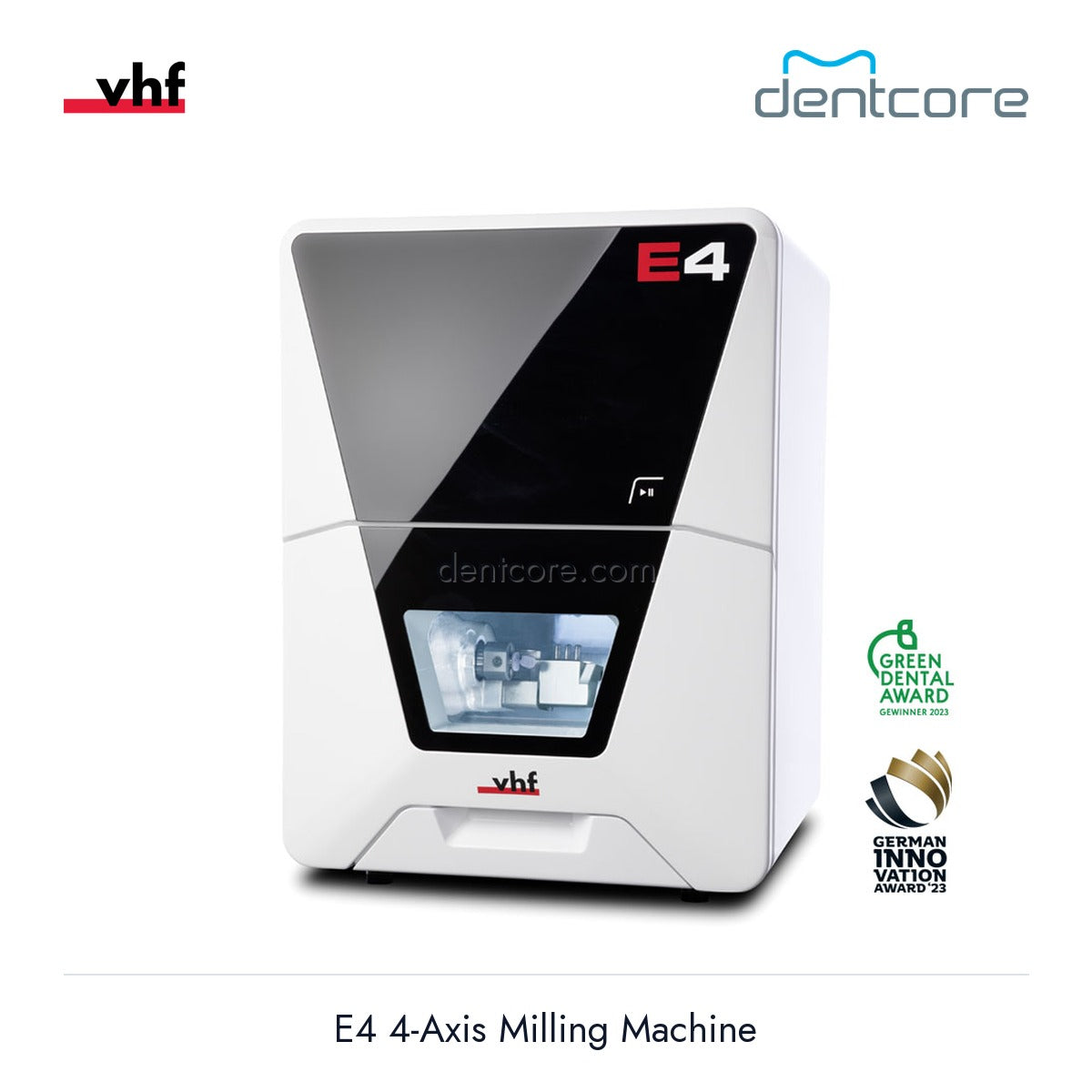

vhf E4 — 4-Axis Chairside Mill

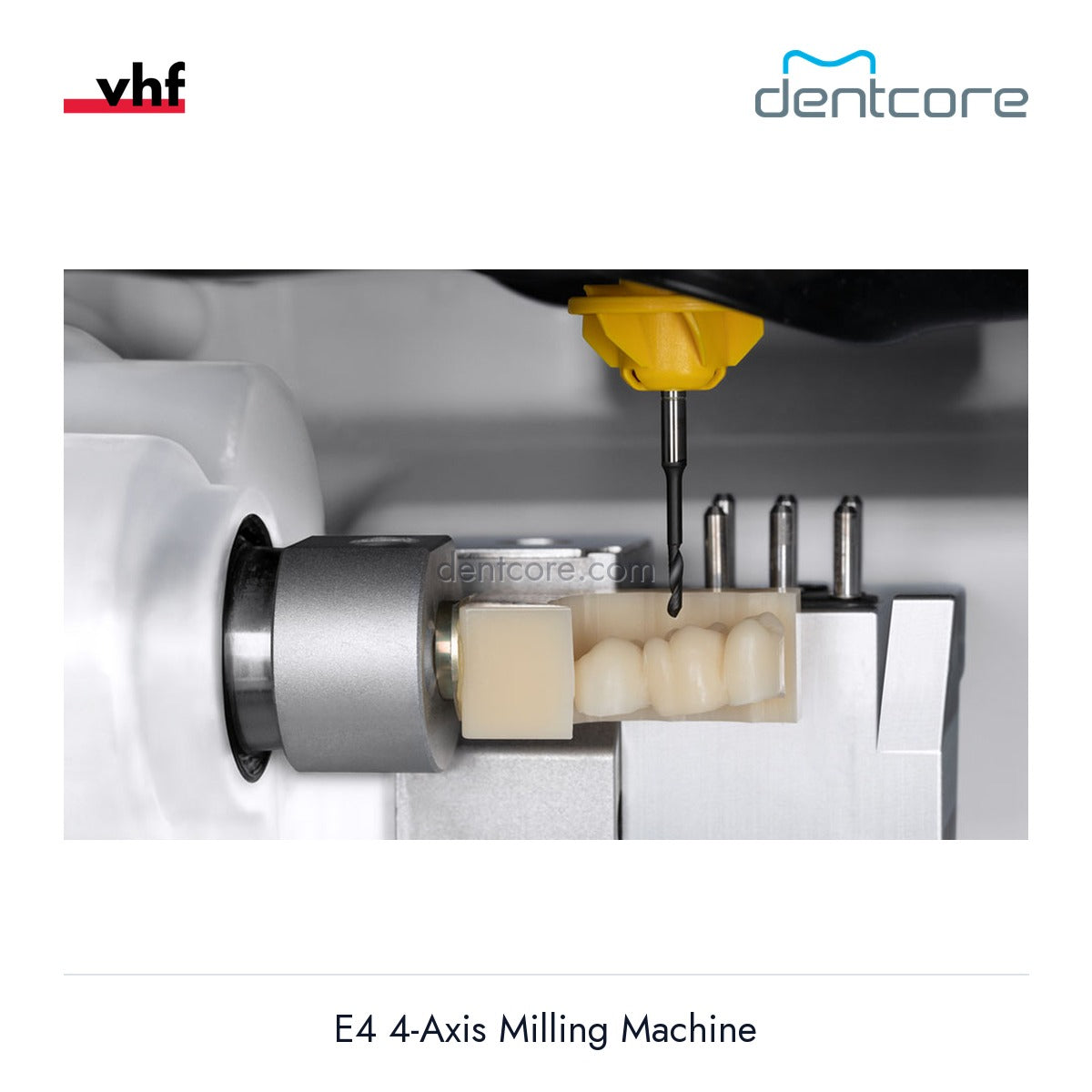

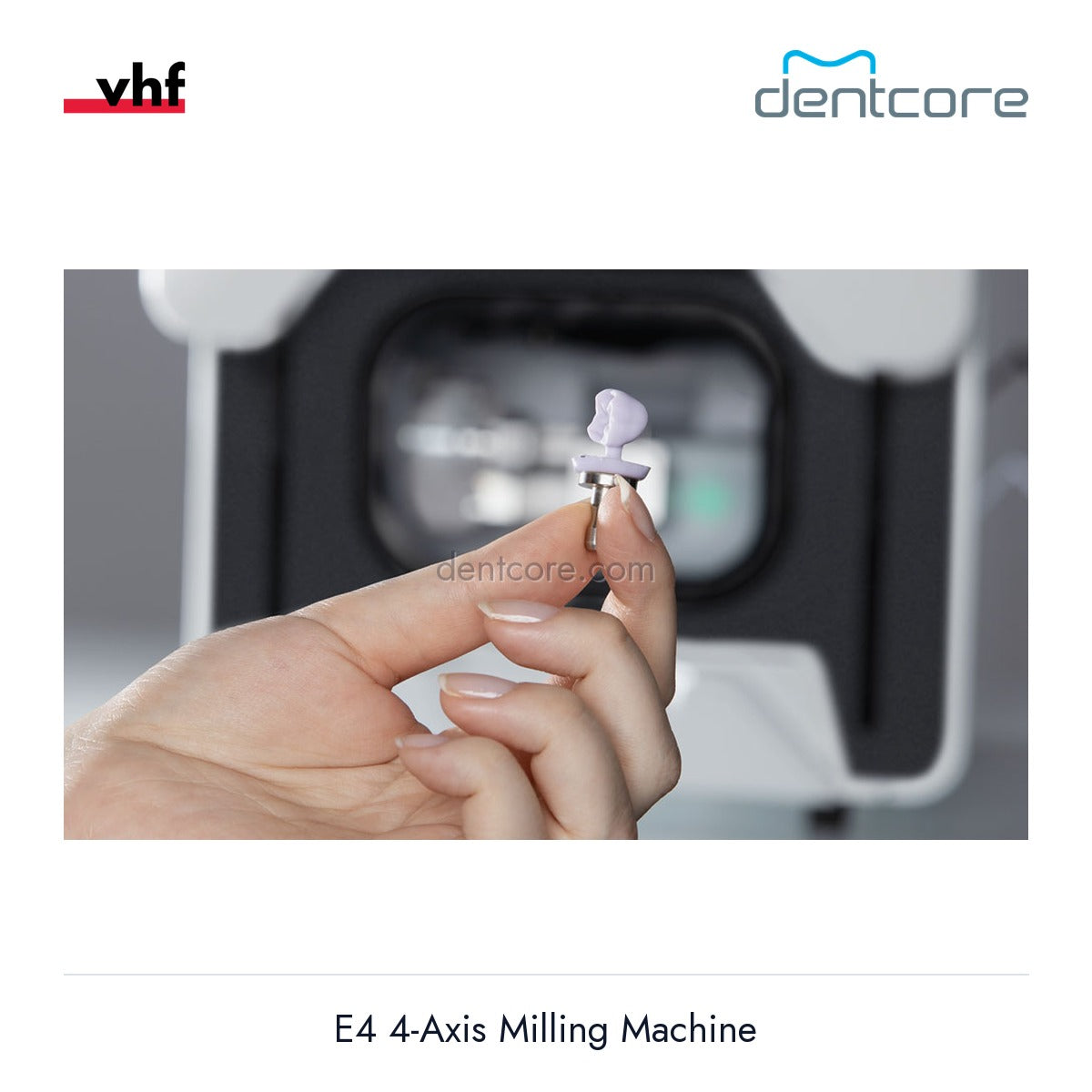

Chairside milling machine for same-day crowns, inlays, onlays, veneers, and abutments. 4 axes, 7-tool changer, both wet and dry processing — all without compressed air. Designed for the dental practice, not the factory floor.

Why the E4 for Chairside

Wet + dry in one machine — mill glass ceramics wet, switch to zirconia dry, all in the same session. Integrated tank with pure water technology.

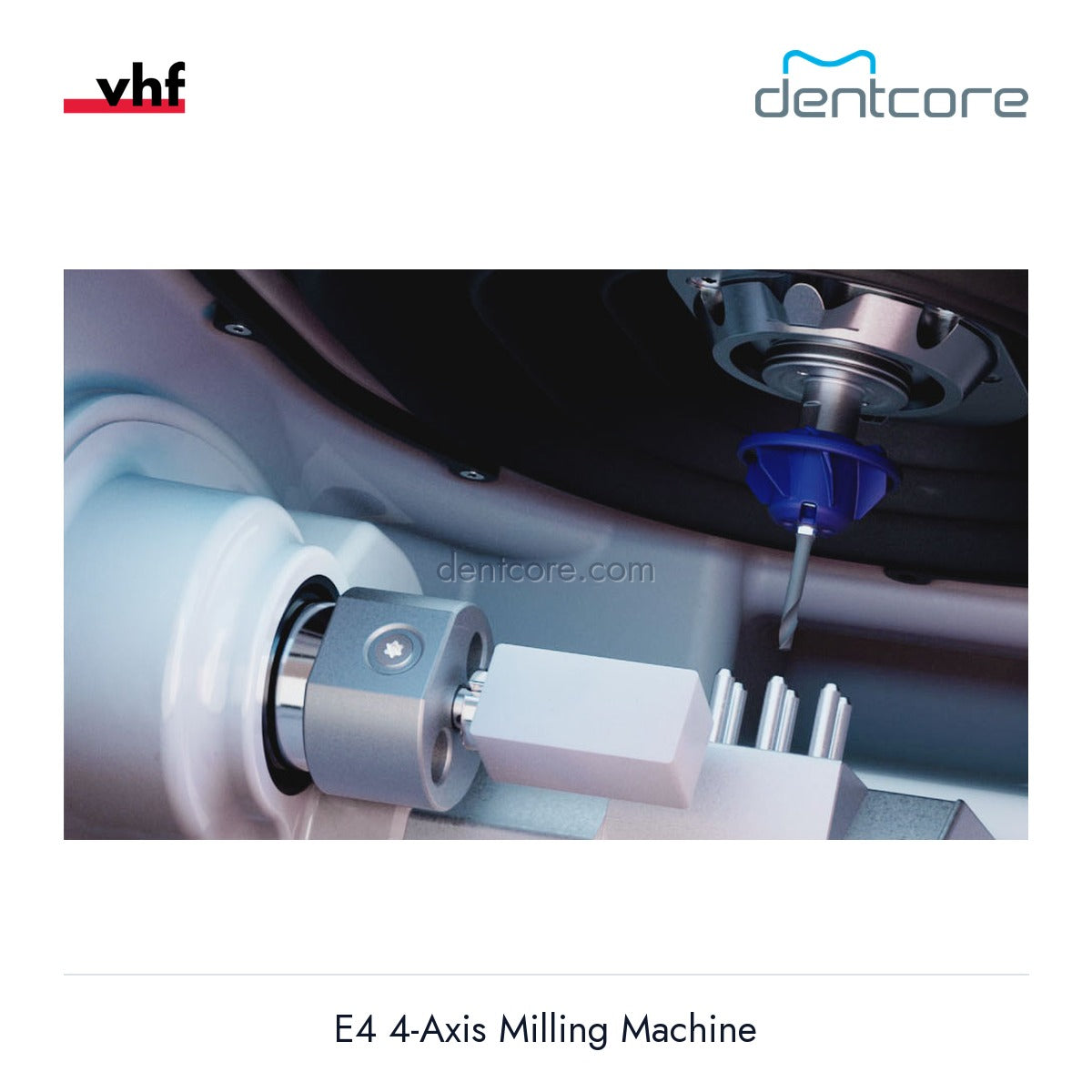

7-tool automatic changer — 6 tools in the magazine + 1 airtool slot. Load roughing and finishing burs — the machine handles tool changes automatically mid-job.
No compressed air — vhf’s patented airtool technology. No compressor purchase, no maintenance, no noise.
±0.003 mm accuracy — 3 μm repetition accuracy. Sub-micron motor resolution ensures marginal fit on single-unit restorations.
28 kg, compact footprint — 270 × 268 mm footprint fits on a countertop next to the scanner.

Specifications

Axes	4 (X, Y, Z + A rotary)
Spindle Speed	60,000 RPM
Spindle Power	800W peak / 400W nominal / 300W continuous
Tool Capacity	6 + 1 airtool (7 total)
Block Size	Up to 45 × 20 × 20 mm
Accuracy	±0.003 mm (3 μm)
Processing	Wet + Dry
Compressed Air	Not required
Materials	Glass ceramics, zirconia, composites, PMMA, wax
Weight	28 kg
Dimensions	360 × 370 × 490 mm

E4 vs. E5: Block vs. Disc

The E4 mills blocks (single-unit restorations). The E5 mills discs (multi-unit bridges, partials). Choose the E4 for chairside single-unit work; choose the E5 if you also need to nest multiple units on a disc.

Product documents

Review the official vhf product factsheet for specifications, workflow requirements, and planning details.

Download E4 4-Axis Milling Machine factsheet (PDF)

View full details

vhf E4 4-Axis Milling Machine

vhf

4axes

X, Y, Z + A rotary

±3μm

Repetition accuracy

7tools

6 in the magazine + 1 airtool

0compressor

Wet + dry milling without compressed air

Compare vhf milling machines

Specification	E3	E4 This model	E5	N4+	Z4	K5+	S5	R5
Price	$20,990	$24,990	$28,990	$34,990	$39,990	$40,990	$51,990	$84,990
Axes	3+1	4	5 simultaneous	4 (A 200°)	4 (A 200°)	5 simultaneous	5	5
Spindle	60,000 RPM	60,000 RPM	60,000 RPM	80,000 RPM	100,000 RPM	60,000 RPM	60,000 RPM	80,000 RPM
Processing	Dry only	Wet + dry	Dry only	Wet only	Wet (pure water)	Dry only	Wet and dry	Wet and dry
Tools	1	6 + 1 airtool	16 + 1 airtool	8	6	16 + 30-tool pool	16	16
Automatic blank changer	—	—	—	—	—	—	8 discs or 24 blocks	10 discs or 60 blocks
Weight	25 kg	28 kg	47 kg	52 kg	66 kg	91 kg	106 kg	150 kg
