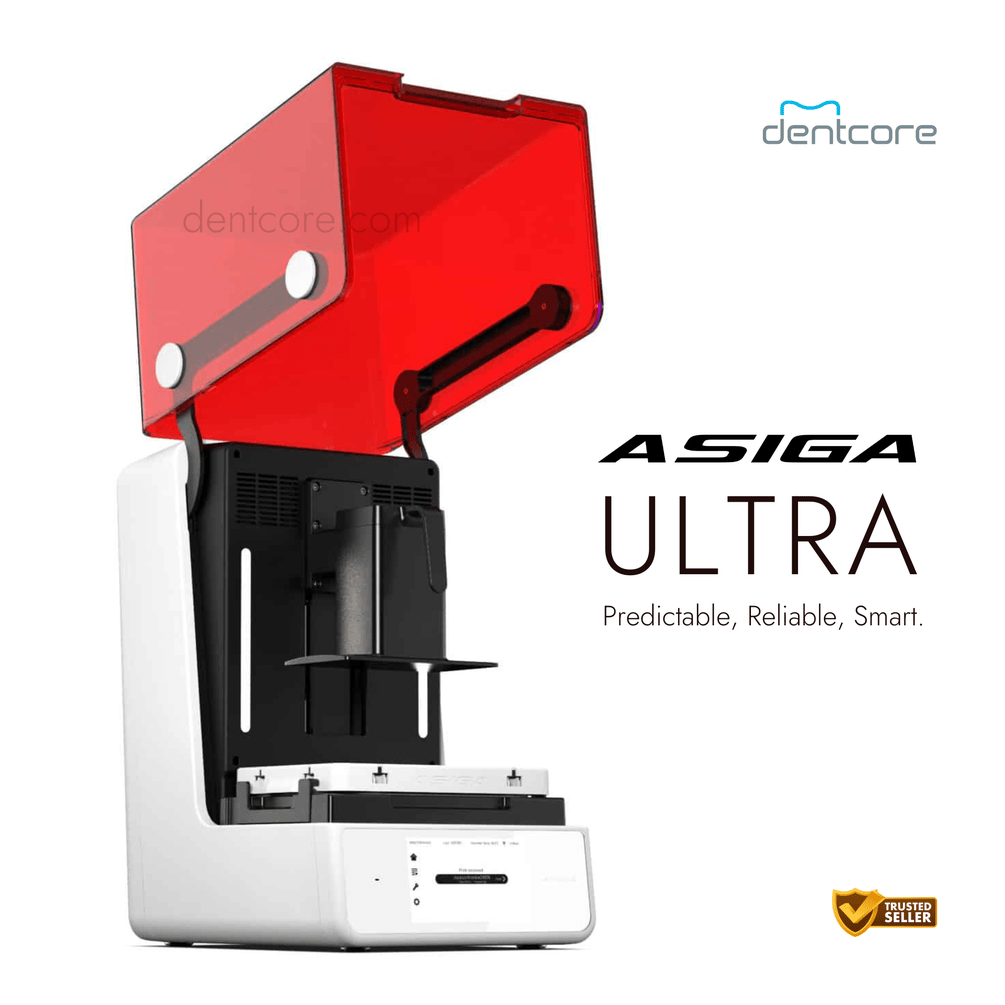

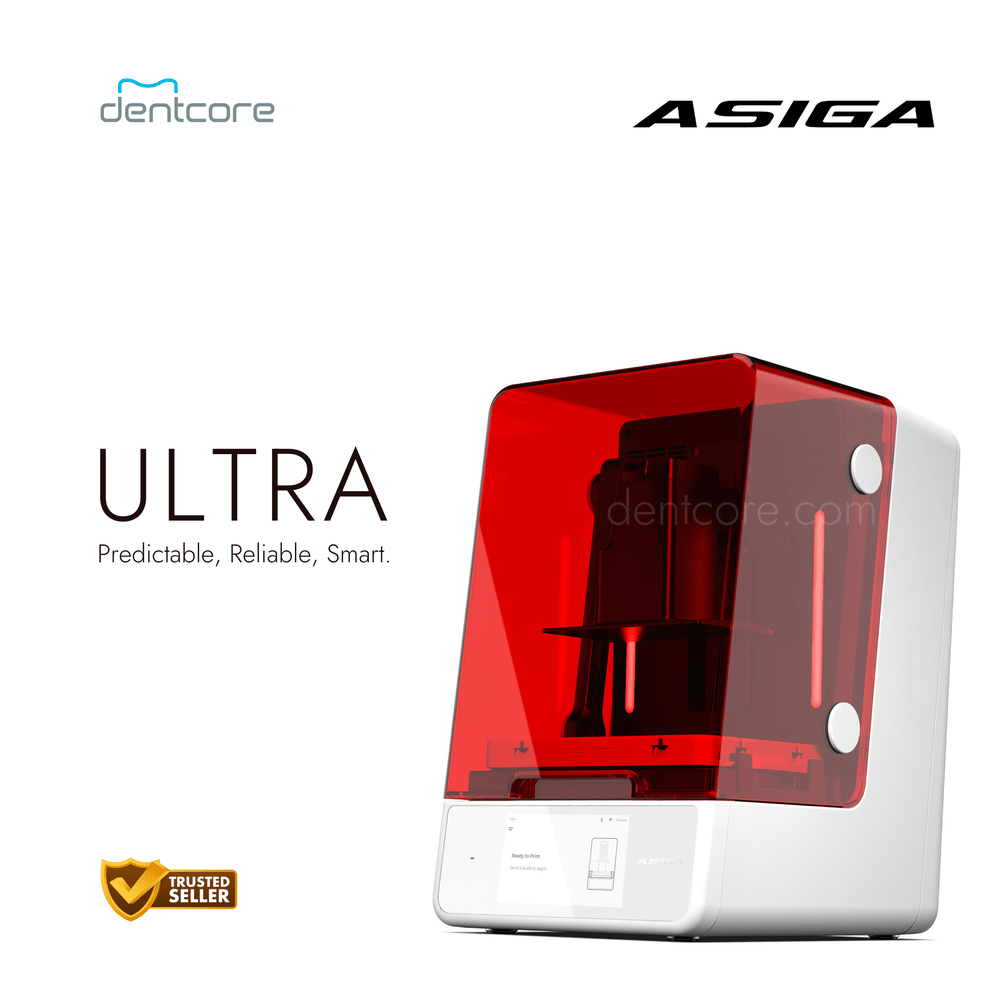

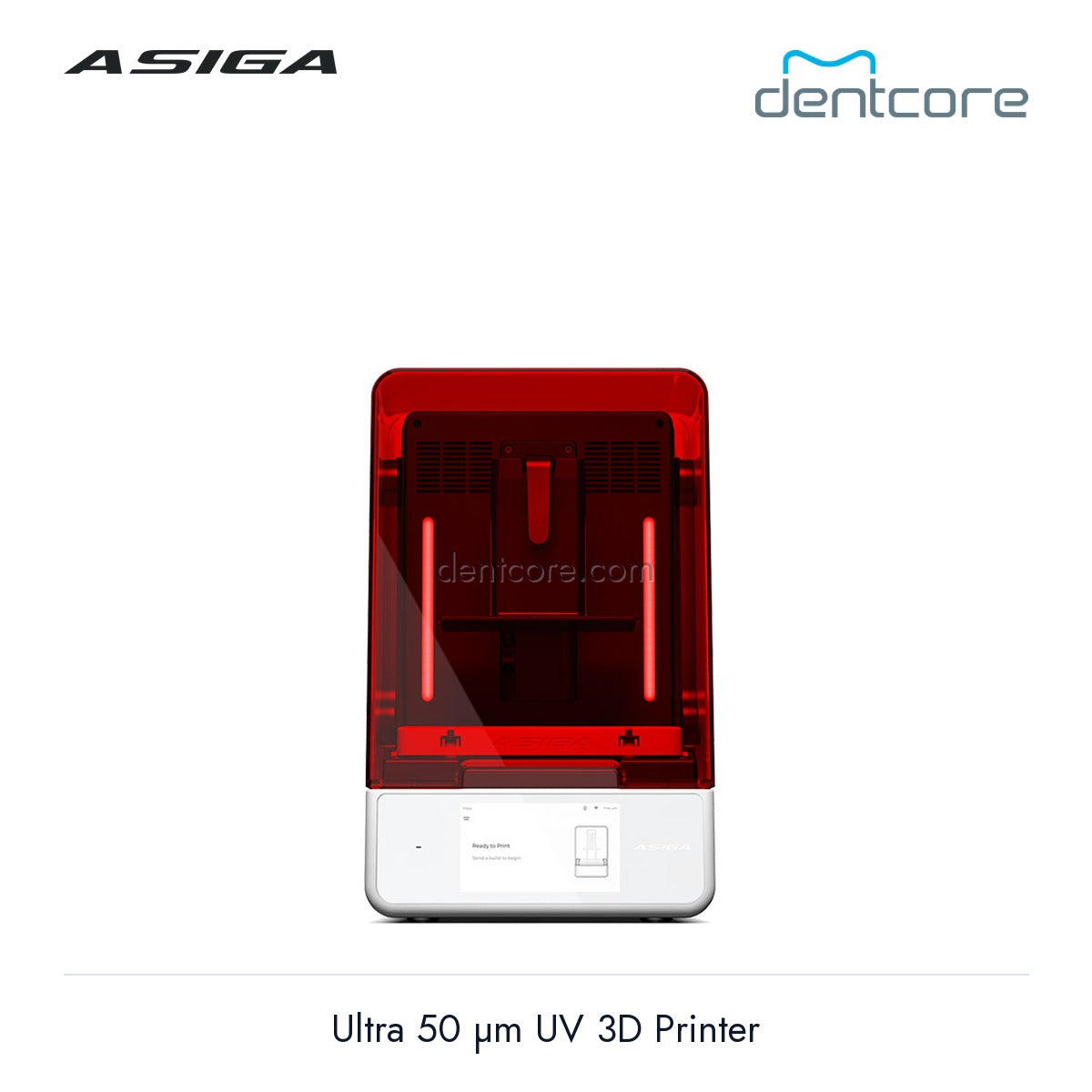

Asiga Ultra 3D Printer
Asiga's flagship dental printer. 4K DLP imaging with 32 µm or 50 µm pixel size, 385 nm (or optional 405 nm) high-power UV LED, and access to a fully open material ecosystem. Built for labs and practices that refuse to be locked into a single resin vendor.
Why the Ultra Stands Out
- 4K DLP engine — 1920 × 1080 native imaging chip, with piezoelectric pixel-shift producing a simulated 3840 × 2160 (4K) image. Fine enough for thin veneers, tight-tolerance surgical guides, and partial framework detail.
- Smart Positioning System (SPS™) — four position encoders monitor mechanical deflection at each corner of the build plate, actively forming layers of precise thickness regardless of cross-sectional area or resin viscosity.
- Transparent Mode — improves part resolution on transparent and water-clear materials such as aligners and surgical guides, without affecting cure kinetics.
- Dual heating system — Air Heater (up to 50°C, ~15°C above ambient) and four corner-mounted IR Heaters (up to 70°C) keep resin viscosity consistent for temperature-sensitive materials.
- 100% open material system — Asiga or any qualified third-party resin (500+ profiles available). You choose the best resin for each application, not the one your printer vendor sells.
- Touchless hood — gesture recognition opens and closes the hood. No gloves contaminating the surface.
- Auto-calibrating optics — integrated radiometer and platform reader simplify calibration and ensure repeatable energy delivery.
Specifications
| Imaging | DLP, 1920 × 1080 native / 3840 × 2160 simulated 4K |
| Pixel Resolution | 32 µm (Ultra 32) or 50 µm (Ultra 50) |
| Build Volume (Ultra 32) | 121 × 68 × 147 mm (4.76 × 2.67 × 5.78 in) |
| Build Volume (Ultra 50) | 192 × 108 × 147 mm (7.55 × 4.25 × 5.78 in) |
| LED Wavelength | 385 nm or 405 nm (high-power UV LED) |
| LED Calibration | Auto-calibrating with integrated radiometer |
| Heating | Air Heater up to 50°C; 4× IR Heaters up to 70°C |
| Material Compatibility | 100% Open Material System — Asiga or third-party |
| Software | Asiga Composer (lifetime updates) |
| File Inputs | STL, SLC, PLY, STM (Asiga Stomp) |
| Connectivity | Wi-Fi, Wireless Direct, Ethernet |
| Power | 90–264 V AC, 50/60 Hz, 600 W (6 A @ 100 V / 2.5 A @ 240 V) |
| System Size | 555 × 353 × 441 mm (21.85 × 13.89 × 17.36 in) |
| Weight | 32.5 kg (72 lb) |
| Warranty | 12 months manufacturer's warranty + unlimited lifetime technical support |
Included in the Box
Asiga Ultra printer, Asiga Composer software with lifetime updates, 1 kg Asiga material, 1 L build tray, Asiga Flash post-curing chamber, and calibration toolkit. Upgrade to the Ultra Crown Kit for dedicated crown & bridge printing.
Complete Your Workflow
Pair with Asiga Cure for dose-controlled post-curing, dedicated Asiga build trays for material-specific printing, and any of the qualified open-material resins including Keyprint, DETAX, and Graphy options we carry.
Download the Official User Guide
Full setup, calibration, build workflow, web interface, maintenance and service information — straight from Asiga.
↓ Asiga Ultra User Guide (PDF, 68 pages)Authorized Dealer
