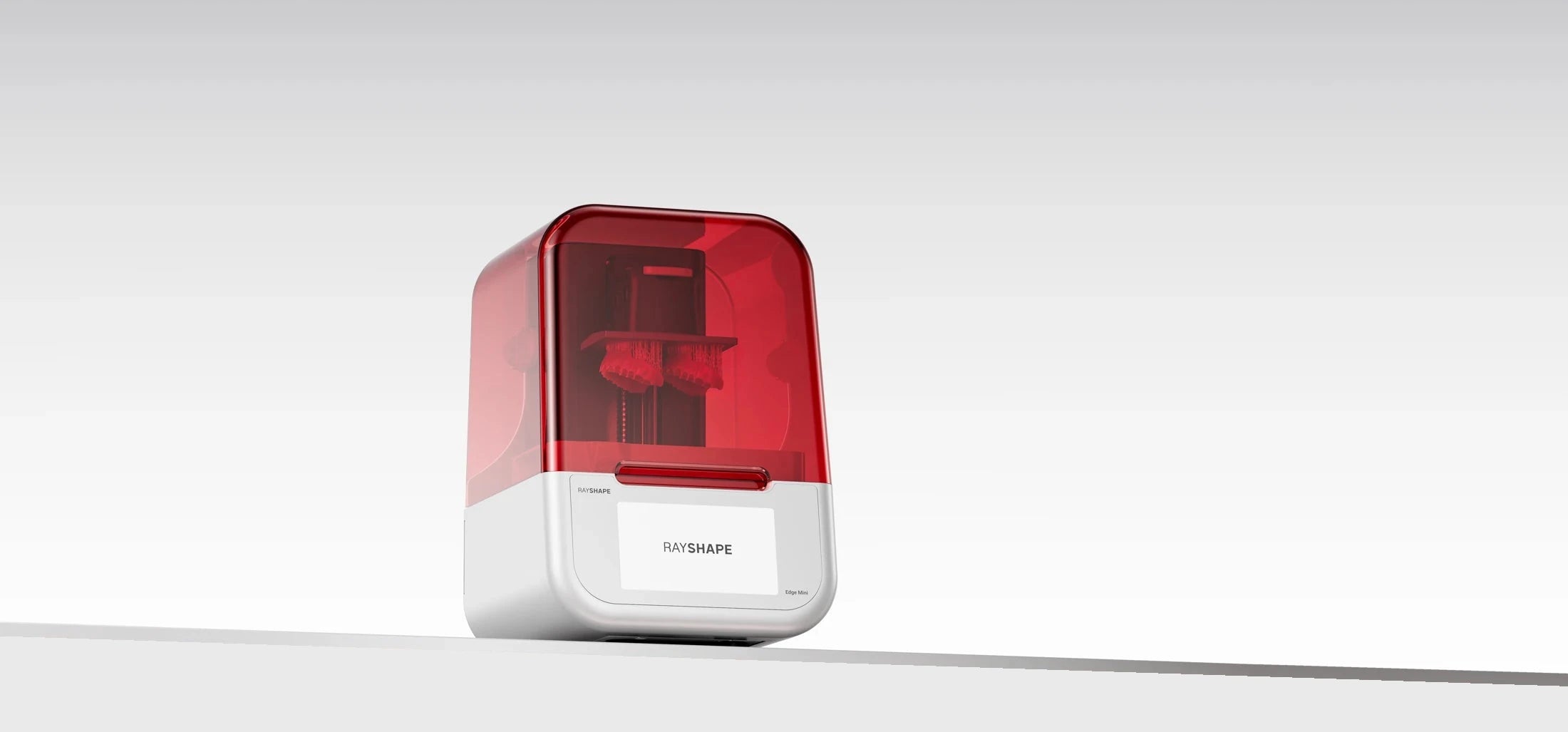

35 μm pixels

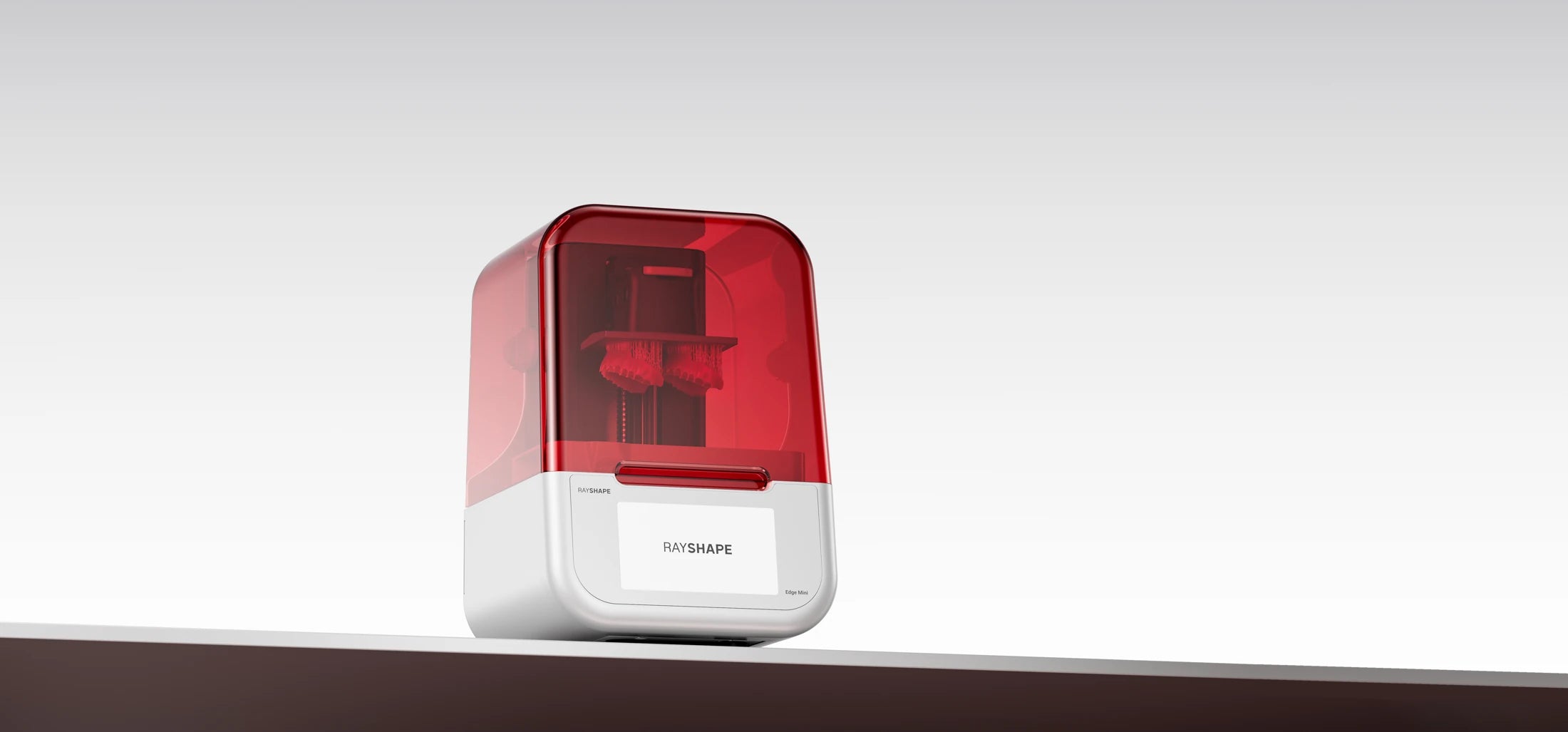

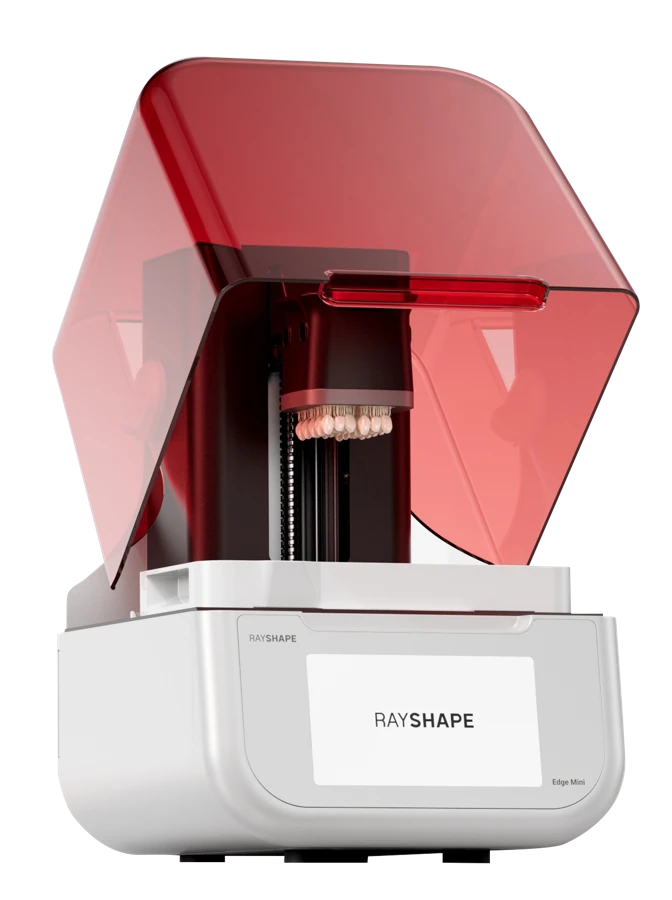

Edge mini
Compact chairside printing. Two build formats.
$2,400.00 USD
- Build formats
- 60 x 60 / 130 x 80 mm
- Build height
- 100 mm
- LCD
- 6.23-inch 4K
AT DENTCORE
RAYSHAPE
Dental 3D printing.
Printers, materials and the tools
that bring a print to completion.
THREE PRINTERS. DIFFERENT BUILD NEEDS.
Meet the Edge series.
34.4 μm pixels

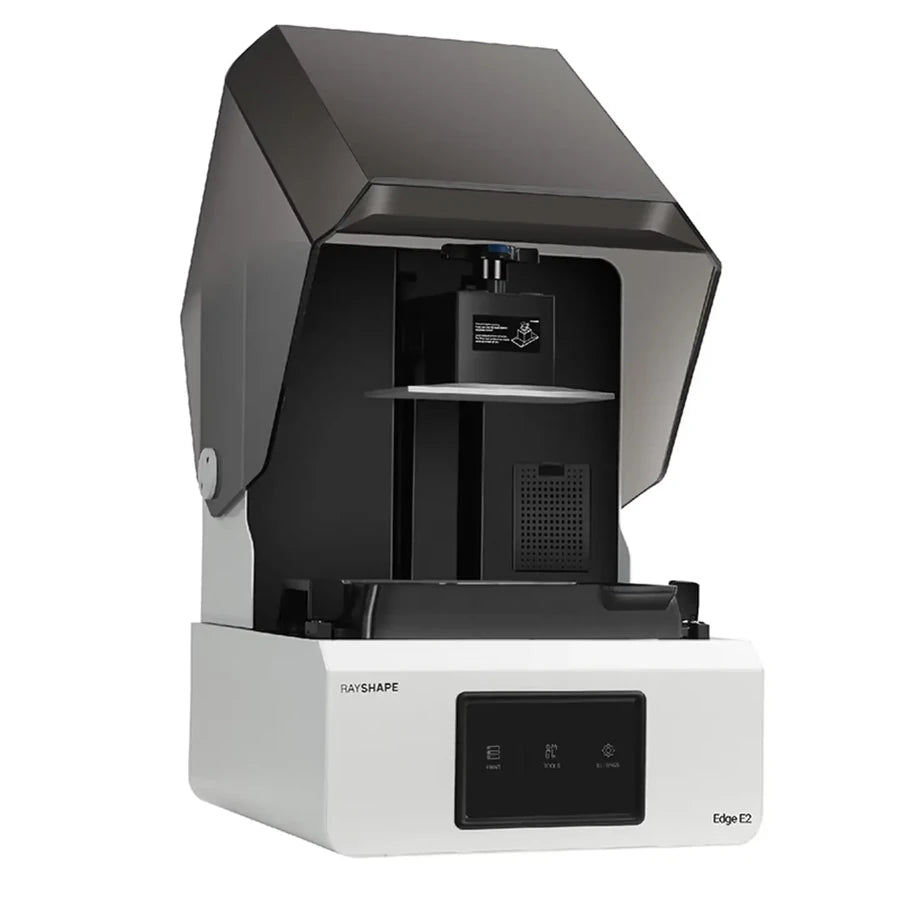

Edge E2
A 6K platform for everyday dental production.
$3,500.00 USD
- Build area
- 190 x 120 mm
- Build height
- 190 mm
- LCD
- 9.25-inch 6K
46 μm pixels

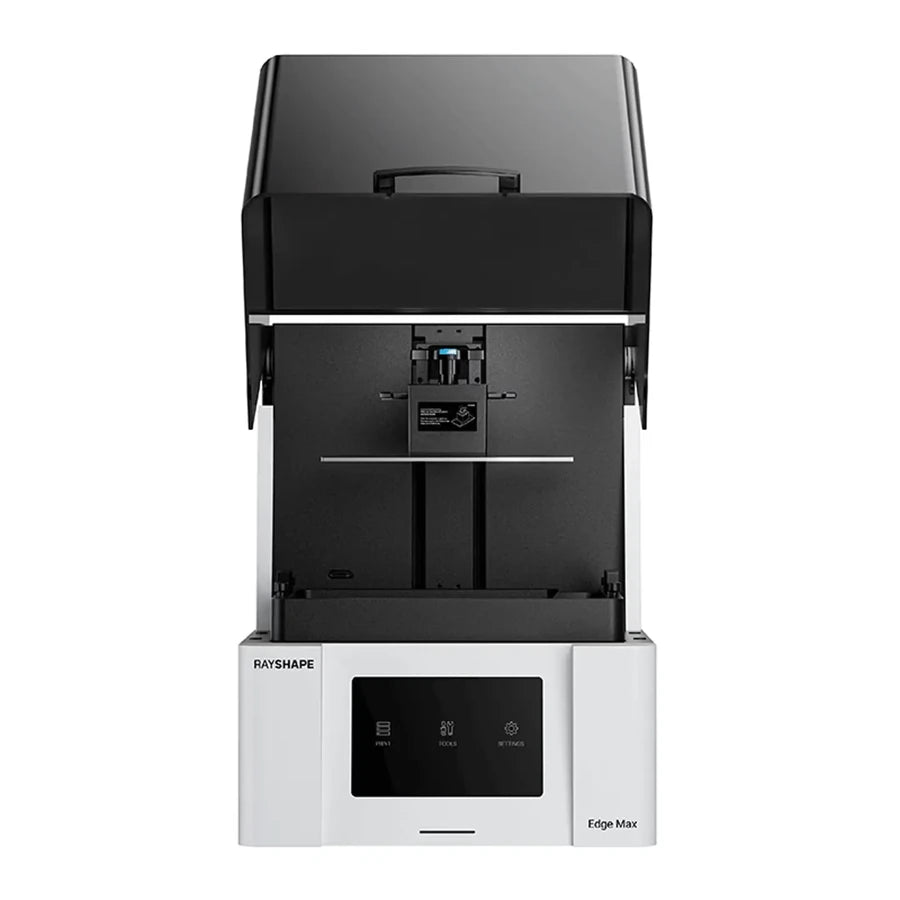

Edge Max
A larger build area for laboratory batches.
$7,000.00 USD
- Build area
- 290 x 160 mm
- Build height
- 190 mm
- LCD
- 13.6-inch 7K
Compare all three printers
| Specification | Edge mini | Edge E2 | Edge Max |
|---|---|---|---|
| Build volume | 60 × 60 × 100 mm 130 × 80 × 100 mm | 190 × 120 × 190 mm | 290 × 160 × 190 mm |
| XY pixel size | 35 μm | 34.4 μm | 46 μm |
| LCD | 6.23-inch / 4K | 9.25-inch / 6K | 13.6-inch / 7K |
| Wavelength | 405 nm | 405 nm | 405 nm |
| Dimensions | 300 × 280 × 427 mm | 390 × 420 × 550 mm | 480 × 500 × 650 mm |
| Net weight | 12 kg | 31 kg | 39 kg |
Pixel size is not a clinical accuracy claim. Confirm the build configuration and validated material profile for your application.

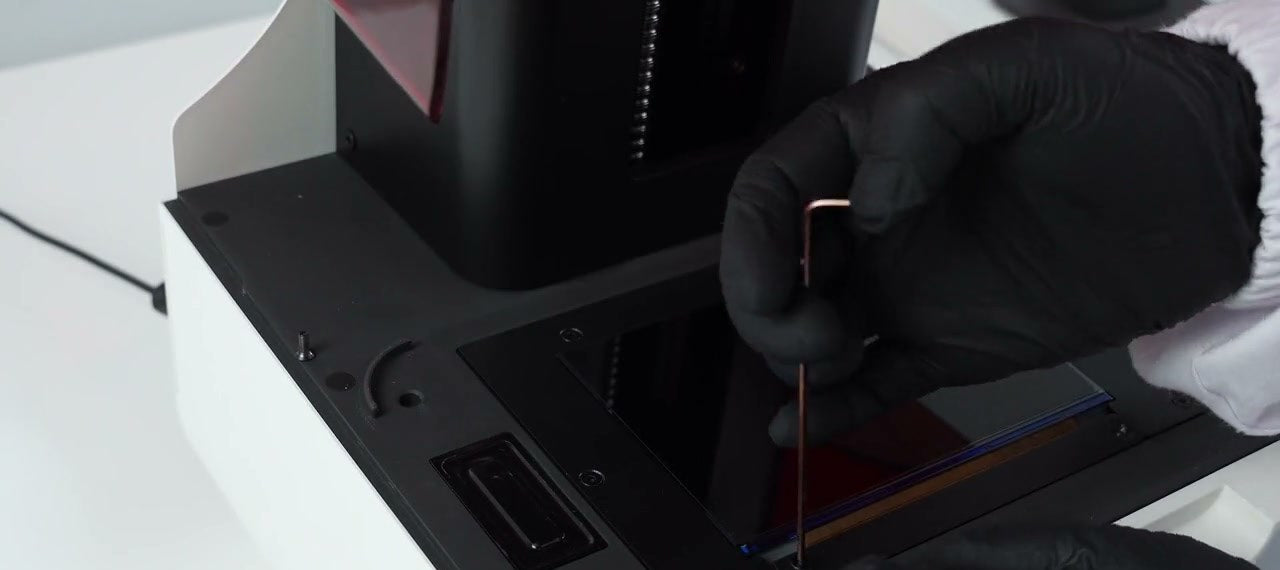

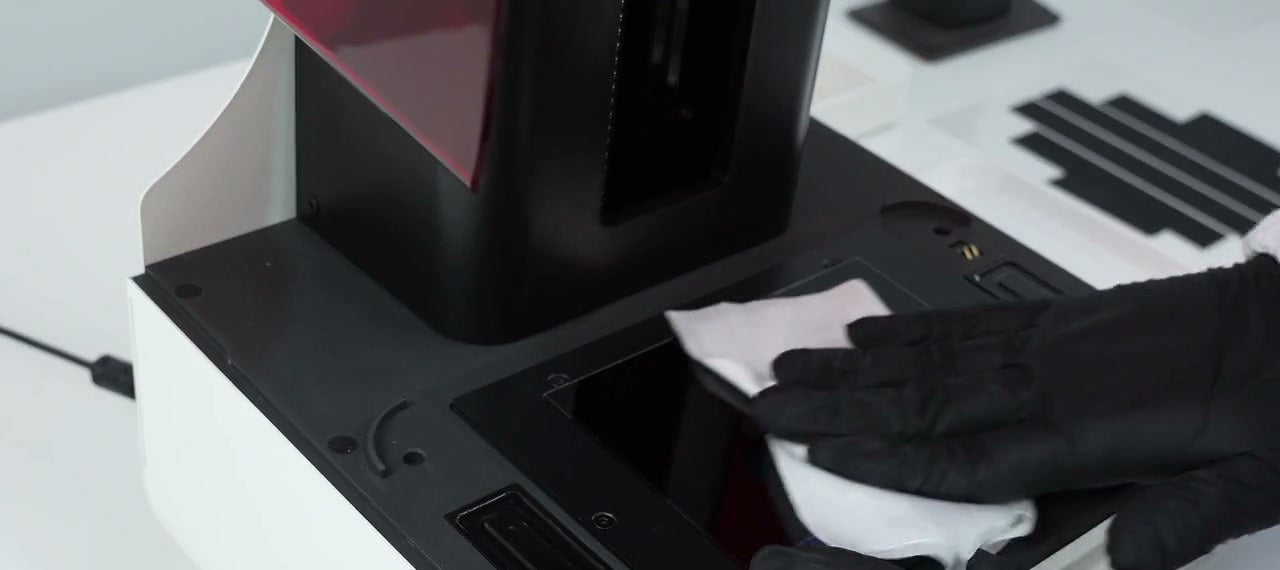

EDGE MINI, UP CLOSE
See the workflow.
Small footprint.

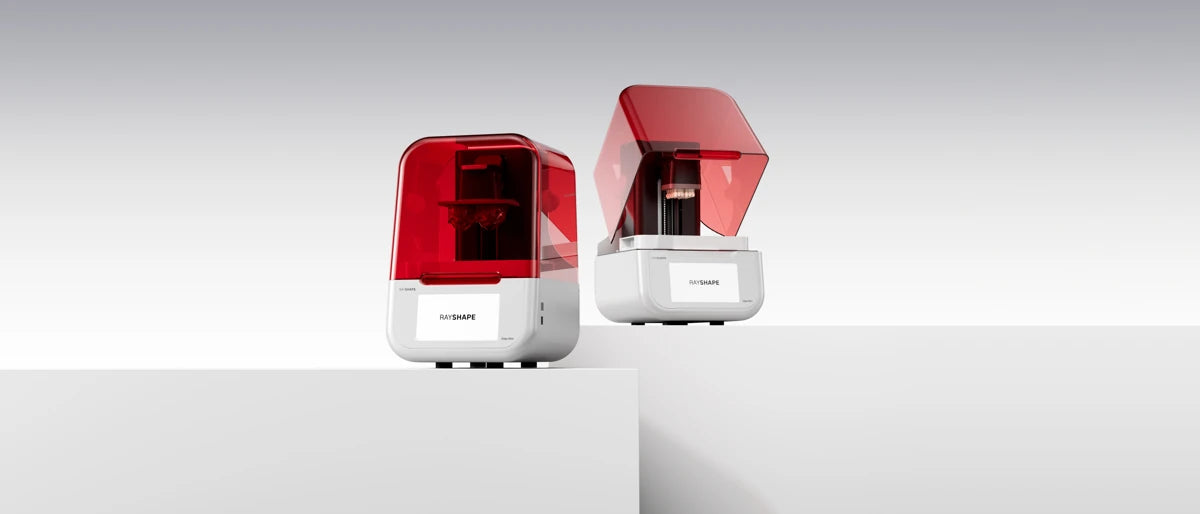

Two build formats.
35 μmXY pixel size
4K LCD6.23-inch screen
Two formats60 × 60 / 130 × 80 mm
12 kgCompact desktop unit
Follow the applicable equipment and material instructions. Service work should be performed by qualified personnel.
AFTER THE PRINT

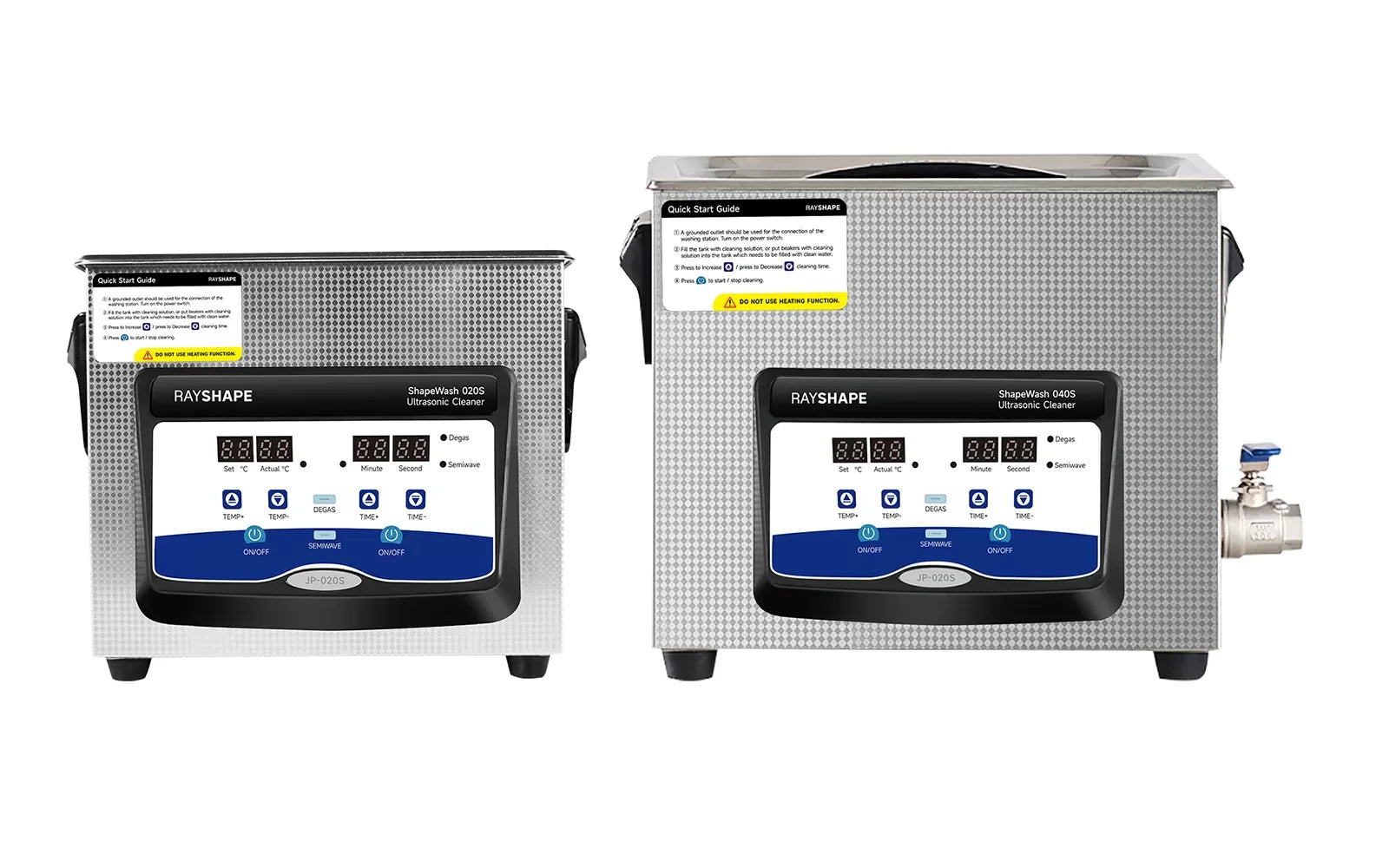

Wash. Cure. Finish.
Match the equipment to your
build size and material workflow.
180 x 100 mm curing area

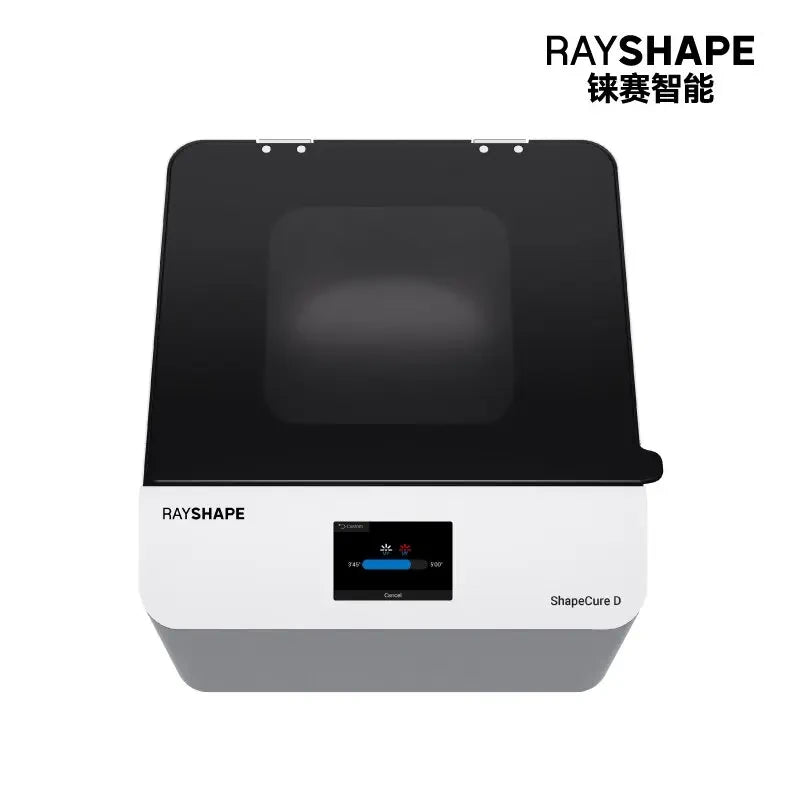

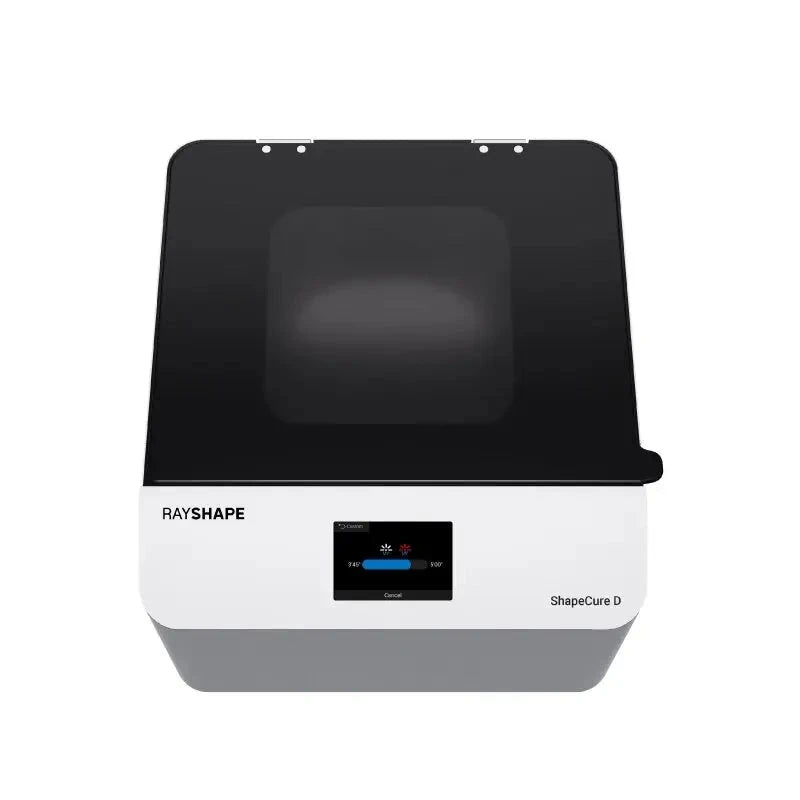

ShapeCure D
405 nm curing for compatible dental resins.
$1,000.00 USD
View product
300 x 130 mm curing area

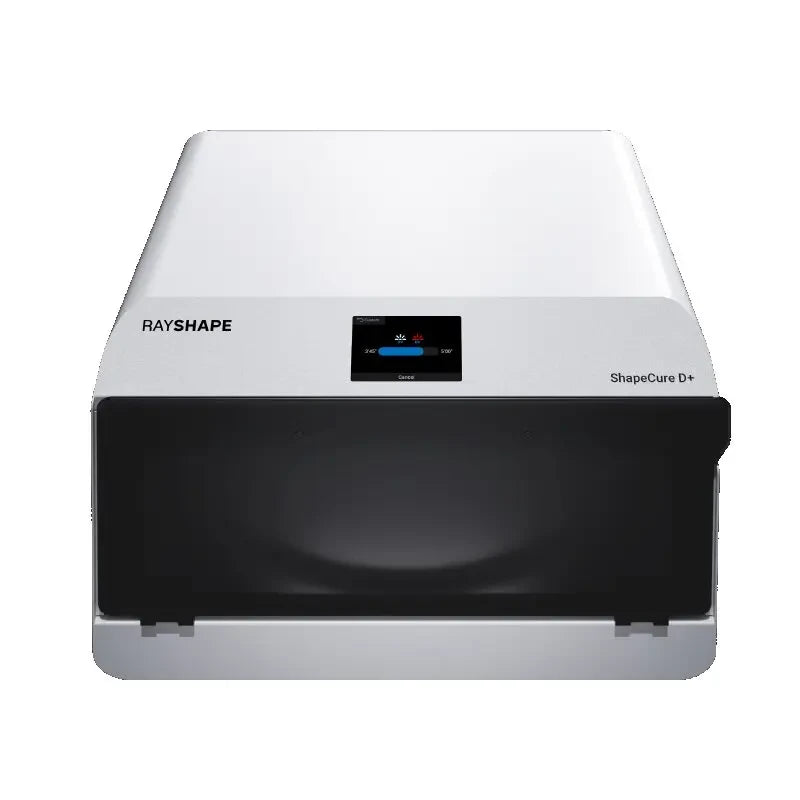

ShapeCure D+
An expanded curing area for larger batches.
$1,500.00 USD
View product

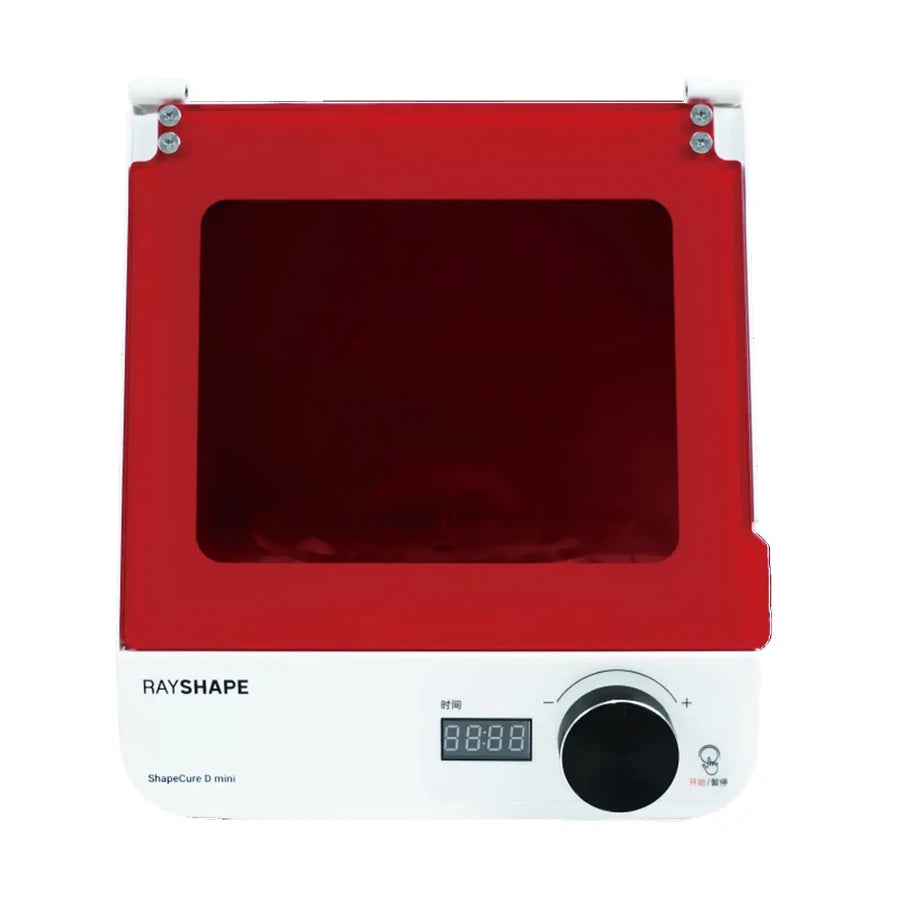

ShapeCure D mini is listed in a 220 V configuration. Match voltage, part dimensions and the material's required curing process before ordering.

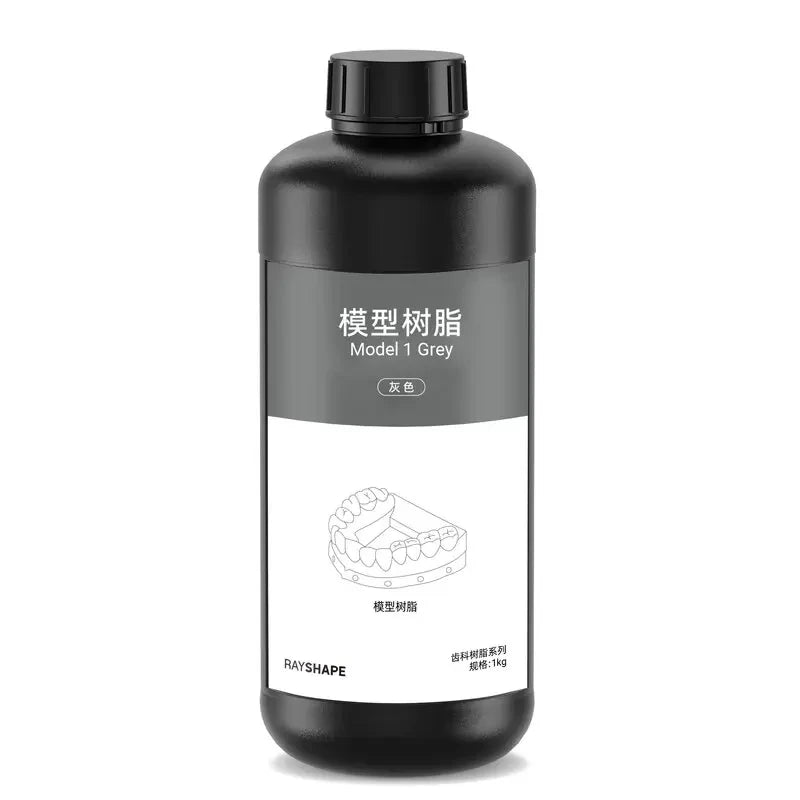

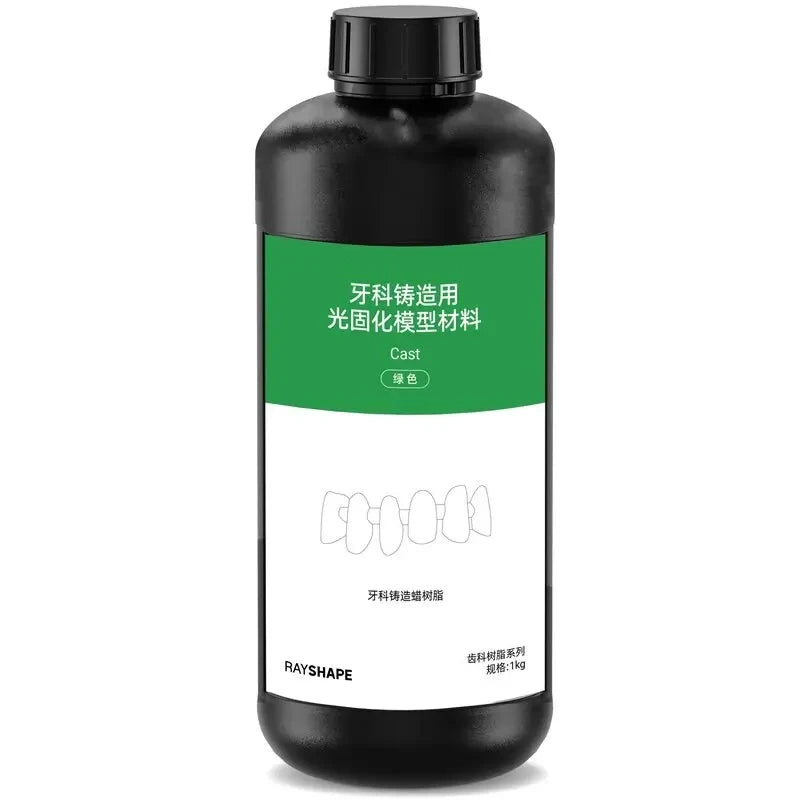

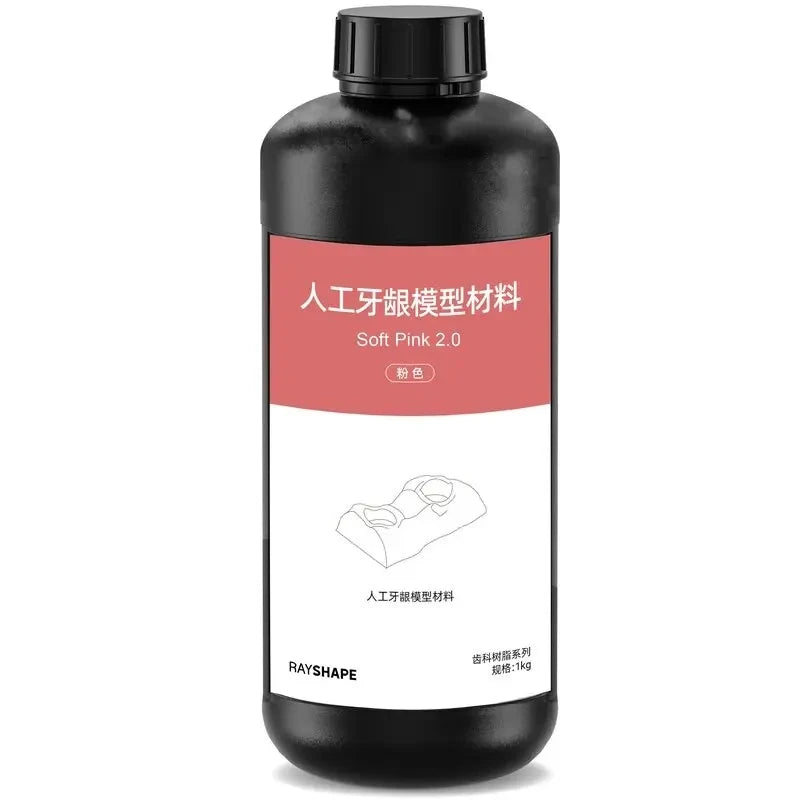

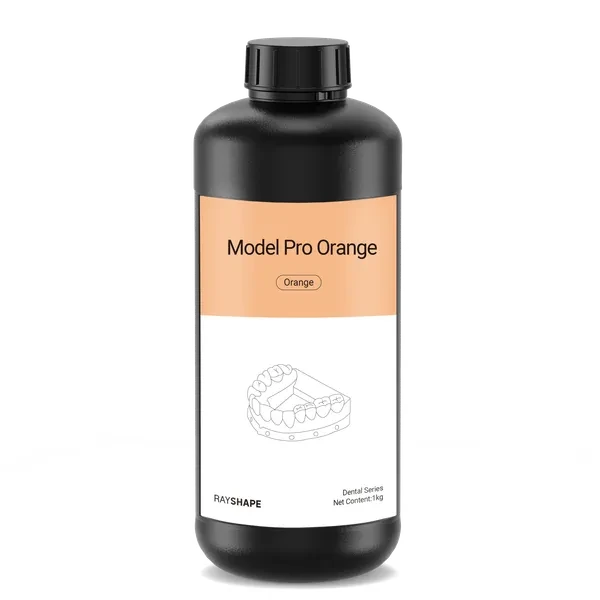

DENTAL MATERIALS
Start with the application.
Use a validated printer and resin profile. Follow the material's instructions for washing, curing and intended use.
Parts & accessories
Shop all partsResin tanksModel-specificRelease film kitsModel-specificBuild platformsModel-specificPrinter tool kitsModel-specificTray kitEdge E2 / Edge MaxLCD screensMatch printer and revisionLCD screen cablesMatch printer and revisionFresnel lensesMatch printer and revisionCover hoodsModel-specificStep glassModel-specificEdge mini front panelEdge miniResin tank fasteningEdge E2
Match the printer model, installed revision and part number before ordering.
PRODUCT RESOURCES
The details, on hand.
DENTCORE
Build your RAYSHAPE setup.
Talk through the printer, materials and post-processing with our team.
