Prepare
Confirm Model XE, the selected printer and layer height in the material library. Mix according to the resin instructions before filling the tank.
1
/
of
2
RAYSHAPE
RAYSHAPE Model XE Dental Model Resin
RAYSHAPE Model XE Dental Model Resin
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product details
RAYSHAPE / Model XE
Rigid dental model production

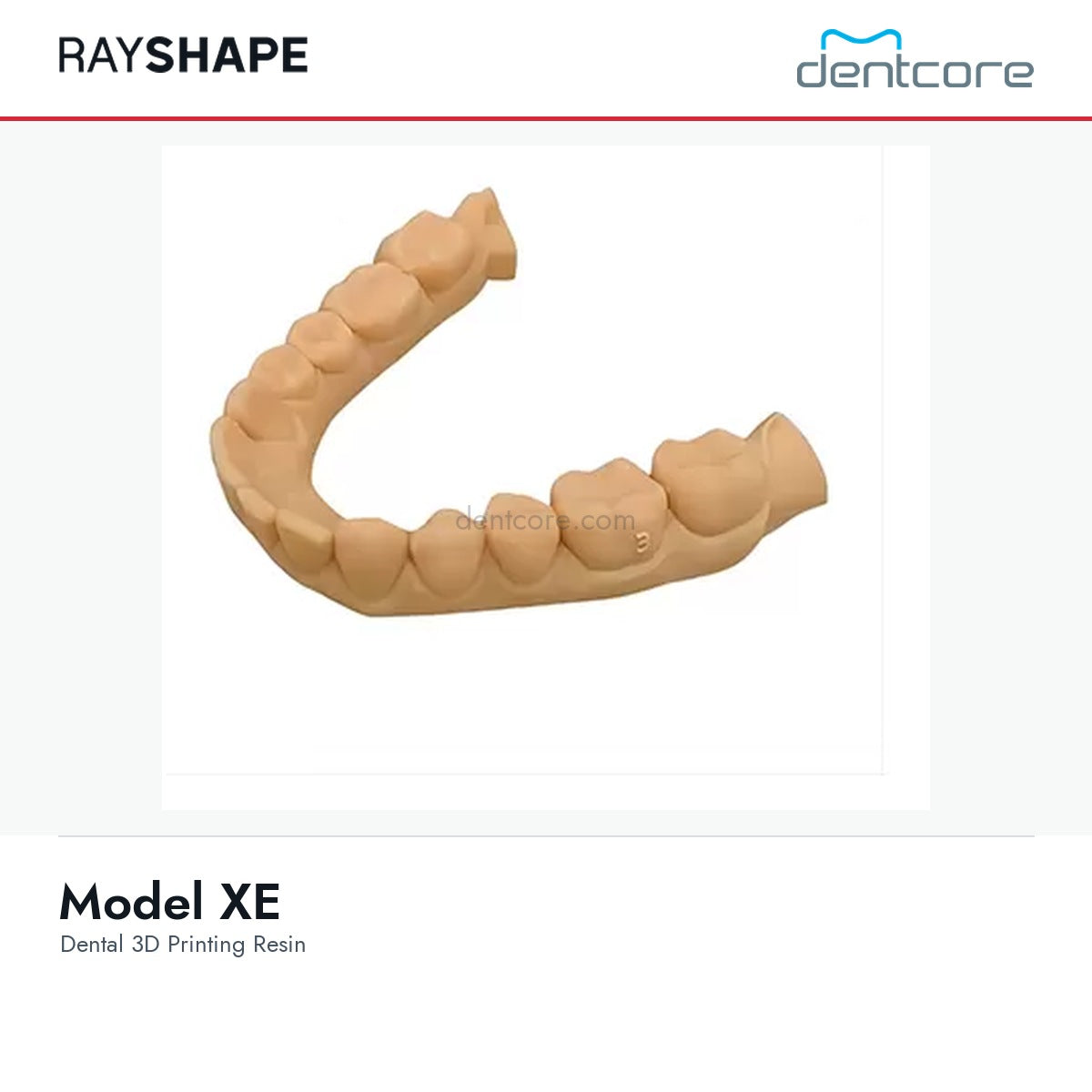

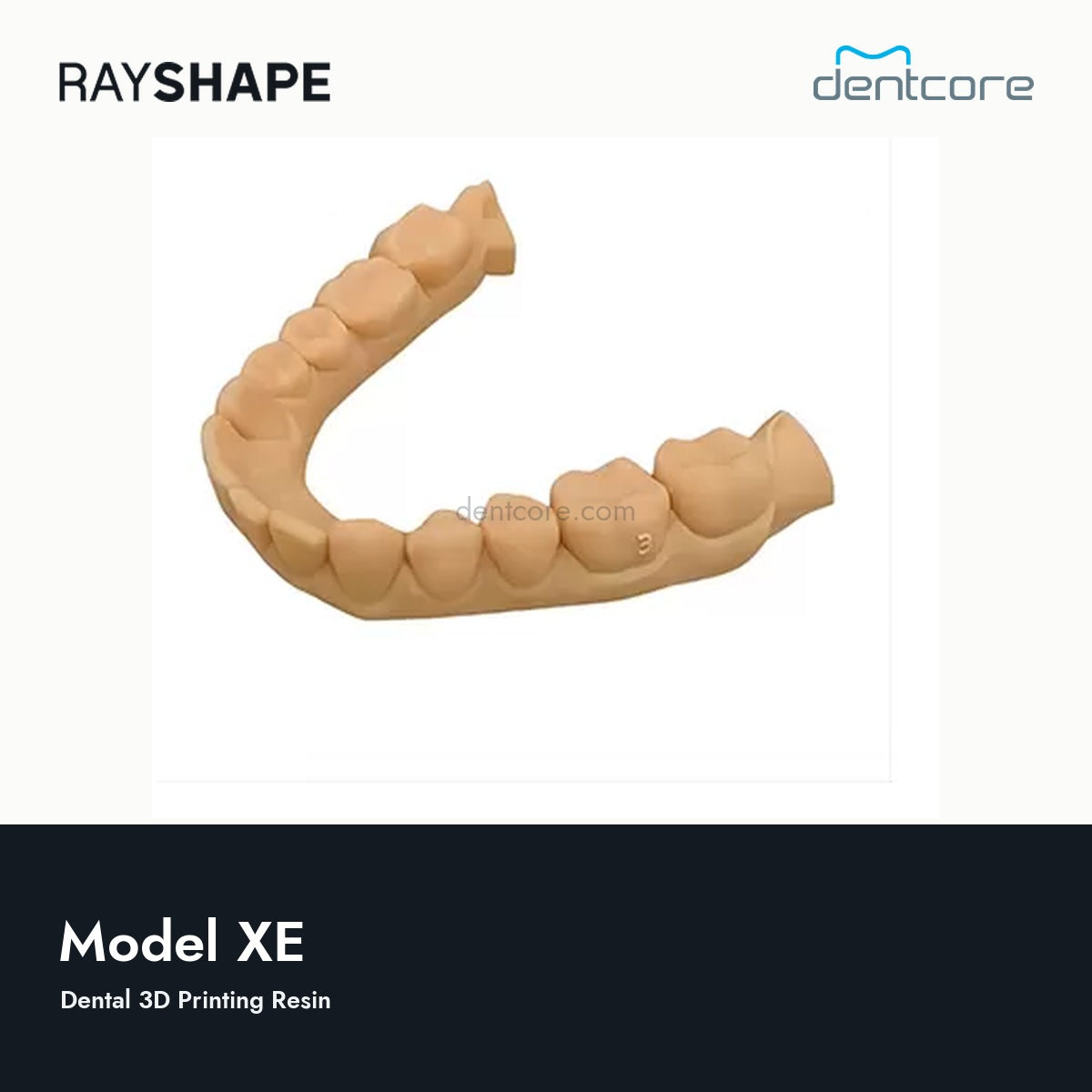

An Apricot model material for dental model production and handling. Use the dedicated Model XE profile and complete the prescribed wash and post-cure process.
Dental modelsApplication
ApricotTDS shade
74 MPaTypical flexural strength
Use it for the right application
- Application
- Dental models
- TDS color
- Apricot
- Typical flexural strength
- 74 MPa
- Typical hardness
- Shore D 88
- Typical viscosity
- 265 mPa.s at 25 C
- Test scope
- TDS specimens printed on Shape 1+; values are not a finished-part guarantee
How to use Model XE
Orient and support the part for its geometry, then review the sliced job. Use only the matching printer, material and layer-height profile.
Clean
Use the prescribed cleaning agent and duration for Model XE. Do not substitute the Model WW water-wash process.
Finish
Dry completely, post-cure with the specified equipment and inspect fit, surfaces and support marks before use.
Print speed, stiffness and dimensional results depend on the selected profile, part orientation and post-processing.
Before the first print
Exact material profile
Printer, resin name, shade and layer height must match. A 405 nm light source alone does not establish compatibility.
Handling and storage

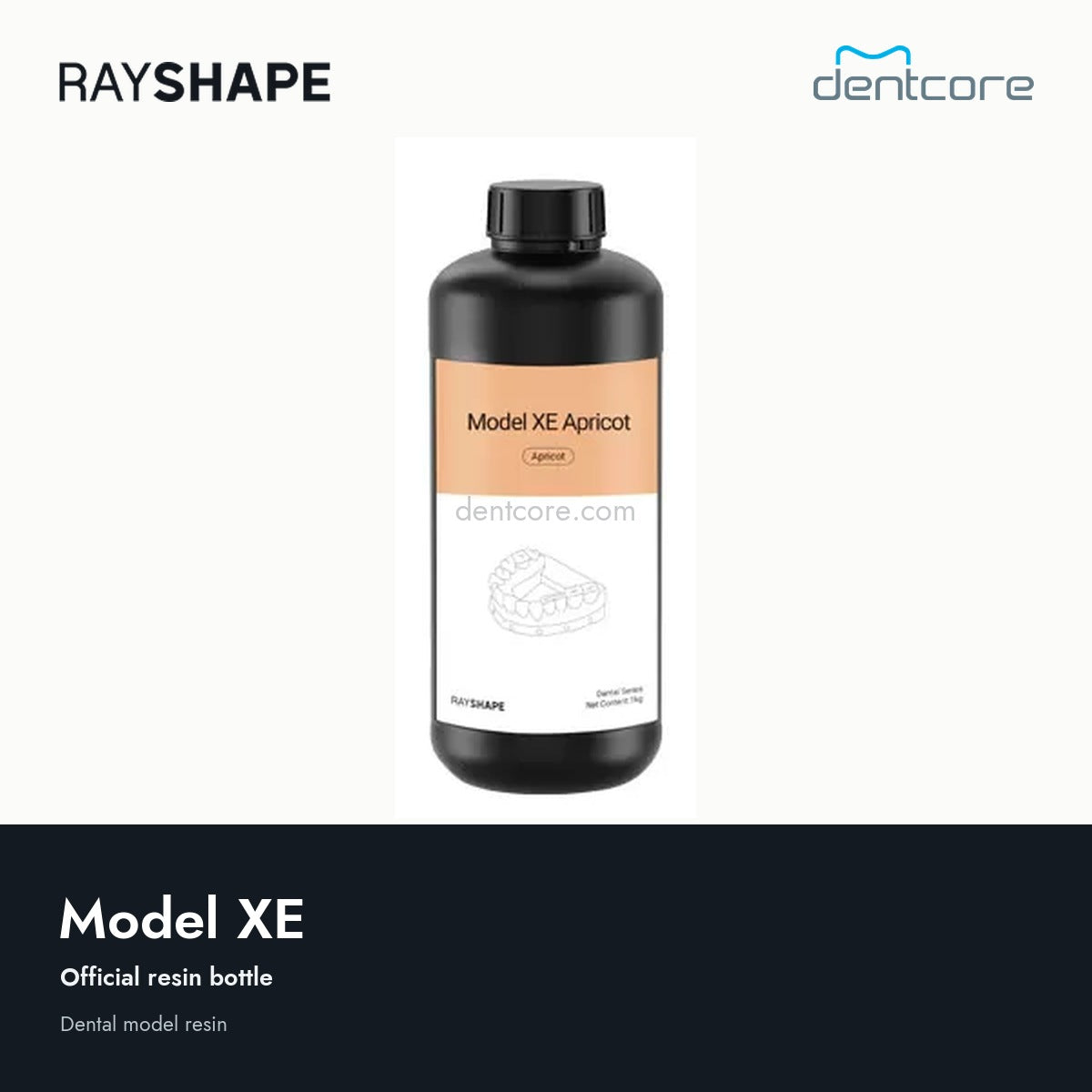

Follow the bottle label and safety data sheet for protective equipment, storage, mixing and disposal. Keep uncured resin and contaminated wash liquid out of drains.
Validated processing
Do not guess exposure, wash or curing times. Use the material's current instructions and the named curing equipment.
Documents
Technical data sheets describe material properties; use the current instructions for use (IFU) and validated profile for processing settings.
