RAYSHAPE

RAYSHAPE Cast-Wax Resin

RAYSHAPE Cast-Wax Resin

$190.00 USD
$190.00 USD
Sale Sold out
Shipping calculated at checkout.
Ask a specialist 844-292-8023 Financing

Product details

RAYSHAPE / Cast-Wax

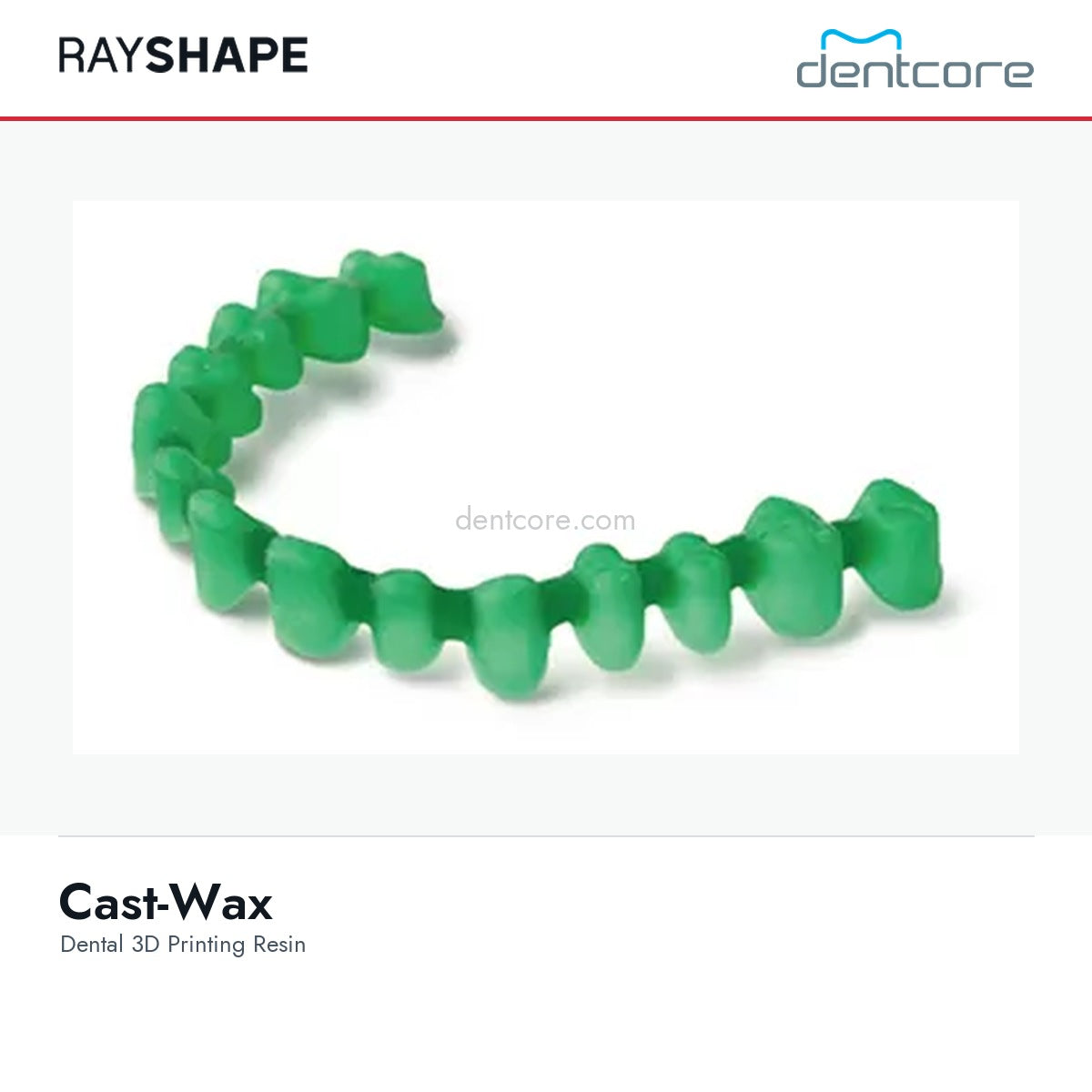

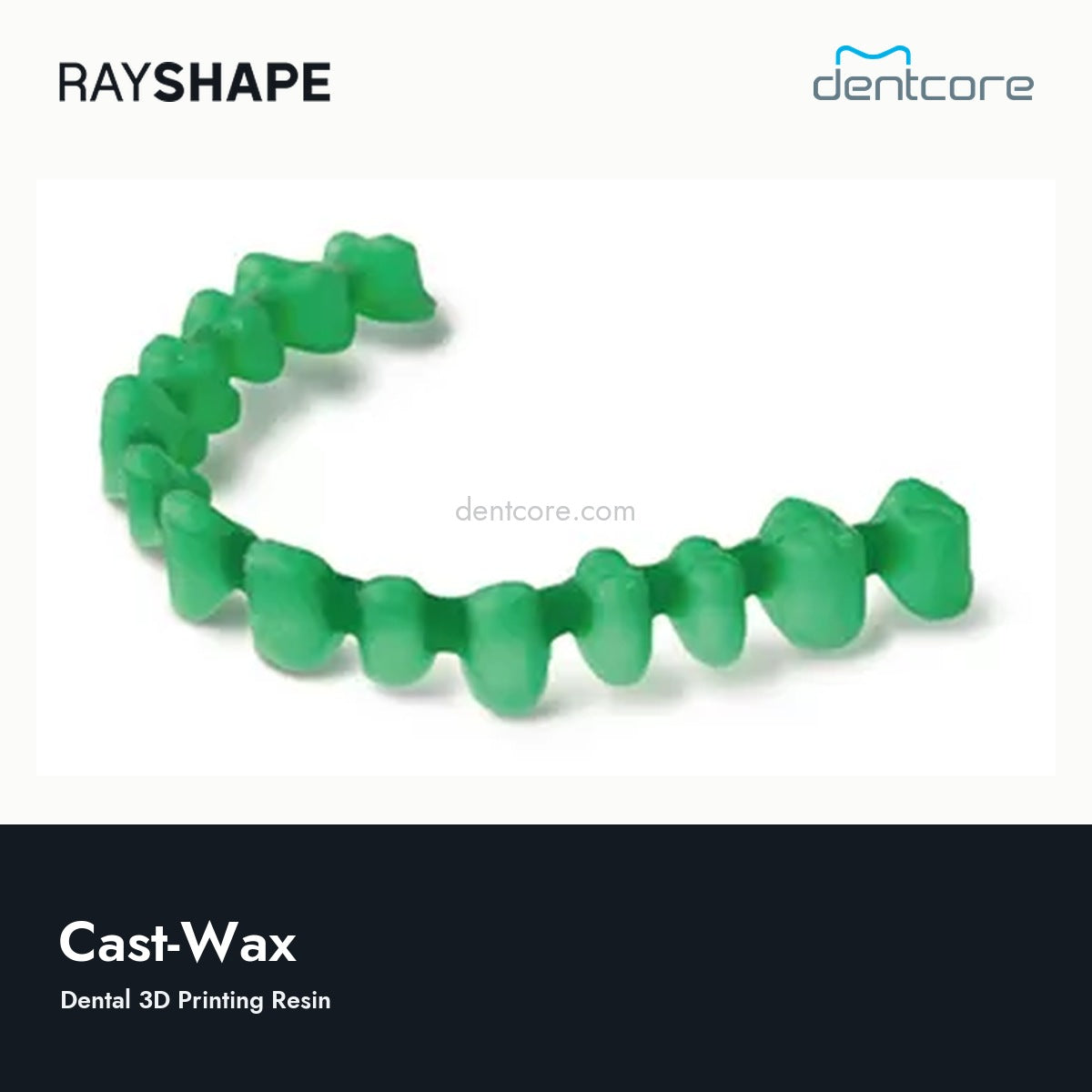

Patterns for investment casting

A green castable material for printed patterns used in an investment-casting workflow. The printed resin pattern is not the final restoration.

Casting patternsApplication
GreenShade

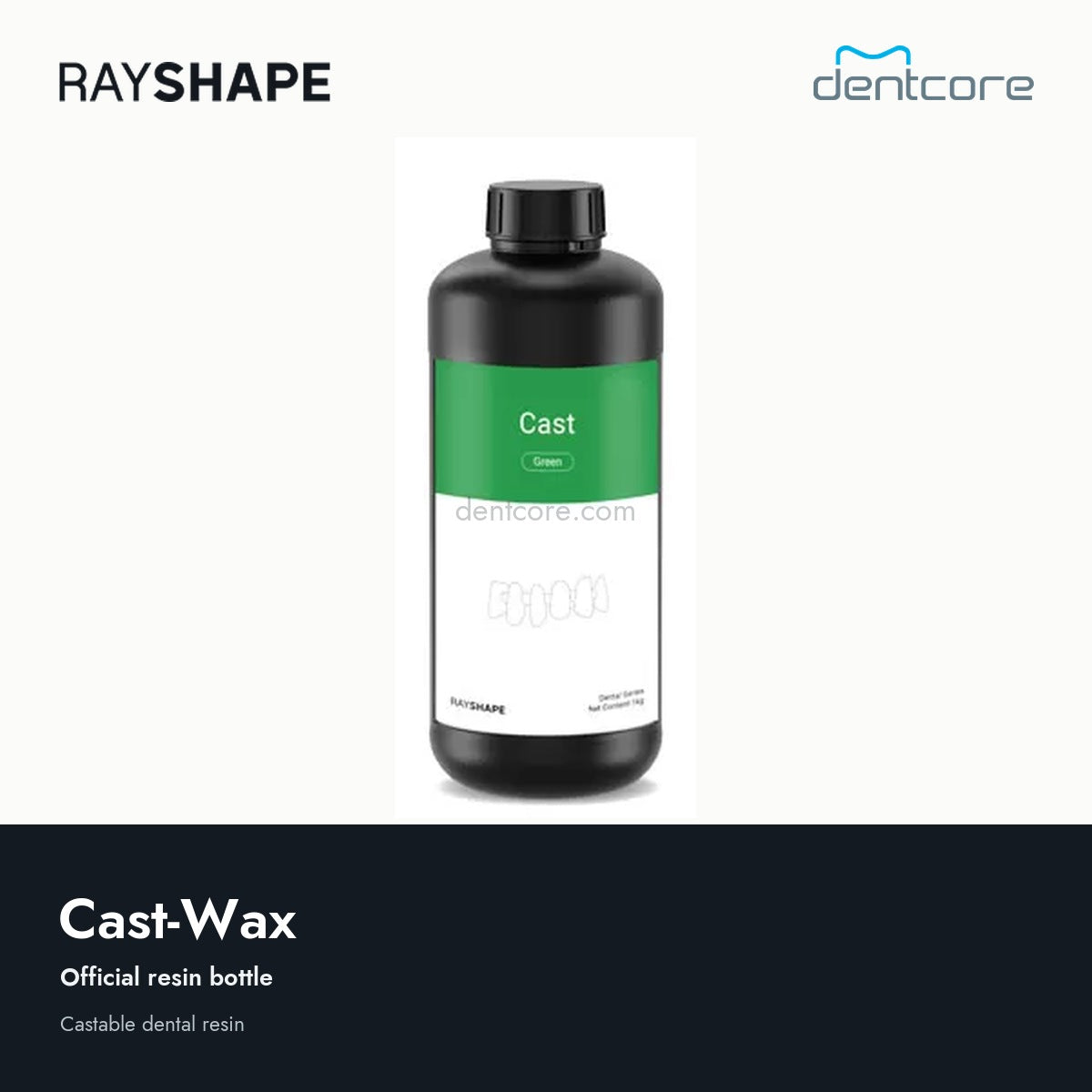

1 kgBottle size

Use it for the right application

Application
Patterns for investment casting
Color
Green
Typical hardness
Shore D 68
Typical tensile strength
15.7 MPa
Typical viscosity
350 mPa.s at 25 C
Test scope
Cast TDS specimens printed on Shape 1+; verify your current material instructions

How to use Cast-Wax

Prepare

Design the pattern and select the matching Cast material profile for the confirmed printer. Plan supports to protect critical surfaces.

Print

Orient and support the part for its geometry, then review the sliced job. Use only the matching printer, material and layer-height profile.

Clean

Follow the Cast material instructions for cleaning, drying and any prescribed post-cure step before investment.

Finish

Inspect the pattern, then use an investment and burnout schedule specified for the resin and casting system. Do not use a generic wax schedule by assumption.

Casting results depend on pattern preparation, investment, burnout and the selected alloy or pressing workflow.

Before the first print

Exact material profile

Printer, resin name, shade and layer height must match. A 405 nm light source alone does not establish compatibility.

Handling and storage

Follow the bottle label and safety data sheet for protective equipment, storage, mixing and disposal. Keep uncured resin and contaminated wash liquid out of drains.

Validated processing

Do not guess exposure, wash or curing times. Use the material's current instructions and the named curing equipment.

Documents

Cast resin technical dataRAYSHAPE dental resin guide

Technical data sheets describe material properties; use the current instructions for use (IFU) and validated profile for processing settings.
