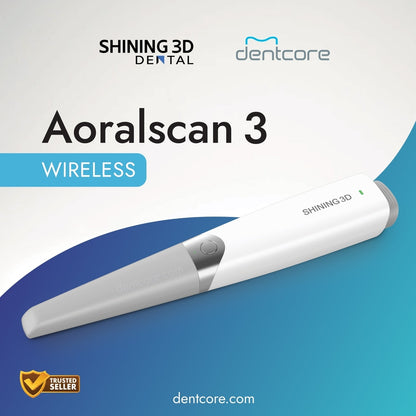

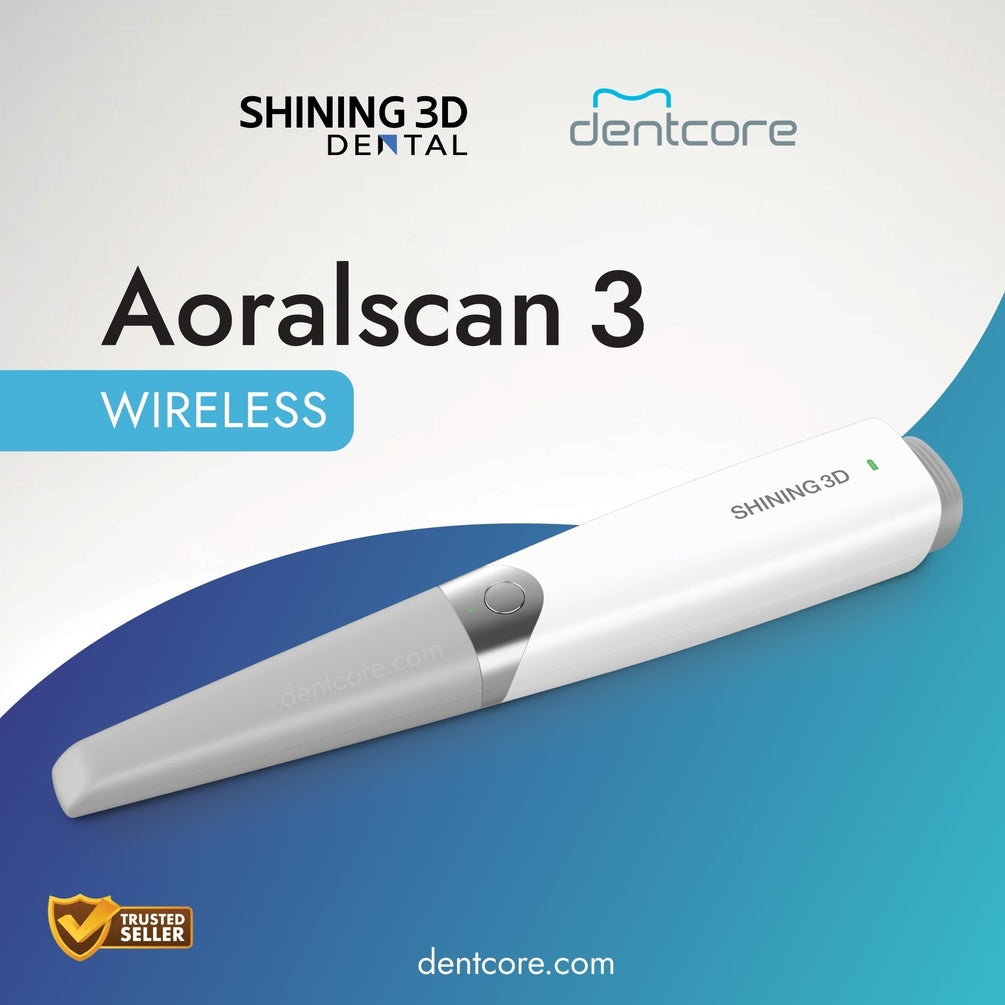

Shining 3D Aoralscan 3 Wireless

All the scan quality of the Aoralscan 3, now completely cable-free.

The Aoralscan 3 Wireless is a color intraoral scanner from Shining 3D built for everyday restorative, implant, and orthodontic work. It captures a full 3D digital impression of teeth, gingiva, and oral mucosa without powder spraying, and sends open STL, OBJ, or PLY files straight to your CAD/CAM software. The difference here is the cordless handpiece: the scanner talks to its cradle over a wireless connection, so nothing tethers you to the workstation while you move around the patient or between operatories. It is intended for dental professionals, lab technicians, and trained clinicians, and it is designed to make chairside capture faster and more comfortable for both the operator and the patient.

Why the Aoralscan 3 Wireless stands out

Truly cable-free scanning — the handpiece connects to its cradle over a wireless access point, and the manufacturer specifies reliable operation up to 5 meters away from the cradle, so you are free to move without a cord in the way.

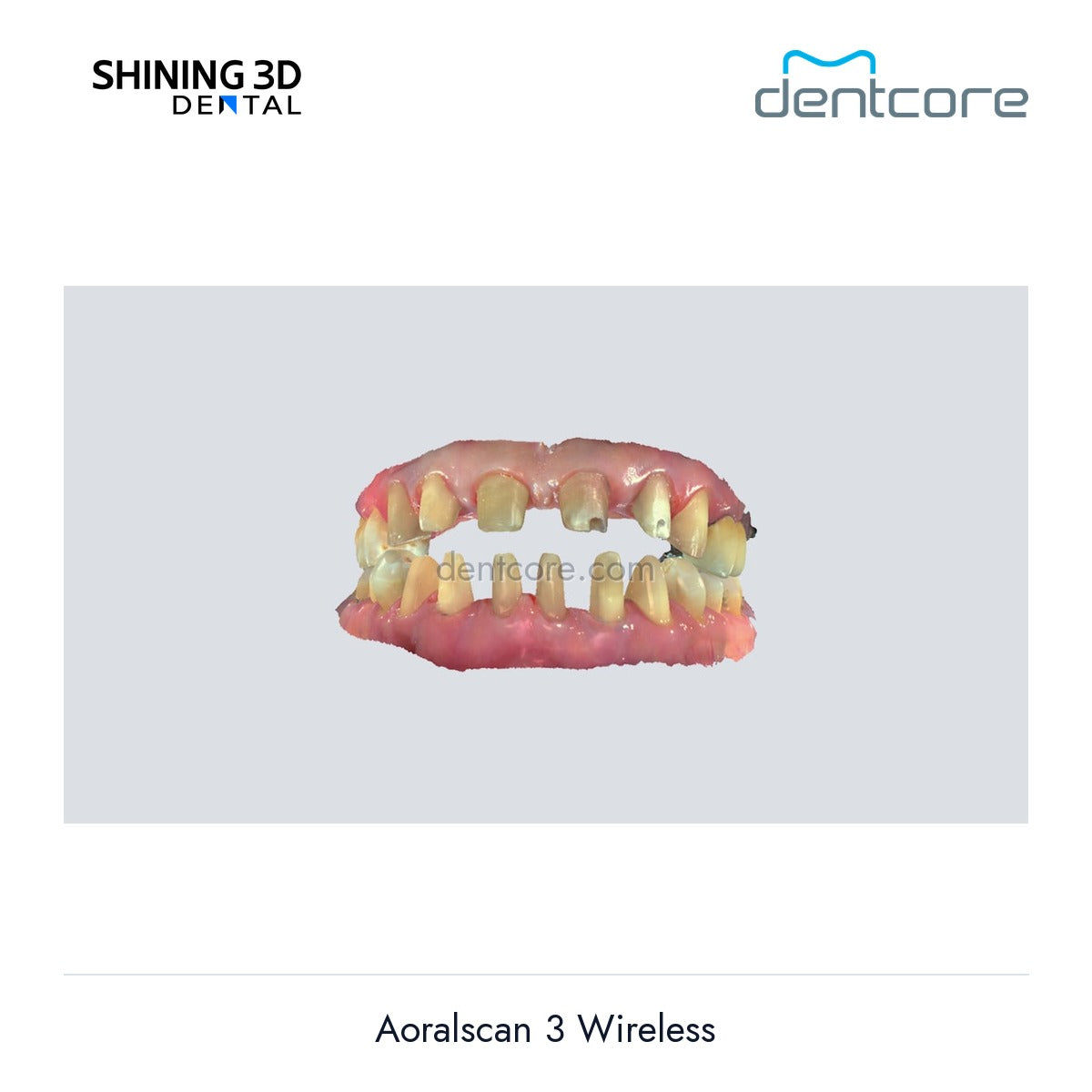

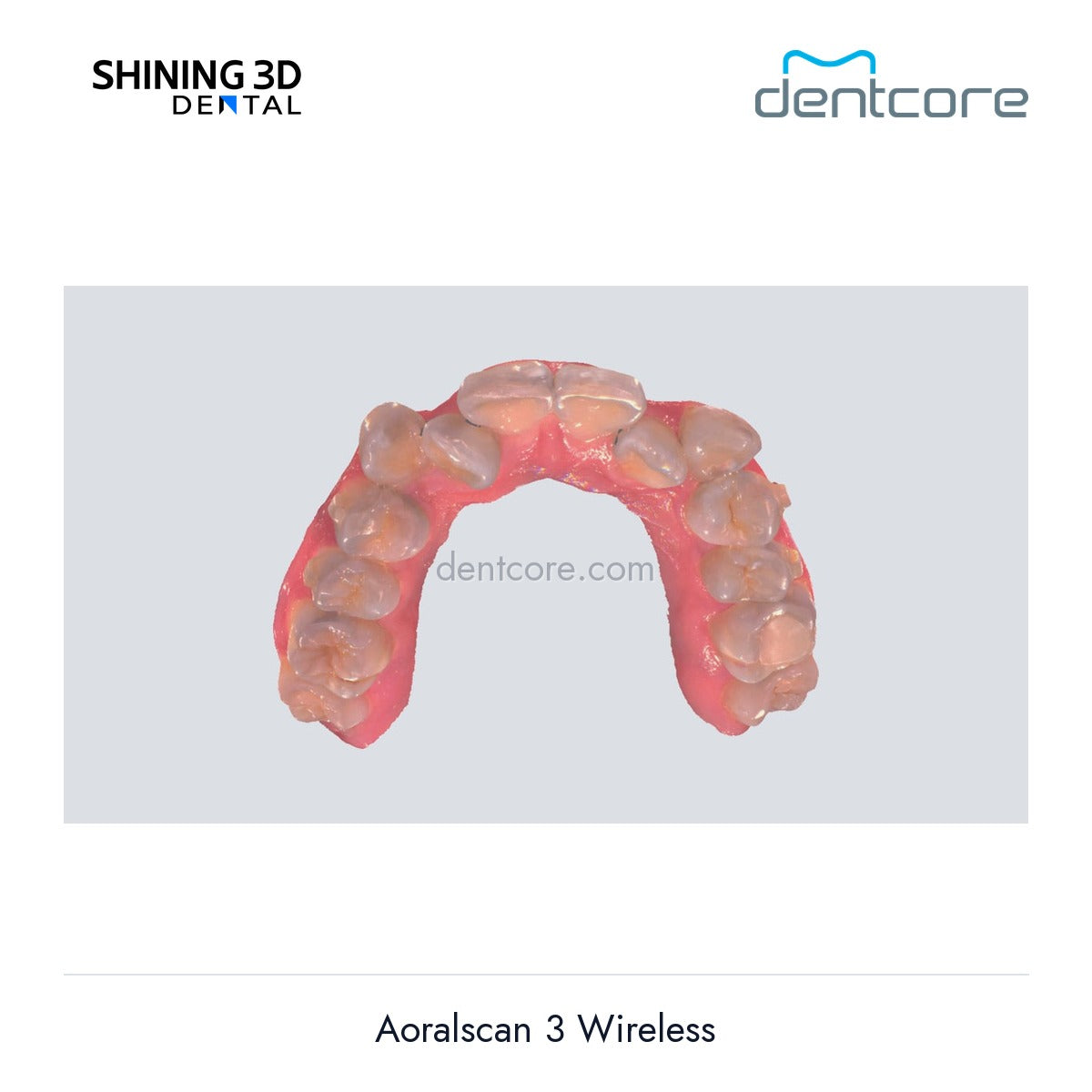

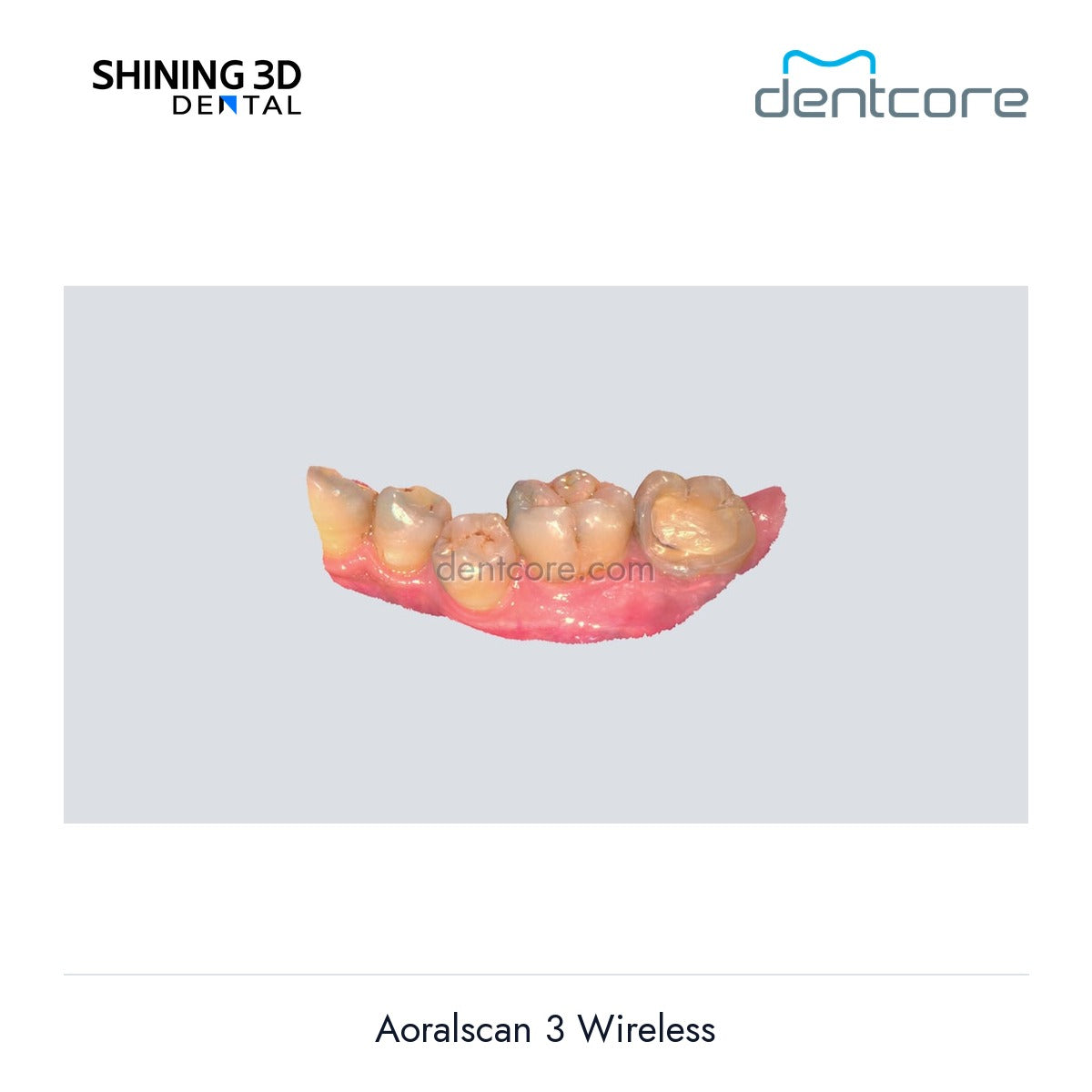

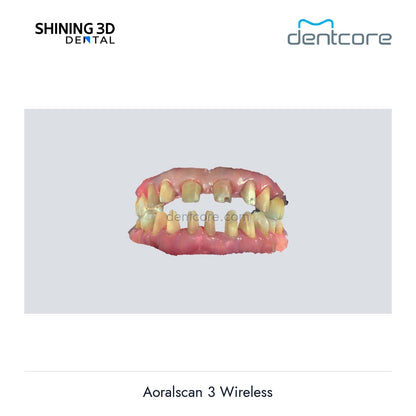

Powder-free color capture — scans one tooth, several teeth, or the full arch in natural color with no spray required, at a scanning rate of up to 20 frames per second for smooth, accurate acquisition.
Two interchangeable tips — a standard tip with a 16 × 12 mm scan field for general use and a smaller mini tip with a 12 × 9 mm field for posterior and tighter access. Tips are pluggable and the scanner automatically recognizes the type fitted.
Deep margin capture — a 22 mm scanning depth (from -2 mm to 20 mm off the tip window) reaches subgingival preparation margins that shallower scanners miss.
Automatic anti-fog tip heating — a built-in heating element warms the tip lens whenever power is supplied, even in standby or sleep mode, to prevent condensation and keep scanning uninterrupted.
Autoclavable, reusable tips — each tip can be cleaned and steam-sterilized up to 100 times (4 minutes at 134°C in a dynamic-air-removal sterilizer, or 30 minutes at 121°C by gravity displacement) for straightforward infection control.

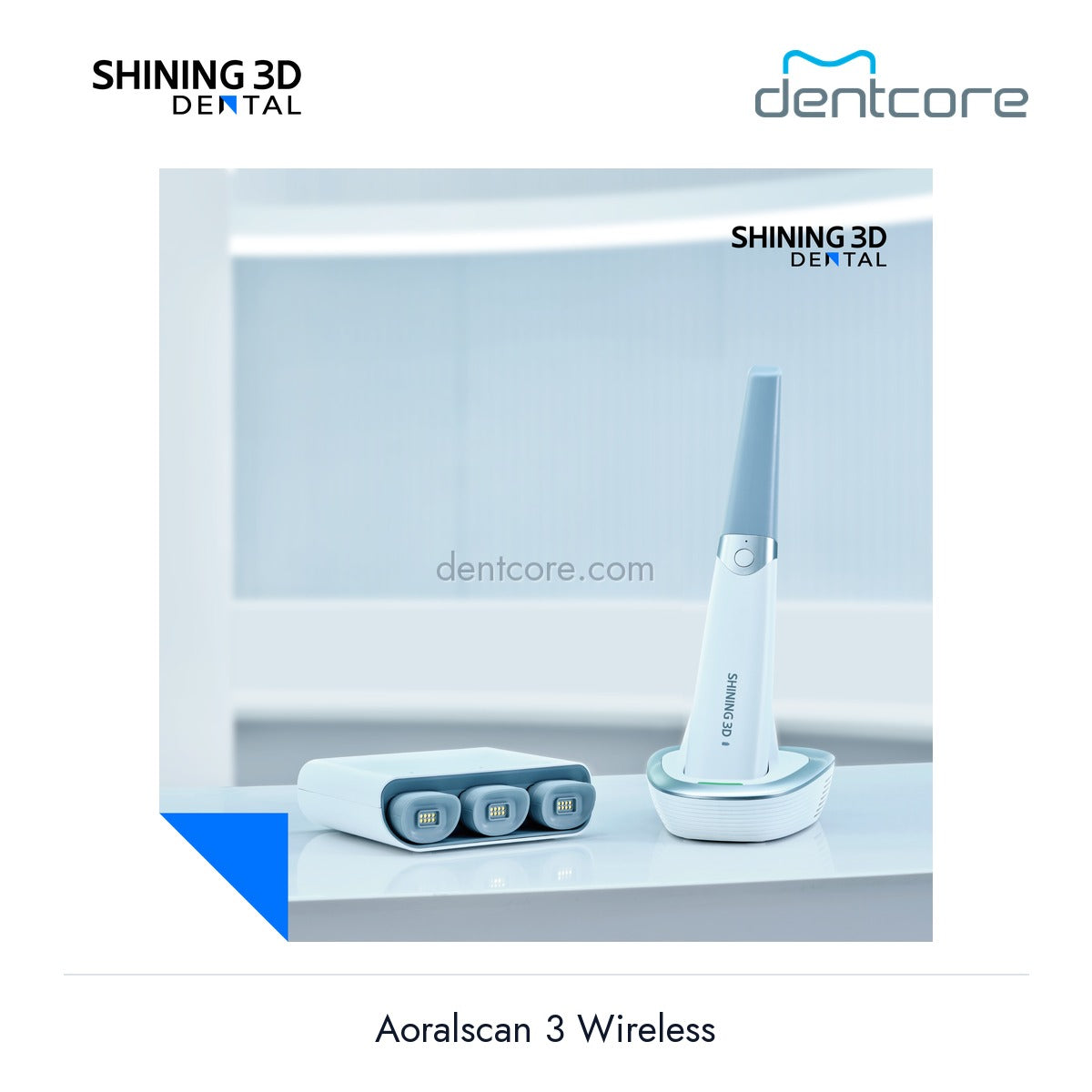

Rechargeable battery workflow — a swappable lithium-ion battery powers the wireless handpiece and recharges in the cradle or the supplied charging case, so a spare is always ready.
Open file output — exports non-proprietary STL, OBJ, and PLY files that drop directly into exocad, 3Shape, Dental Wings, and any STL-compatible design platform.

Specifications

Parameter	Specification
Type	Intraoral scanner (Aoralscan 3 Wireless)
Scanner size (L × W × H)	275 ± 3 × 46 ± 3 × 40 ± 3 mm
Scanner weight	330 ± 20 g (without cable)
Scanning depth	22 mm (-2 mm to 20 mm from the tip window)
Scan speed	Up to 20 frames per second
Scan field	Standard tip 16 × 12 mm / Mini tip 12 × 9 mm
Scanner tip dimensions	117 ± 1 × 34.5 ± 1 × 30.5 ± 1 mm
Tip reprocessing	User-sterilized / disinfected, up to 100 times
Light source	LED and laser
Wavelength	Green laser 520 ± 10 nm / Blue laser 445 ± 10 nm / White LED 400–780 nm
Morphological accuracy (standard tip)	Three teeth ≤ 0.020 mm; full arch ≤ 0.050 mm (std. deviation)
Wireless connection	Wireless AP binding; WLAN 802.11 (2.4 / 5 GHz), 5150–5850 MHz; effective range up to 5 m from cradle
Battery	Rechargeable Li-ion, 3.635 V, 3500 mAh (85 × 37 × 28 mm, 67 ± 5 g)
Cradle	160 ± 3 × 110 ± 3 × 77 ± 3 mm, 560 ± 20 g; wireless AP + charging
Power adapter	Input/output 12 V, 3.0 A
Output formats	STL, OBJ, PLY
Operating temperature	10°C to 30°C (recommended 20°C to 30°C)
Device lifetime	8 years
Warranty	Standard 2 Year Warranty

What's included

Per the manufacturer package list, the set ships with the scanner body, the cradle (wireless AP plus charging), a charging case, the calibrator, rechargeable batteries, scanner tips (standard and mini), dust caps for the scanner and calibrator, a spare USB cable, the power adapter with plug(s), a USB flash drive containing the IntraoralScan software, a transfer bracket, calibrator and cradle cables, a practice model for training, the warranty and quality certification, disinfection guidelines, and a quick start guide. Keep the original packaging for safe future transport.

Official Shining 3D documentation

The manufacturer’s official guide — full specifications, setup, and safe operation.

⬇Download User Manual (PDF)
