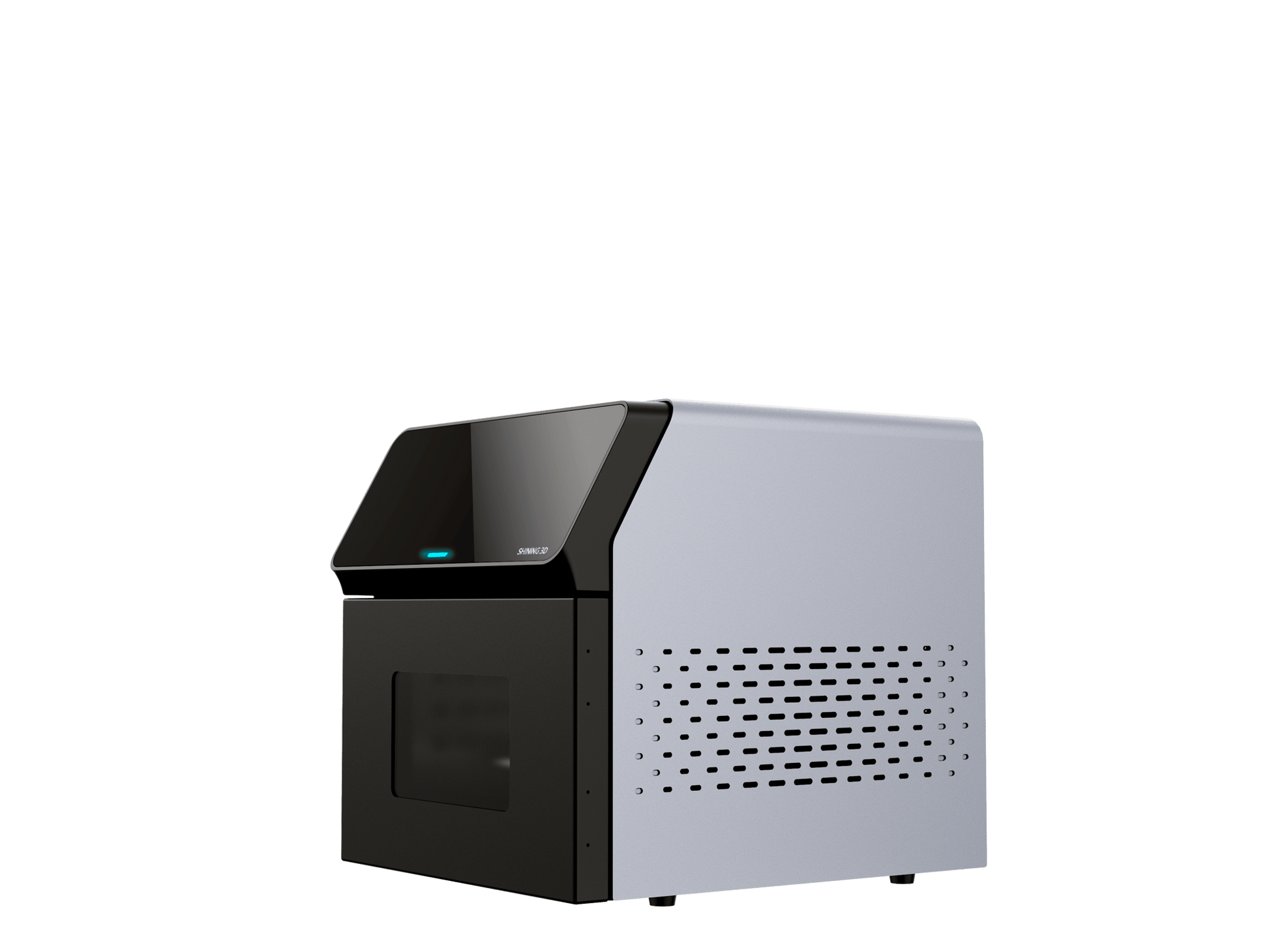

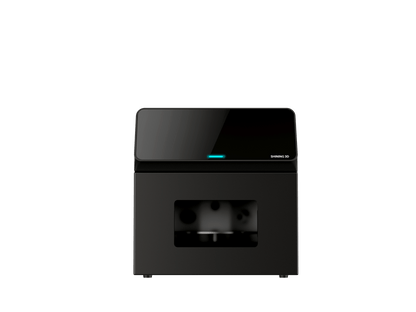

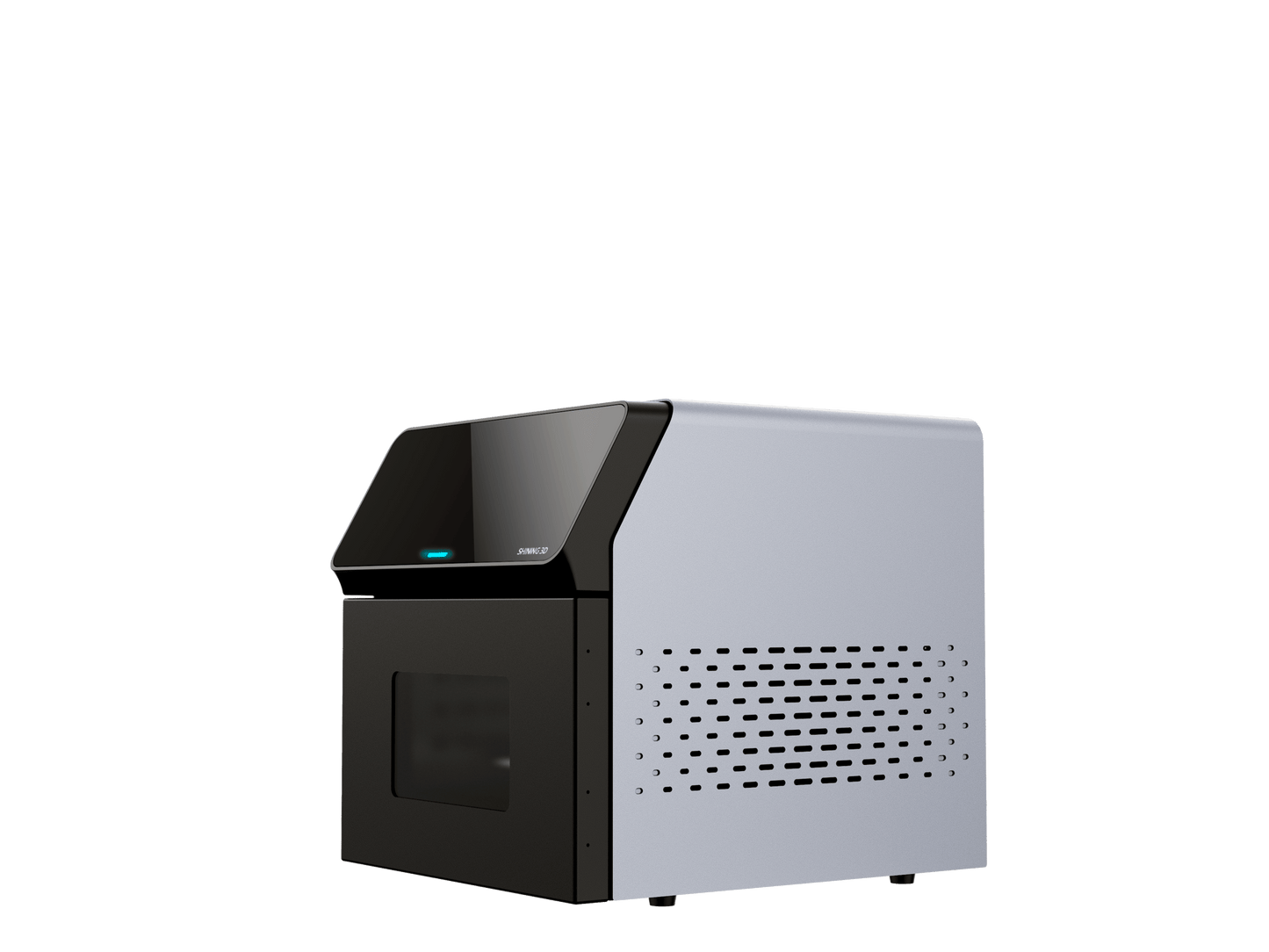

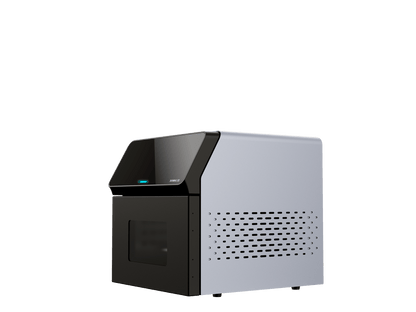

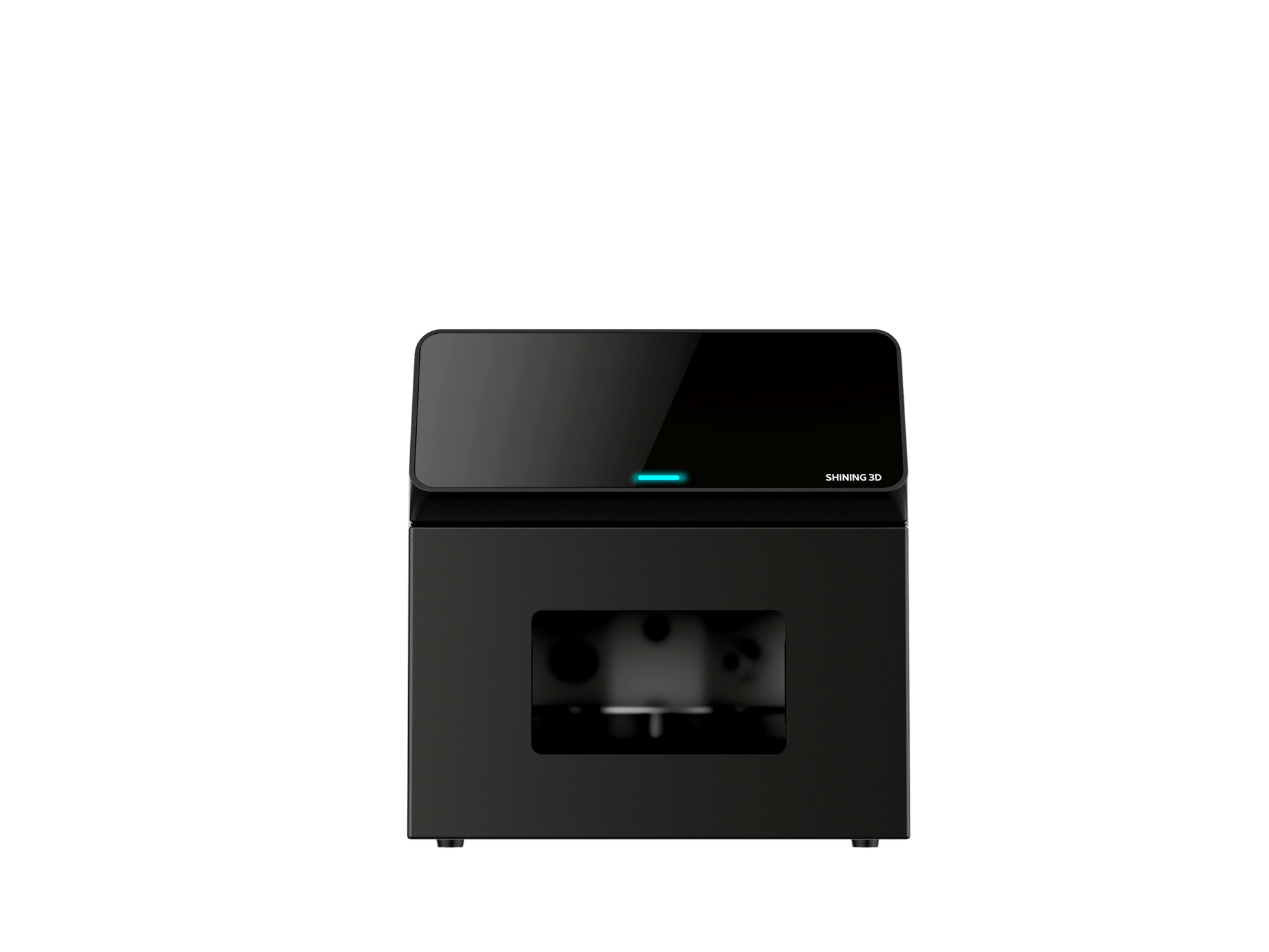

Shining 3D FabCure N2 Post-Curing Unit

Name: Shining 3D FabCure N2 Post-Curing Unit
Brand: Shining 3D
SKU: DC-SH00251
Price: 3499.00 USD
Availability: InStock

$3,499.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Questions?
Use 💬 Button Message Us
Call 844-292-8023
or Email info@dentcore.com

💲 0% Financing Available
Apply now.

Shining 3D FabCure N2 Post-Curing Unit

Nitrogen-assisted UV post-curing that gives dental 3D-printed parts smooth, tack-free surfaces and fully-cured mechanical properties.

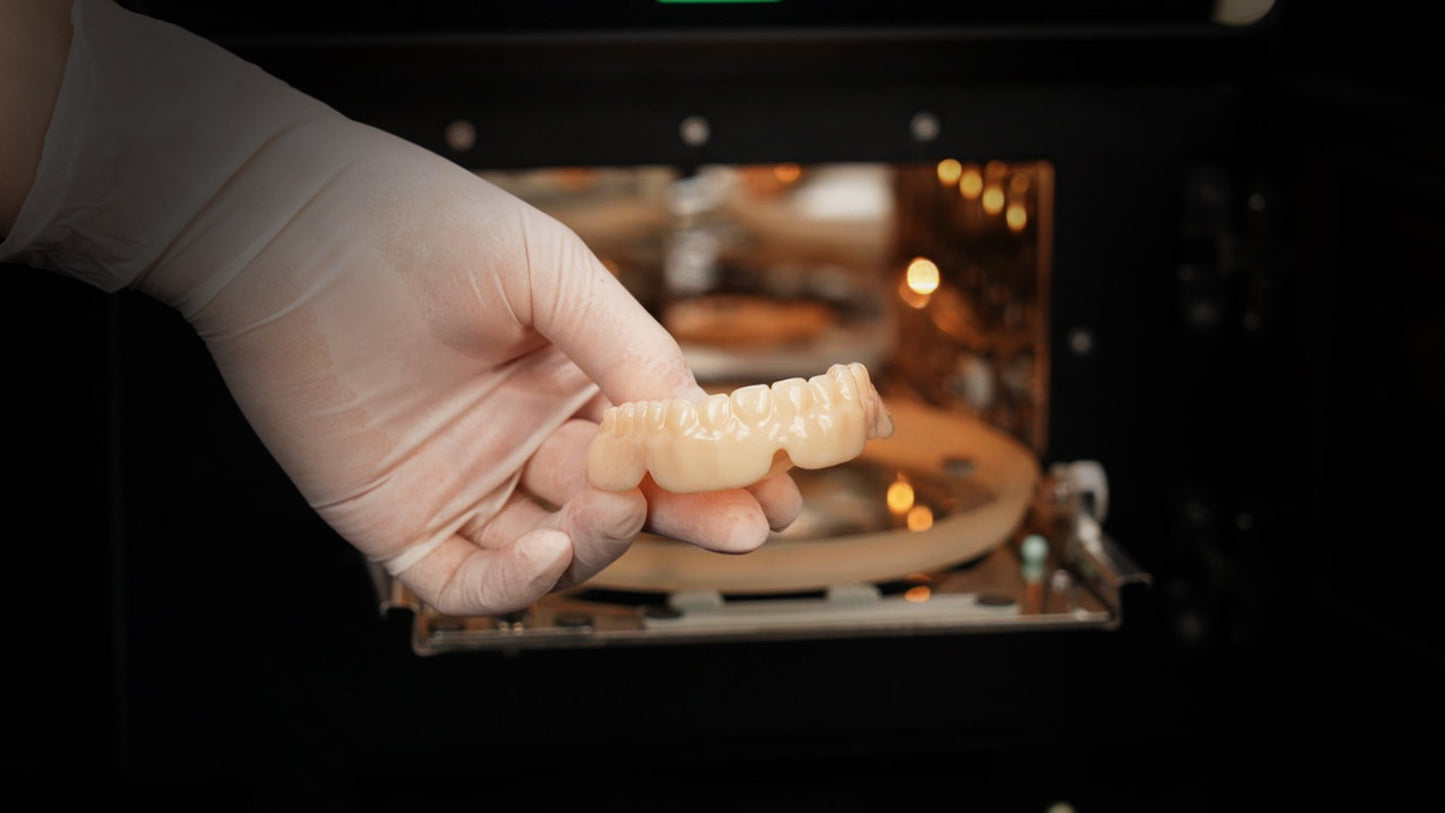

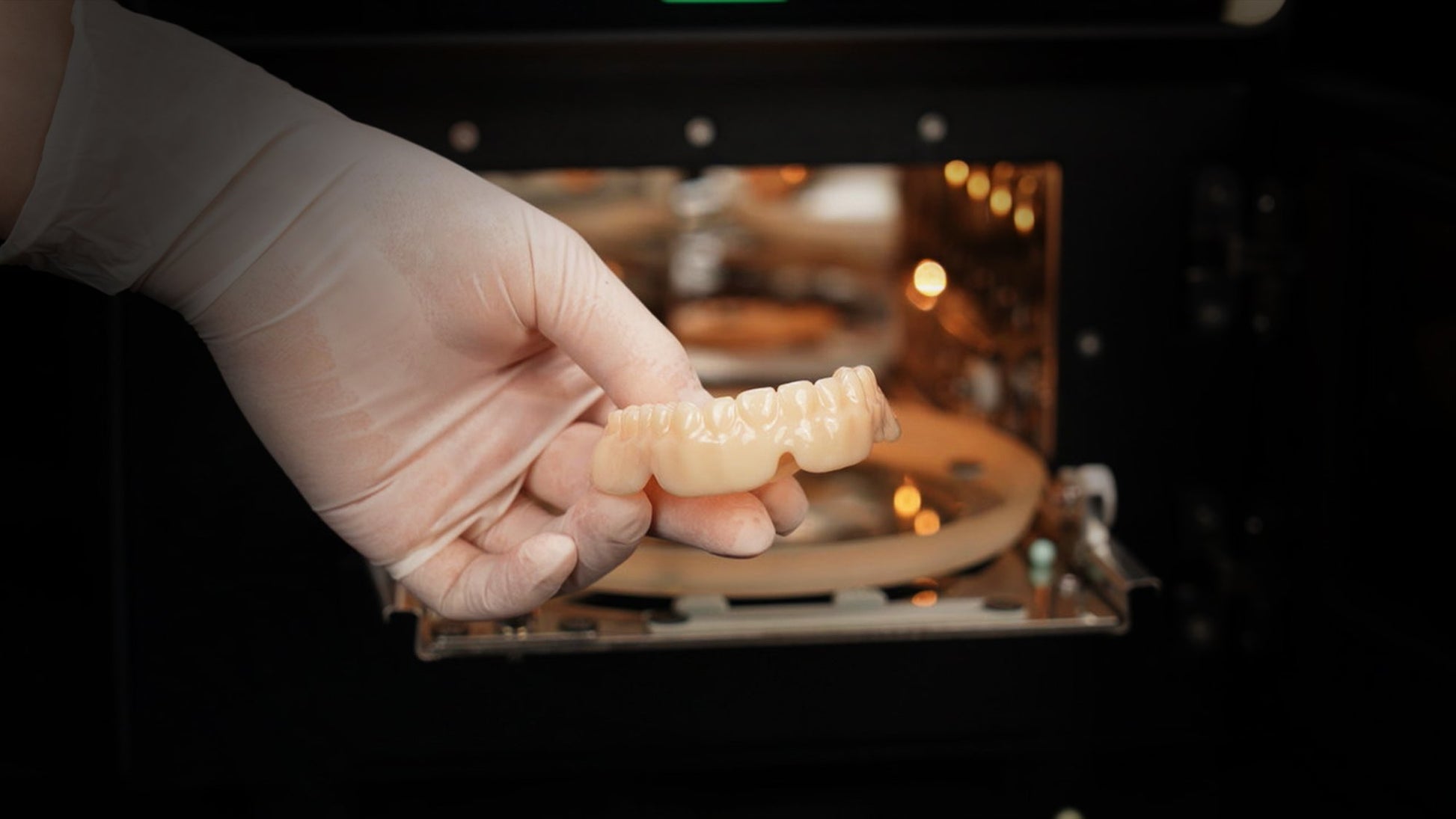

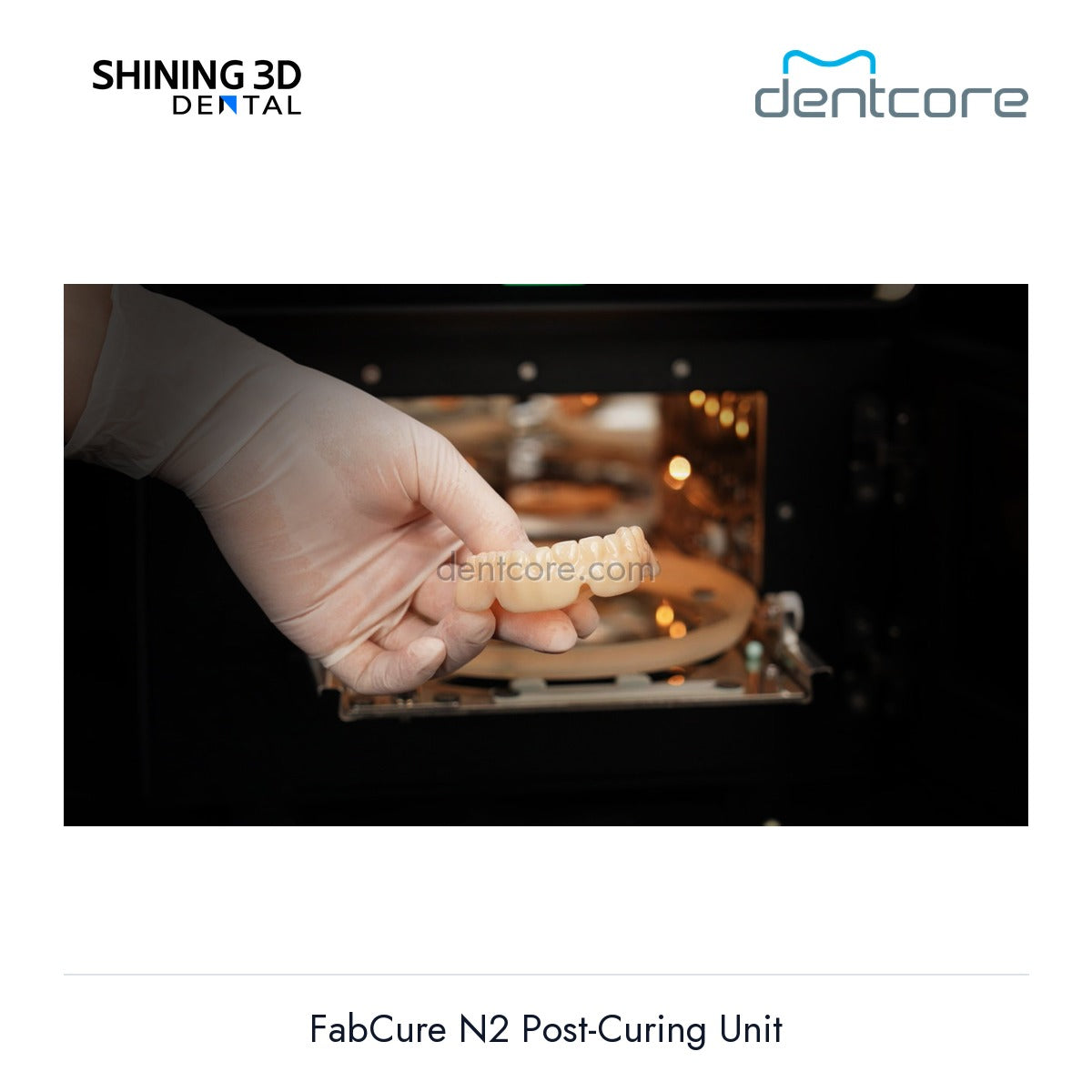

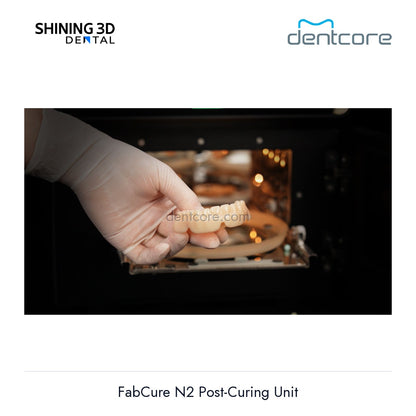

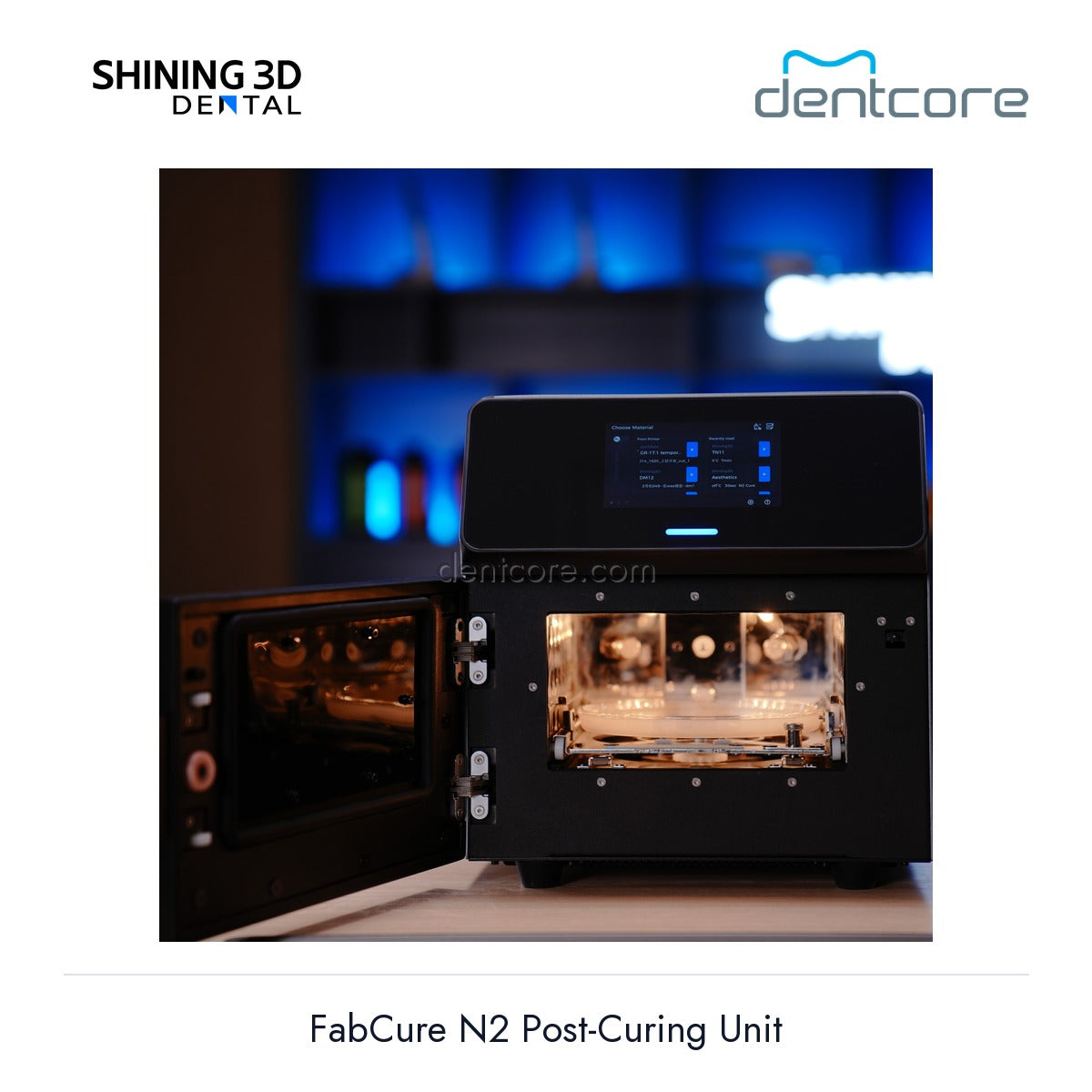

The FabCure N2 is a benchtop post-curing unit built for dental labs and practices that run resin 3D printing every day. It floods the curing chamber with nitrogen to push oxygen out during the cure, which is the single biggest cause of sticky, under-cured surfaces on printed appliances. Combined with 365 nm UV light, a heated chamber, and a rotating turntable for even exposure, it delivers the repeatable, thoroughly-cured results that clinical work demands — from clear aligners and nightguards to dentures, surgical guides, crowns, and bridges when paired with validated materials and settings.

See FabCure N2 Post-Curing Unit in action

Review the product workflow, form factor, and key operating details before choosing a configuration.

View manufacturer product information

Why the FabCure N2 stands out

Nitrogen-assisted curing — The chamber is filled with nitrogen to reduce oxygen exposure during the cure, eliminating the sticky, oxygen-inhibited surface layer for smoother, tack-free parts.
365 nm UV LED light source — A dedicated UV LED array tuned for dental photopolymer resins, delivering a curing light power of at least 50 mW/cm² for thorough, consistent curing.
Heated curing chamber — 200 W heating brings the chamber up to 60 °C, supporting the elevated-temperature cure many dental resins need to reach full mechanical strength.

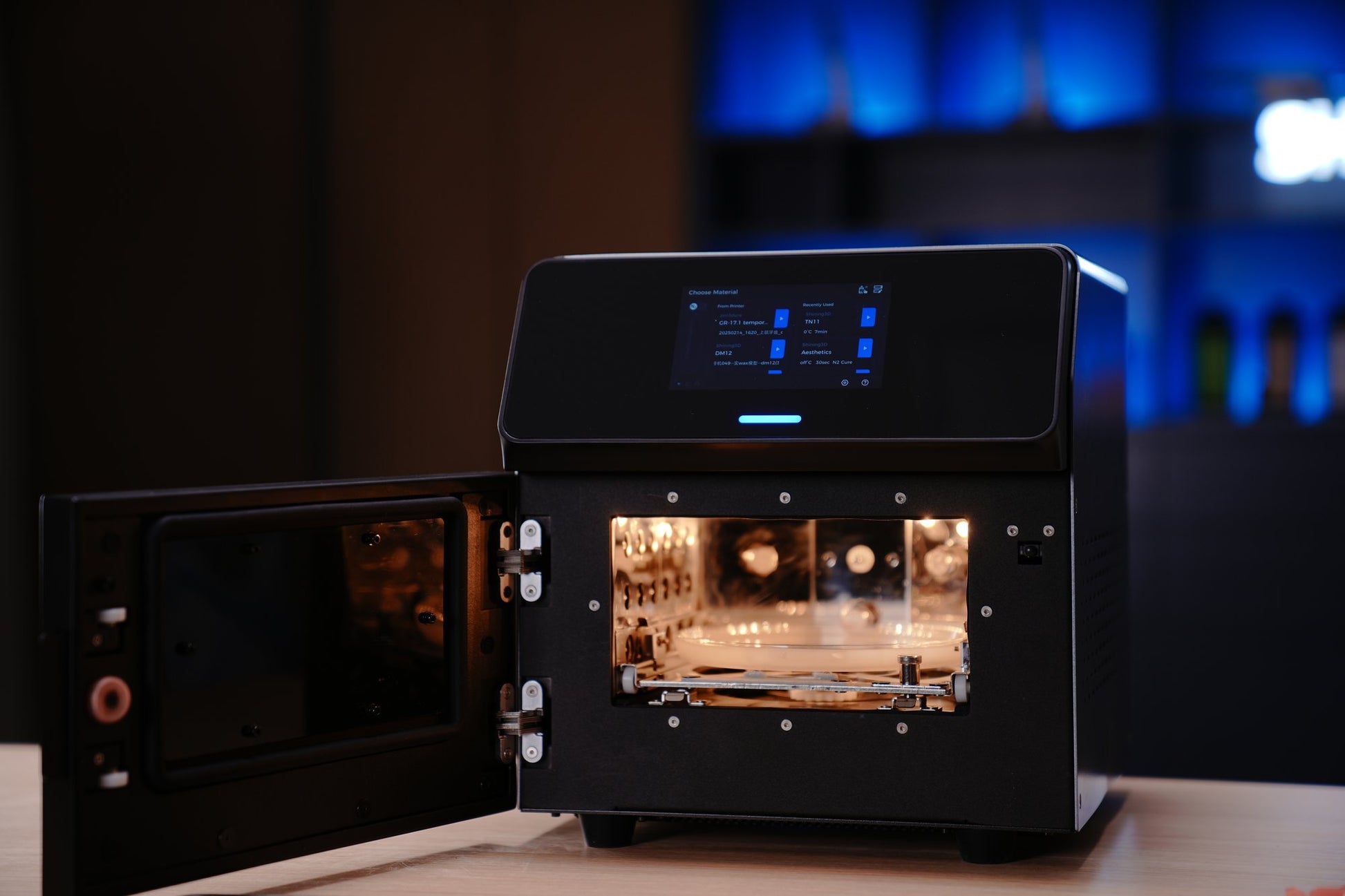

Rotating turntable — A 150 mm turntable rotates at 10 r/min so every face of the part receives even UV exposure, with no manual repositioning.

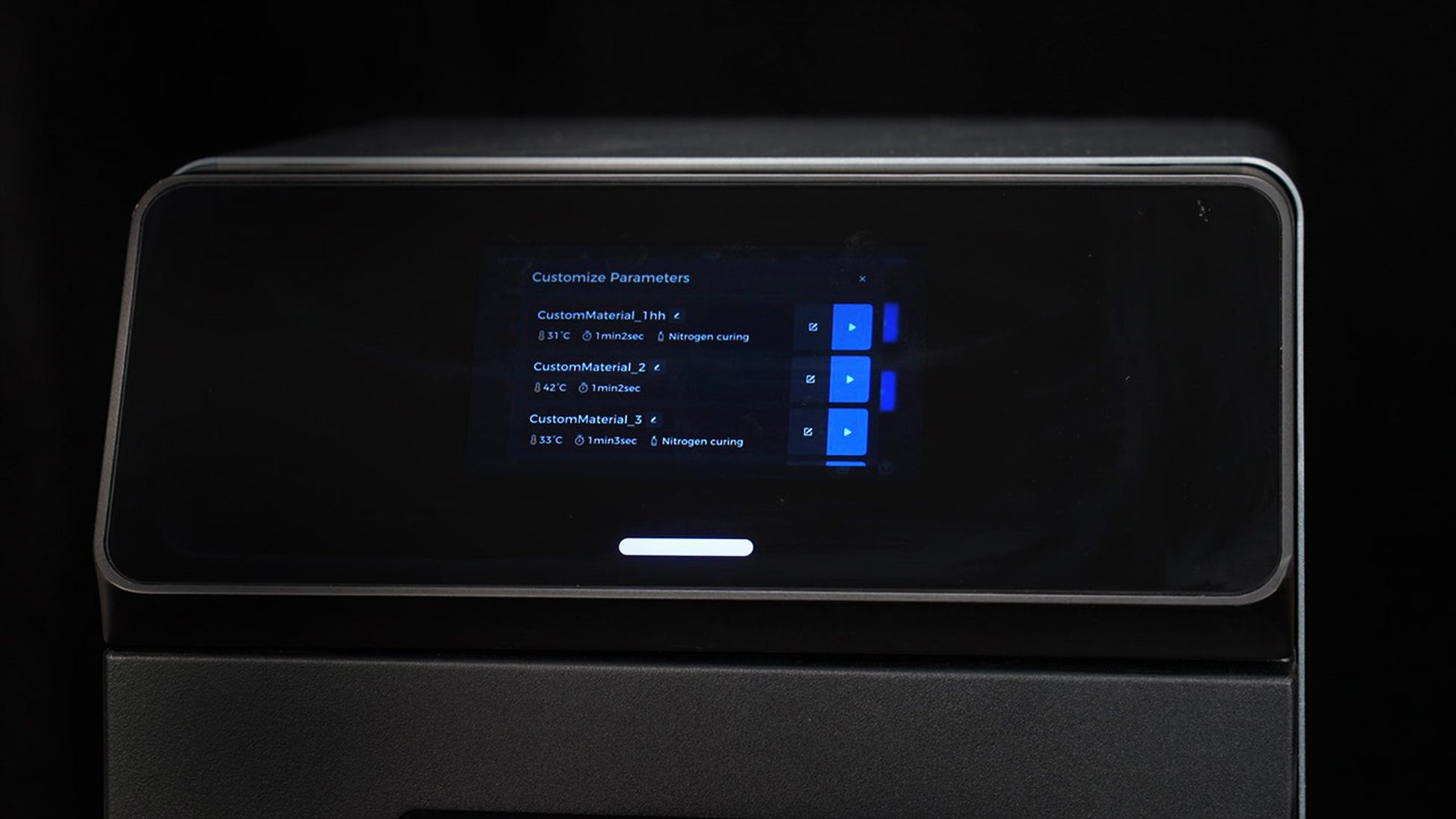

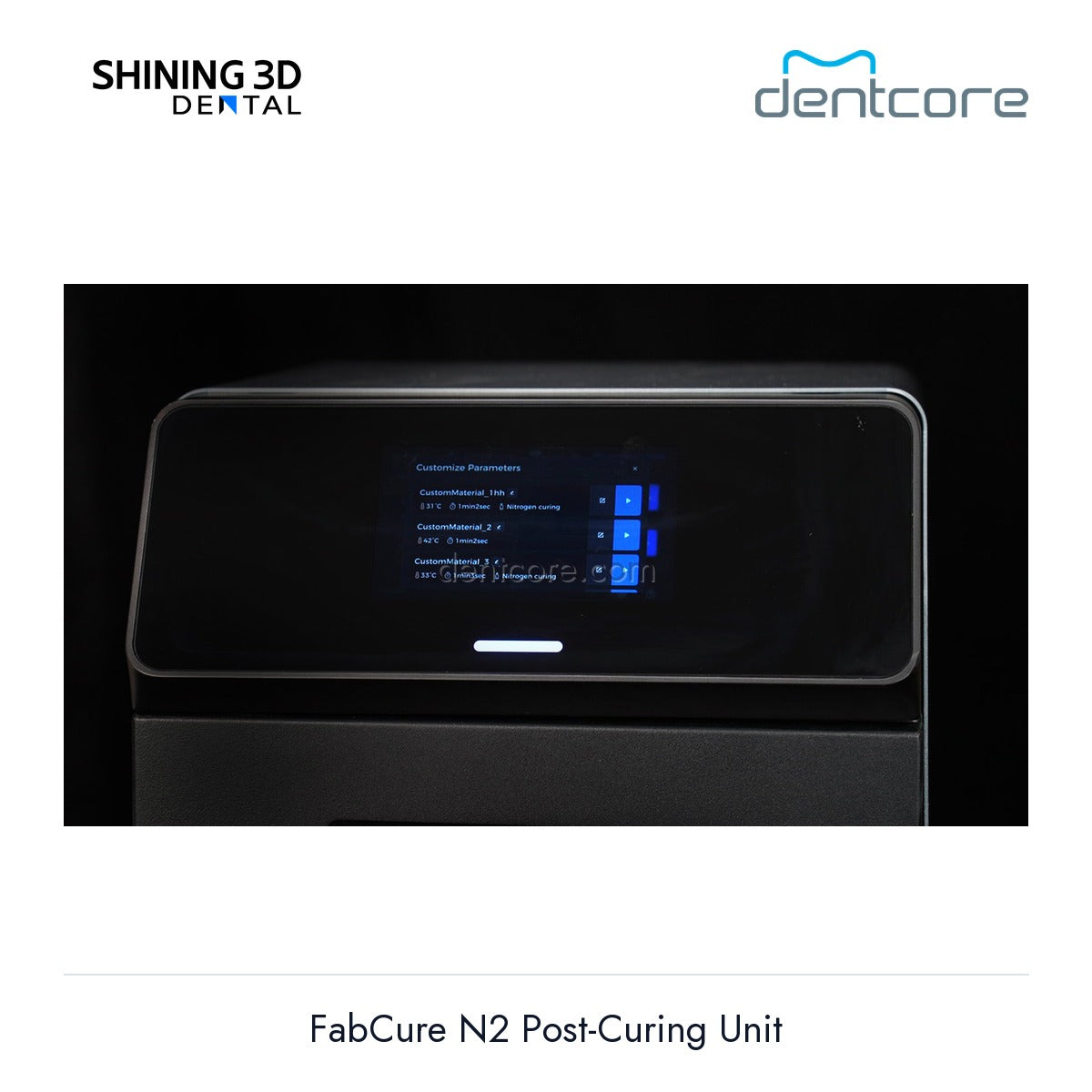

5-inch touch screen with clear feedback — An LCD touch screen drives the interface, backed by a buzzer for audio alerts and an RGB indicator light so cure status is obvious across the room.
Fast nitrogen fill — The chamber reaches its working atmosphere in about 30 seconds, keeping cycle times short in a busy production workflow.
Wi-Fi connectivity — Wireless file transfer keeps the unit integrated into a modern digital dental lab.
Generous curing capacity — Accommodates parts up to 150 mm diameter and 72 mm tall, enough for full-arch models and multi-unit builds.

Specifications

Product Type	Post-curing Unit
Light Source / Wavelength	365 nm UV LED
Curing Light Power	≥ 50 mW/cm²
Curing Materials	Photopolymer resin
Assisted Curing Mode	Heating / Nitrogen curing
Filling Gas	Nitrogen
Inlet Pressure	0.1 MPa – 0.4 MPa
Filling Time	30 s
Heating Temperature	60 °C
Heating Power	200 W
Turntable Diameter	φ150 mm
Turntable Speed	10 r/min
Maximum Curing Volume (D × H)	φ150 mm × 72 mm
Chamber Volume	200 × 187 × 98 mm
Display	5-inch LCD, touch screen
Alerts / Indicators	Buzzer + RGB indicator light
File Transfer	Wi-Fi
Power Requirements	AC 100–240 V; 9 A; 50/60 Hz
Operating Temperature	18 – 32 °C
Operating Humidity	30% – 70% RH (no condensation or freezing)
Storage / Transport Temperature	-20 °C – 60 °C
Storage / Transport Humidity	30% – 93% RH (no condensation or freezing)
Product Dimensions	346 × 307 × 308 mm
Packing Dimensions	460 × 420 × 450 mm
Net Weight	15.5 kg
Packaging Weight	20 kg
