Shining 3D AccuFab-L4D Dental 3D Printer

A 4K desktop resin printer built specifically for the everyday demands of a dental lab.

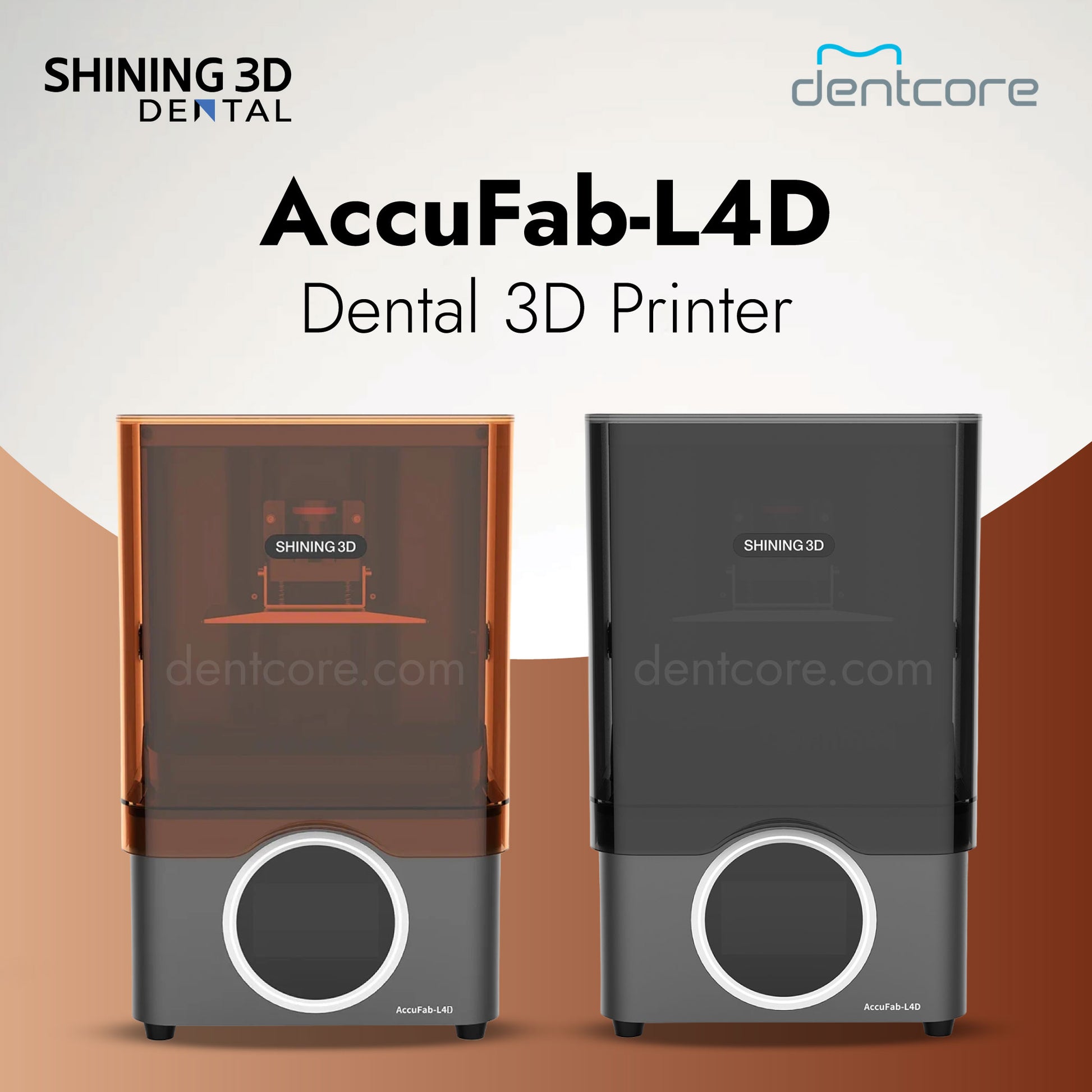

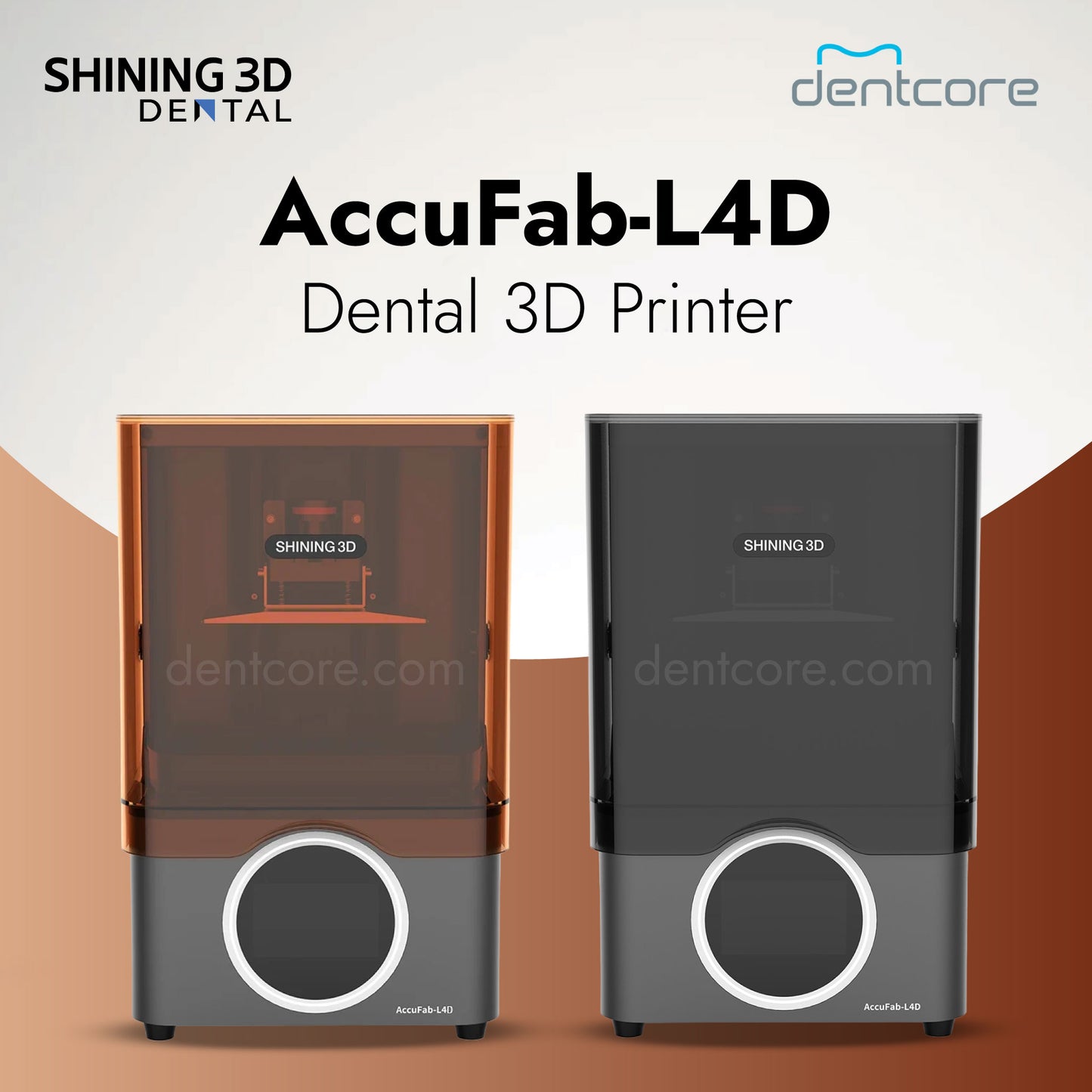

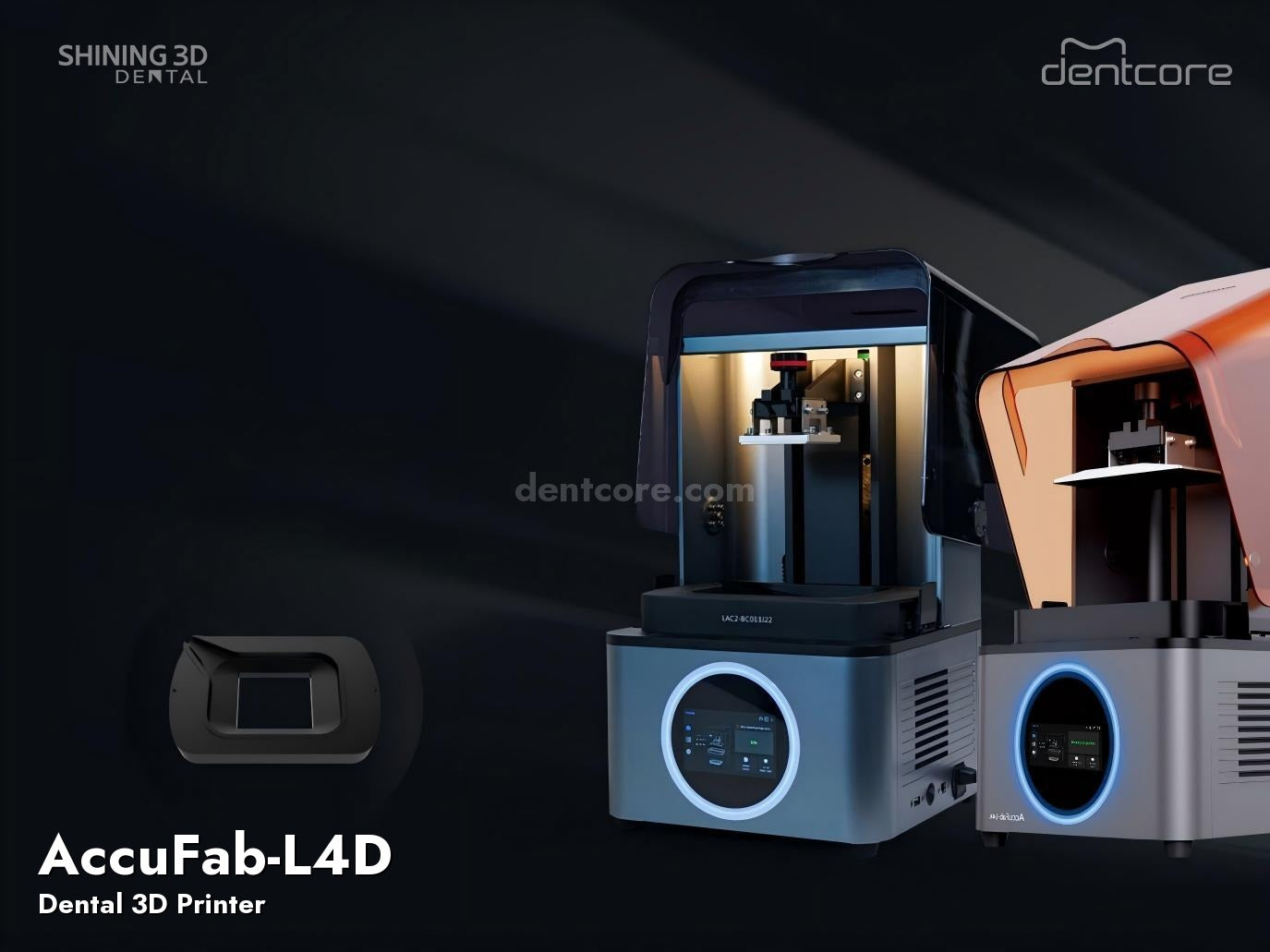

The AccuFab-L4D is Shining 3D's entry-level 4K LCD dental printer, delivering high-resolution prints from a compact, robust machine that fits on any bench. With a 3840 x 2400 pixel screen and a generous 192 x 120 x 180 mm build area, it is designed for labs and practices that need dependable, high-precision output across restorative, implant, and orthodontic work. Load your STL, add your resin, and let the printer handle the rest. Because it uses an open STL workflow and Shining 3D's own certified resin library, the L4D slots easily into the way your lab already works.

Why the AccuFab-L4D stands out

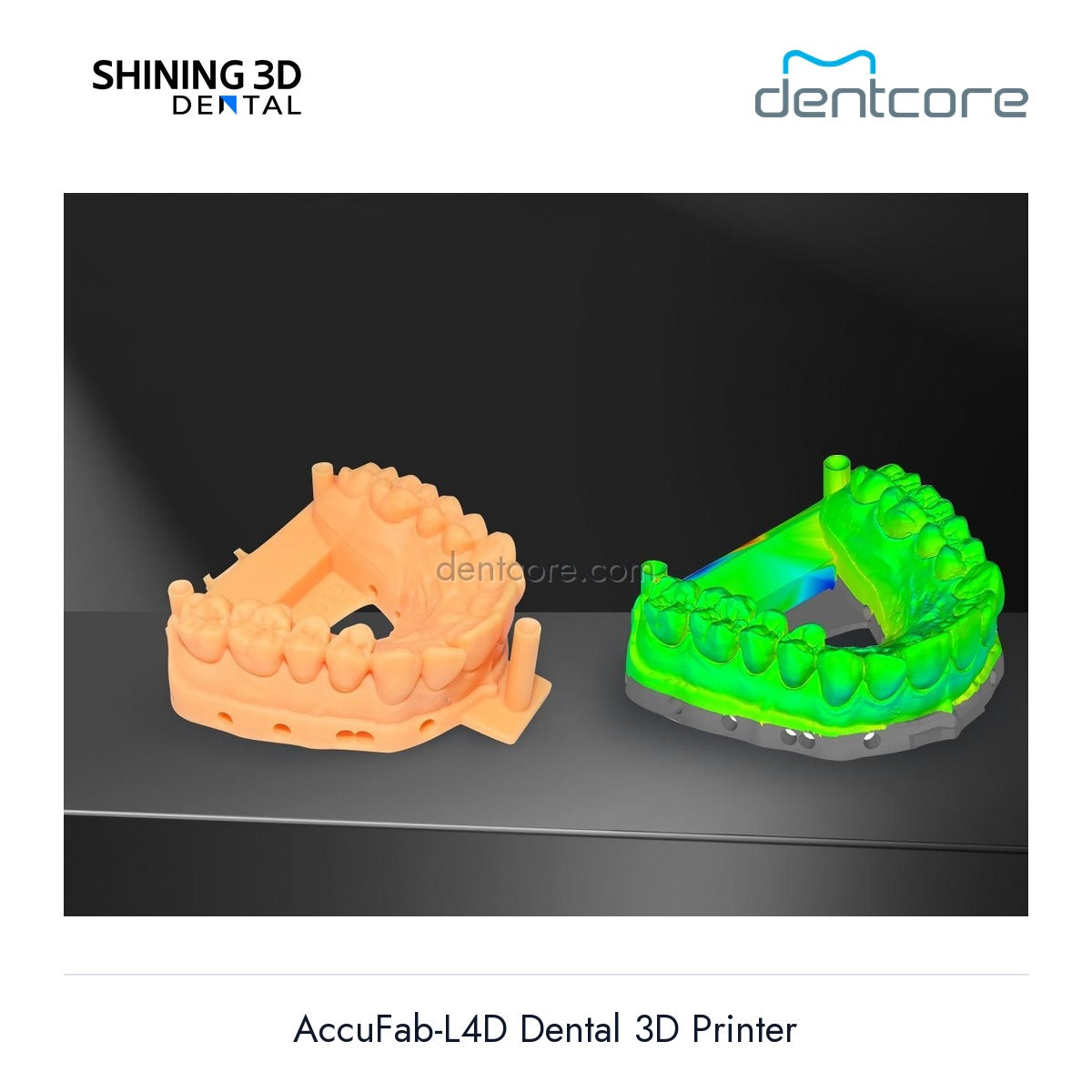

True 4K resolution — a 3840 x 2400 pixel LCD with a 0.05 mm (50 micron) pixel size renders crisp margin lines, fine surface texture, and accurate detail across the whole build plate.
High optical uniformity — up to 90% optical uniformity with adaptive light-power adjustment, so parts cure evenly from the center of the plate to the edges.

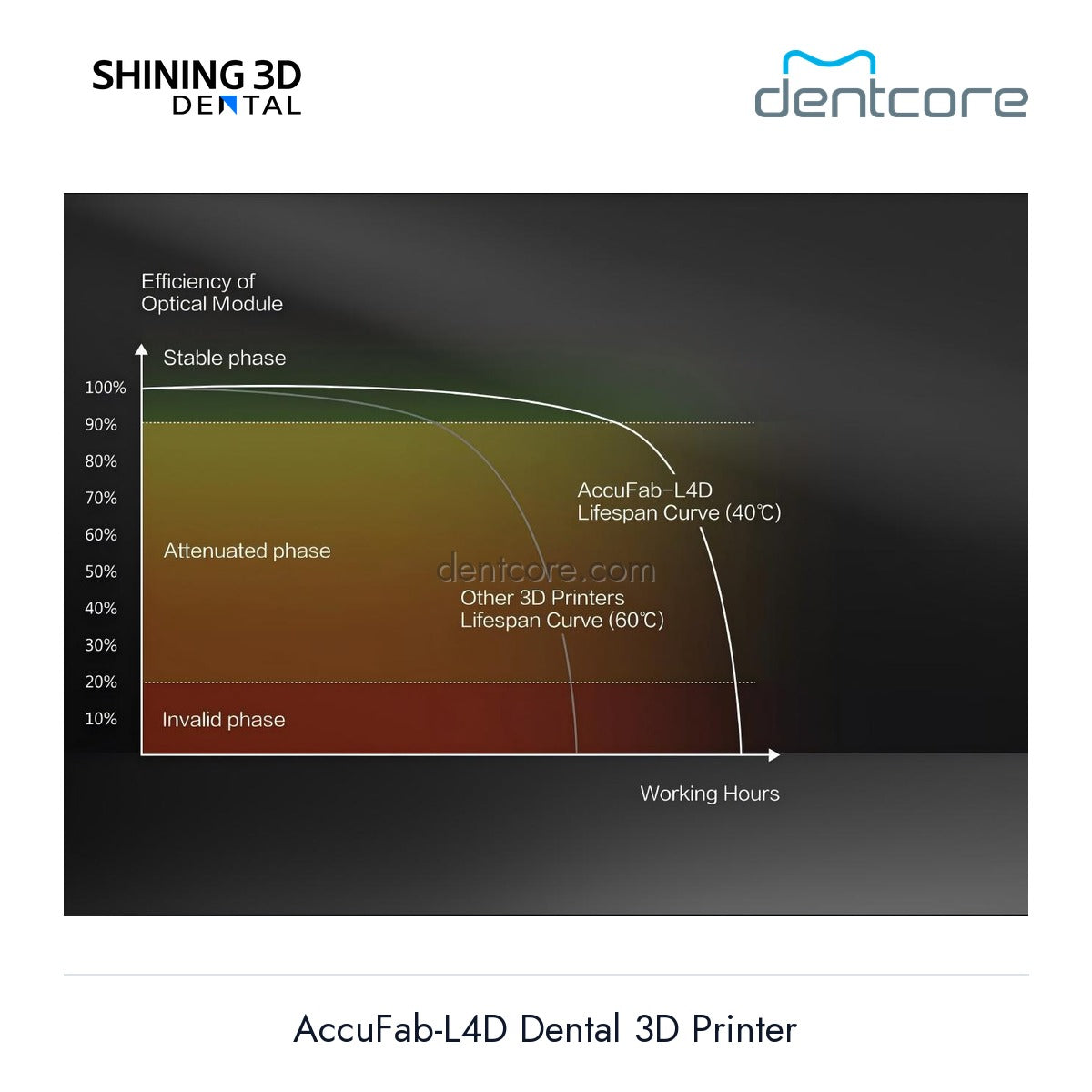

Powerful, long-life light engine — a high-power full-array 405 nm UV-LED light source raises optical efficiency, and the optical components are rated for a long working life of up to 10,000 hours (about 30,000 cycles).

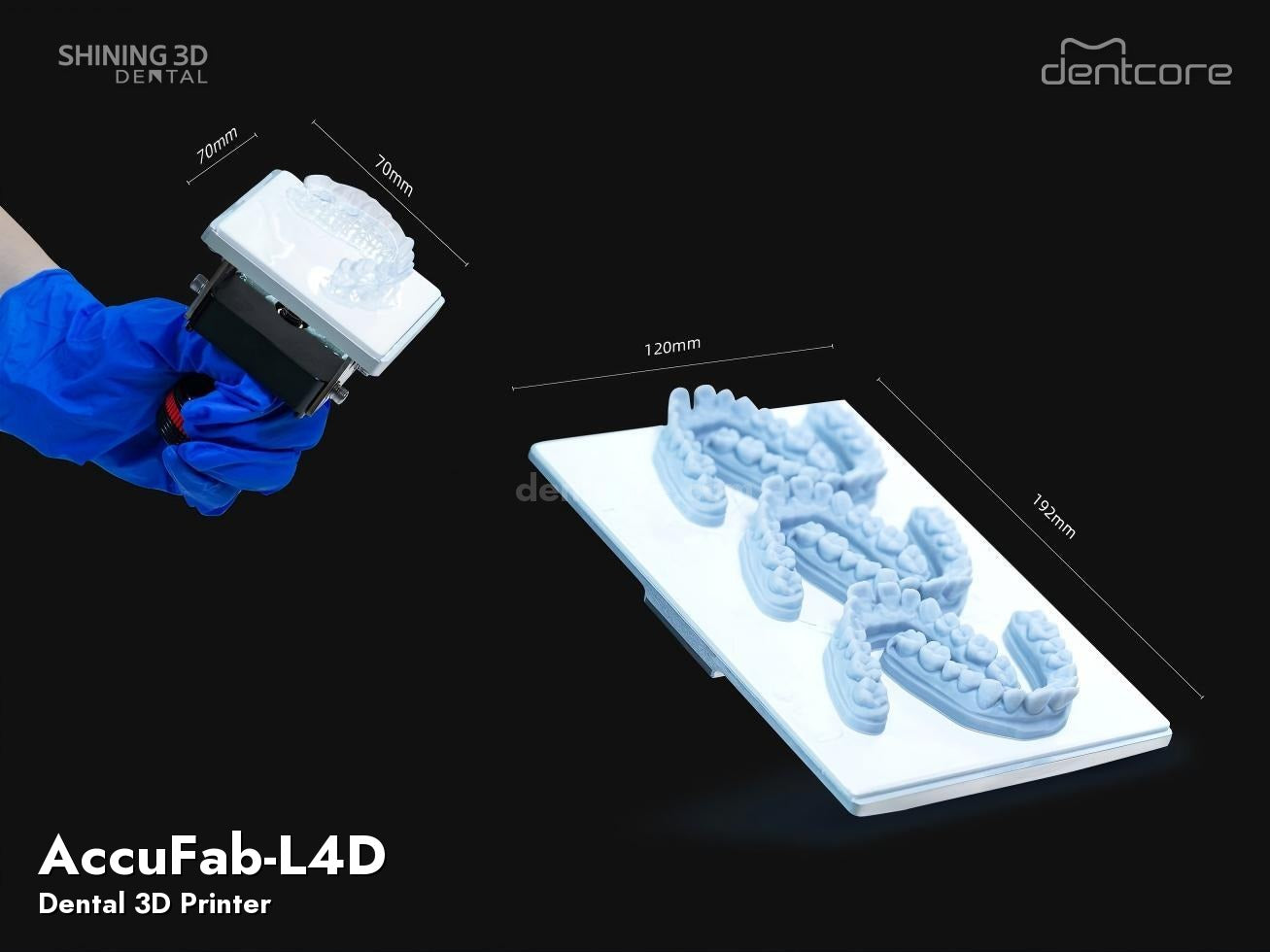

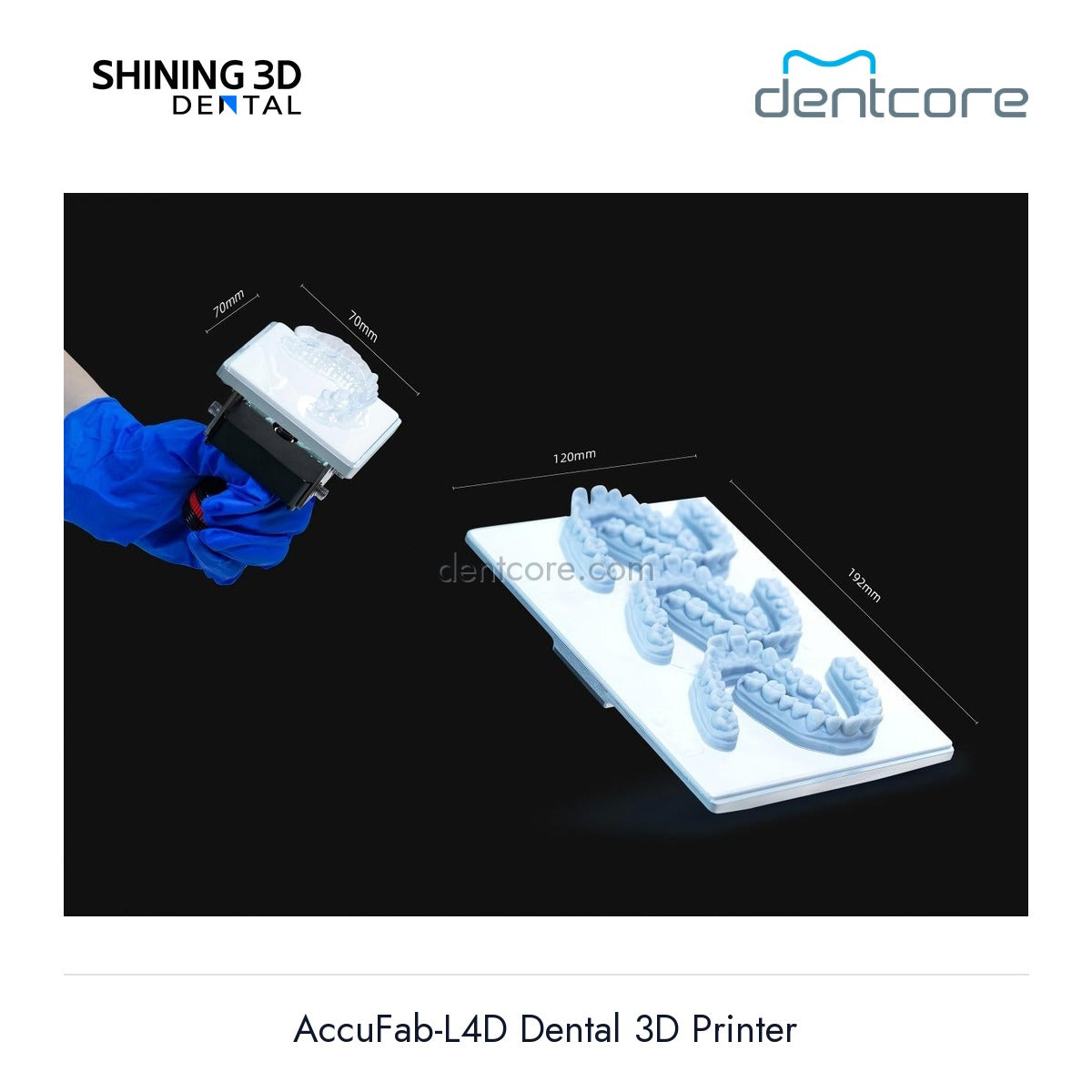

Large build volume — a 192 x 120 x 180 mm build area lets you nest full print jobs of models, guides, and appliances in a single run for better throughput.
Certified dental materials — supports Shining 3D's range of medical-device-certified resins covering working and orthodontic models, crown-and-bridge, surgical guides, gingiva masks, castables, custom trays, and more.
Guided, simple operation — a touchscreen interface walks you through activation, setup, and sample printing, so operators can be productive quickly.
Flexible file transfer — send jobs over the local network, import from a USB flash drive, or push files from the cloud, and keep track of every job in the on-screen queue.
Cloud monitoring — bind the printer to DentalCloud to monitor queue status, print progress, and chamber temperature and humidity in real time.

Specifications

Parameter	Specification
Optical Engine	Black-and-white LCD screen
Resolution	3840 x 2400 pixels (4K)
Pixel Size	0.05 mm
Light Source	405 nm UV-LED
Light Intensity	3 mW/cm²
Build Volume	192 x 120 x 180 mm (X, Y, Z)
Layer Thickness	0.025 / 0.05 / 0.075 / 0.1 mm (25 / 50 / 75 / 100 microns)
Print Speed	10 – 50 mm/h
Print Accuracy	± 0.05 mm (50 microns)
Data Format	STL
Interface	USB / Ethernet / Wi-Fi
Machine Dimensions	360 x 360 x 530 mm (X, Y, Z)
Net Weight	19 kg
Packing Dimensions	480 x 480 x 660 mm (X, Y, Z)
Packing Weight	25 kg
Power Supply	100 – 240 V AC, 50 – 60 Hz, 360 W
Operating Temperature	20°C – 35°C
Operating Humidity	30% – 70%
Certification	FCC / CE / RoHS

In the box

Each AccuFab-L4D ships with the main printer, an accessory box, two resin tanks, a power adaptor, and a power cord. The accessory box includes a flash drive (with the AccuWare installer, printer profile, activation file, User Manual, Quick Start Guide, and factory test reports), an angular knife and putty knife for removing models, a brush, a scraper, a cleaning box, a cleaning cloth, and a PET leveling card.

Certified resin range

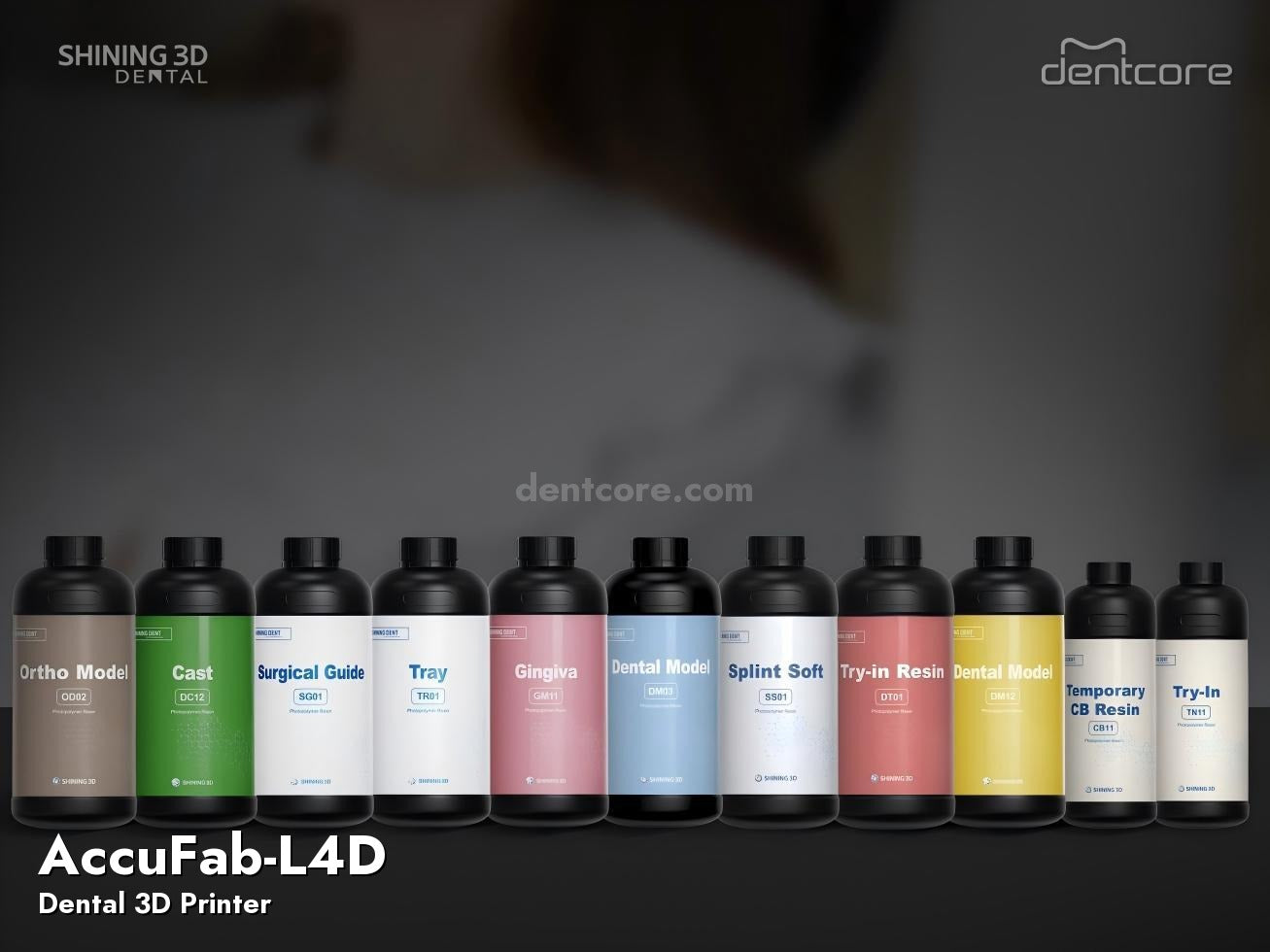

The L4D runs Shining 3D's independently developed, certified photopolymer resins, giving you one machine for many applications: DM05 implant model, DM12 dental model, DM15 aesthetic model, GM11 gingiva mask, SG01 transparent surgical guide, DC12 castable, OD01 and OD02 orthodontic model, and TR01 custom tray materials. If your resin type is not listed on-screen, the printer supports an "Others" profile so you can keep printing.

Official Shining 3D documentation

The manufacturer’s official guide — full specifications, setup, and safe operation.

⬇Download User Manual (PDF)
