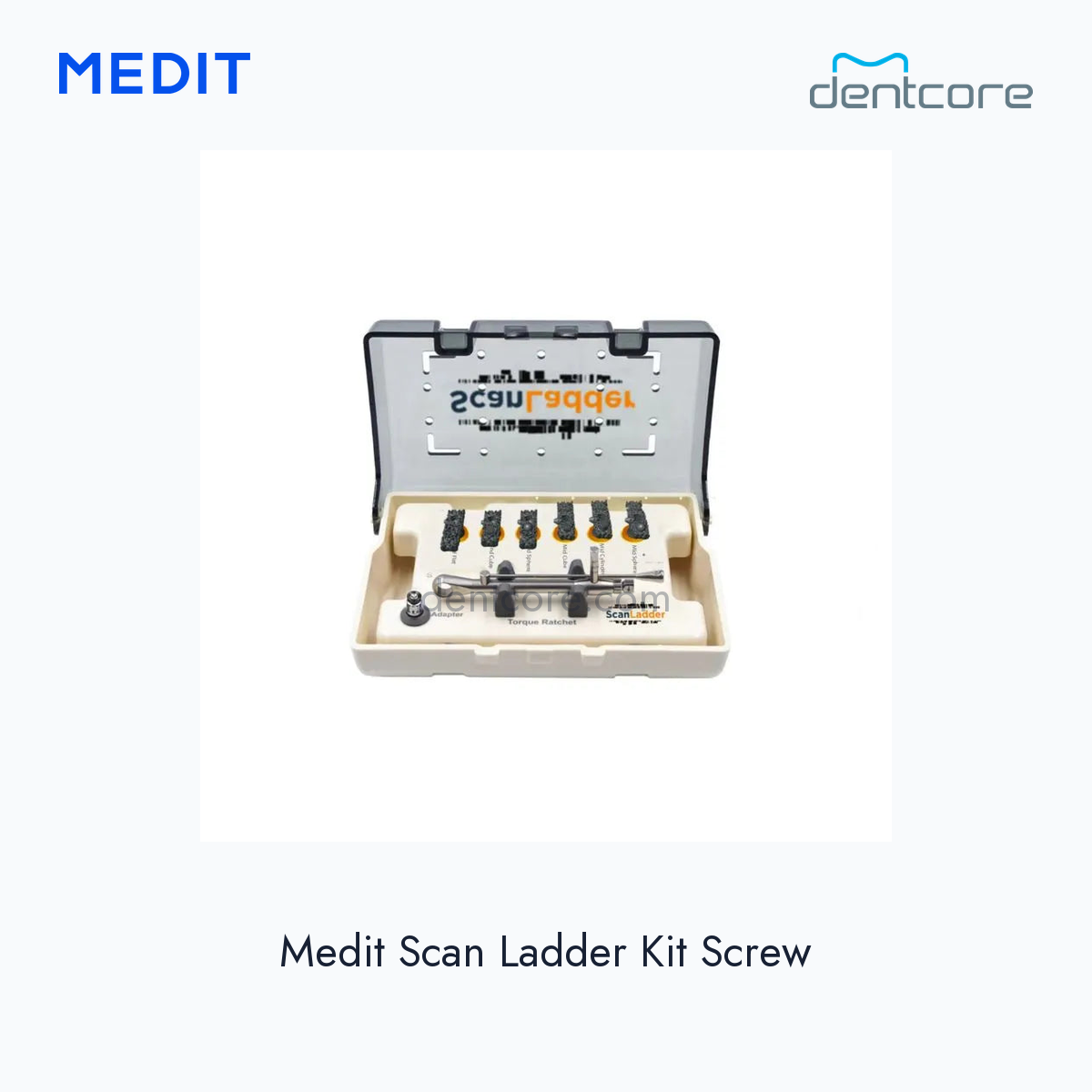

Medit Scan Ladder Kit Screw

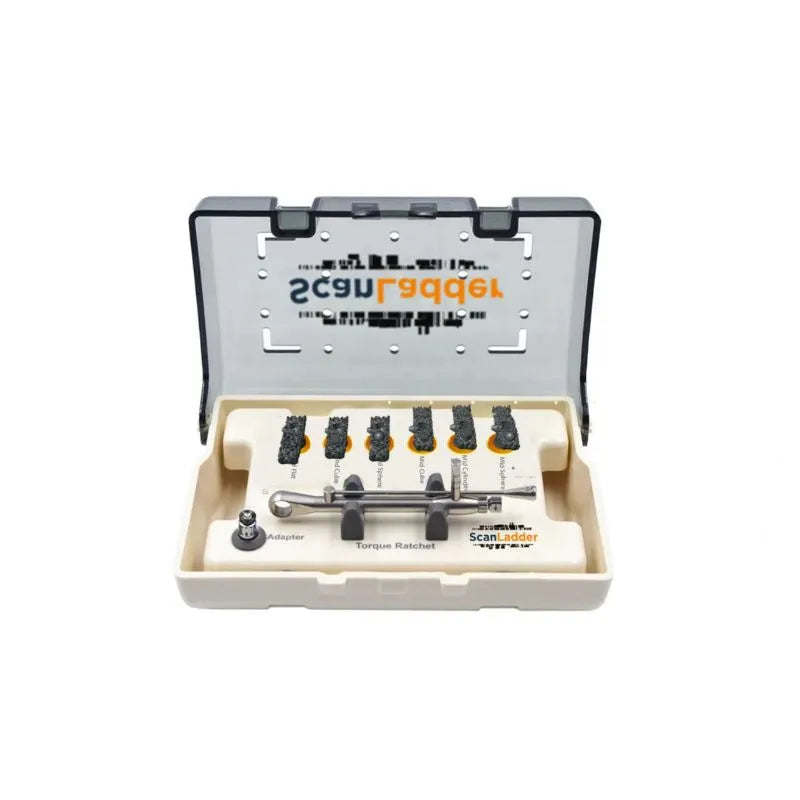

Scan Ladder Titanium Kit Screw

Precision titanium scan body system by Scan Ladder for full-arch implant scanning. Each scan body has a unique individual shape, preventing false recognition and positional slippage that occurs with identical scan bodies.

Key Advantage

Near-photogrammetry-level accuracy for full-arch implant cases (All-on-4, All-on-6 and beyond) using an intraoral scanner instead of a photogrammetry device.

• Material: Medical-grade titanium, matt finish for scanning accuracy
• Kit: 6 individual titanium scan bodies + 6 Rosen screws (expandable to 8)
• Screw options: 1.4mm, 1.6mm, 1.72mm (Rosen, Powerball, Vortex compatible)
• Lifespan: 5 years or 100 autoclave cycles
• Compatibility: Medit i900, i700, Primescan, 3Shape, iTero, and other major scanners
• 100% compatible with Medit SmartX workflow
• Includes CAD library for design software

Authorized Dealer

Need help choosing the right configuration?

Our team knows this equipment inside and out — we’ll help you find the right fit for your workflow.
