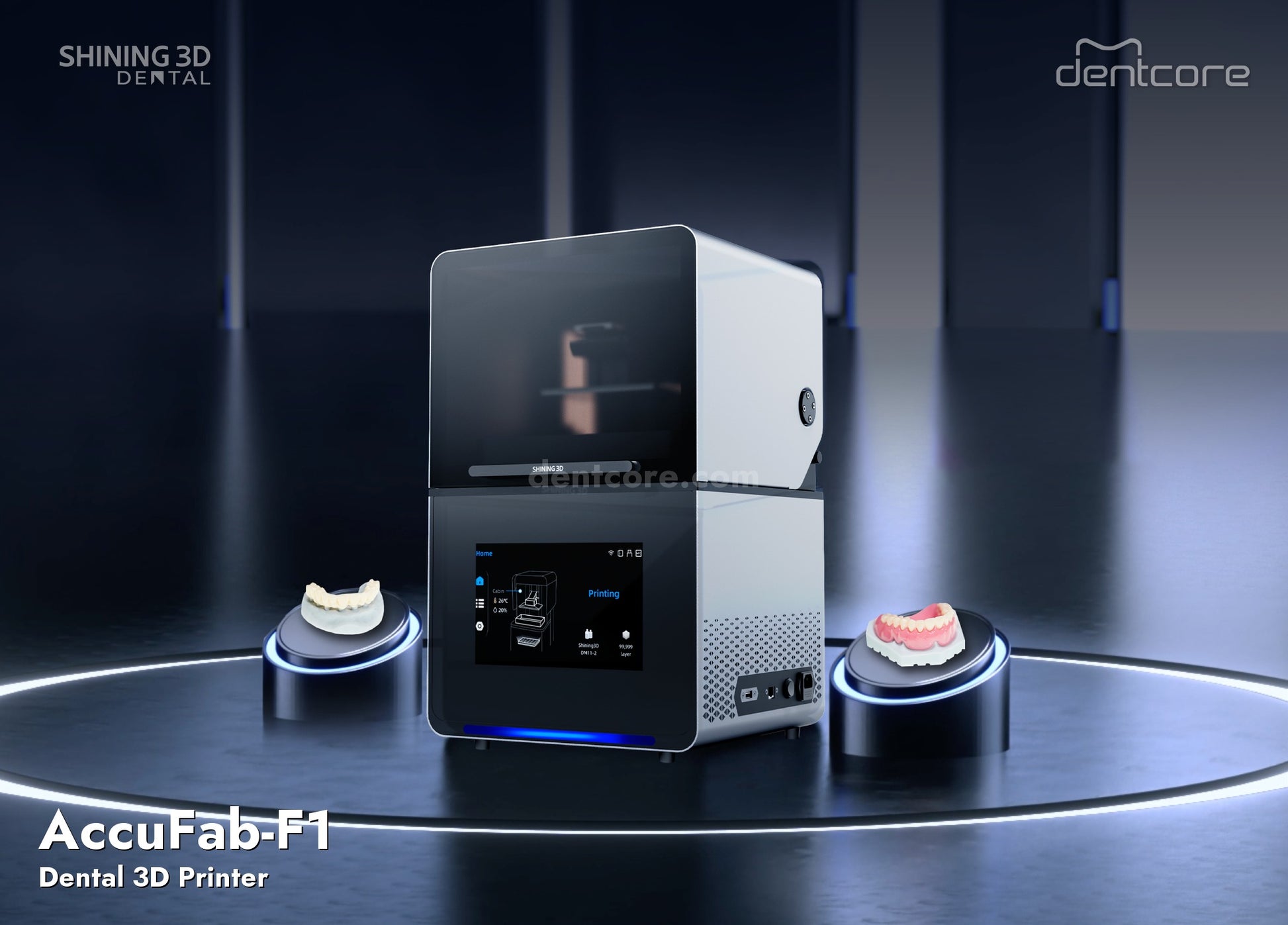

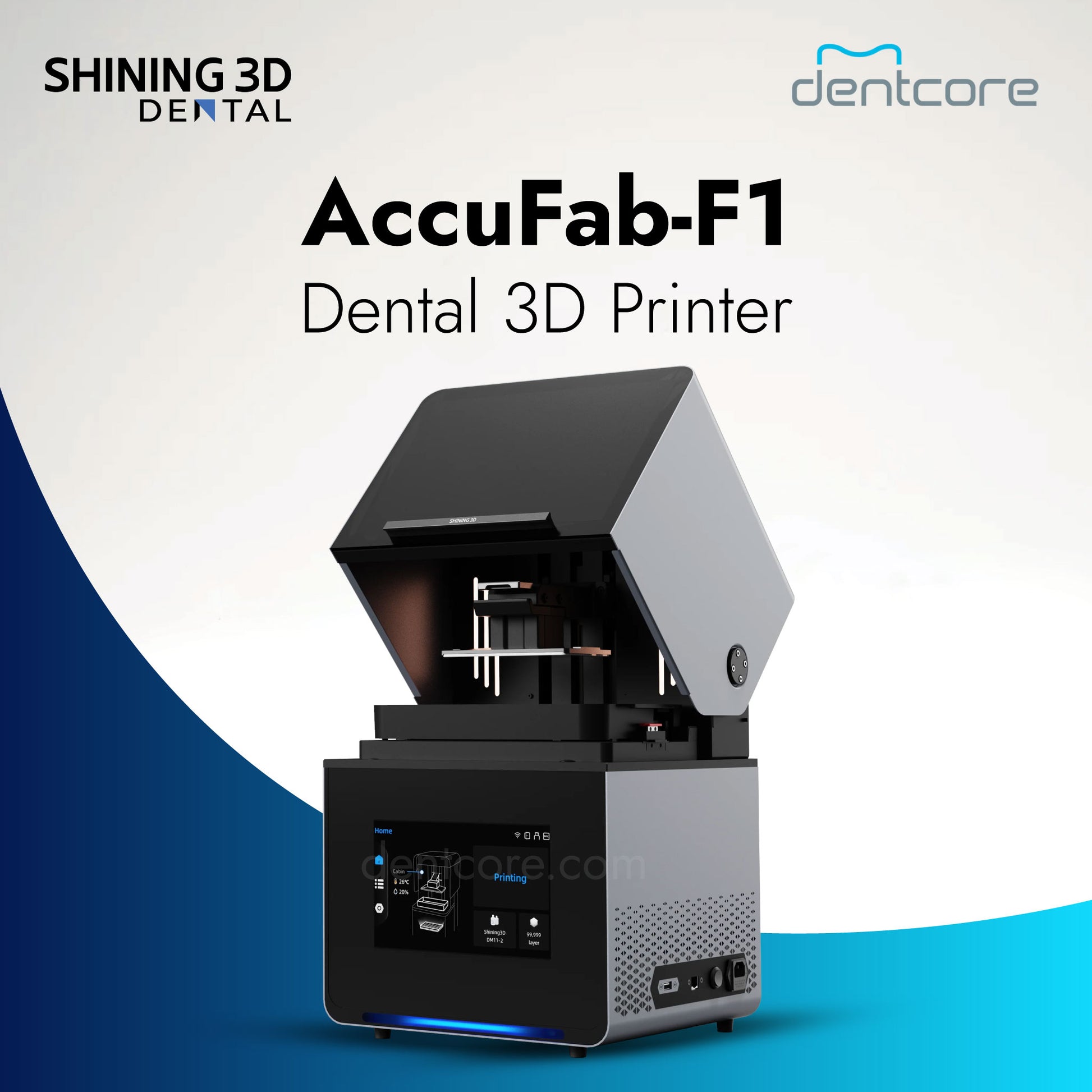

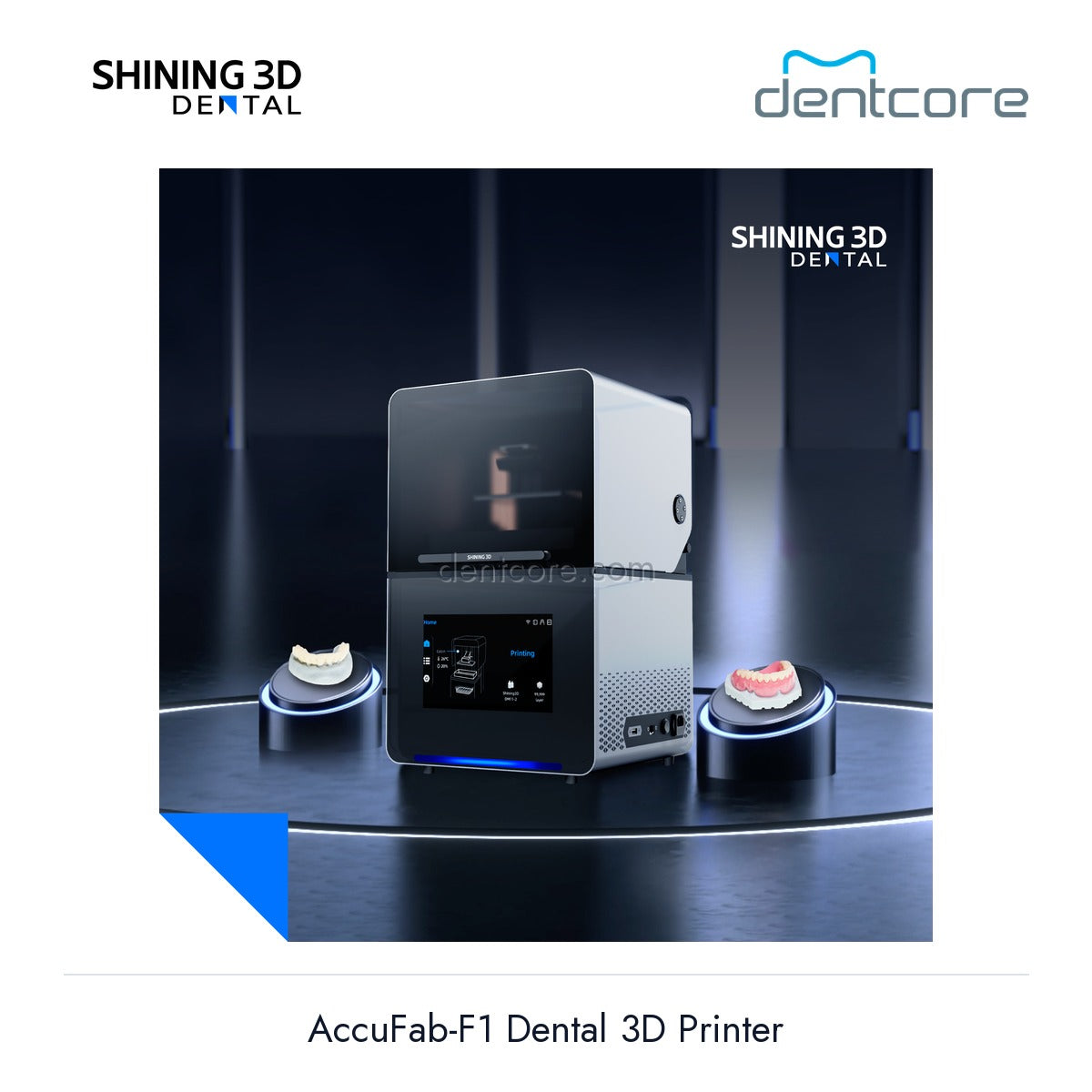

Shining 3D AccuFab-F1 Dental 3D Printer
A high-precision, high-speed LCD printer built specifically for dental clinics and labs.

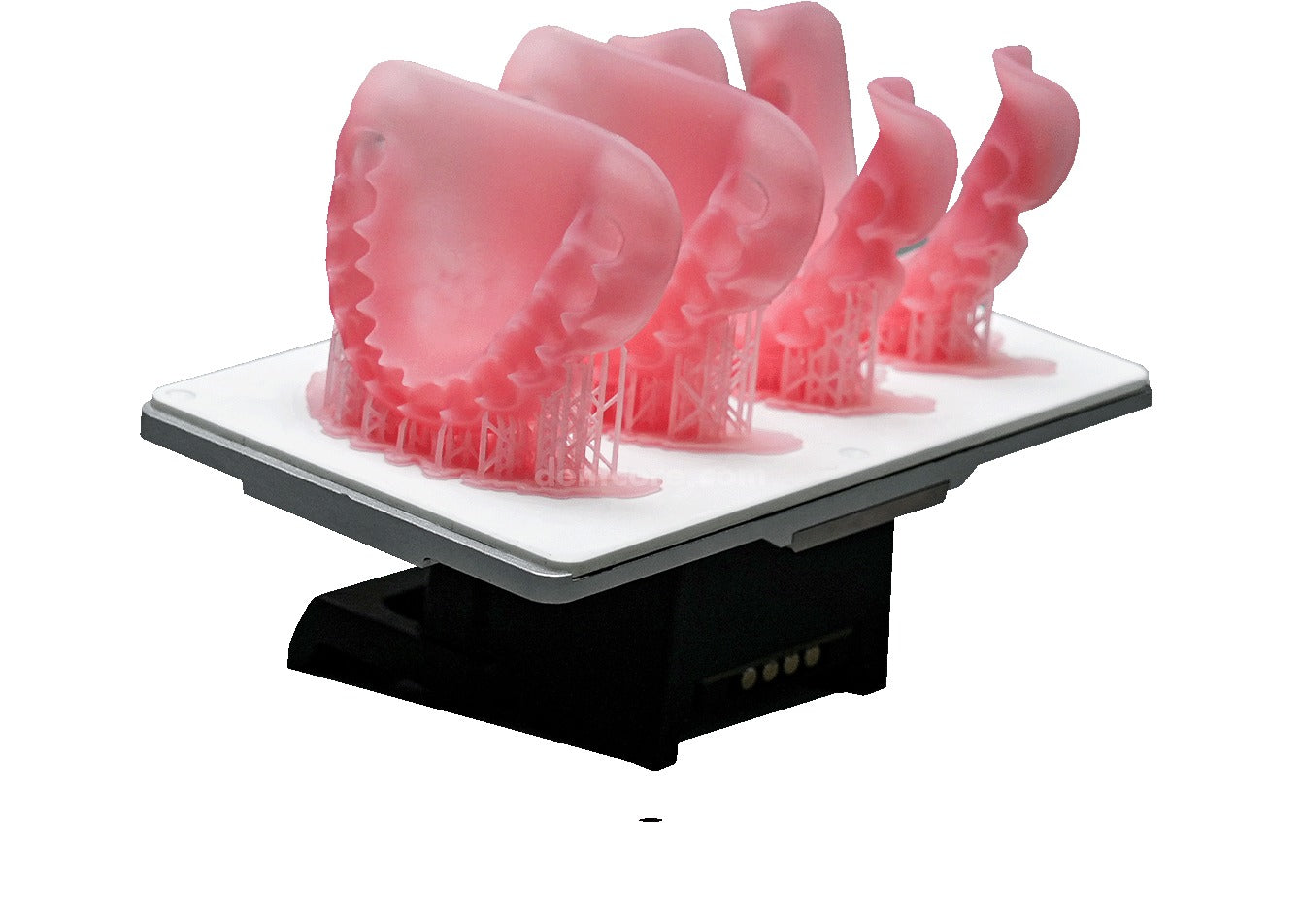

The AccuFab-F1 is a light-curing dental appliance manufacturing device designed to solve the everyday pain points of in-house dental production. It pairs a 405 nm UV-LED light engine with a black-and-white LCD screen and ±0.025 mm (25-micron) print accuracy, so restorations, guides, and models come off the platform with clean detail and a reliable fit. Its defining trick is dual heating — the build platform and the resin tank are both temperature-controlled — which keeps resin flowing at the right viscosity for consistent first layers and smooth surface detail. It is a genuine workhorse for surgical guides, temporary and permanent crowns, denture bases, occlusal splints, retainers, and study models.
Why the AccuFab-F1 stands out
-
25-micron print accuracy — a ±0.025 mm print accuracy figure keeps margins crisp and appliances fitting predictably, case after case.
-
Dual heating (platform + resin tank) — platform heating improves part adhesion while resin-tank heating raises fluidity, protecting precision and surface detail. In idle, both stay held at a constant 30 °C so the machine is ready to print.
-
High-power exposure technology — an ultra-high-power light engine drives fast print speeds of 20–100 mm/h without sacrificing detail.
-

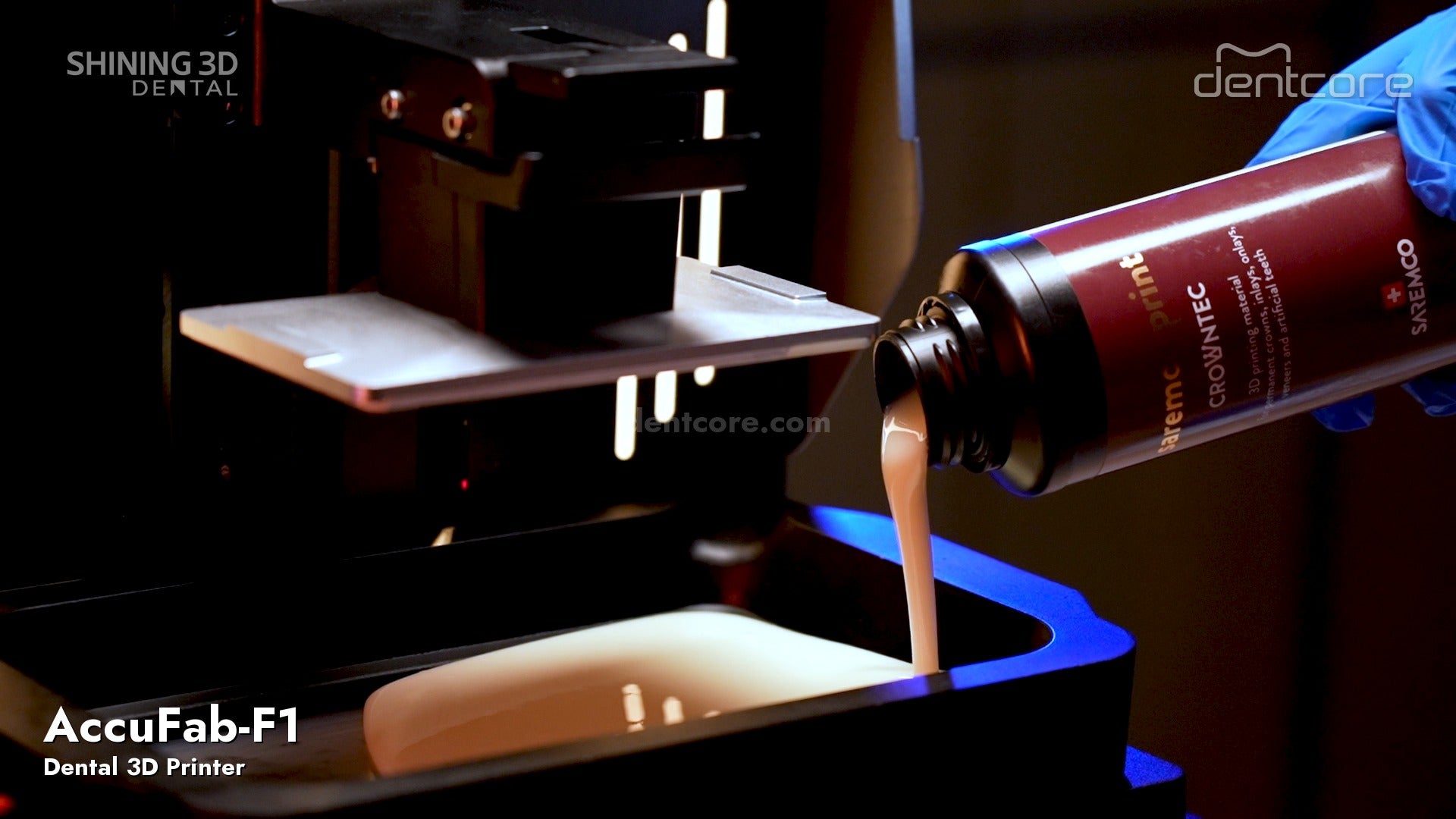

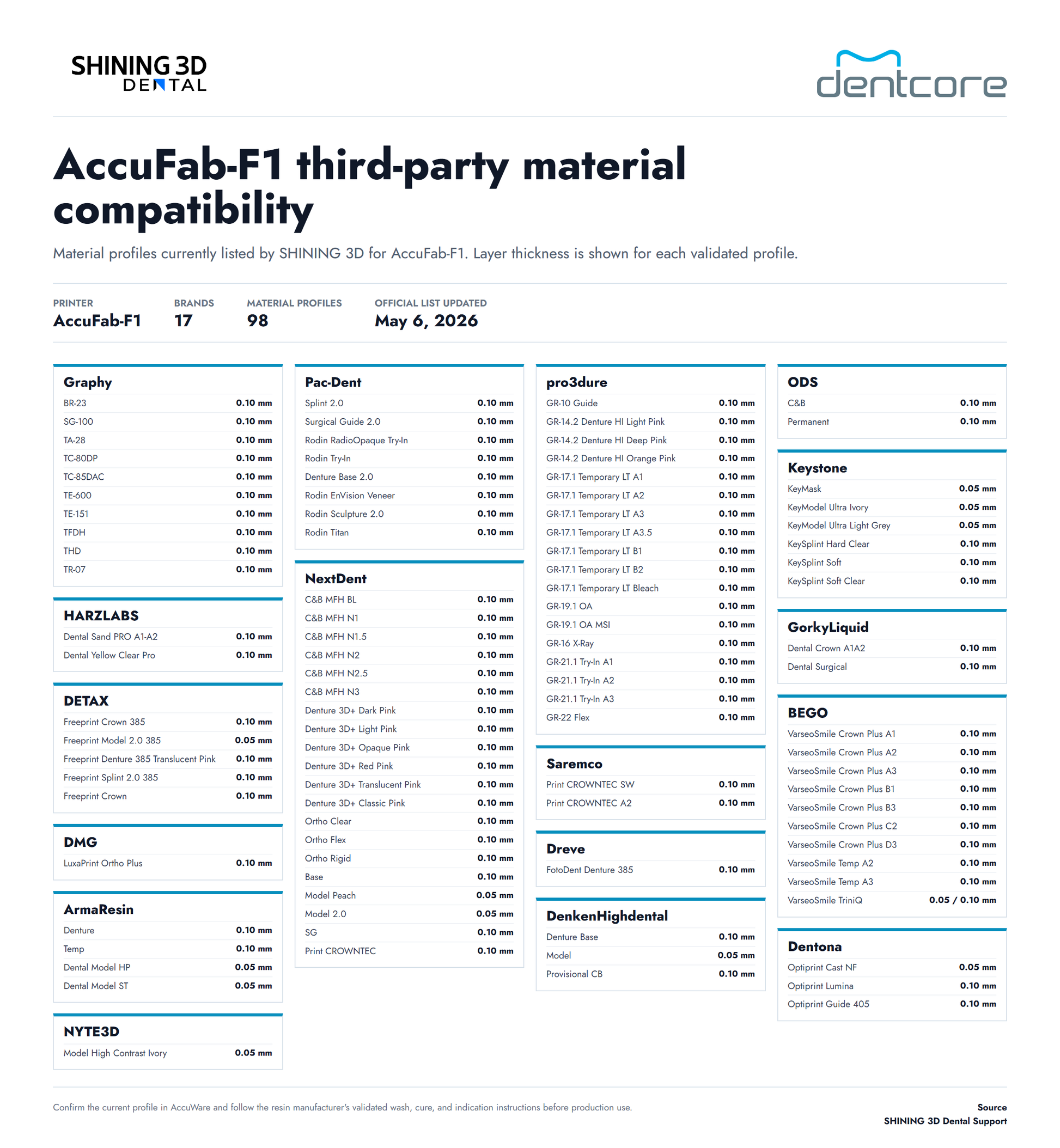

Multi-material compatibility — supports a wide range of Shining 3D resins, including ceramic resin for crowns and bridges and transparent resin for guides.
-
HyperClear resin tank — improves light transmittance through the tank, reducing the post-processing needed on finished parts.
-
Residue detection — real-time monitoring watches for leftover material in the resin tank and reminds you to clean it, heading off failed prints before they start.
-
Resin tank detection — automatically confirms the tank is correctly seated for safe, reliable printing.
-
Connected workflow — sends jobs over Wi-Fi, Ethernet, or USB, binds to the Shining 3D Dental Cloud for real-time monitoring, and auto-connects to FabCure and FabWash for streamlined post-processing.
Specifications
| Parameter |
Specification |
| Print Accuracy |
±0.025 mm (25 microns) |
| Optical Engine |
Black-and-white LCD screen |
| Resolution |
1920 × 1080 pixels |
| Pixel Size |
0.075 mm |
| Light Source |
405 nm UV-LED |
| Light Intensity |
4 – 12 mW/cm² |
| Print Volume |
144 × 81 × 75 mm (X, Y, Z) |
| Layer Thickness |
0.05 – 0.125 mm |
| Print Speed |
20 – 100 mm/h |
| Heating |
Dual: build platform + resin tank |
| Machine Dimensions |
330 × 350 × 575 mm (X, Y, Z) |
| Net Weight |
23 kg |
| Packing Dimensions |
565 × 565 × 680 mm (X, Y, Z) |
| Packing Weight |
32 kg |
| Data Format |
SLP3 |
| Interface |
USB / Ethernet / Wi-Fi |
| Power Supply |
100 – 240 V AC, 50/60 Hz, 350 VA |
| Operating Environment |
18 – 32 °C, 30 – 70% relative humidity |
| Authentication |
FCC / ROHS |
| Software |
FabWare (on-device touchscreen) + AccuWare (PC slicing) |
What's in the box
After unpacking you'll find the main printer, an accessory box, a resin tank, and a power cord. The accessory box includes the tools you need to get printing: an angular knife and putty knife for model removal, a brush for cleaning excess resin, a scraper for stirring resin, a cleaning box, an optical cleaning cloth, a PET card for detecting leveling gaps, leveling paper, and a USB flash drive preloaded with factory files, the Quick Start Guide, and the AccuWare installer.
