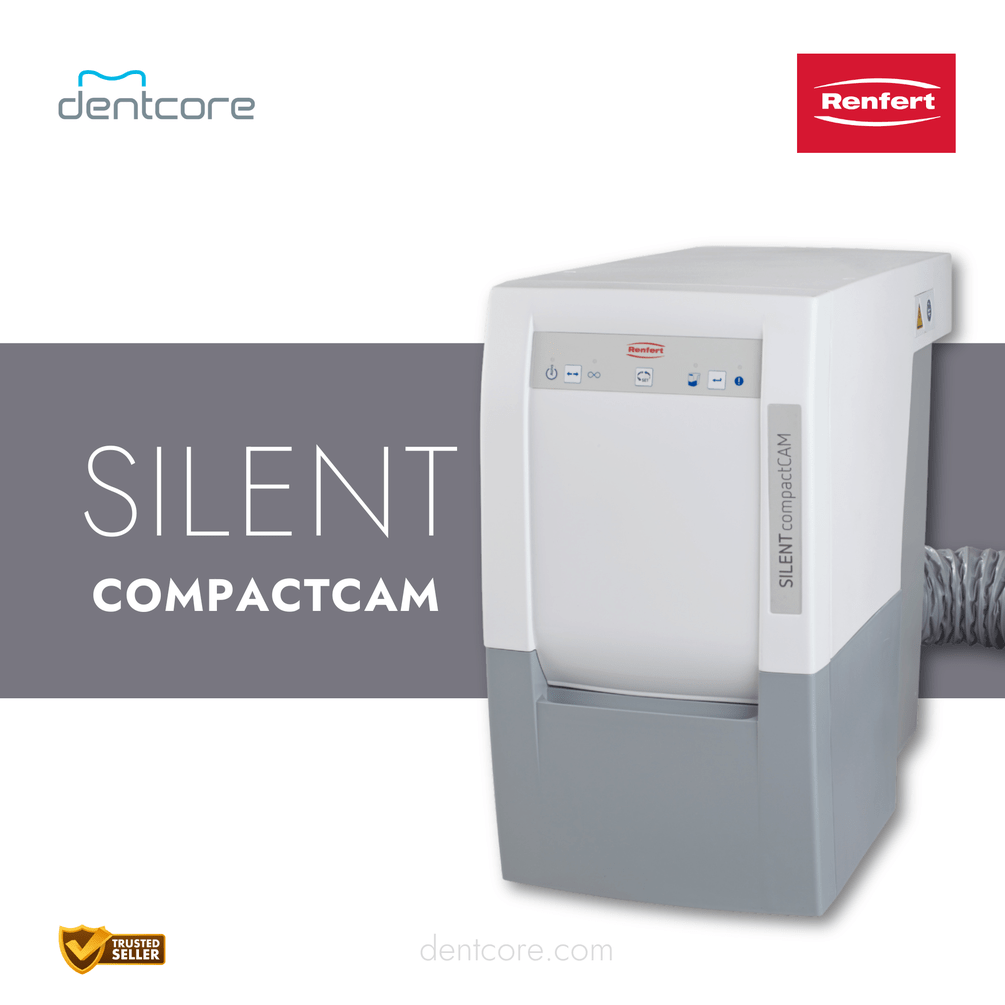

SILENT compactCAM is a compact, bag-free extraction unit designed for use with compact dental CAM systems.
See Renfert SILENT compactCAM in the workflow
This official manufacturer video shows the product, controls, or working sequence.
Built around the workflow
| CAM communication |
The PLC interface supports bidirectional communication with the CAM unit. |
| Low operating noise |
Maximum sound pressure is 55 dB(A) at maximum volume flow. |
| Bag-free collection |
The 2.6 L dust collector avoids recurring dust-bag replacement. |
| Serviceable collector motor |
Renfert guarantees 1,000 operating hours and supports a quick motor change. |
| Max. volume flow |
2,500 L/min |
| Sound pressure |
55 dB(A) max. |
| Dimensions |
245 x 440 x 500 mm |
| Weight |
13.2 kg |
Where it fits
- Compact dental mills
- Single-CAM extraction
- Dental laboratory milling
- Bag-free dust collection
Product documents
Compare Renfert CAM extraction units and review milling-machine compatibility.
Renfert CAM extraction compatibility overview (PDF)
Frequently asked questions
Is this the powerCAM EC?
No. compactCAM is the smaller collector-motor model with a 1,000-hour motor guarantee.
How does it connect to a mill?

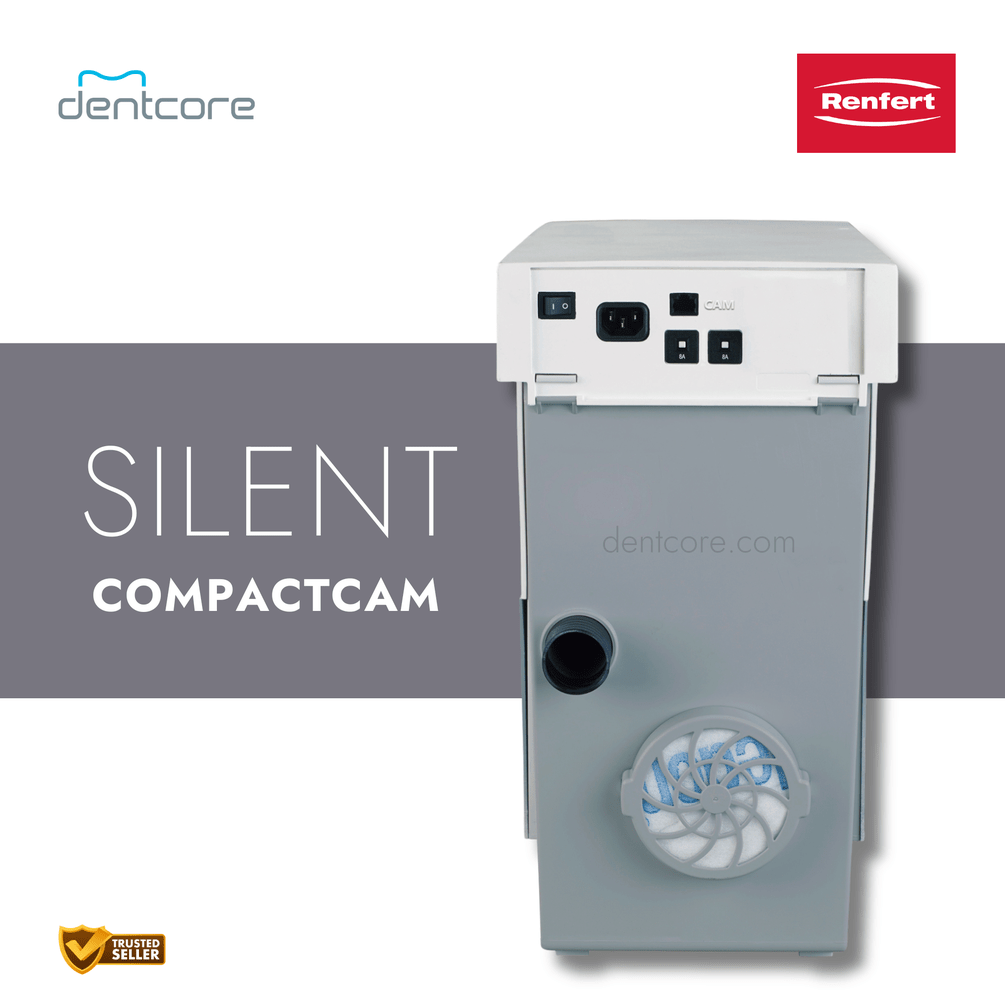

The CAM interface uses an RJ45 socket and PLC input/output signals.
What is included?
The official 120 V configuration lists a 2 m suction hose with two mufflers.
