Aidite

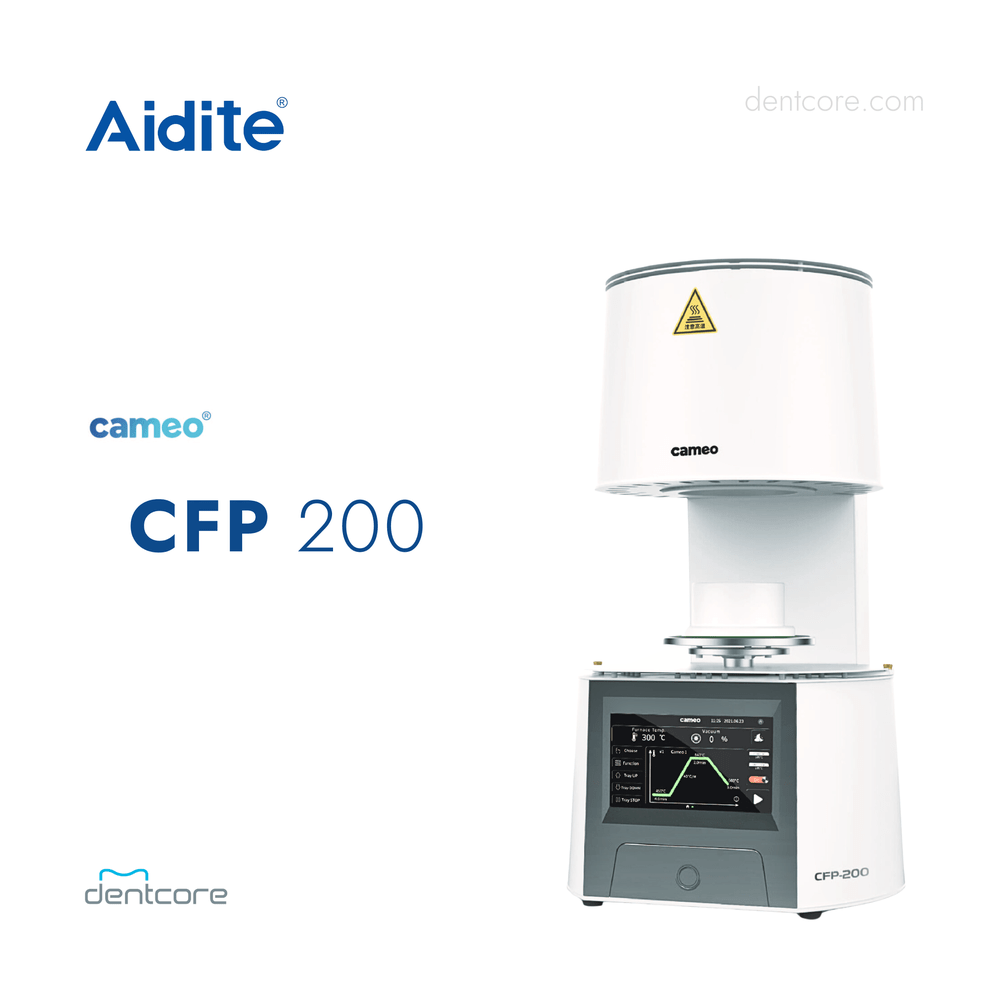

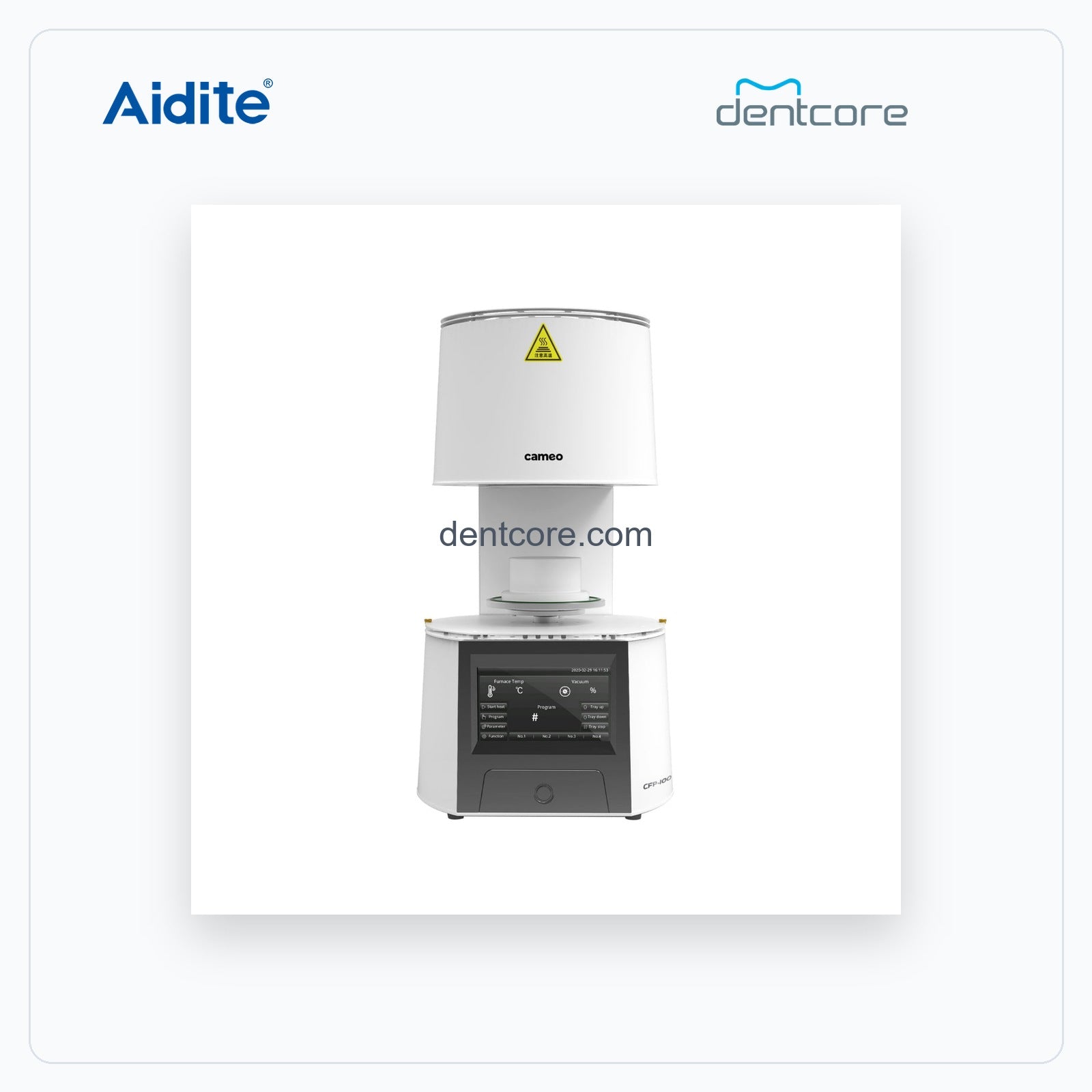

CFP-200 Aidite Cameo Porcelain Furnace
CFP-200 Aidite Cameo Porcelain Furnace
Regular price
$3,900.00 USD
Regular price
Sale price
$3,900.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product details

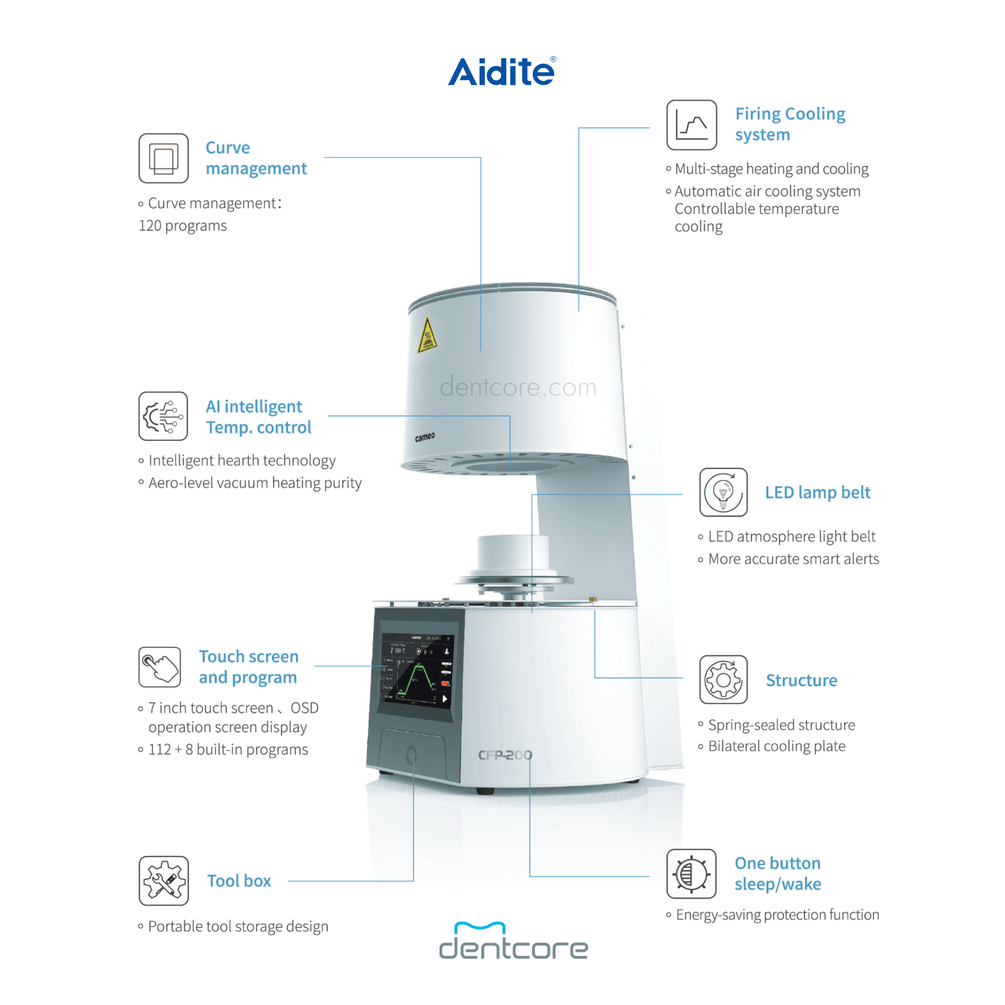

The Aidite Cameo CFP-200 is a compact vacuum porcelain furnace for CAD/CAM laboratories and practices handling stain, glaze, and glass-ceramic crystallization. It is built around AI-assisted temperature control, quartz tube heating, a sealed tray elevator structure, and fan cooling for repeatable finishing cycles.
| Workflow | Stain, glaze, crystallization |
|---|---|
| Max temperature | 1200°C |
| Vacuum | Vmax 95% |
| Accuracy | ±1°C |
Why it matters
| Finishing-focused control | CFP-200 is designed for the final appearance stage of ceramic restorations, where temperature stability, vacuum performance, and controlled cooling directly affect surface quality and shade consistency. |
|---|---|
| Clean heating chamber | The quartz tube heating system and ultra-sealed tray structure help protect the chamber from contamination while supporting consistent firing performance over repeated cycles. |

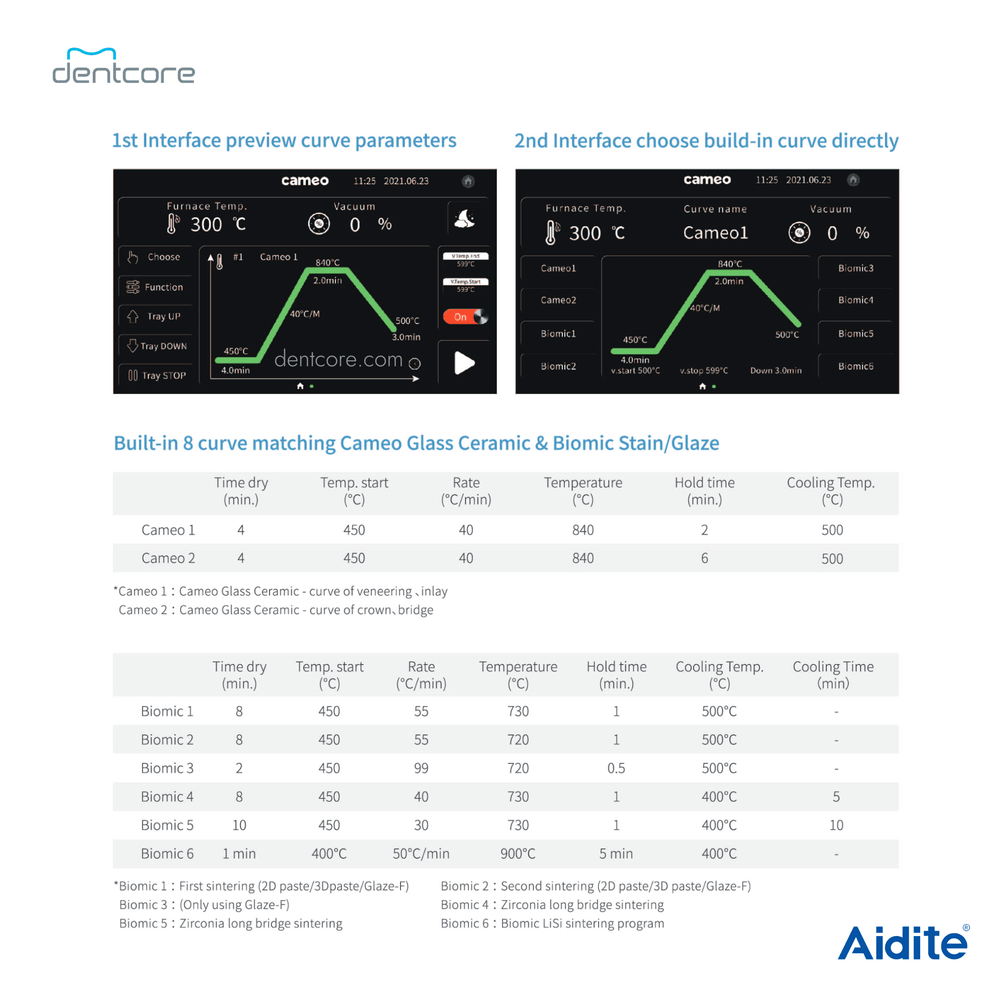

| Programs for CAD/CAM workflows | Built-in Biomic sintering programs and Cameo glass-ceramic crystallizing programs support common finishing workflows without forcing every cycle to be created from scratch. |
| Compact lab footprint | The tray elevator format gives the furnace a practical footprint for labs or practices that need porcelain finishing without moving into a large production furnace. |
Typical workflow
| 01 Prepare | Load the restoration on the firing tray with the correct firing support. |
|---|---|
| 02 Fire | Select stain/glaze or crystallization parameters for the ceramic system. |
| 03 Cool | Use controlled cooling to protect the restoration and finish quality. |

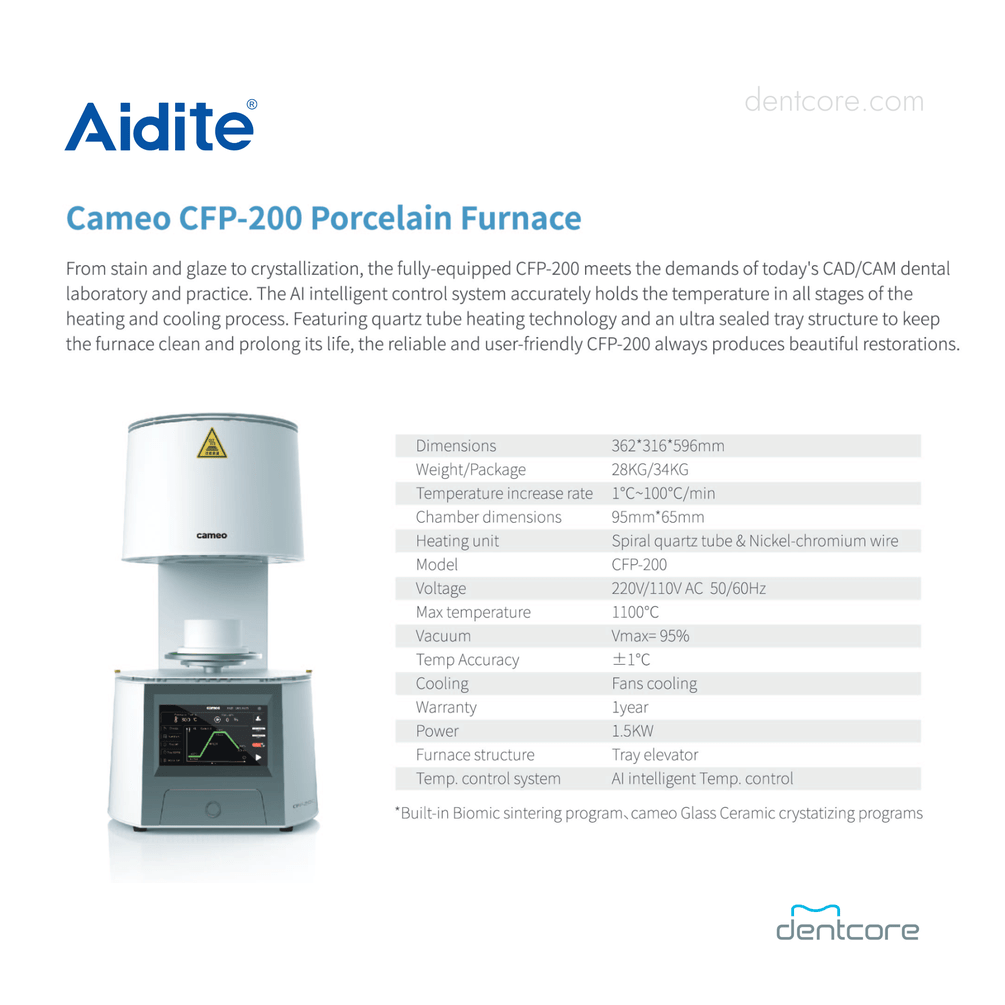

Technical specifications
| Dimensions | 362 × 316 × 596 mm |
|---|---|
| Weight / package | 28 kg / 34 kg |
| Temperature increase rate | 1°C to 100°C per minute |
| Chamber dimensions | 95 × 65 mm |
| Heating unit | Spiral quartz tube and nickel-chromium wire |
| Voltage | 220V / 110V AC, 50/60Hz |
| Power | 1.5 kW |
| Furnace structure | Tray elevator |
| Temperature control | AI intelligent temperature control |
| Cooling | Fan cooling |
Product documents
Review the official Aidite brochure for specifications, programs, and workflow planning.
