High-accuracy desktop scanner for dental lab or practices. Dual 5.0 MP cameras with blue light technology deliver ≤8 μm accuracy — the precision tier for implant abutments, multi-unit frameworks, and tight-tolerance restorations.
See AutoScan-DS-EX Pro(H) in action
Why the Pro(H)
Accuracy up to 8 microns with two 5.0 MP cameras for detailed dental-model scanning.
Flexible workflows for models, impressions, dies, and articulator transfers.
Blue-light scanning with Multi Path, High Quality, AI Scan, Texture, and HDR modes.
Fast bite capture with a listed bite-scan time of 6.5 seconds.
Scan Times
Bite Registration
6.5 seconds
Upper/Lower Jaw
14 seconds
1-4 Dies
21.5 seconds
5-8 Dies
25.5 seconds
Full Impression
31 seconds
Manufacturer test figures. Actual scan time varies with the case, scan settings, and workstation.
Specifications
Accuracy
≤8 μm
Cameras
Dual 5.0 MP
Light Source
Blue light
Dimensions
420 × 260 × 270 mm
Weight
5.0 kg
Connection
USB 3.0
Scan Modes
Multi Path, High Quality, AI Scan, Texture, HDR
Export
STL, PLY, OBJ
Pro(H) vs. Pro(C)
The Pro(H) prioritizes accuracy (≤8 μm) for implant and precision work. The Pro(C) prioritizes speed with color texture scanning (≤10 μm). Both share the same 5 kg footprint.
Computer requirements
DesktopScan/DentalScan workflows need a dedicated Windows workstation with NVIDIA graphics.
Operating system
Windows 10 1809 or Windows 11
CPU
Intel Core i7-8700 or above
Memory
32 GB or above for EX Pro impression scanning workflows
Graphics
NVIDIA GTX 1060 6 GB or above; NVIDIA Quadro is not compatible
Storage
At least 2 GB for software and 20 GB for order storage
Connection
One USB 3.0 port for the scanner and one USB port for the dongle
Power
AC input 100-240V, 1.5A, 50-60Hz
Estimated shipping time
2-3 weeks
Estimate for planning. Final timing is confirmed after order review.

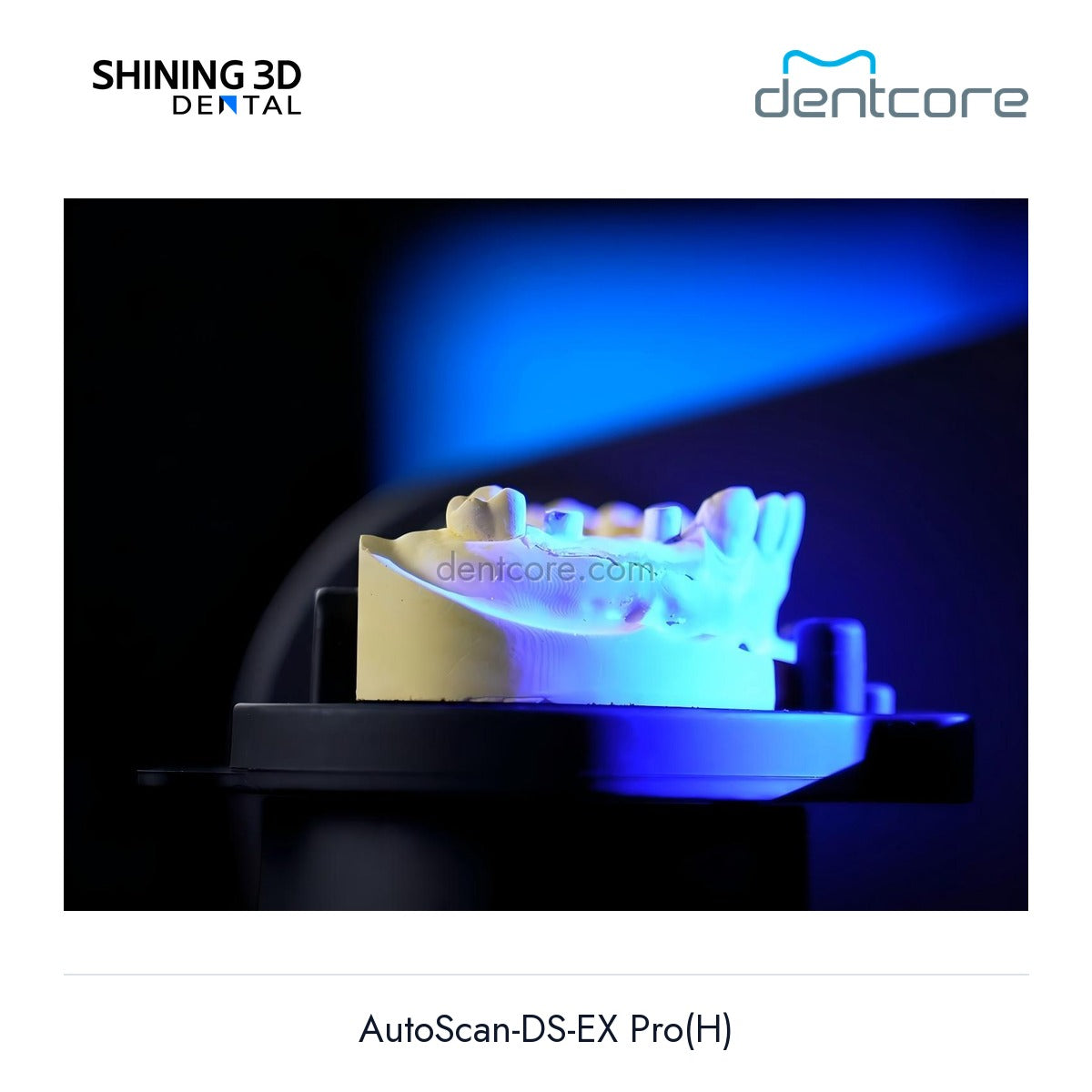

![[DENTCORE-OFFICIAL] AutoScan-DS-EX Pro(H) official product image 2](http://dentcore.com/cdn/shop/files/02-autoscan-ds-ex-pro-h.jpg?v=1784842069&width=1946)

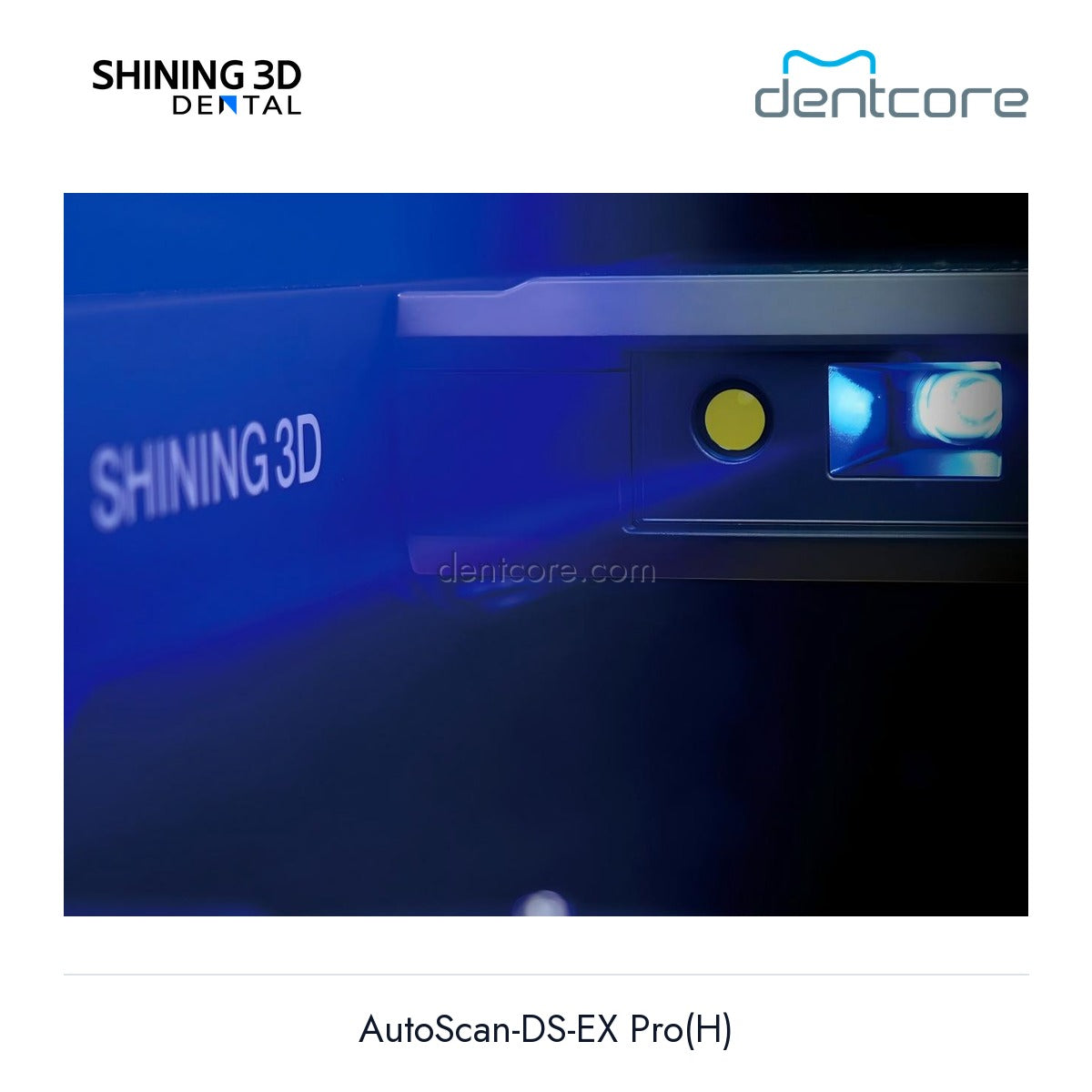

![[DENTCORE-OFFICIAL] AutoScan-DS-EX Pro(H) official product image 3](http://dentcore.com/cdn/shop/files/03-autoscan-ds-ex-pro-h.jpg?v=1784842071&width=1946)

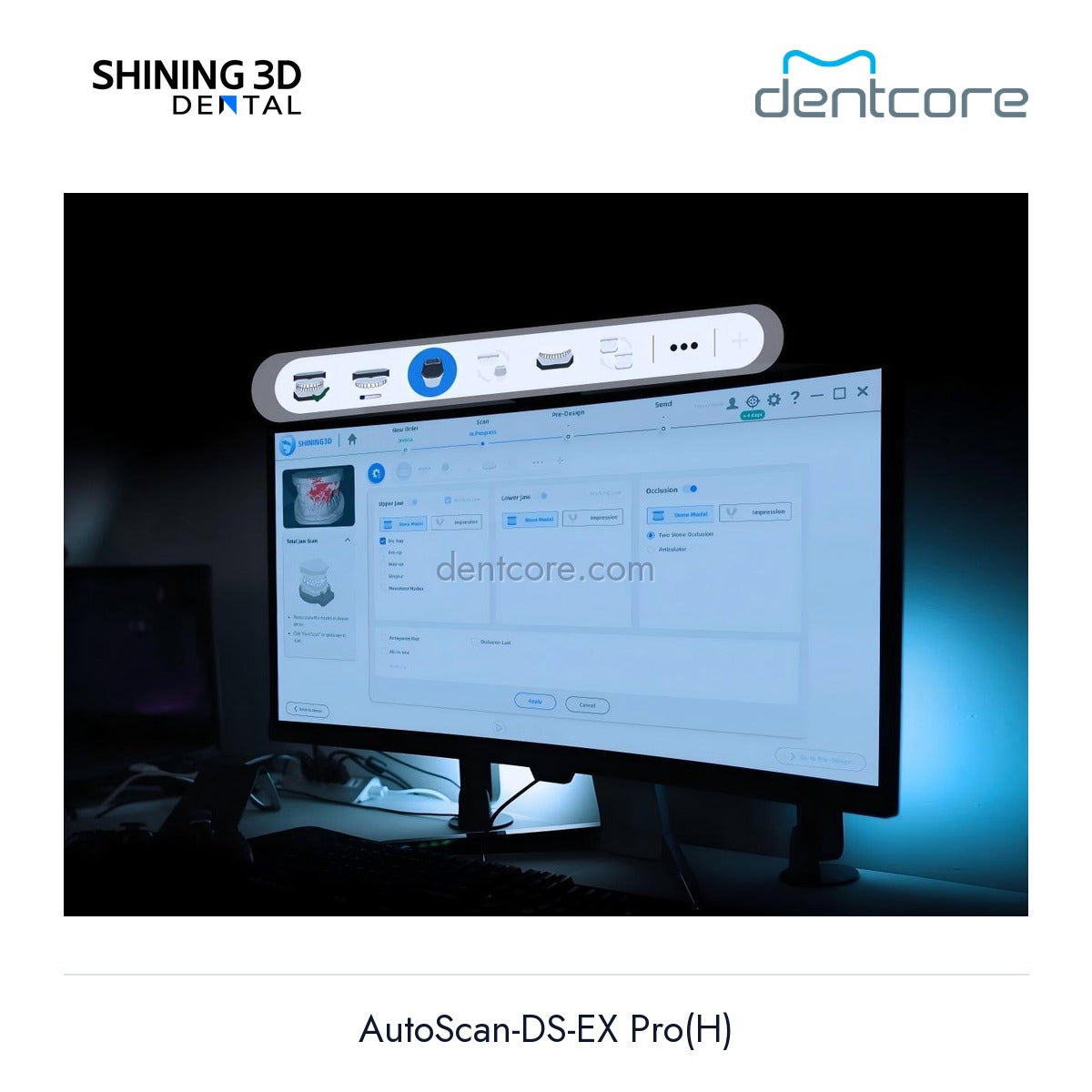

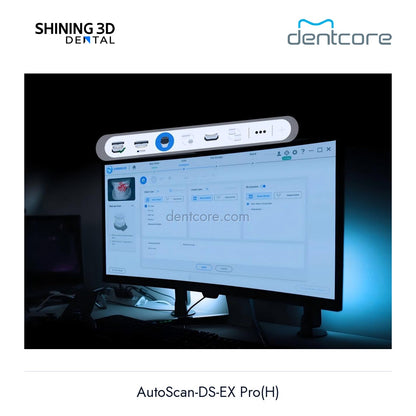

![[DENTCORE-OFFICIAL] AutoScan-DS-EX Pro(H) official product image 4](http://dentcore.com/cdn/shop/files/04-autoscan-ds-ex-pro-h.jpg?v=1784842075&width=1946)

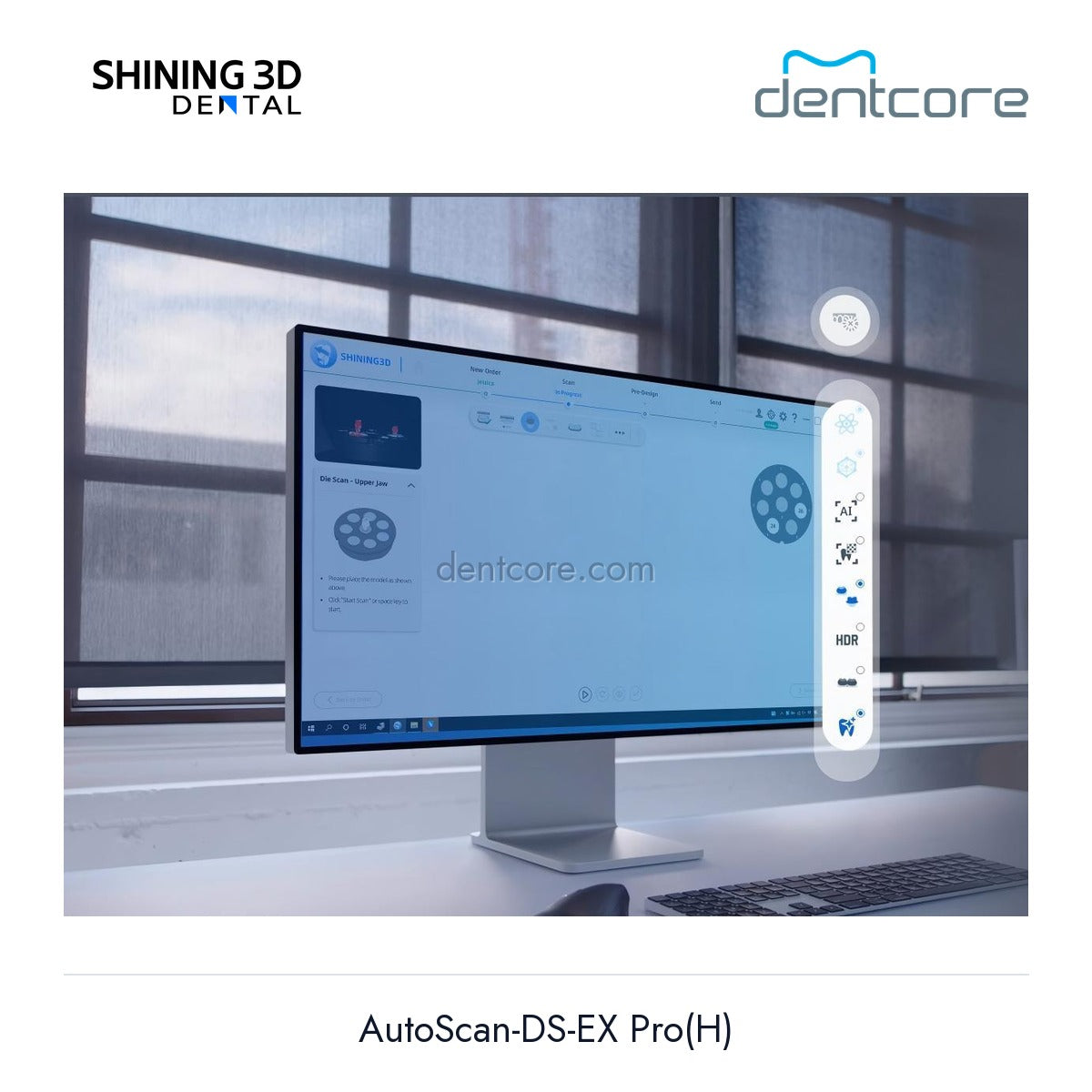

![[DENTCORE-OFFICIAL] AutoScan-DS-EX Pro(H) official product image 5](http://dentcore.com/cdn/shop/files/05-autoscan-ds-ex-pro-h.jpg?v=1784842076&width=1946)
