Aidite Cameo CSF-400 Rapid Sintering Furnace
Aidite Cameo CSF-400 Rapid Sintering Furnace
Regular price
$11,900.00 USD
Regular price
Sale price
$11,900.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product details
The Aidite CSF-400 is a rapid zirconia sintering furnace designed around Aizir Flash and 3D Pro Zir workflows. It combines fast heating, a larger chamber than CSF-200L, preset and custom curves, and safety-focused insulation for same-day and production sintering needs.
See CAMEO CSF-400 Rapid Sintering Furnace in action
Review the official operating sequence and furnace workflow.
| Workflow | Rapid zirconia sintering |
|---|---|
| Capacity | Up to 12 units |
| Max temperature | 1560°C |
| Heating rate | ≤60°C/min |
Why it matters
| Rapid same-day path | Aidite positions CSF-400 as part of the Aizir Flash rapid sintering solution, with a single-crown workflow intended for fast turnaround cases. |
|---|---|
| Preset and custom control | Four preset curves and four custom curves give teams flexibility for different zirconia materials and case requirements. |

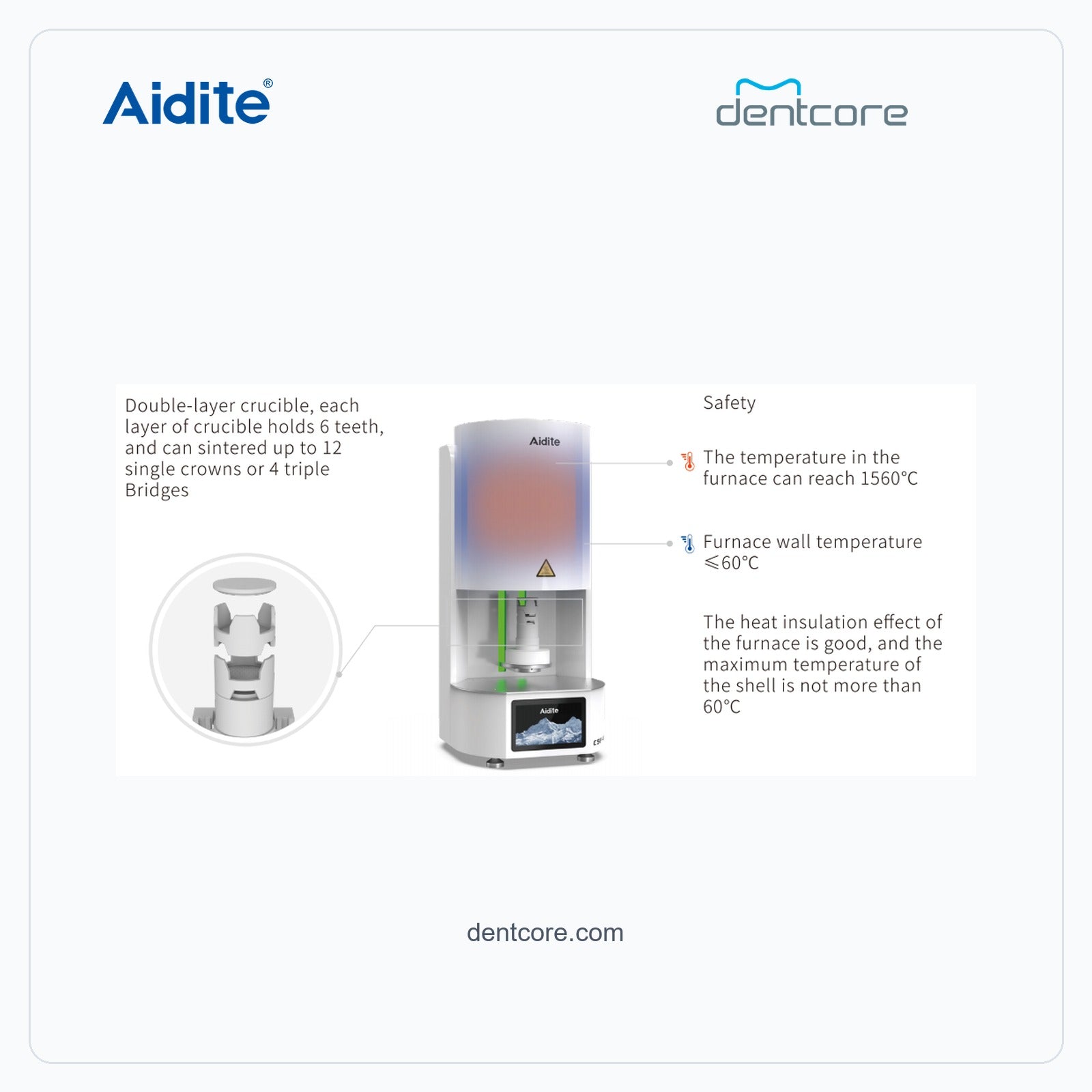

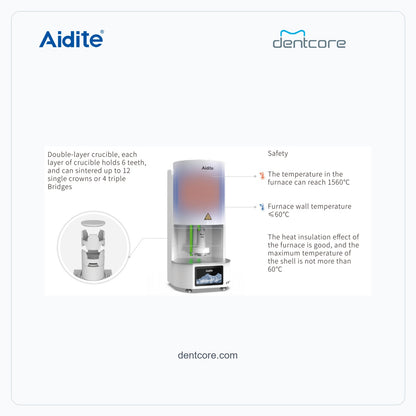

| Safer exterior temperature | The insulated shell design is intended to keep the furnace exterior at a safer operating temperature during high-heat cycles. |
| For clinic or lab use | The capacity and speed profile make CSF-400 a practical choice for practices building same-day capability and labs that need a fast sintering station. |
Typical workflow
| 01 Load | Prepare restorations in the corundum crucible for the selected zirconia material. |
|---|---|
| 02 Sinter | Run preset or custom rapid sintering curves based on material instructions. |
| 03 Finish | Proceed to contouring, stain, glaze, or final delivery workflow. |
Technical specifications
| Model | CSF-400 |
|---|---|
| Chamber size | Φ75 × 275 mm |
| Dimensions | 468 × 360 × 785 mm |
| Net weight | 65 kg |
| Power supply | 220-240V, 50/60Hz, 16A |
| Rated power | 3.5 kW |
| Number of curves | Preset 4 / custom 4 |
| Temperature accuracy | ≤±1°C |
| Thermocouple | Type B |
| Heating elements | Silicon carbon rod |
Product documents
Review the official Aidite brochure for specifications, programs, and workflow planning.
