Aidite Cameo CSF-200L Sintering Furnace

$8,500.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Product details

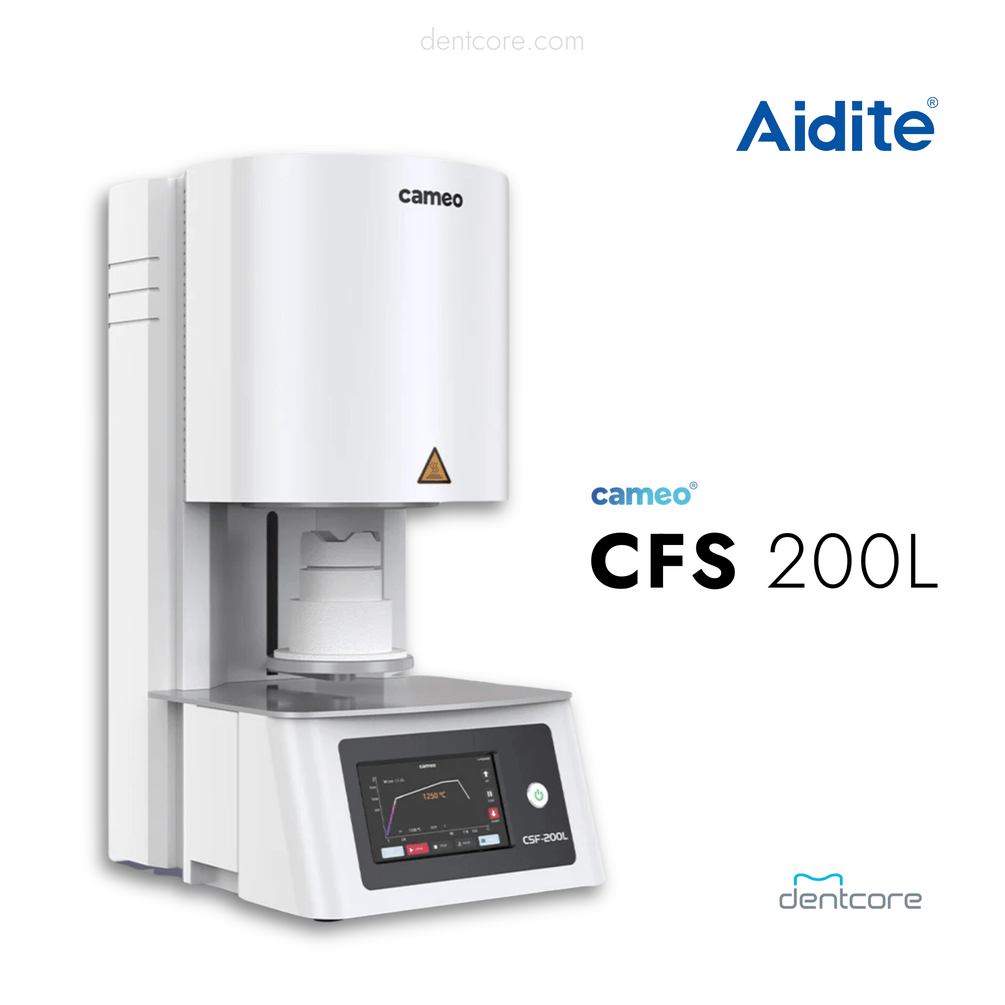

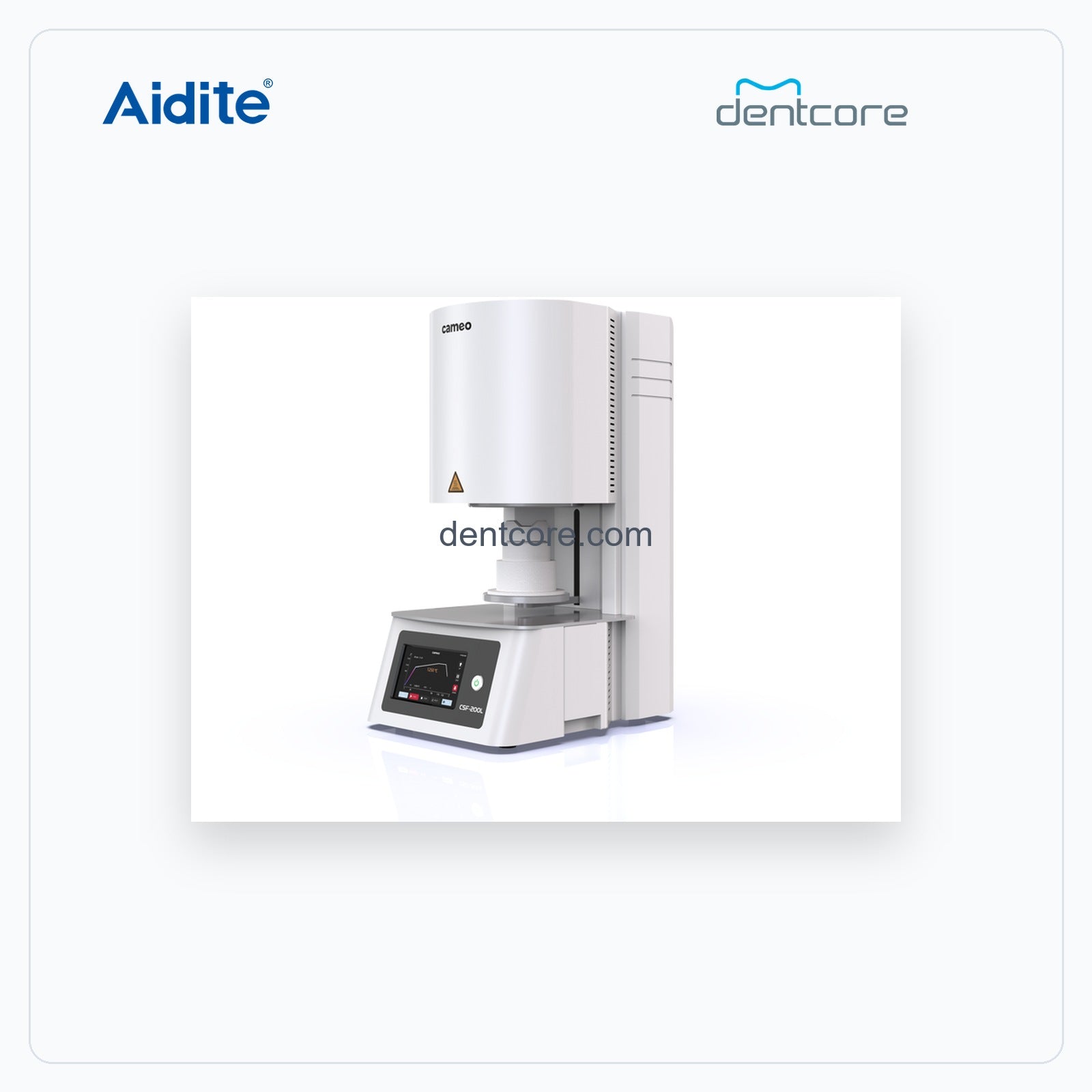

The Aidite Cameo CSF-200L is a zirconia sintering furnace for practices and labs that need a smaller, intelligent furnace for rapid or conventional zirconia cycles. It is matched to Aidite zirconia materials and uses silicon carbide heating elements with an intuitive program interface.

See CAMEO CSF-200L Sintering Furnace in action

Review the official operating sequence and furnace workflow.

Workflow	Zirconia sintering
Chamber	Φ100 × 120 mm
Capacity	Up to 70 crowns
Curves	30 programs

Why it matters

Compact but capable	CSF-200L gives labs and clinics a dedicated sintering furnace for lower-to-medium daily volume, chairside planning, or as a fast-cycle companion beside a larger production furnace.
Fast and slow sintering	The furnace supports rapid and conventional sintering strategies, making it useful for both same-day planning and routine production loads.

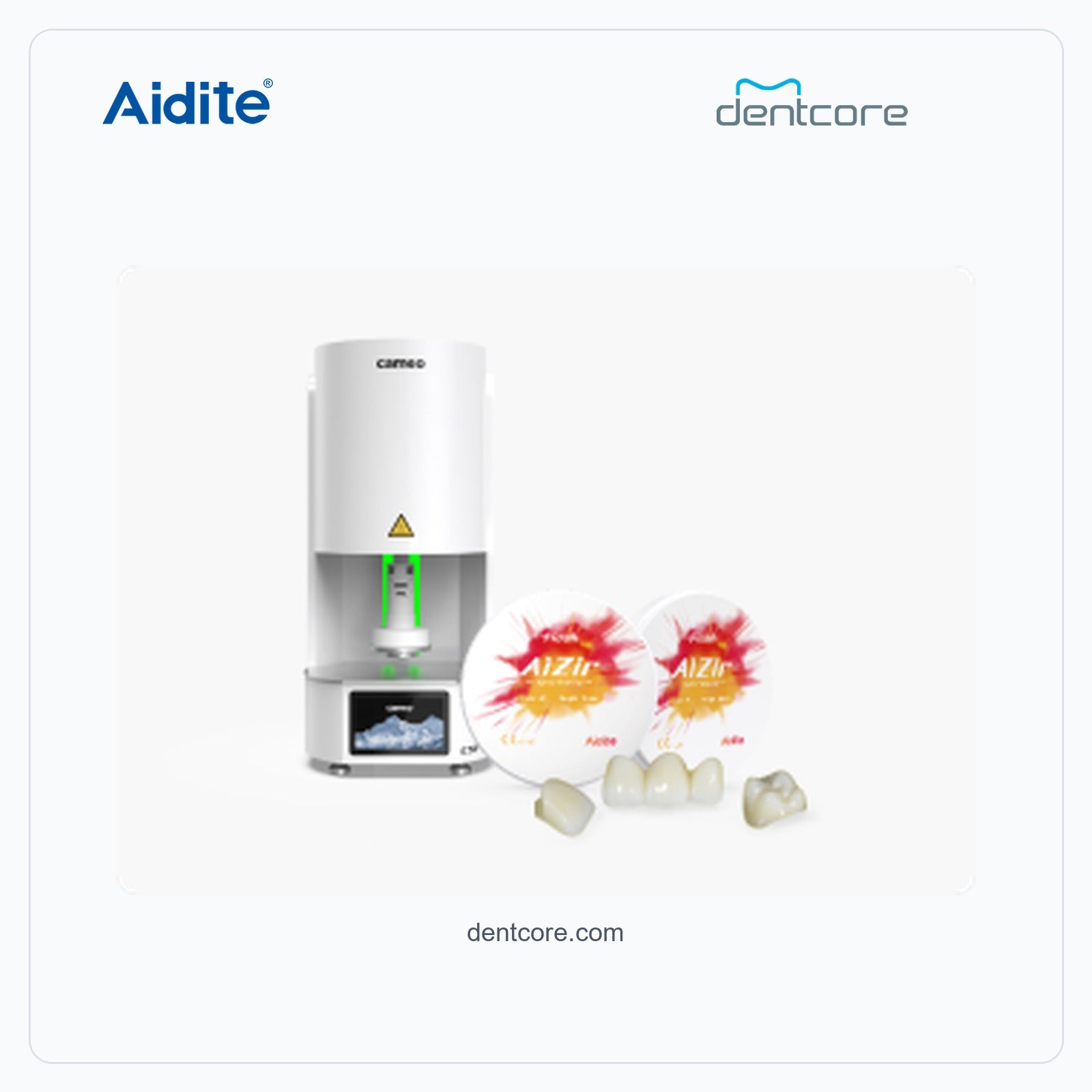

Material-matched workflow	Aidite positions the CSF-200 platform as part of a validated zirconia workflow, including Aizir and 3D Pro Zir material families.

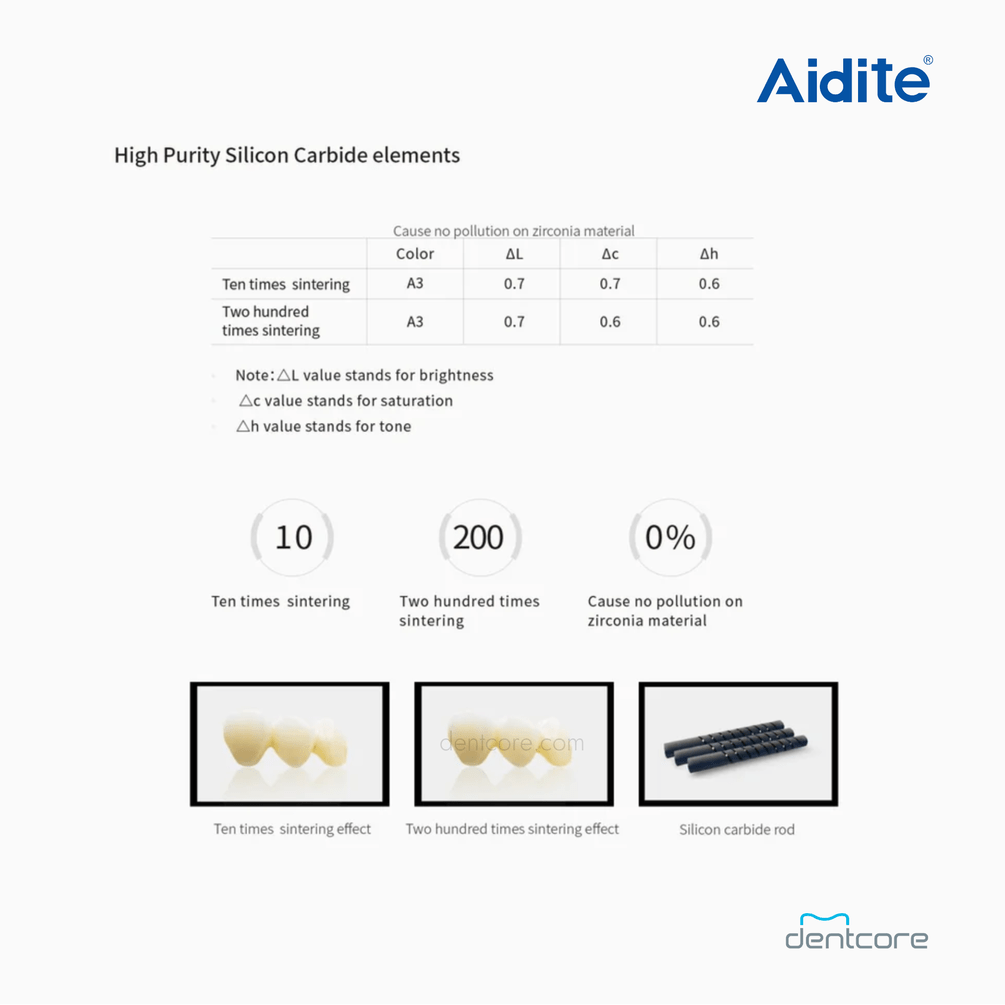

Repeatable color output	Official Aidite data highlights color stability through repeated sintering cycles using high-purity silicon carbide elements.

Typical workflow

01 Nest and prepare	Choose the zirconia material and restoration count for the cycle.

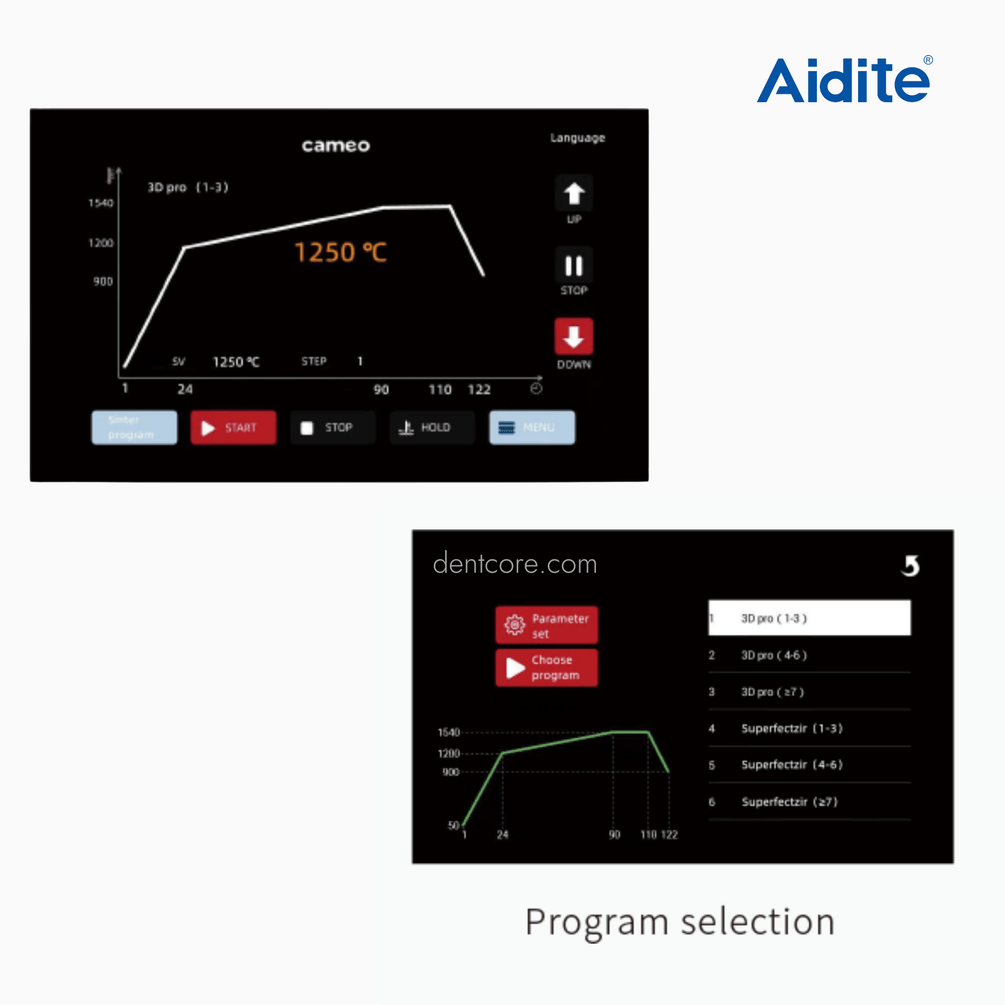

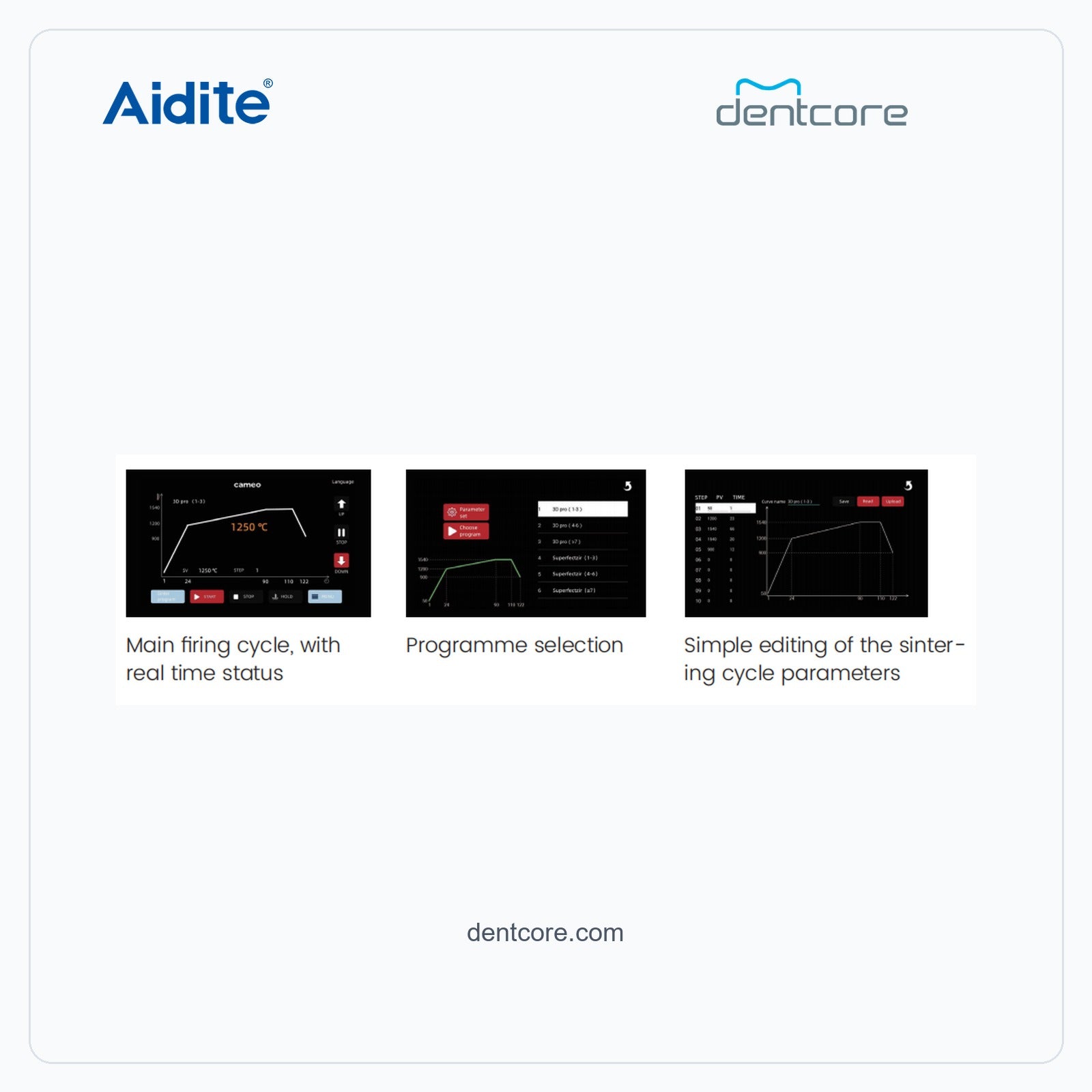

02 Select cycle	Use preset or custom programs for rapid or conventional sintering.
03 Finish	Cool, check fit and shade, then move to stain/glaze when needed.

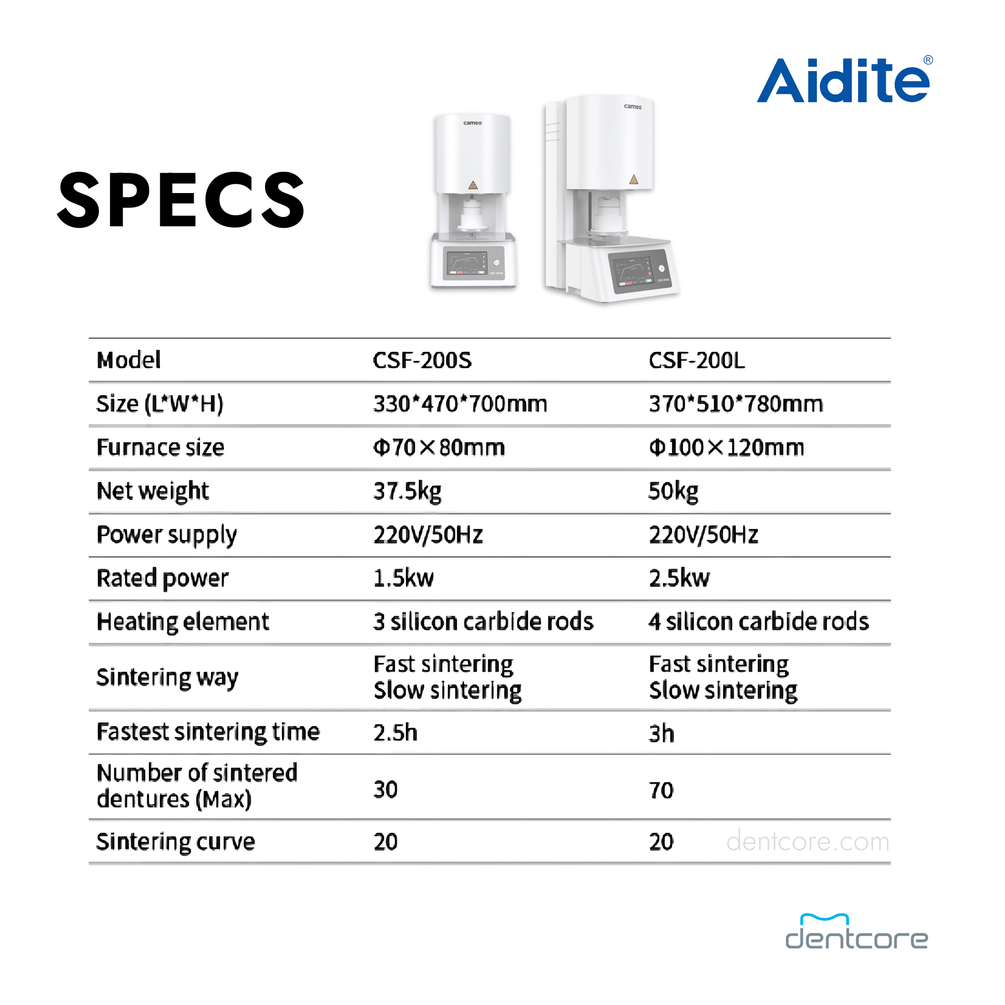

Technical specifications

Model	CSF-200L
Size	370 × 510 × 780 mm
Furnace size	Φ100 × 120 mm
Net weight	50 kg
Power supply	220V / 50Hz
Rated power	2.5 kW
Heating element	4 silicon carbide rods
Sintering options	Fast sintering / slow sintering
Fastest sintering time	3 hours
Maximum sintered crowns	70

Product documents

Download the official Aidite brochure for specifications, setup, and workflow planning.

Download product brochure (PDF)
