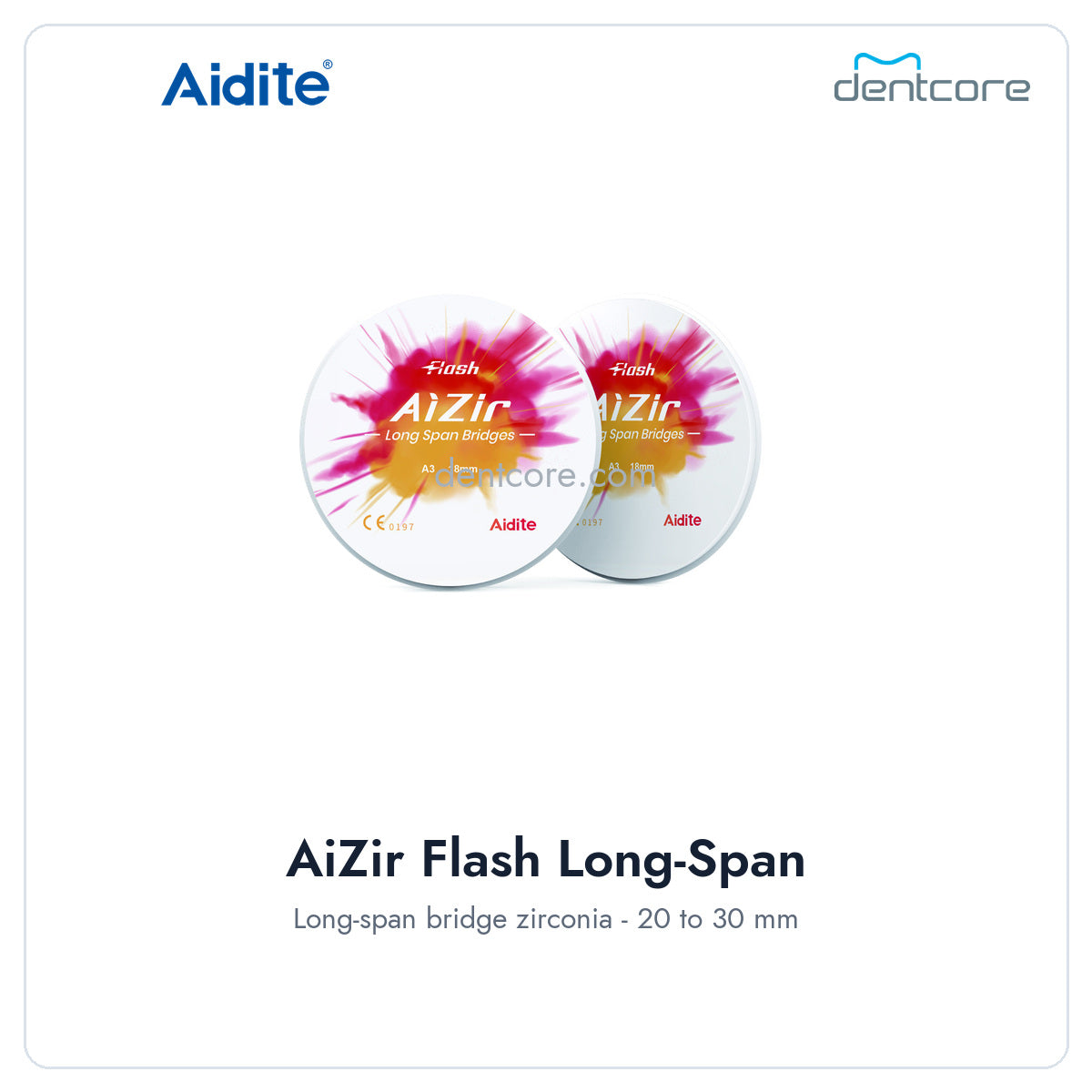

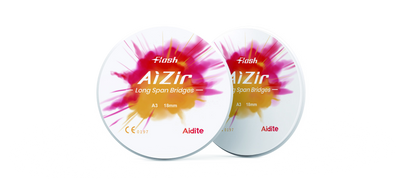

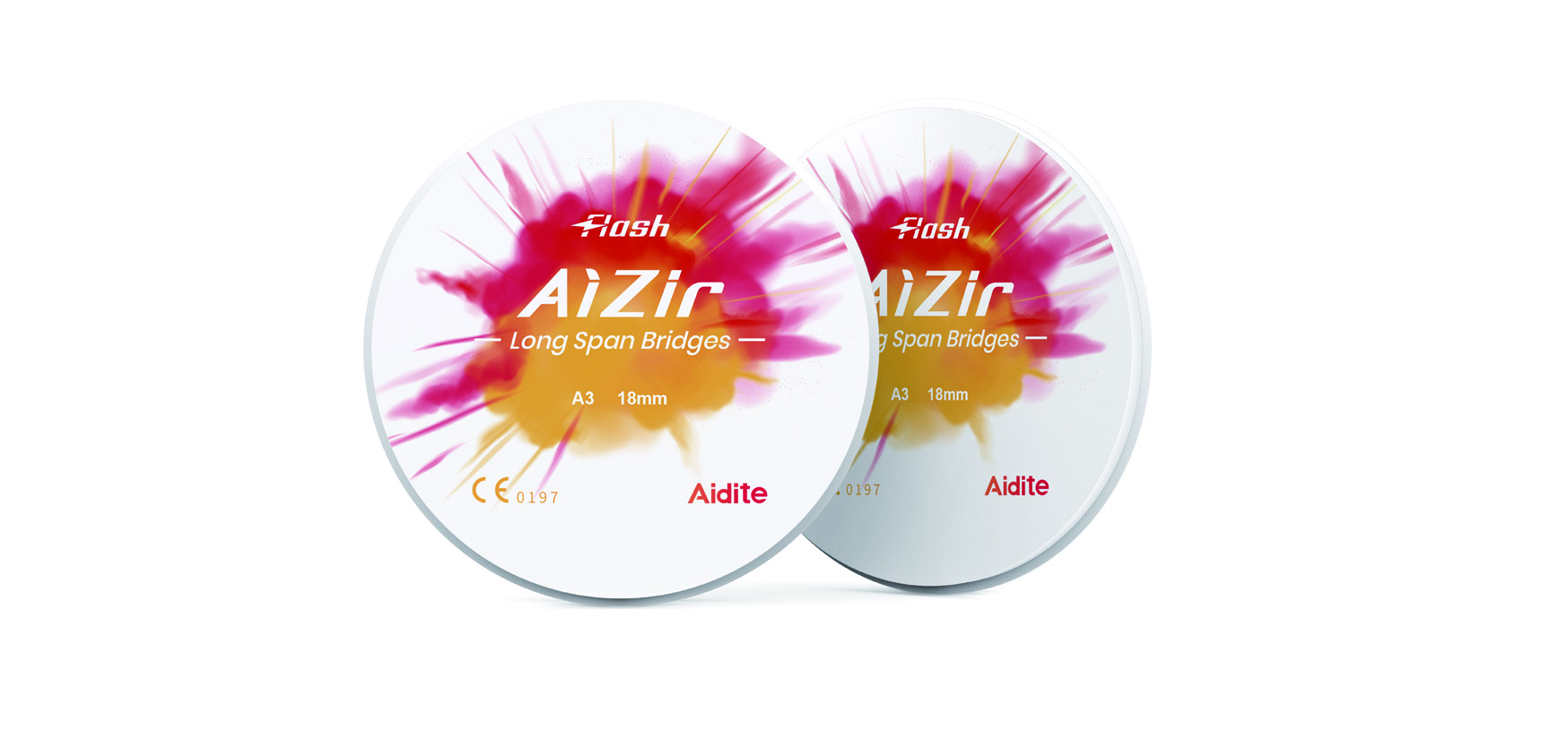

Aidite AiZir Flash Long-Span Bridge Zirconia Disc

$180.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Product details

Purpose-built for long-span and full-arch zirconia planning.

AiZir Flash Long-Span provides the additional disc thickness needed for large bridge geometries. Choose the required thickness and shade, then validate connector design, nesting orientation and furnace capacity before production.

Thickness range	20 / 25 / 30 mm
Shade range	A1, A2, A3, B1, C1, D2, OM1, OM2, OM3
Primary workflow	Long-span bridges and full-arch frameworks
Furnace peak	1520 C in the published reference curve
Published hold	90 minutes at maximum temperature
Selector	Thickness + Shade with an exact SKU

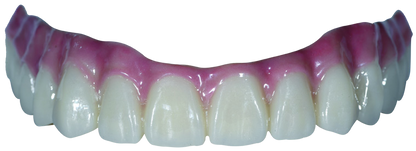

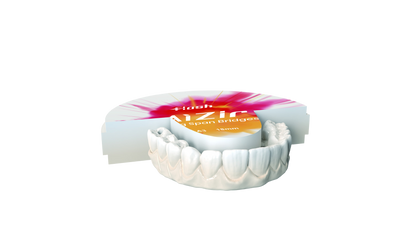

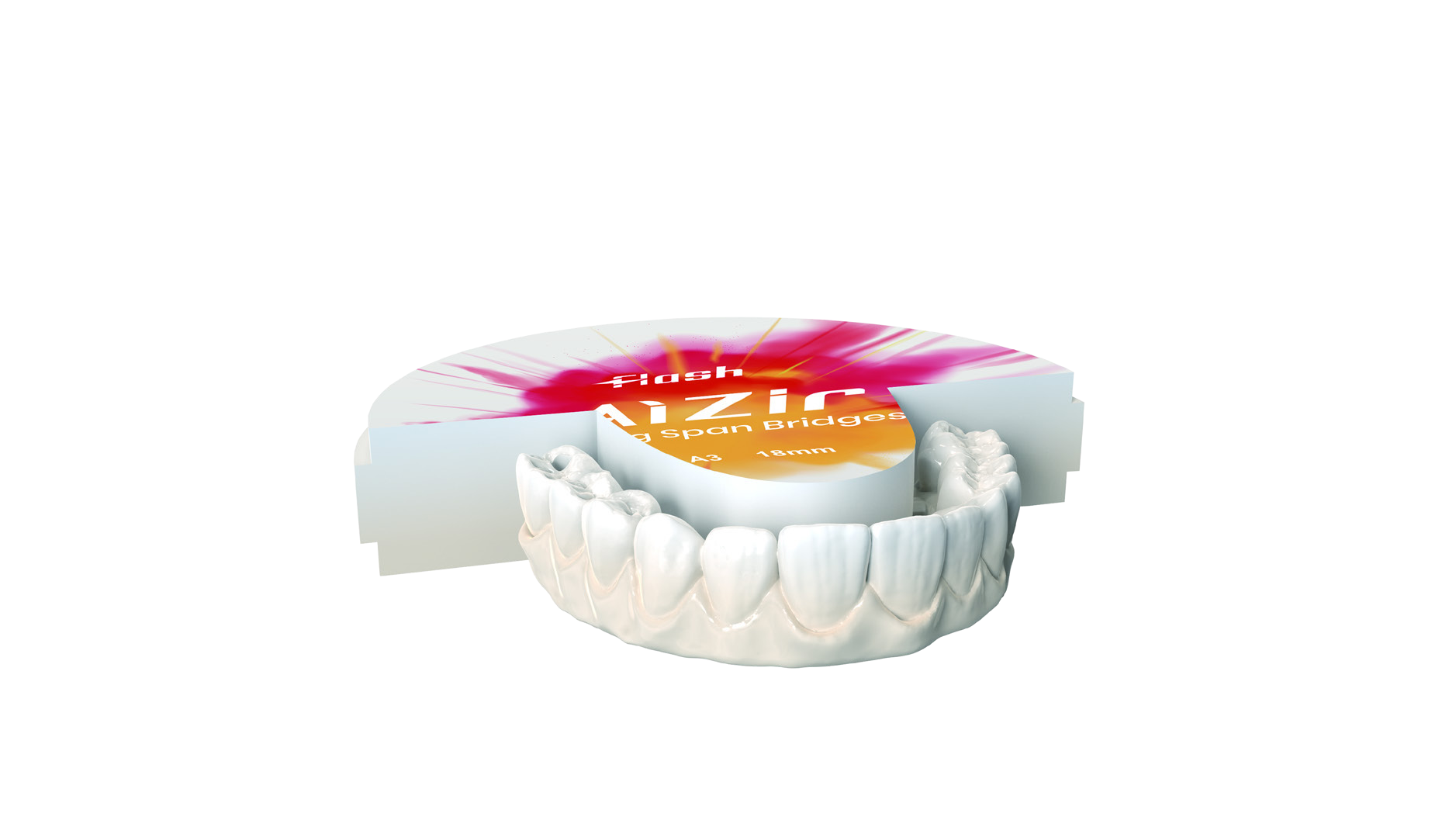

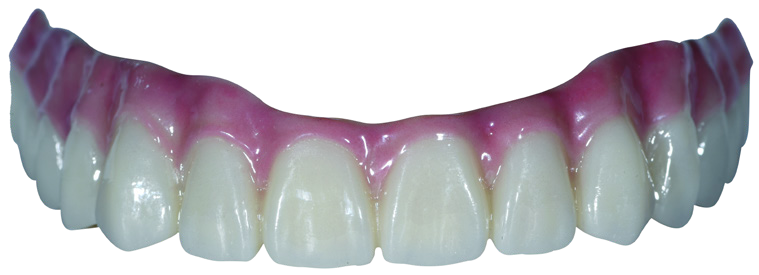

Aidite AiZir Flash Long-Span disc and full-arch restoration

Plan the restoration before selecting the disc

Confirm vertical clearance, restoration height, connector dimensions and sintering support strategy. The thicker format is not a substitute for case-specific design validation.

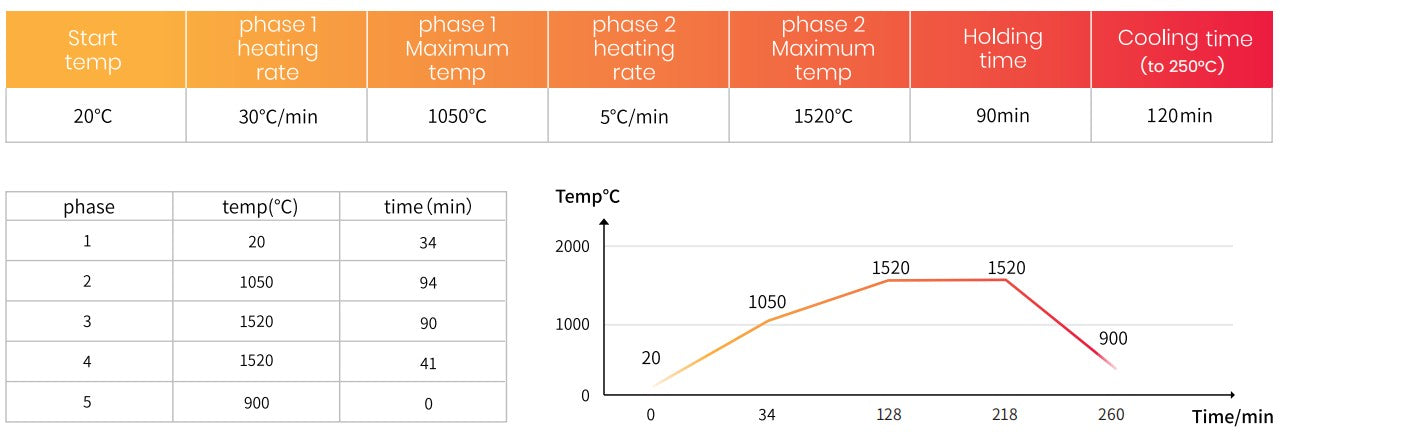

Published reference sintering curve

Keep the curve visible while programming the case. This chart is a planning reference from Aidite's product material; always reconcile it with the current instructions for use, the material lot and the furnace manufacturer's operating requirements.

Aidite AiZir Flash Long-Span published sintering curve: 20 C start, 1050 C phase one, 1520 C maximum, 90 minute hold
