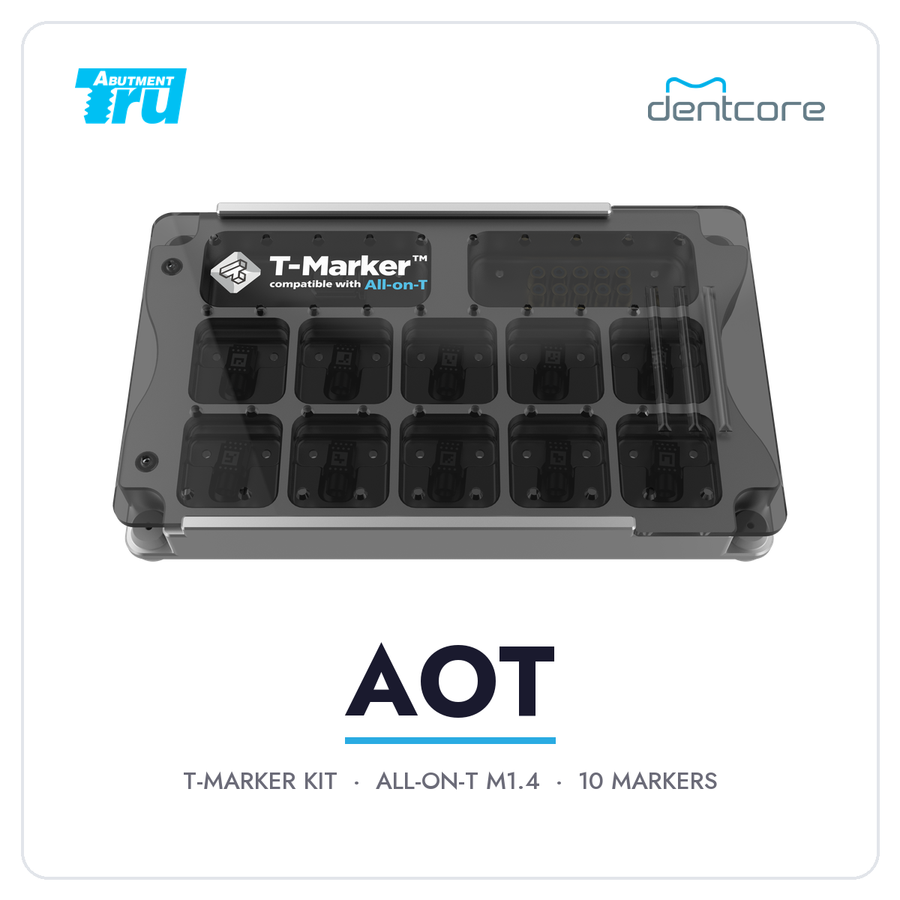

AOT kit
All-on-T (M1.4)
10 T-Markers · 10 HS Cap Small · Hex 1.25 screwdriver
$3,000 USD
Shop AOT
Now available at Dentcore

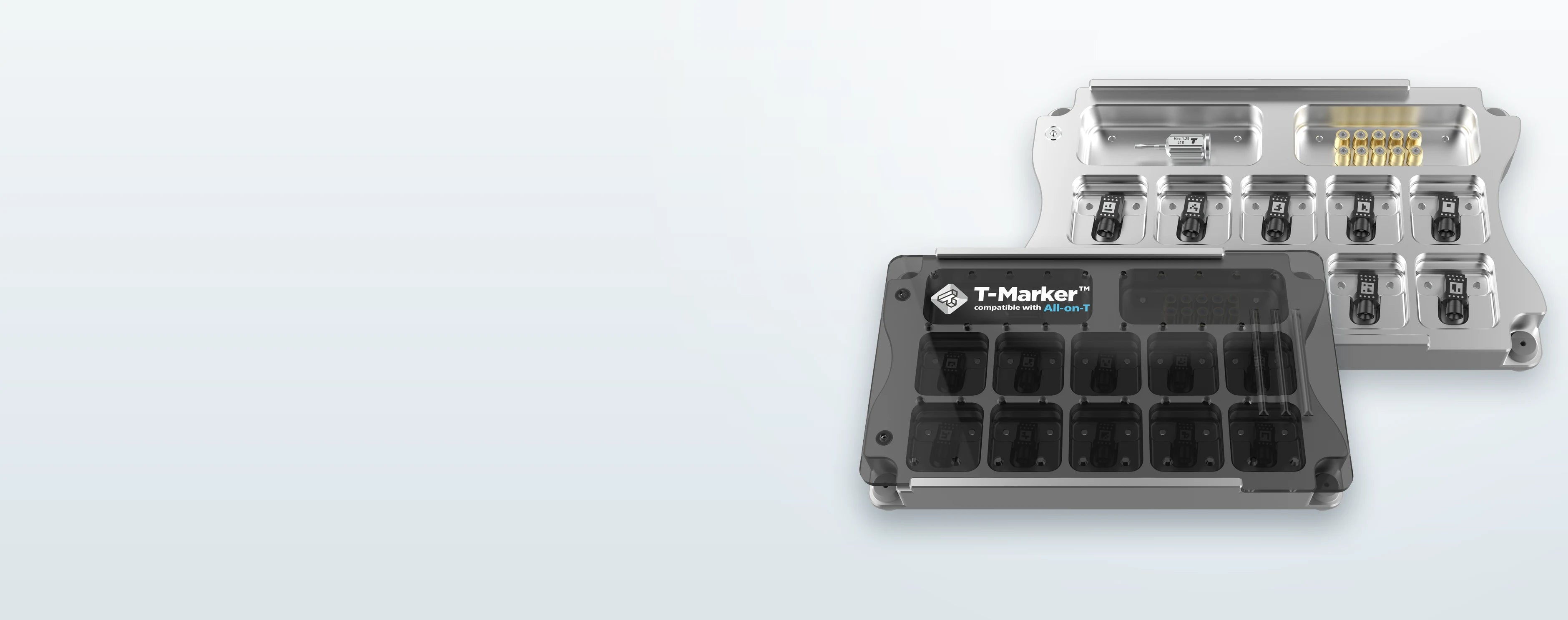

T-Marker

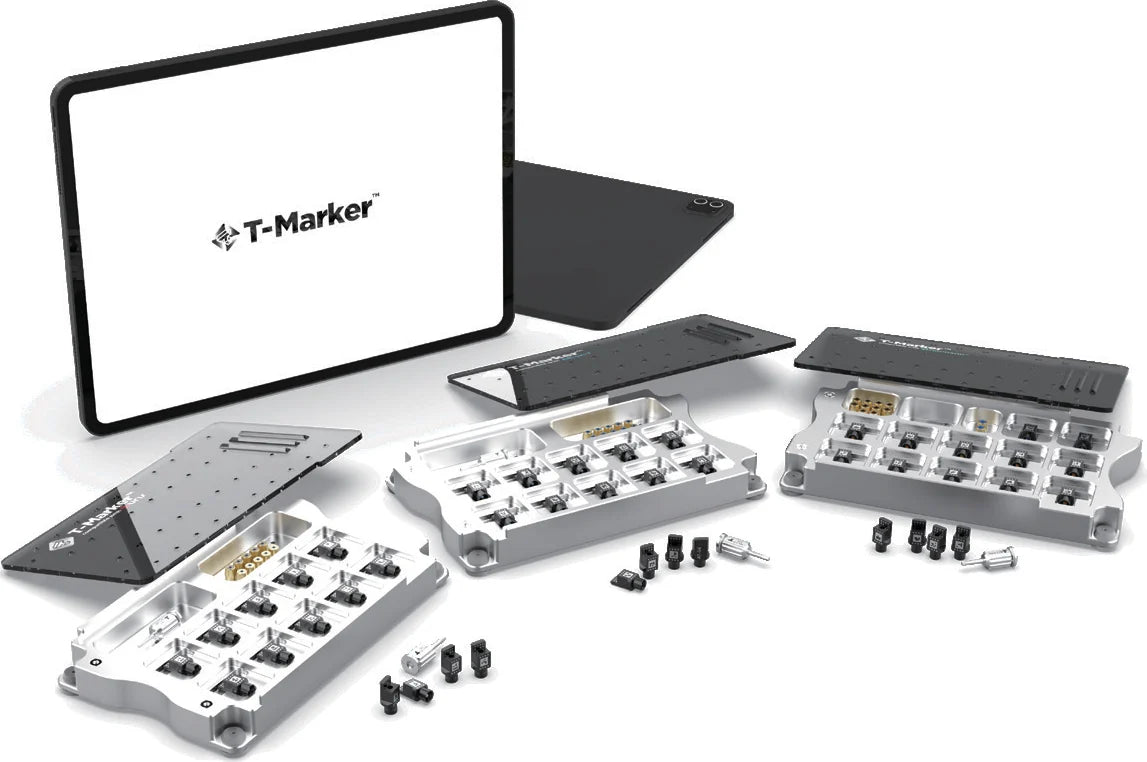

TruAbutment photogrammetry on your iPad Pro or iPhone Pro. Capture multi-unit abutment positions and export an STL. No calibration, no cables. Order all three kits from Dentcore.
Kits from $3,000 USD
3–10markers per capture
Nocalibration needed
STLMUA positions, ready to design
4export types
See T-Marker in action.
Real cases and app features, filmed by TruAbutment.
Scan. Check. Export.
Seat the coded markers on the MUAs and let the app do the measuring.
-
01

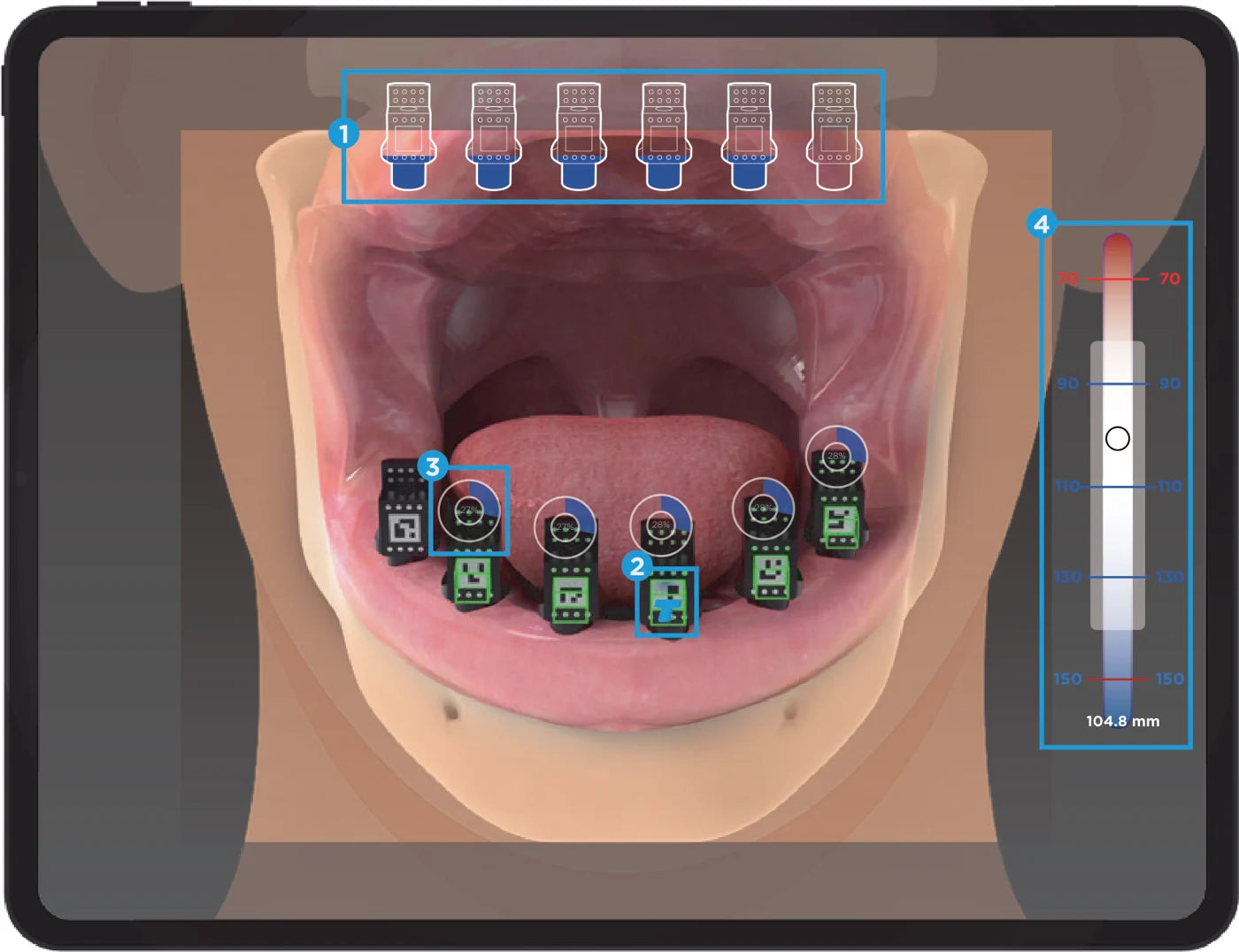

Capture the markers
The app tracks up to 10 markers at once. A green cube confirms focus, a progress ring fills on each marker, and a gauge keeps you at the right distance.
-
02

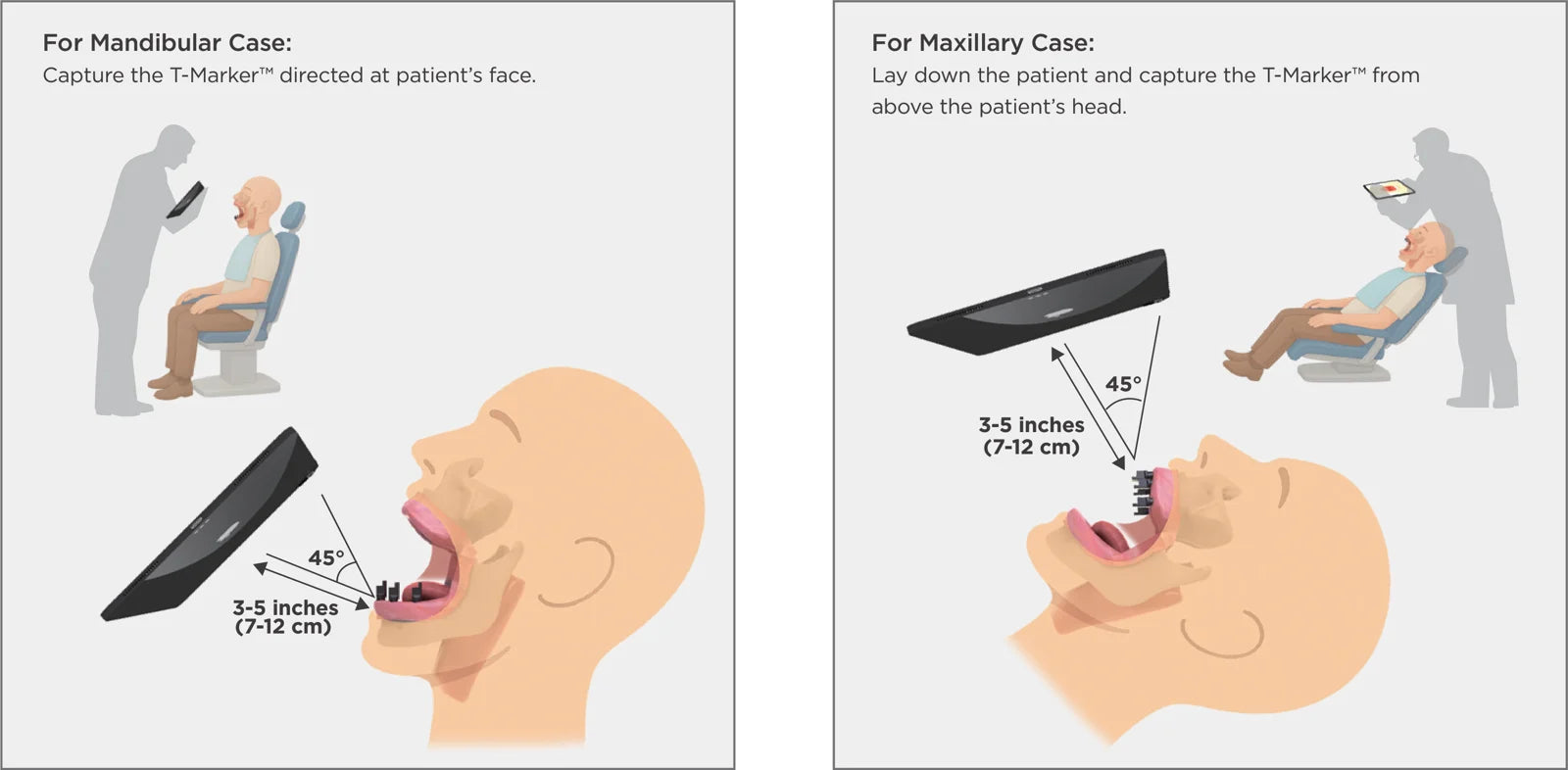

Hold at 45°, 3–5 in away
Lower arch: capture from in front of the patient. Upper arch: recline the patient and capture from above the head. Swing about 10° left and right until every marker shows DONE.
-
03
Export the STL

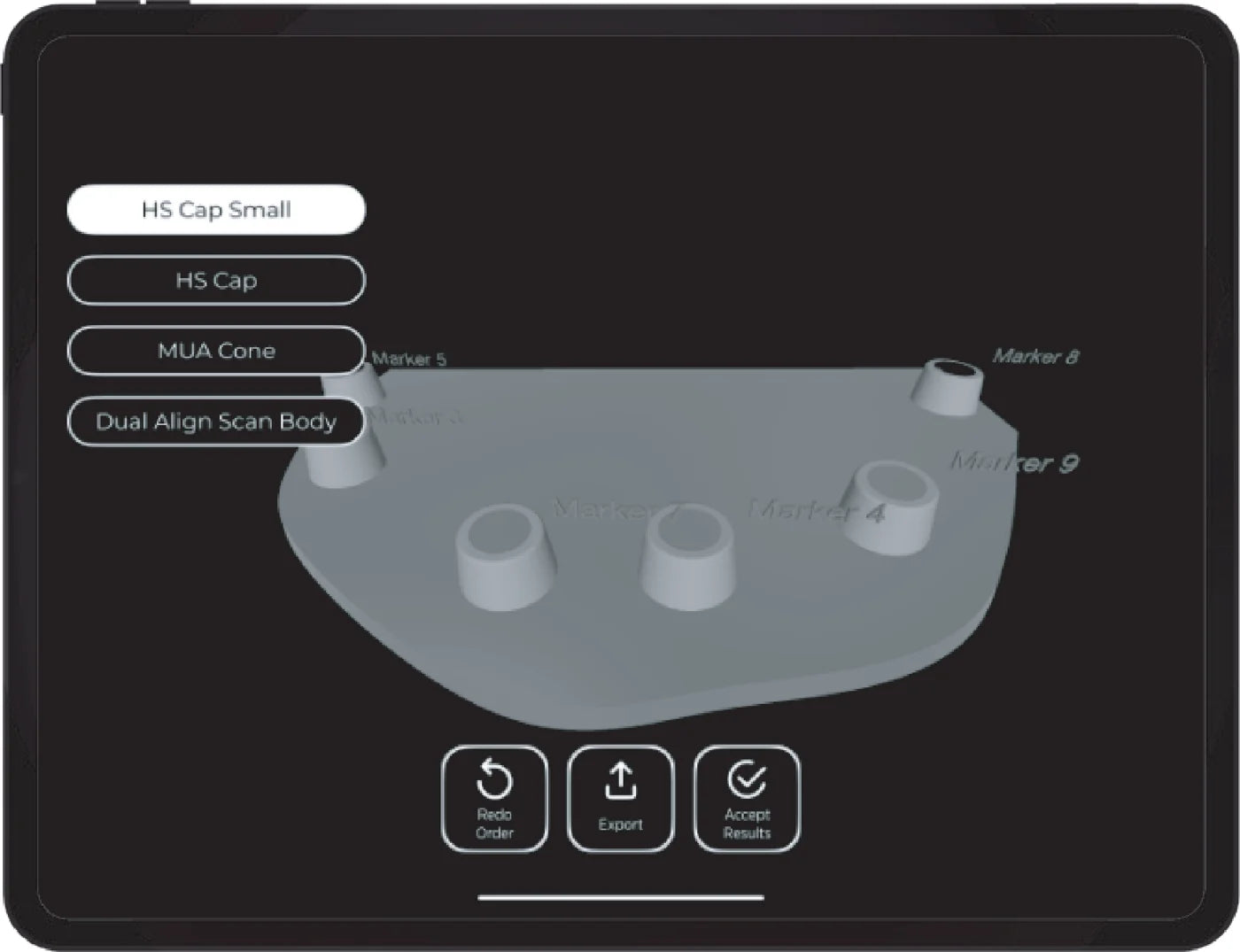

Pick HS Cap Small, HS Cap, MUA Cone or Dual Align Scan Body, then send the STL by email or AirDrop, or keep the case in the app.
Choose your kit.
Pick the kit that matches the MUA connection you restore.

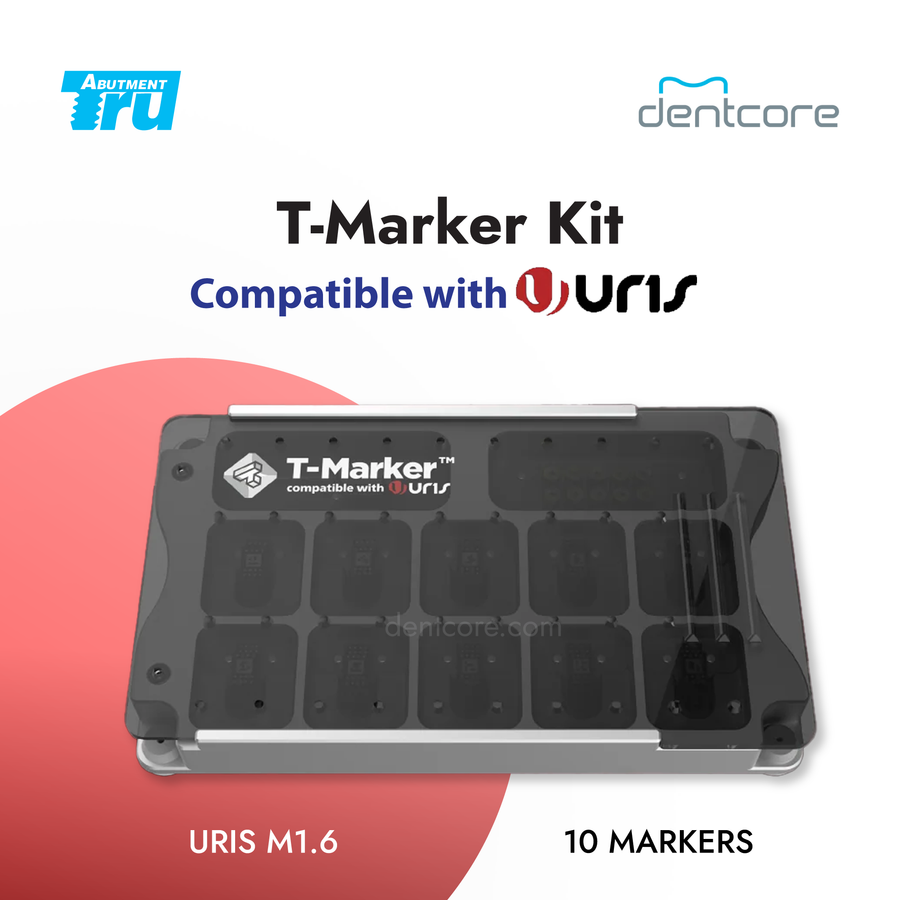

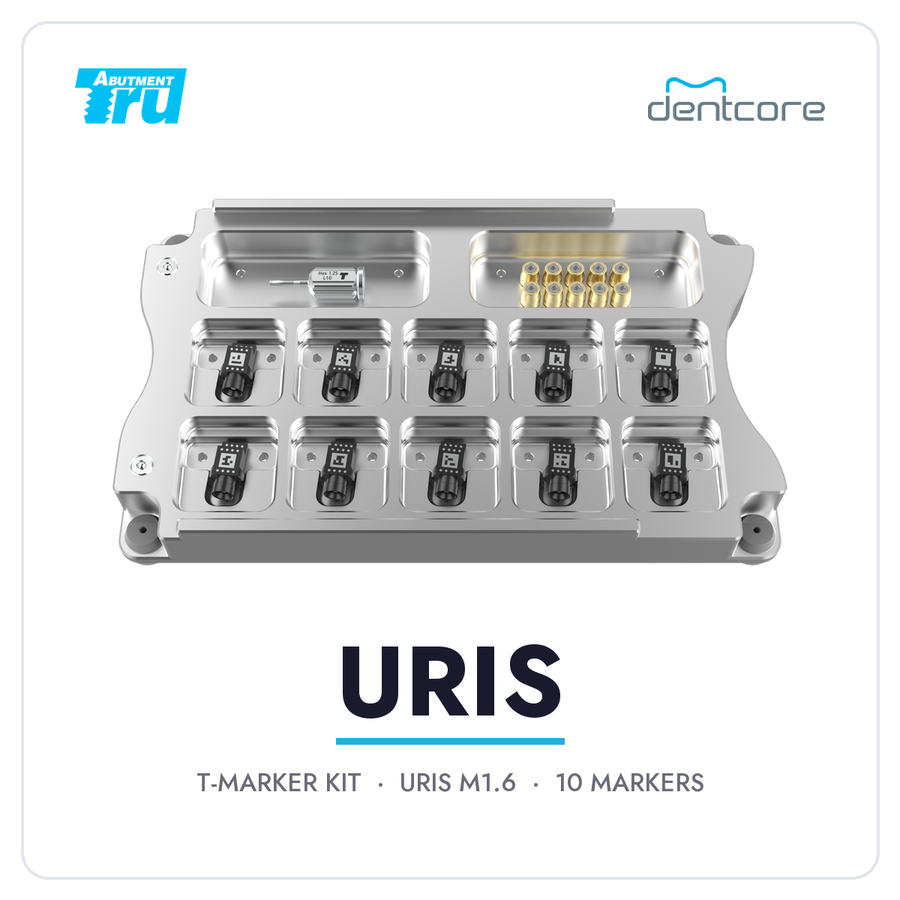

URIS kit
URIS (M1.6) · MIS · Ritter
10 T-Markers · 10 HS Cap Small · Hex 1.25 screwdriver
$3,000 USD
Shop URIS

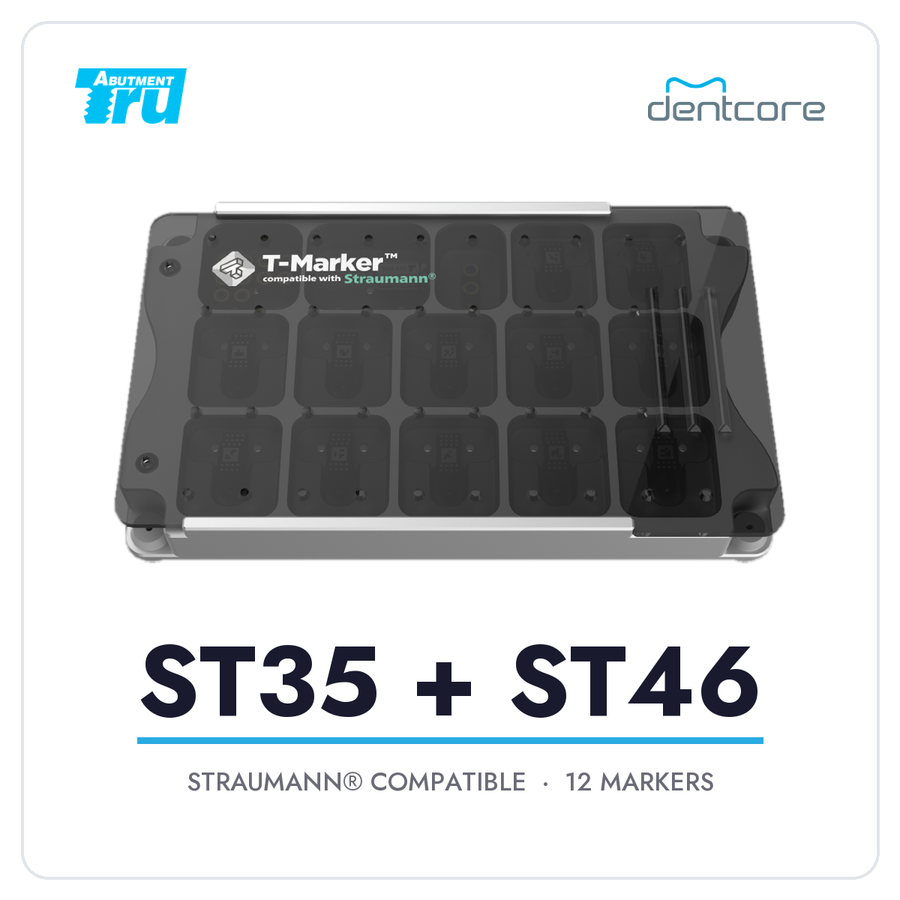

Straumann® kit
ST35 + ST46 platforms
12 T-Markers · 12 HS Cap Small · Torx screwdriver
$4,000 USD
Shop Straumann®iPad / iPhone and the T-Marker app plan are not included.
Works with the device you already carry.
T-Marker runs on an iPad Pro (2024 or newer) or an iPhone 15 Pro and newer Pro / Pro Max. The app is on the Apple App Store. Android is not supported.
Each marker carries its own code. If one goes missing, order the same number to replace it.
Compatibility
From TruAbutment's compatibility chart. Match the MUA connection, not just the implant brand.
AOT · All-on-T M1.4
ACH Medical, Adin, AlphaBio, BioHorizons, Biomet 3i, Camlog, Dentsply Sirona, DENTIS, DESS, ETK Tetra, Hiossen, J Dental Care, Medentis Medical, Medentika, MegaGen, Meisinger, NeoBiotech, Neodent, Nobel Biocare, S.I.N. Implant, Southern Implants, Sweden & Martina, Thommen Medical, ZimVie
URIS · M1.6
URIS, MIS, Ritter
Straumann® · ST35 + ST46
2 ST35 markers and 10 ST46 markers, each with matching HS Caps.
T-Marker app plans
Unlimited STL exports on every plan. Plans are activated in the T-Marker app and are separate from the kit.
Monthly
$99per month6 months
$499$83.17 per month12 months
$899$74.92 per monthFrequently asked questions
Which kit do I need?
Choose by MUA connection: AOT for All-on-T (M1.4), URIS for M1.6, and the Straumann® kit for ST35 / ST46. Not sure? Call 844-292-8023 or email info@dentcore.com with your MUA brand and platform and we will check it before you order.
How many markers do I need per scan?
At least three. The app does not recognize fewer than three, and it tracks up to ten at the same time.
Is an iPad or iPhone included?
No. Use your own iPad Pro (2024 or newer) or iPhone 15 Pro or newer Pro / Pro Max.
Is the app plan included?
No. Plans start at $99 a month and include unlimited STL exports.
How do I clean the markers?
Use an approved enzymatic cleaner: Ruhof Endozime AW Plus with A.P.A., Metrex EMPOWER® Fragrance Free or Dr. Schumacher PLURAZYME™ EXTRA. Oxidizers, strong alkalis above pH 9 and chelating agents such as EDTA can discolor the black anodized finish. Steam sterilize at 132 °C for at least 4 minutes with 20 minutes drying.
What if I lose a marker?
Each marker has its own code, so a replacement must carry the same number. Single markers are available.
Ready for photogrammetry on iPad?
T-Marker™ is a trademark of TruAbutment Inc. Straumann®, Apple®, iPad® and iPhone® are trademarks of their owners. Brand names show compatibility only.
