Order Now. Ceramix-Nano is Shining 3D Dental?s compact capsule 3D printer for chairside permanent restoration workflows. It combines capsule-based printing and built-in curing in a small clinical footprint, so a practice can plan scanning, AI design, printing, and curing around one focused system instead of a multi-device resin workflow.
Workflow focus
Designed for dental teams building a same-appointment restoration workflow around Ceramix-Nano and LumiCera CB200 capsule resin.

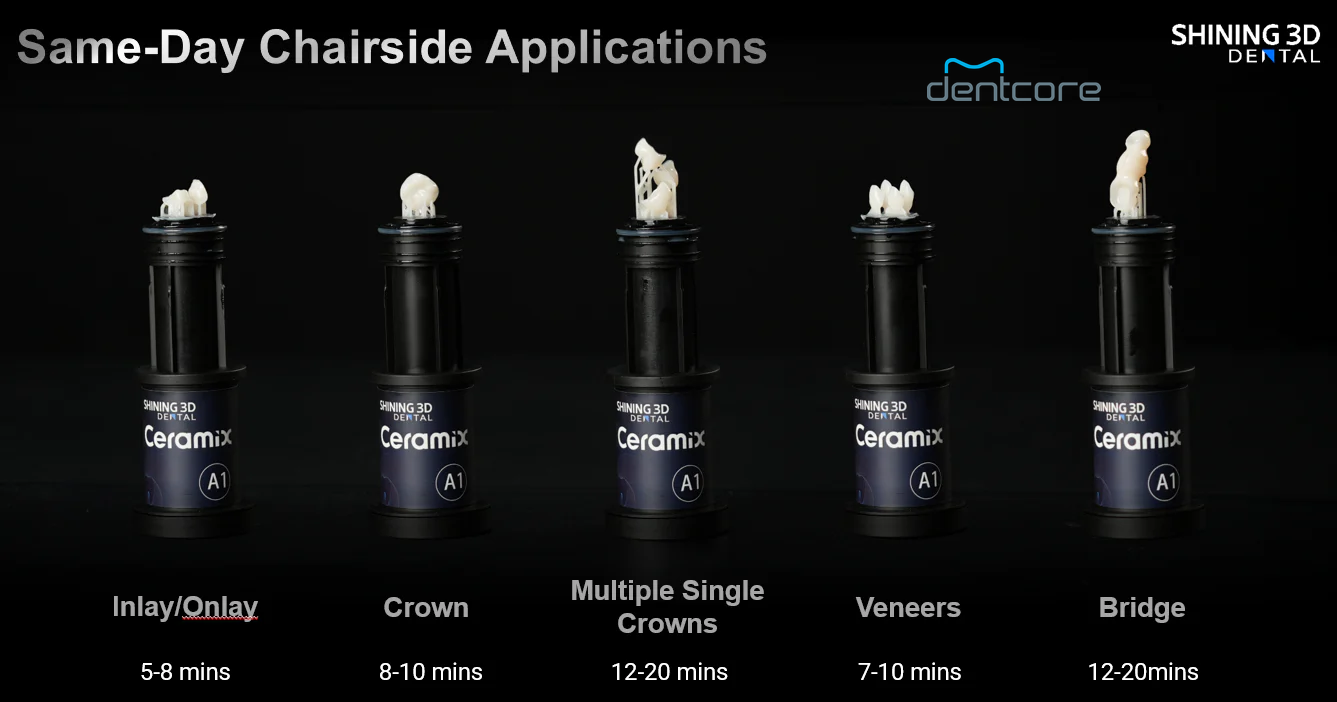

- Clinical applications include crowns, veneers, inlays, onlays, and bridges up to 3 units.
- A single-crown print cycle is positioned by Shining 3D at about 8-11 minutes, followed by on-machine curing up to 3 minutes.
- The workflow connects intraoral scanning, cloud-based AI crown design, nesting, slicing, capsule loading, printing, and curing.
Technology highlights
- APS: Adaptive Pneumatic Stereolithography, developed for high-viscosity ceramic-filled capsule material handling.
- DLP optical engine with 405 nm wavelength and 50 um XY resolution.
- Integrated curing module with a compact 87 x 131 x 276 mm hardware footprint and approximately 2 kg device weight.
- Power-bank compatible operation for flexible placement when a compatible high-output power bank is used.
Included launch package
- Ceramix-Nano 3D printer.

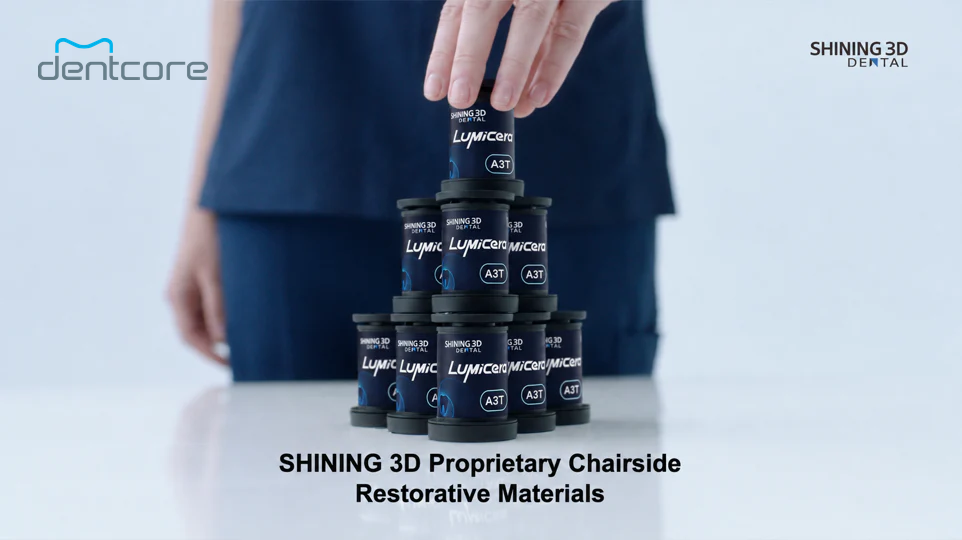

- One box of A2 LumiCera CB200 capsules.
- 50 AI Crown Design credits redeemed through the Shining 3D Dental Cloud using the device serial number.
- Standard one-year hardware warranty from the manufacturer.
Plan with Dentcore
Dentcore can help confirm resin shade planning, add-ons, training path, warranty options, and AI design credit needs before fulfillment.
Download Ceramix-Nano brochure PDF
